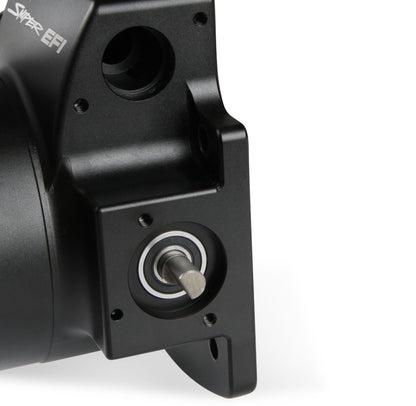

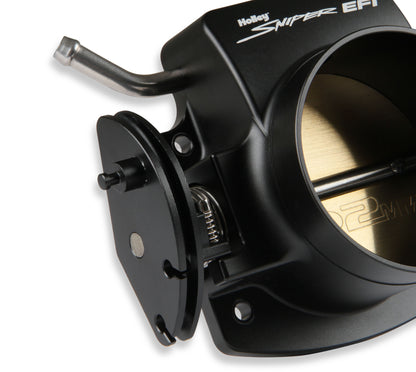

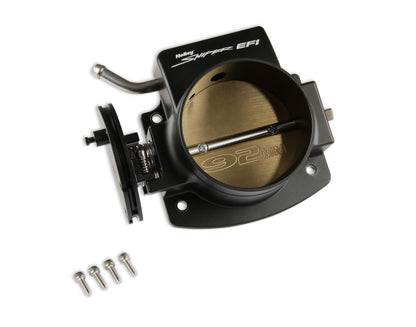

Sniper EFI Throttle Body

Sniper EFI's new 92mm and 102mm billet aluminum LS throttle bodies give you a great way to improve engine performance without breaking the bank. Don't let the low price fool you, these are feature packed throttle bodies available in both bright silver or black anodized finishes. The enlarged bore sizes allow for increased airflow to support your higher horsepower needs, a progressive throttle pulley enhances low speed drivability and a double return spring provides solid and secure throttle control feel.

Features:

• Cable operated throttle body available in 92mm or 102mm openings
• Enlarged bore allows increased airflow to support higher horsepower requirements
• Works great with Sniper EFI intake manifolds
• High quality billet aluminum construction
• Choice of bright silver or black anodized finish
• Laser engraved Sniper EFI logo
• Progressive throttle pulley and double return spring
• Adjustable throttle stop
• 4-bolt style mounting pattern, bolts included

Specs:

• Billet Color: Black
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Emission Code: 8
• Engine: GM Gen III/IV (LS)
• Fuel Injectors Included: No
• Gasket Or Seal Included: No
• IAC hardware specs: (2) 8-32 UNC
• Idle Air Control Motor Included: No
• Material: Billet Aluminum
• Mounting Hardware Included: Yes
• Part Type: Fuel Injection Throttle Body
• Product Type: Throttle Body
• Sub Category: Fuel Injection System and Related Components
• Throttle Bore: 92mm
• Throttle Diameter (mm): 92mm
• TPS hardware specs: (2) M4 x 0.7
• Transmission: N/A
• Warranty: Limited 90 Day

Tech Resources:

Will need to use 543-34 for IAC sensor and 870001 for TPS sensor listed under Parts & Kits tab.



IAC motor attaching hardware : requires (2) 8-32 UNC screws

TPS sensor attaching hardware: requires (2) M4 x 0.7 screws

Instructions - 199r11409.pdf
