Holley Sniper EFI - Sniper EFI Fuel Tank System 400 LPH 19-413
Type: Fuel Tank

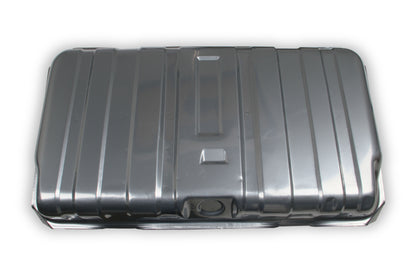

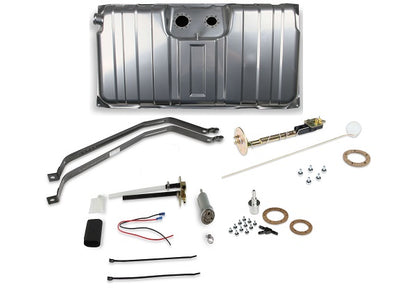

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. Each tank is a direct fit for your application-no modifications necessary. The kit includes the tank, a 400 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!
***Steel filler neck is not included. You must use your existing stock filler neck or purchase one through restoration suppliers.
Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
Size is: 34-1/4" x 18-7/8" x 8-3/4"

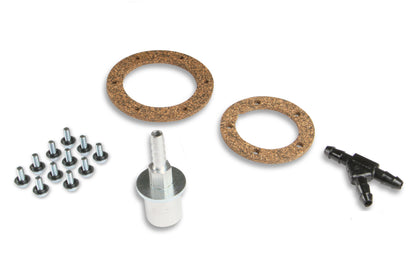

For a better seal use Permatex Indian
Head Gasket Shellac Compound or
Aviation Form-A-Gasket sealant on the
gasket and screws.
Ā
Features:

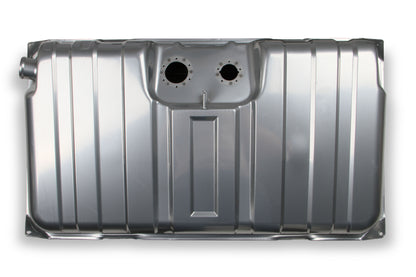

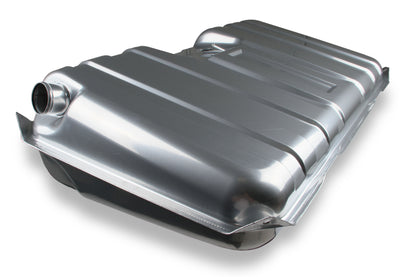

- Tanks are coated galvanized steel then powder coated silver for total corrosion protection

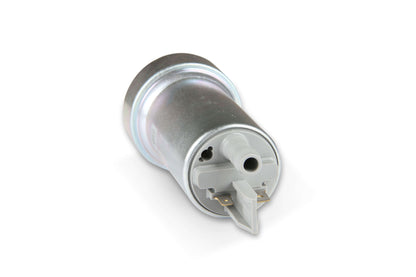

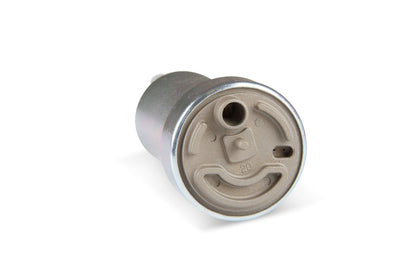

- 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

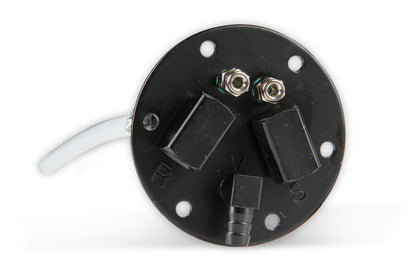

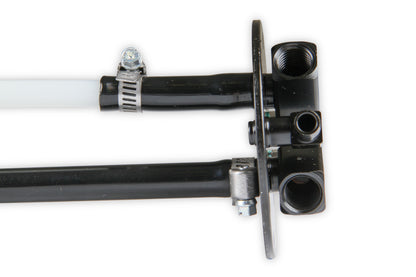

- Sender has Ā¼ā NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

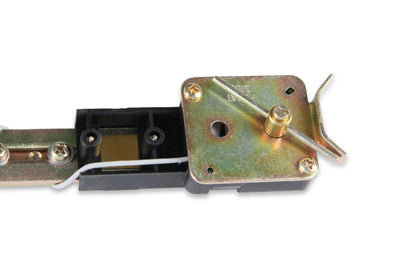

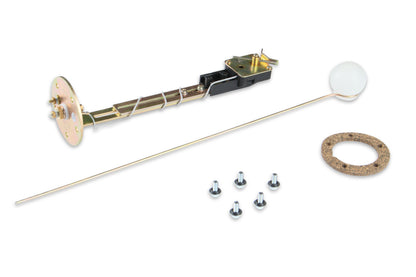

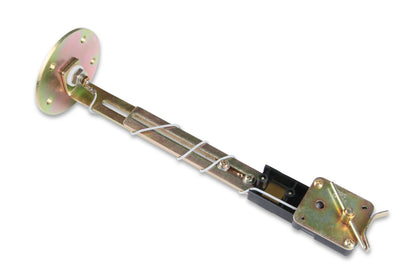

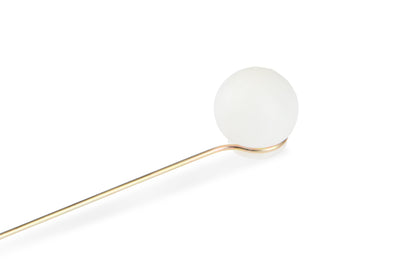

- Fuel level sender included with the correct Ohm range for your factory gauges
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fits and looks like an OE tank when installed
- Sender has Ā¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Complete bolt in solution for your EFI conversion

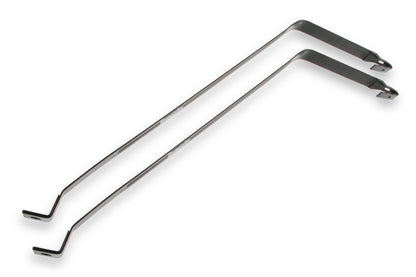

- Includes new tank straps
Specs:
- Application: 1966-1967 Chevy II/Nova
- Attached Sump: Yes
- Baffled Sump: Yes
- Brand: Holley Sniper EFI
- Category: Air and Fuel Delivery
- Color: Silver
- Drain Plug: No
- Emission Code: 3
- Filler Neck Attached: No
- Finish: Powdercoated
- Free Flow LPH: 400
- Fuel Sending Unit Ohms: 0-30 Ohms
- Fuel System Compatibility: Electronic Fuel Injection
- Fuel System Type: Gasoline
- Fuel Tank Coating: Powder Coated
- Gallon Capacity: 16
- Grade Type: Performance
- Lock Ring Included: Yes
- Material: Steel
- Maximum Flow Rating: 400 LPH
- Mounting Straps Included: Yes
- New Straps Included: Yes
- O-Ring Included: Yes
- Part Type: Fuel Tank and Pump Assembly Combination
- Product Type: Fuel Tank
- Resistance Ohms Empty: 0 82
- Resistance Ohms Full: 30 82
- Sending Unit Included: Yes
- Sub Category: Fuel Pumps and Related Components
- Tank Capacity: 16 GA
- Tank Color: Gray
- Tank Material: Steel
- Warranty: Limited 90 Day
Ā
Tech Resources:
Will not fit 9 passenger wagon with the third seat in the back, it has a different tank and filler is on the opposite side.
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
