Holley Sniper EFI - Sniper EFI Fuel Tank System 255 LPH 19-184
Type: Fuel Tank

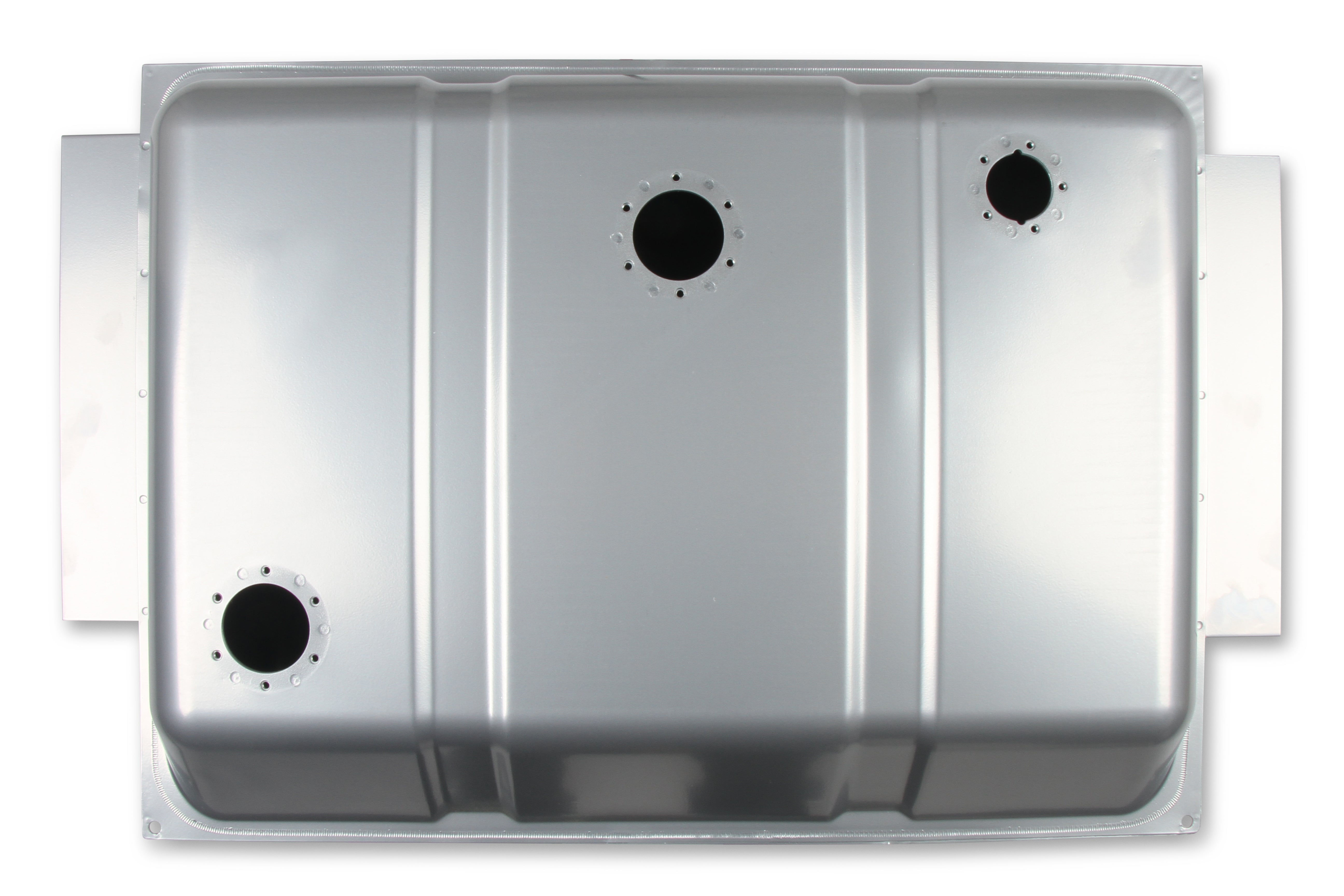

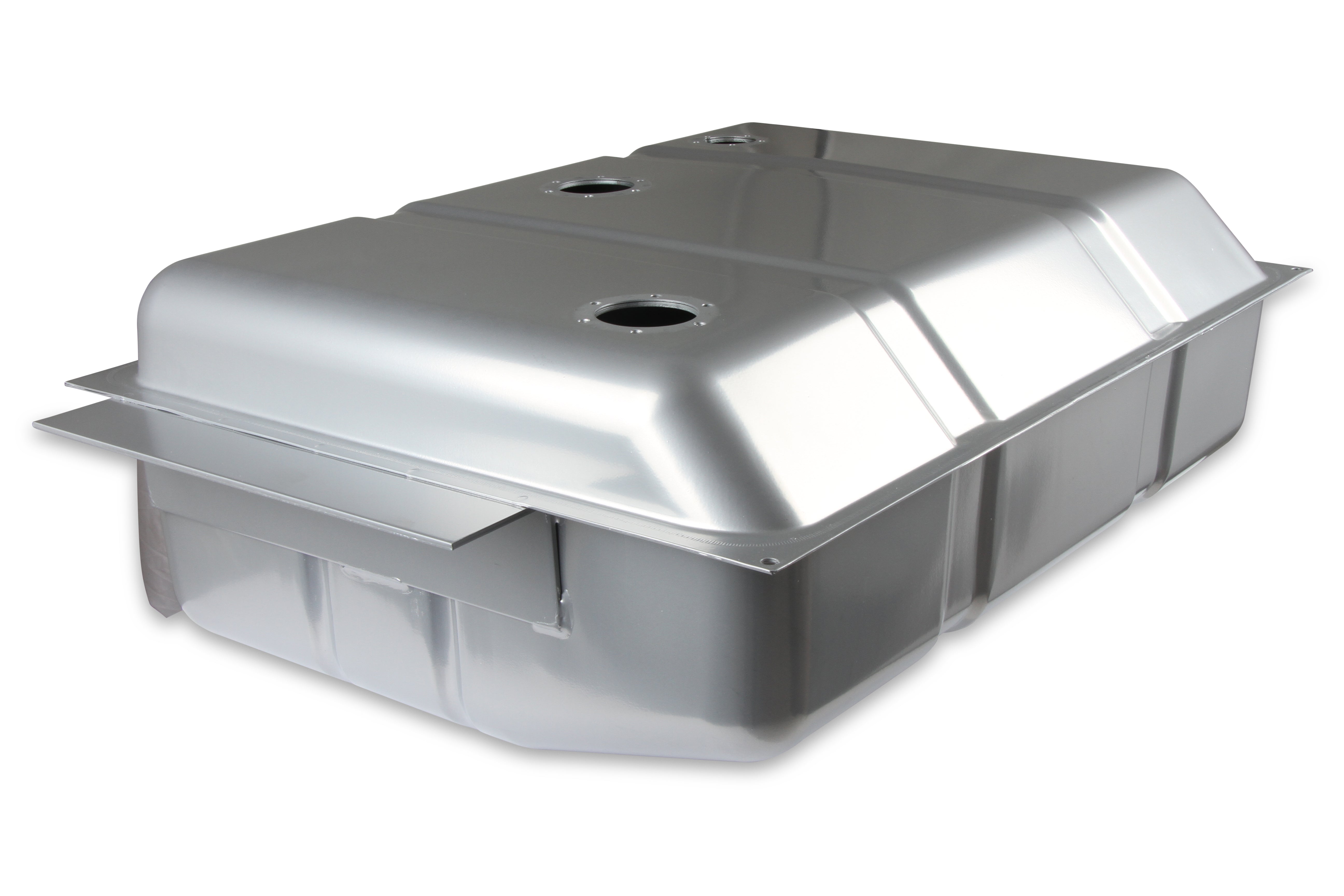

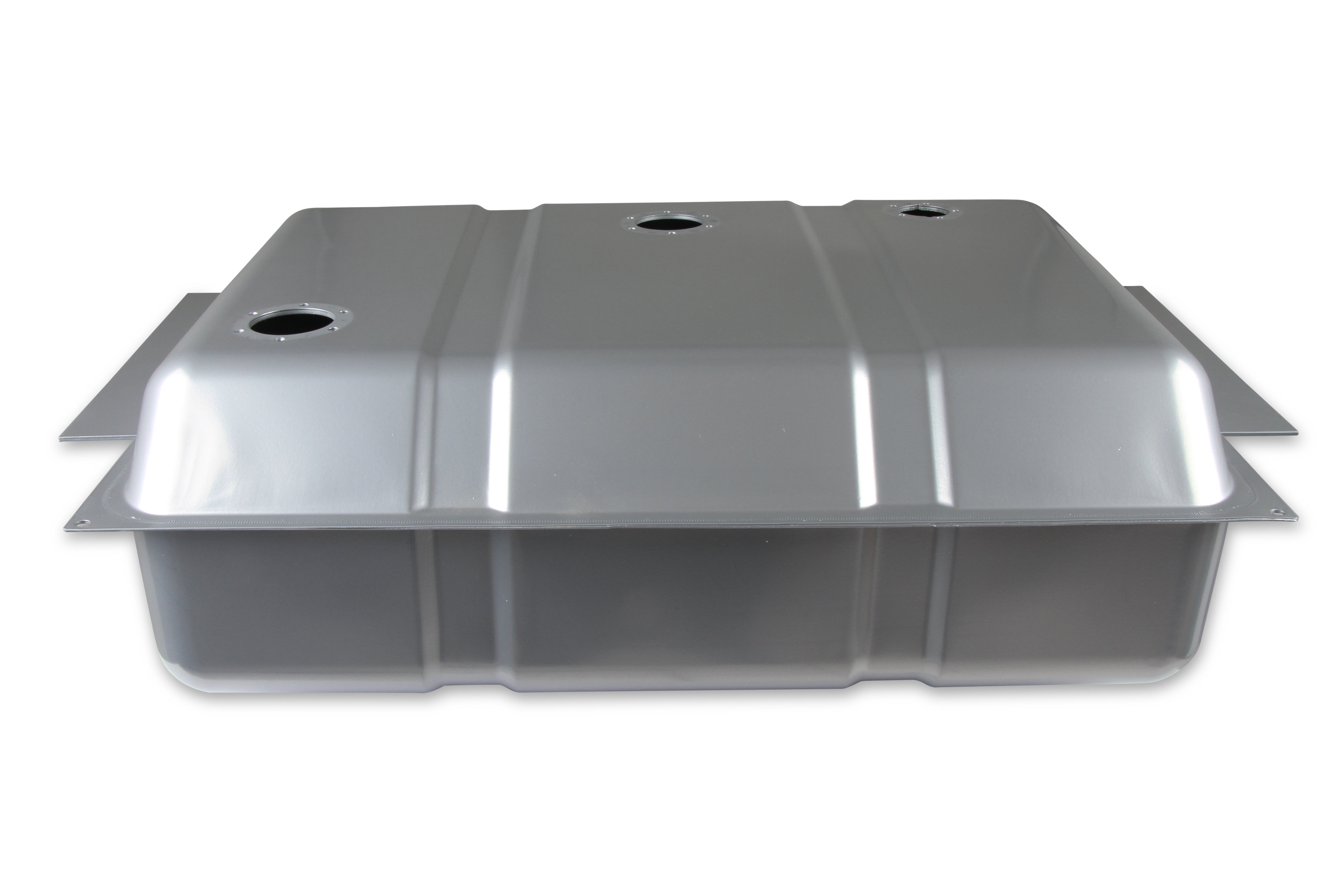

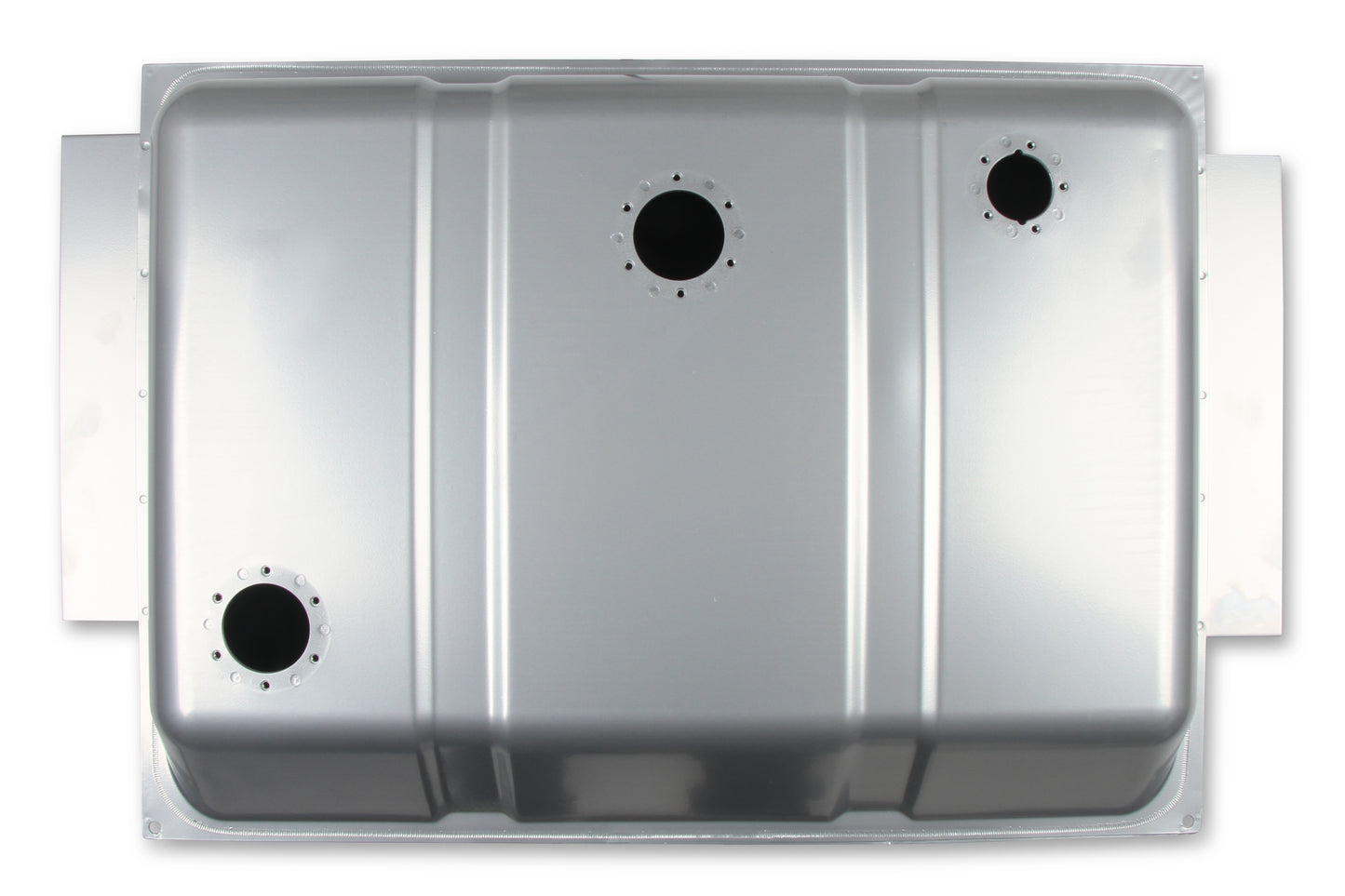

The 19-184 fuel system kit is designed for the 1963-66 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included.
The fuel filler neck will go up through the bed floor. You can purchase the optional 19-186 Side Fill Kit to mount fuel filler on the bedside.

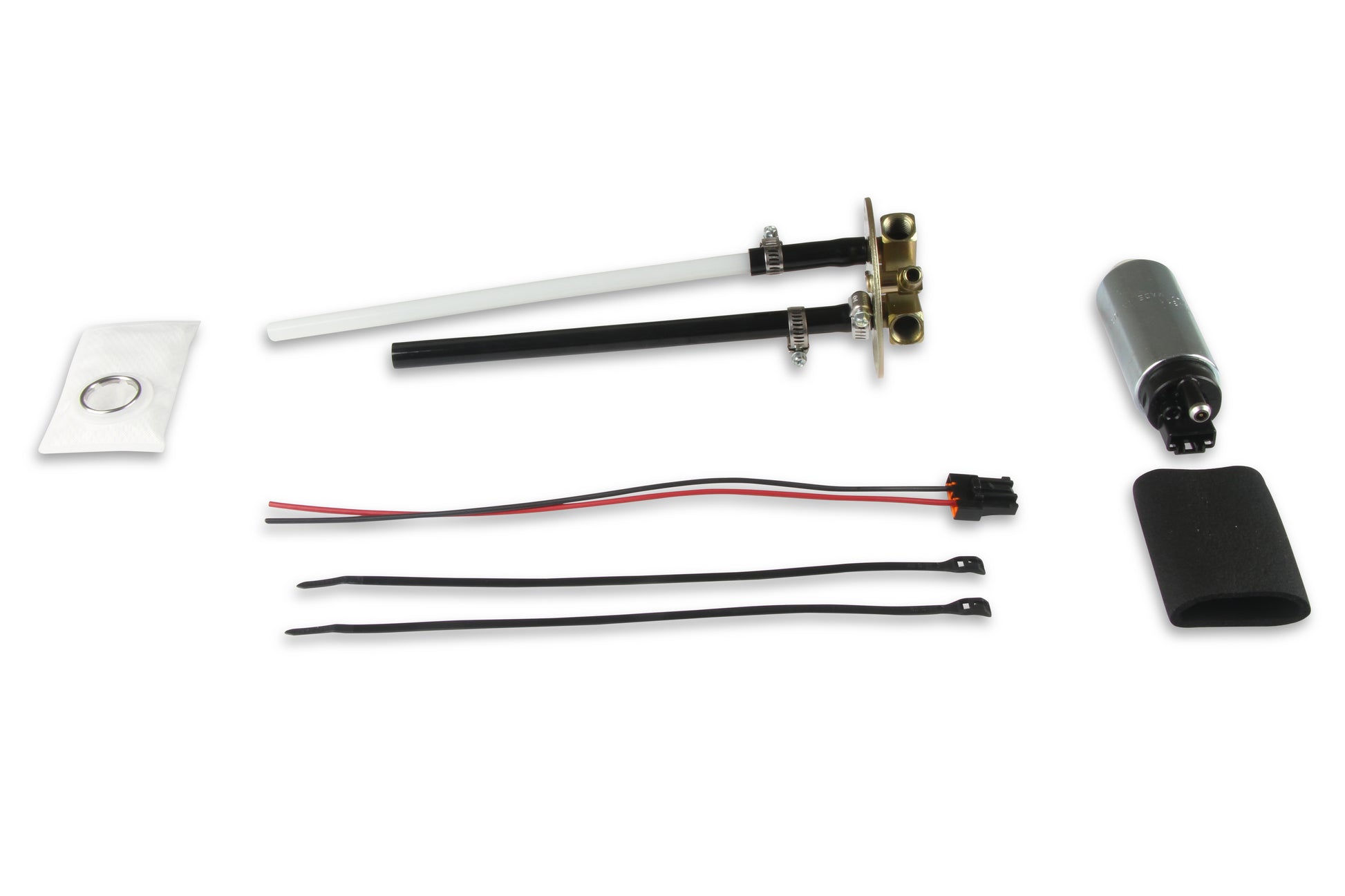

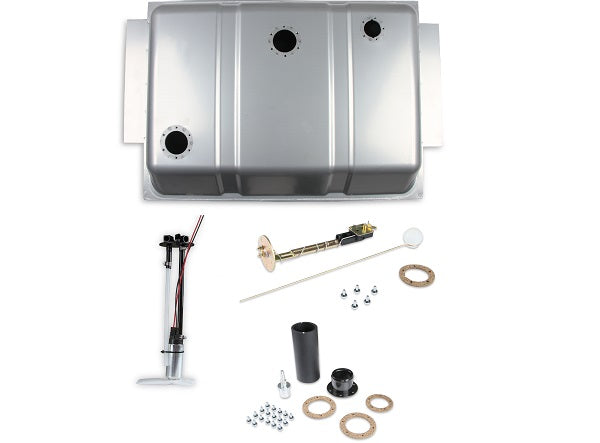

The kit includes the tank, a 255 lph fuel pump, internal baffling, and a fuel level sender. The tank is powder coated for corrosion resistance and great looks.
18 gallon capacity.
Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).
Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange).
Size is 28" x 20-1/2" x 9-3/4" (measured without the mounting flange).
Features:
- Tanks are coated galvanized steel then powder coated silver for total corrosion protection

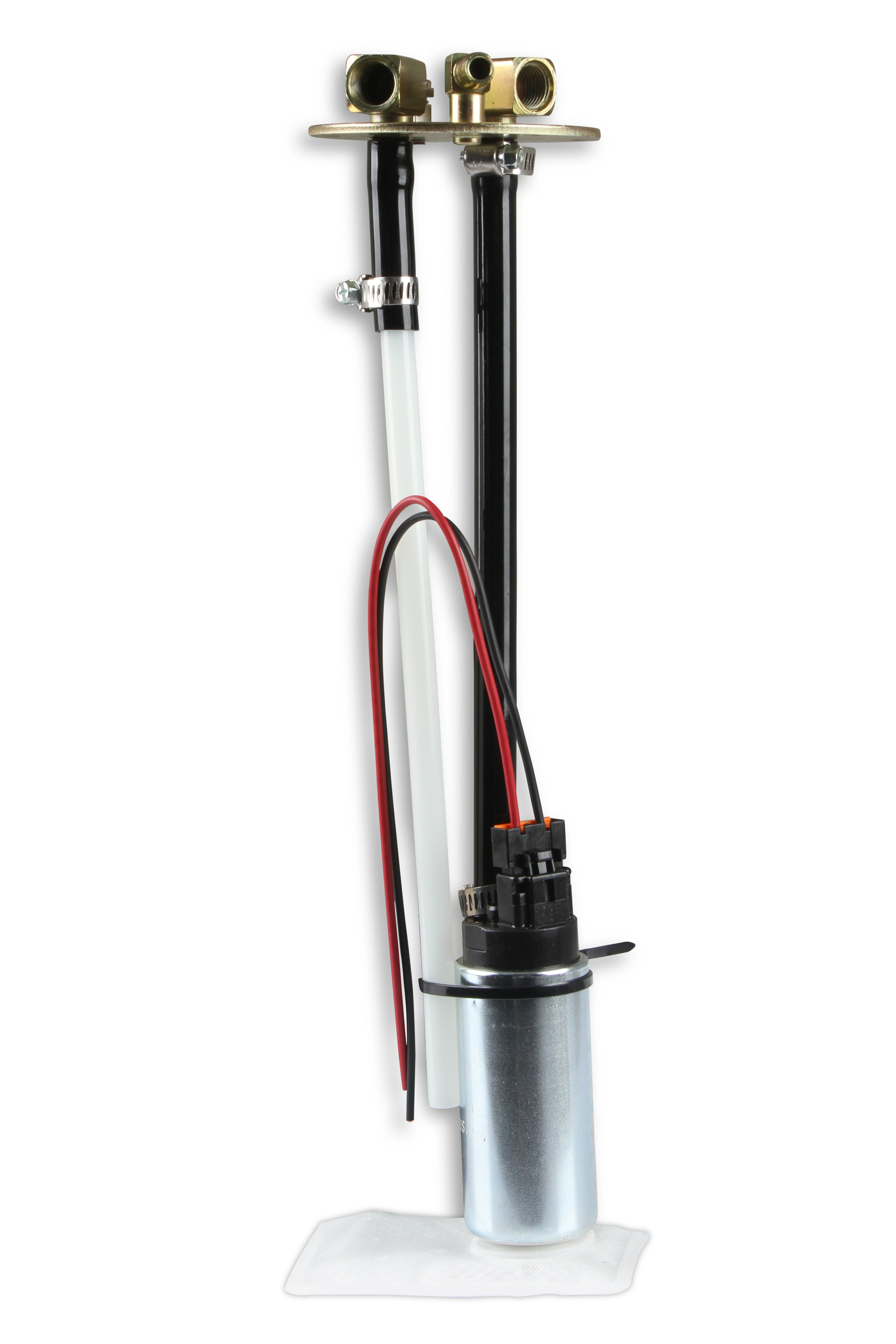

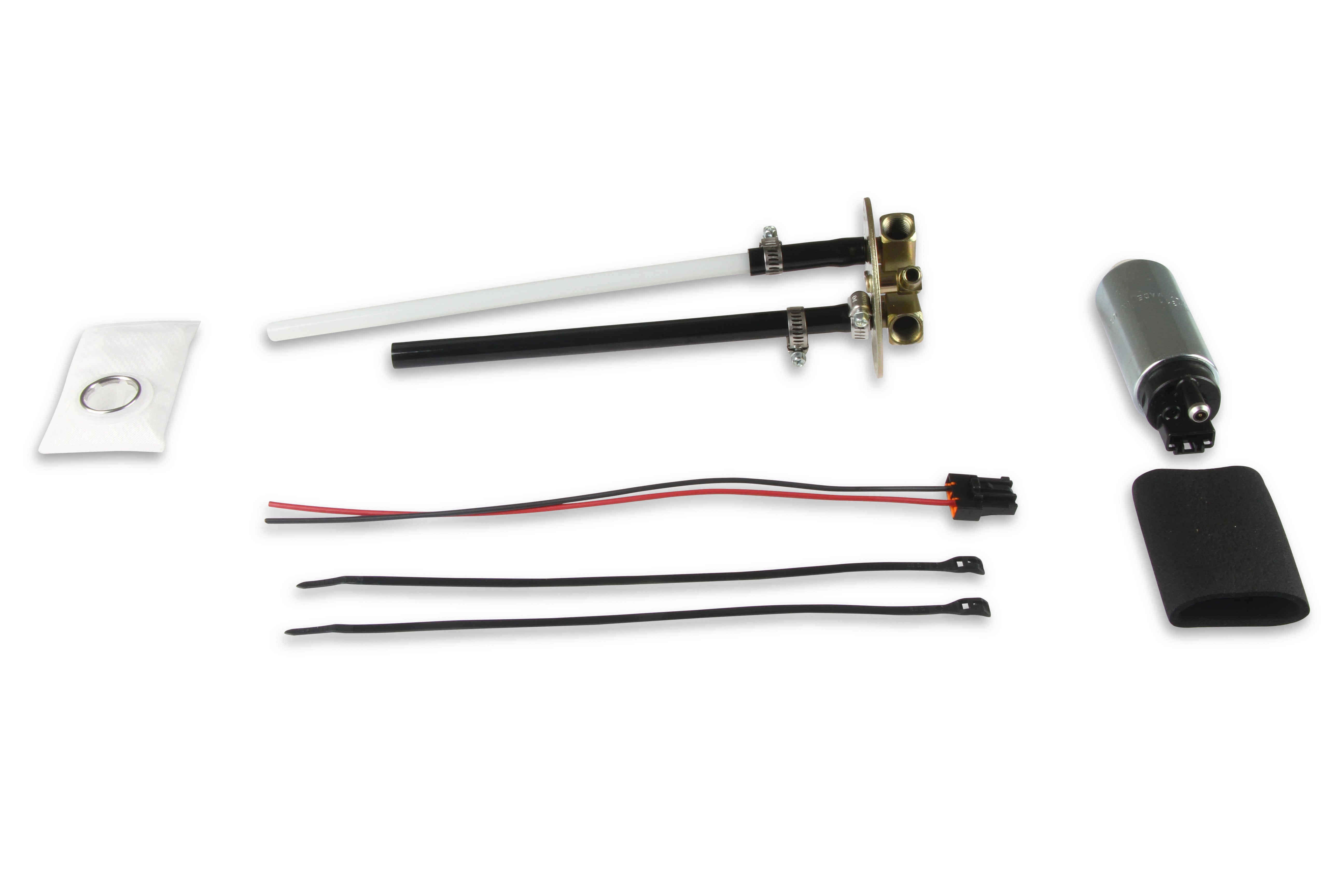

- 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
- Sender has ΒΌβ NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

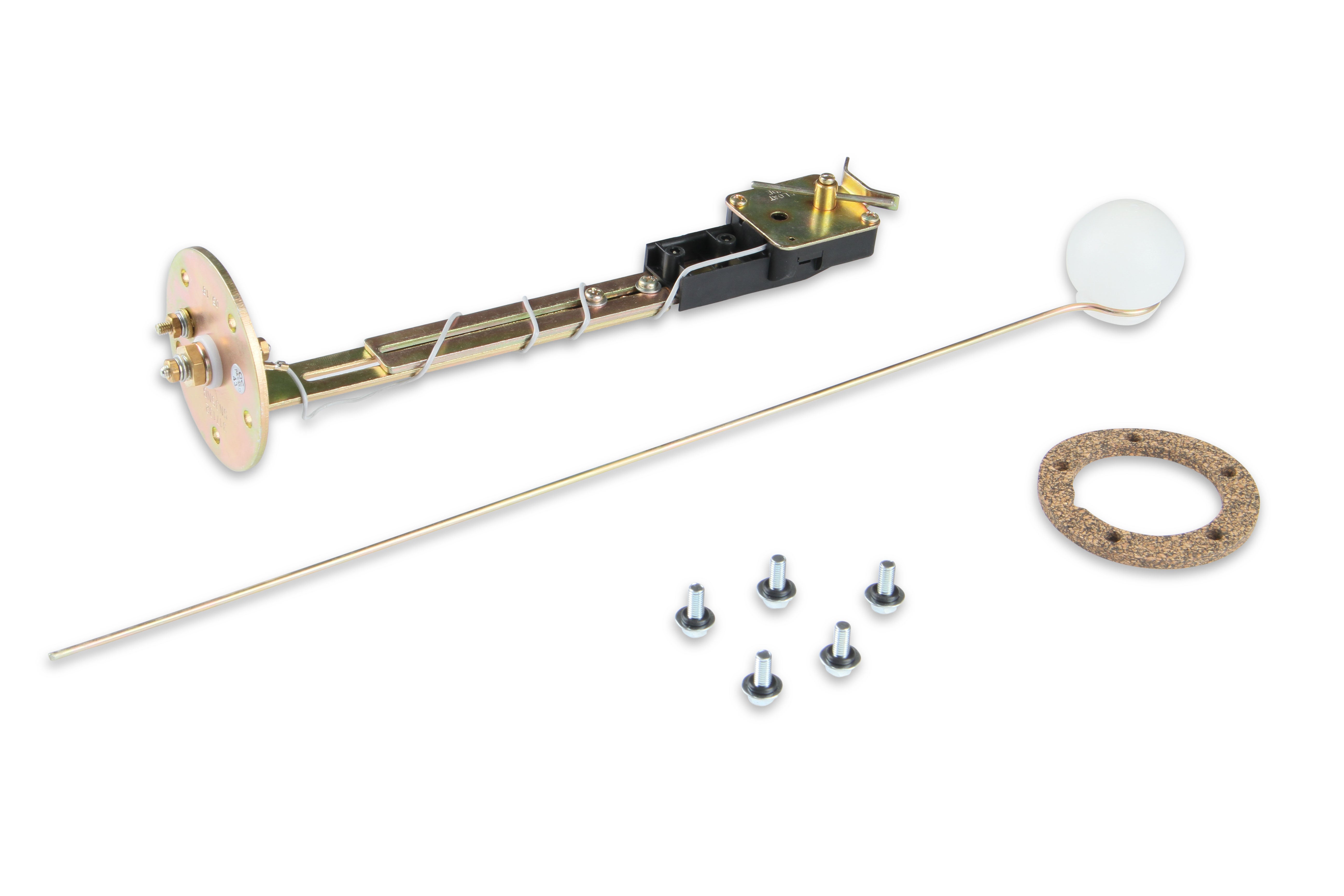

- Fuel level sender included with the correct Ohm range for your factory gauges
Specs:
- Application: 1963-1966 GM C10 Trucks Gen-V LT Swap, 1963-1966 GM C10 Trucks LS Swap
- Attached Sump: Yes
- Baffled Sump: Yes
- Brand: Holley Sniper EFI
- Category: Air and Fuel Delivery
- Choose Your Part: Fuel Tank
- Color: Silver
- Drain Plug: No
- Emission Code: 3
- Filler Neck Attached: No
- Finish: Powdercoated
- Free Flow LPH: 255
- Fuel Sending Unit Ohms: 0-30 Ohms
- Fuel System Compatibility: Electronic Fuel Injection
- Fuel System Type: Gasoline
- Fuel Tank Coating: Powder Coated
- Gallon Capacity: 18
- Grade Type: Performance
- Lock Ring Included: No
- Material: Steel
- Maximum Flow Rating: 255 LPH
- Mounting Straps Included: No
- New Straps Included: Yes
- O-Ring Included: Yes
- Part Type: Fuel Tank and Pump Assembly Combination
- Product Type: Fuel Tank
- Resistance Ohms Empty: 0 82
- Resistance Ohms Full: 30 82
- Sending Unit Included: Yes
- Sub Category: Fuel Pumps and Related Components
- Tank Capacity: 18 GA
- Tank Color: Gray
- Tank Material: Steel
- Warranty: Limited 90 Day
Tech Resources:
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
