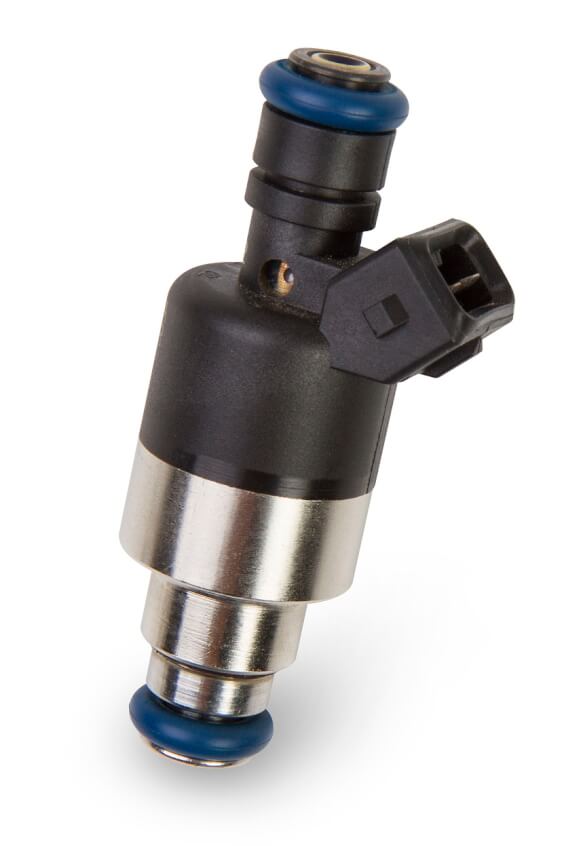

Holley Terminator X Fuel Injector - Individual
Type: Fuel Injector
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb/hr flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
Features:
- Bosch/EV1 style performance injector - Individual
- High impedance for use with saturated drivers
- Rated injector flow: 42 lb/hr @ 43 PSI
- Tri-cone spray pattern
Specs:

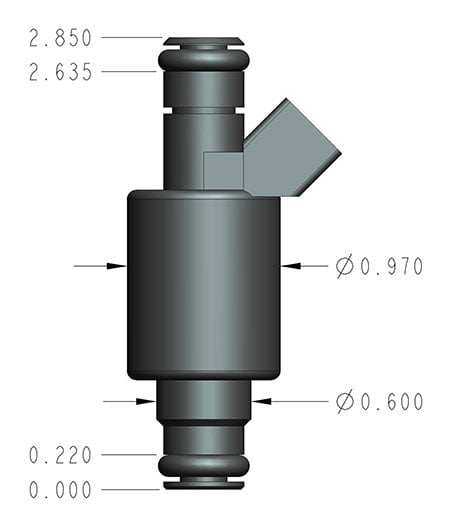

- Body Diameter: 0.97
- Body Length: 2.85"
- Body Style: EV1
- Brand: Holley EFI
- Category: Air and Fuel Delivery
- Color: Black

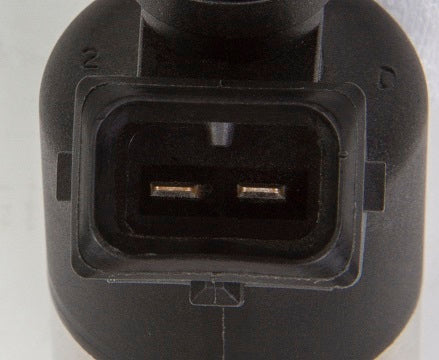

- Connector Series: EV1 - Jetronic - (Bosch Style)
- Connector Shape: EV1 - Jetronic - (Bosch Style)
- Emission Code: 3
- Flow Rate: 42 4U
- Fuel Injection Type: Port
- Fuel Type: E-85, Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: High
- Mounting Hardware Included: No
- O-Ring Quantity: 2 per injector
- O-Ring to O-Ring: 2.415"
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Rated Injector Flow: 42 lb/hr
- Retainer Clips Included: No
- Sub Category: Fuel Injection System and Related Components
- Terminal Gender: Female
Tech Resources:
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
