Holley EFI - Holley Single Plane EFI Intake - GM LS3/L92 300-136
Type: Intake Manifold | Fits: GM

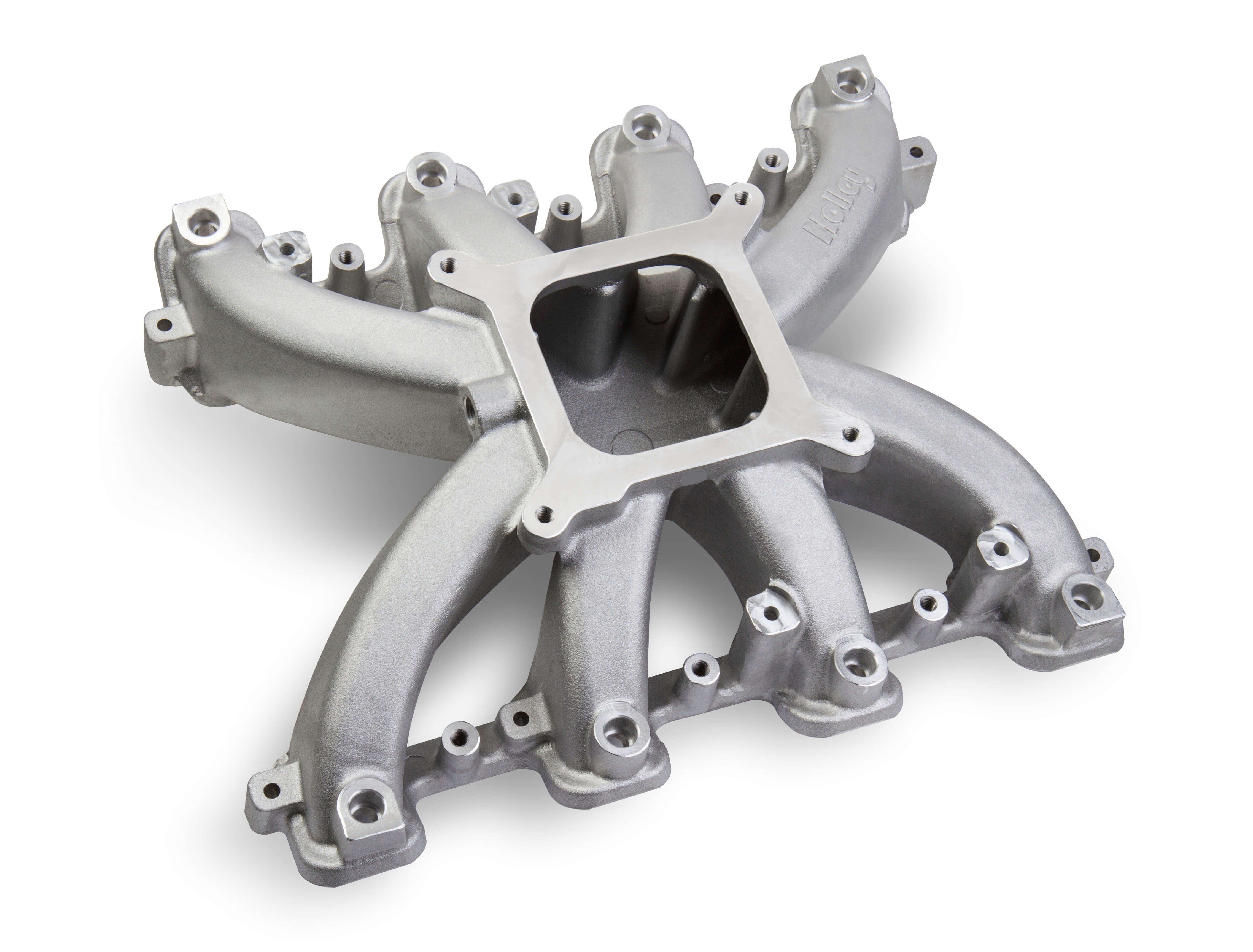

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads
Features:
- 2500-7000 RPM power band
- 4150 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.

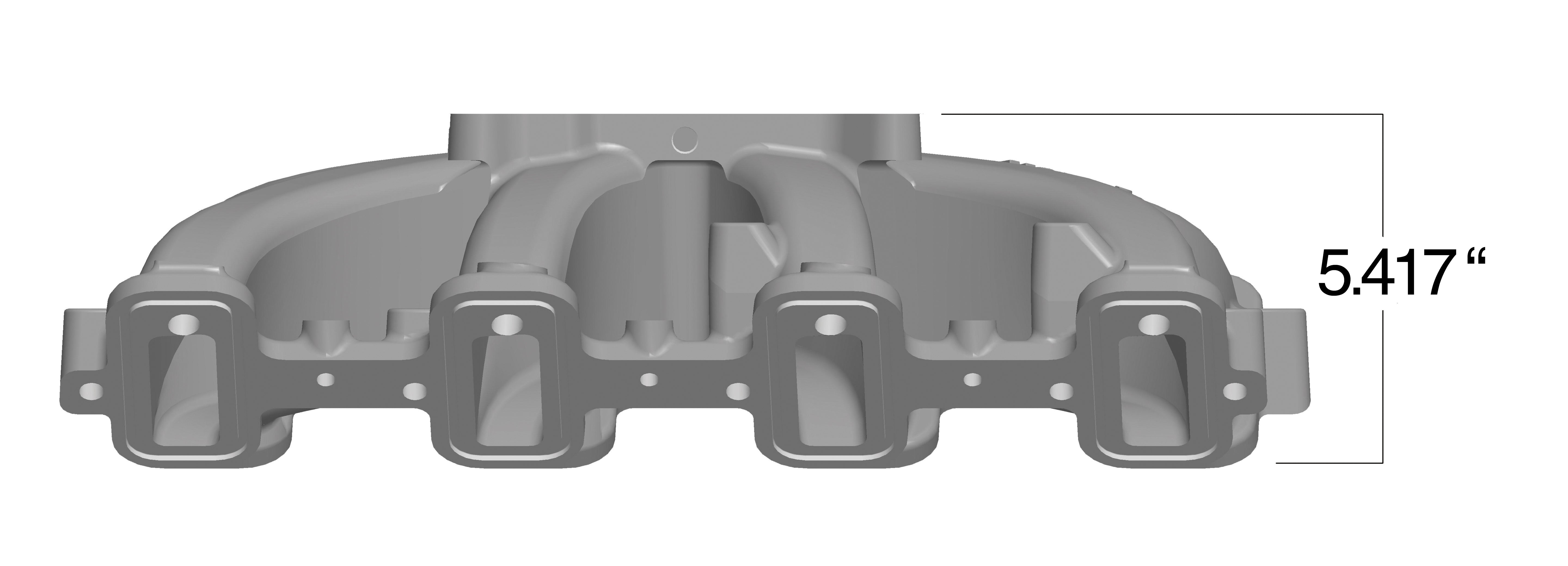

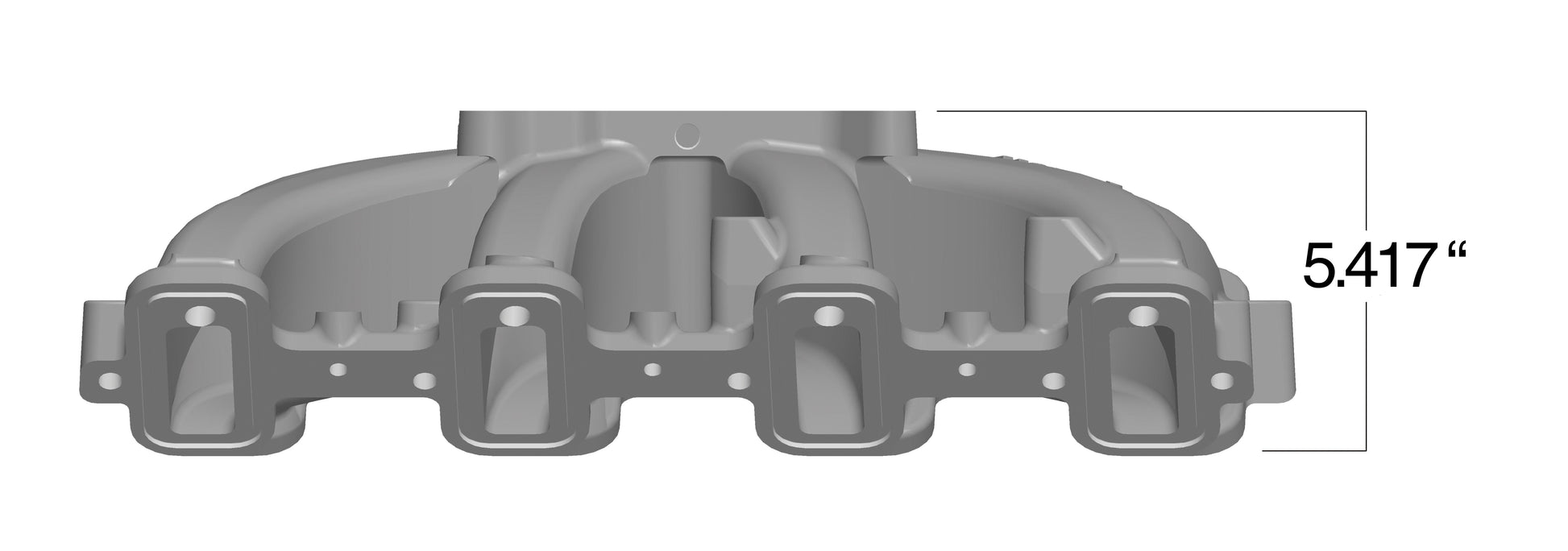

- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
- Port size - 2.50" height x 1.15" wide
- Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
- This manifold will not work with factory fuel rails and requires the use of Holley Fuel Rail Kit 534-218
Specs:
- Basic Operating RPM Range: 2500-7000 RPM
- Brand: Holley EFI
- Carburetor Flange: Square/4150
- Category: Engine
- Color: Silver
- Construction: Cast
- EGR Port: No
- Emission Code: 3
- Engine: GM LS3/L92
- Finish: Silver
- Flange Style: 4150 Square Bore
- Front Height: 5.417 inch
- Front Maximum Height: 5.417 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Single Plane
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold
- Rear Height: 5.417 inch
- Rear Maximum Height: 5.417 IN
- Recommended Use: Forced Induction
- Removable Runners: No
- RPM Power Band: 2500-7000 RPM
- Single Or Dual Plane Type: Single Plane
- Sub Category: Cylinder Block Components
- Throttle Body Included: No
- Warranty: Limited 90 Day
Tech Resources:
Includes mounting bolts & washers Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal. This manifold will not work with factory fuel rails and requires the use of Holley Fuel Rail Kit 534-218.
NOTE: The EFI versions of the LS HI-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors. OE LS fuel injectors may not fit properly in the Hi-Ram EFI intake manifold fuel rail assembly. There is a kit available separately for the LS7 Hi-Ram EFI to allow the use of stock LS7 fuel injectors, P/N 300-230 (see below in the service parts section).
