Holley EFI Terminator X Universal MPFI Kit

Take control of your engine with Terminator X. Don't settle for a factory ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price.

Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common V8 engine combinations to get you out of the garage and on the road/track fast.

The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank.

Features:

• Plug and play Domestic V8 engine control, such as conventional push rod Chevrolet and Chrysler engines
• Includes EV1 Injector Harness
• High Impedance Injector Drivers will safely power most Stock injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)
• Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control
• Built in 1bar MAP Sensor with vacuum hose adapters included (1/8th – ¼ and 3/16ths)
• Boosted applications, you can disable the internal MAP sensor and utilize an external MAP sensor, harness comes with the connector terminated, allowing for easy installation
• MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
• Plug and plug ignition capability with Dual Sync and HyperSpark Distributors, adapter 558-323 required for HyperSpark Distributors
• 4 Inputs – 12v, Ground, 5v, and Frequency for things such as additional pressure sensors, activation triggers for nitrous activation, or a trans brake
• Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
• Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
• Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety
• On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allows you to identify any Critical engine issues at a glance
• The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any domestic V8 engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display
• The compact ECU size allows you to mount it virtually anywhere, remember, diagnostic LEDS must face up
• Plug and play compatible with more Holley EFI accessories such as, analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support
• Free EFI Tuning Software for complete control of your Terminator X power plant

Specs:

• Accelerometer Support: Yes
• Boost Control: Yes
• Brand: Holley EFI
• CAN-BUS Support: Yes
• Category: Air and Fuel Delivery
• Coil Per Cylinder Ignition Support: Yes
• Datalogging Support: Yes
• Distributor Included: No
• Dry Nitrous Control: Yes
• e85 Support: Yes
• EGT Support: Yes
• Emission Code: 3
• Forced Induction Support: Yes
• Fuel Filter Included: No
• Fuel Hose Included: No
• Fuel Injectors Included: No
• Fuel Pressure Regulator Included: No
• Fuel Pump Included: No
• Grade Type: Performance
• Handheld Included: Yes
• Idle Air Control Motor Included: No
• Ignition Timing Control: Yes
• Ignition Type: Universal
• Individual Cylinder Fuel Corrections: Yes
• Injector Connector: Jetronic/Minitimer (Bosch EV1)
• Intake Manifold Included: No
• Knock Retard Support: Yes
• MAP Sensor: 1bar
• Mounting Hardware Included: No
• Multi-Stage Nitrous Control: Yes
• Part Type: Fuel Injection System
• Product Type: EFI System
• Progressive Nitrous Control: Yes
• Self-Tuning: Yes
• Sub Category: Fuel Injection System and Related Components
• Throttle Position Sensor Included: No
• Transmission: None
• User-Tuneable: Yes
• Wet Nitrous Control: Yes

Tech Resources:

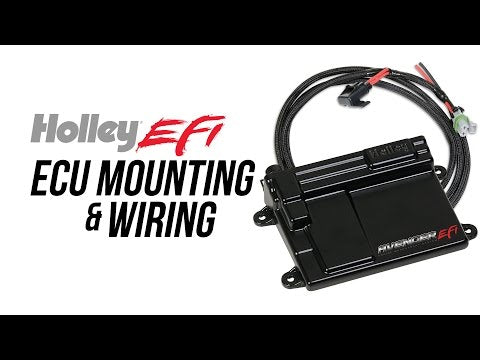

Terminator X ECU's are designed to be mounted with the LED's facing up.

Instructions - 199R11760 - 02.25.2025.pdf
