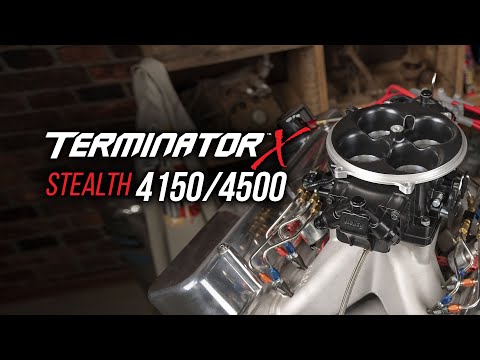

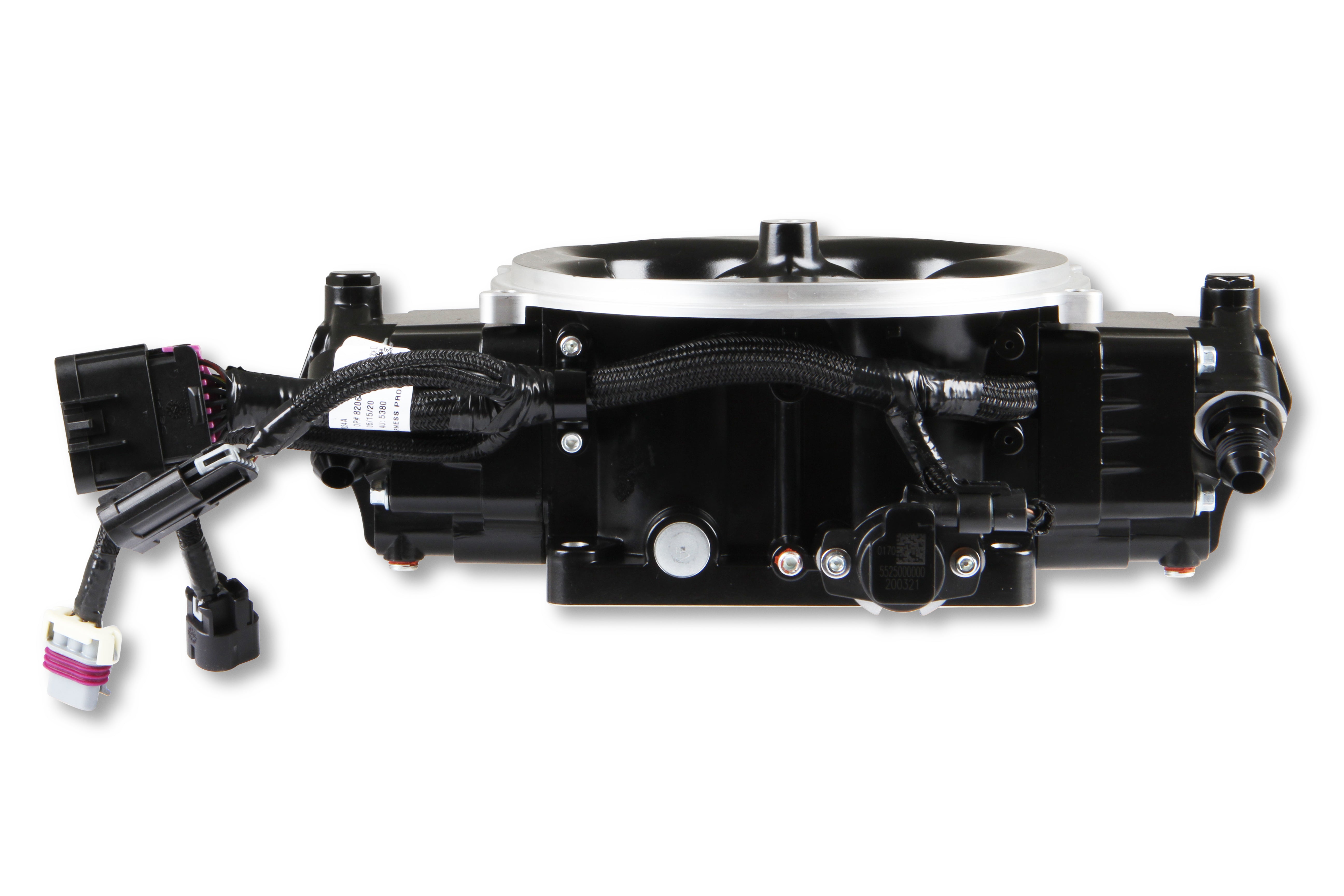

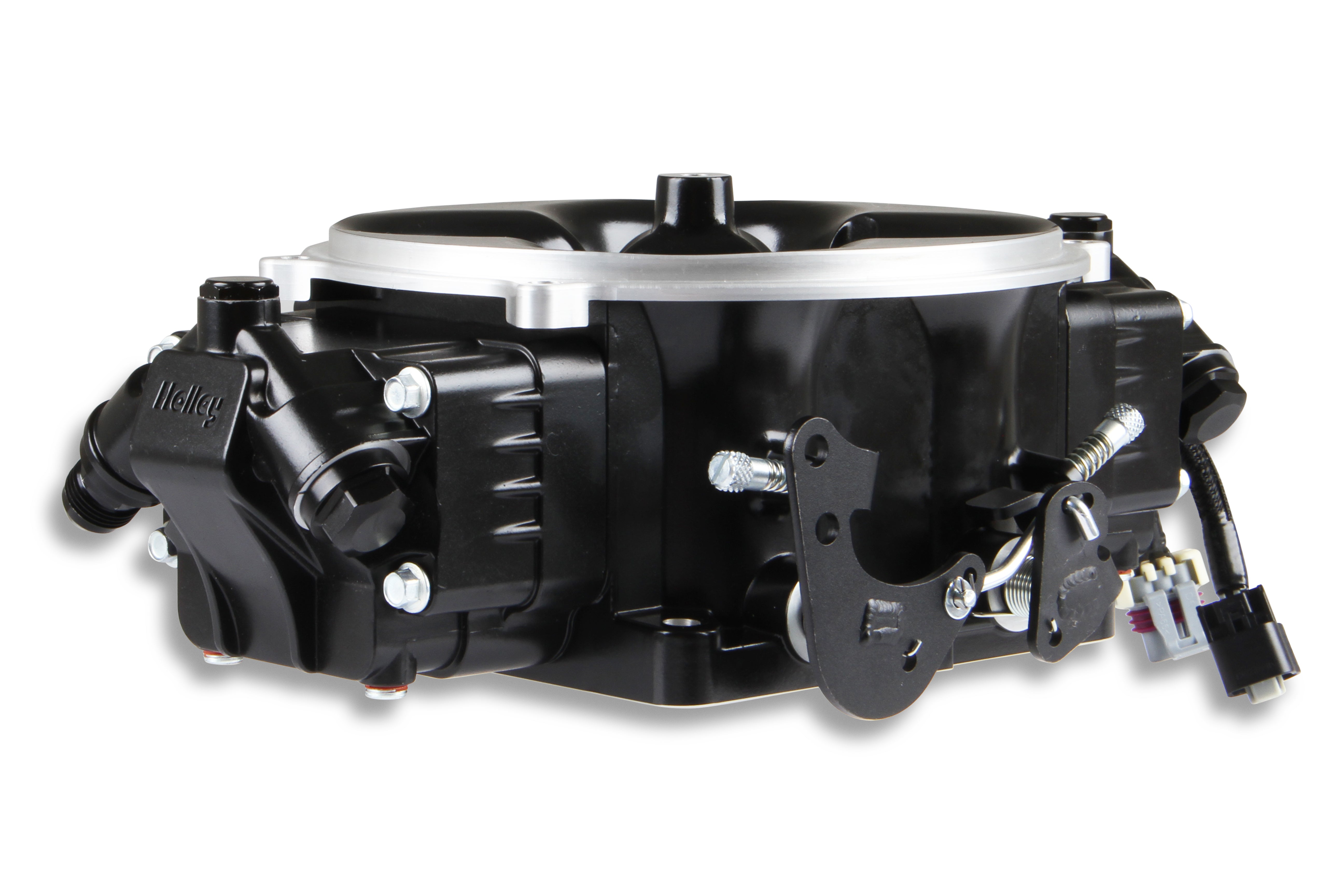

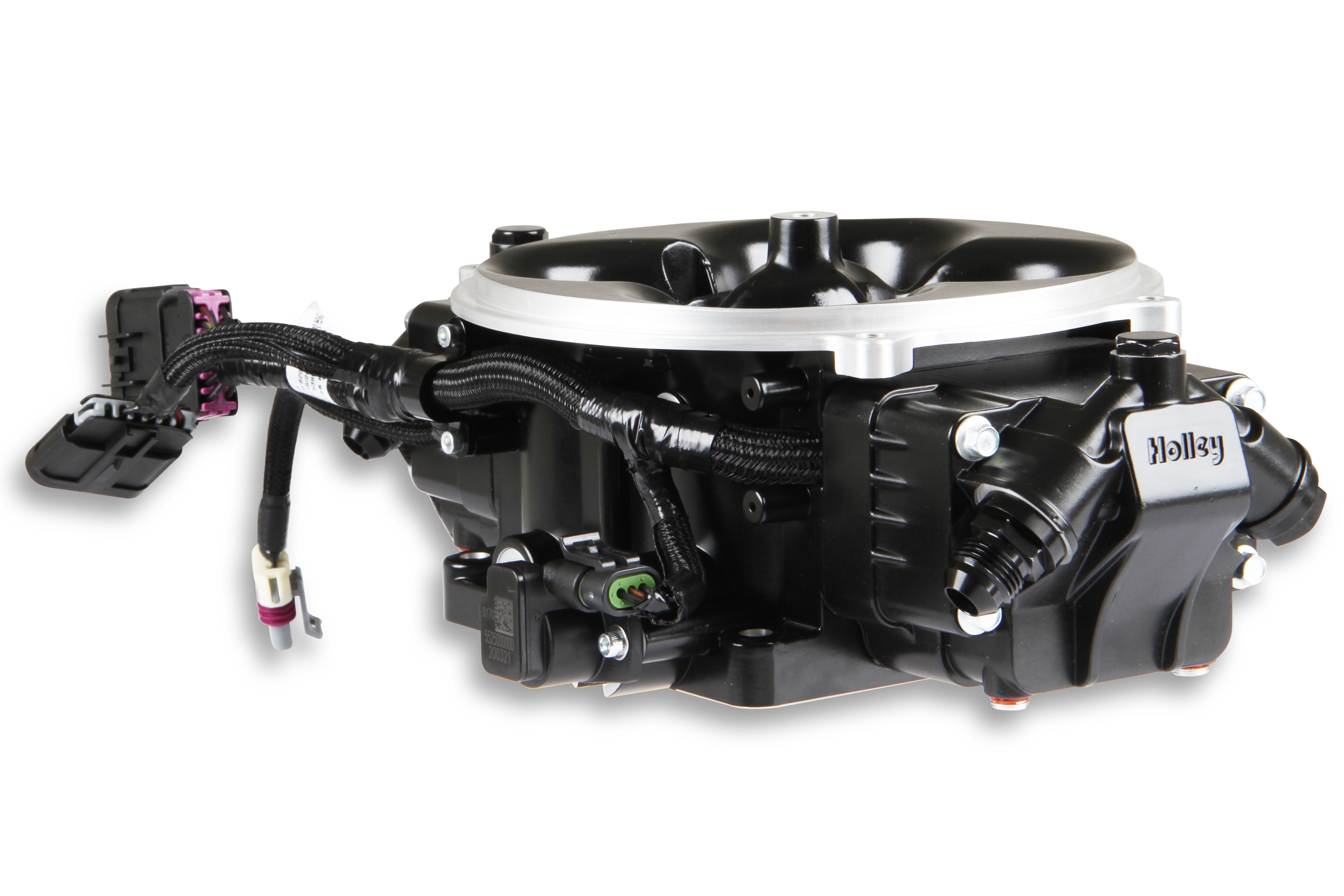

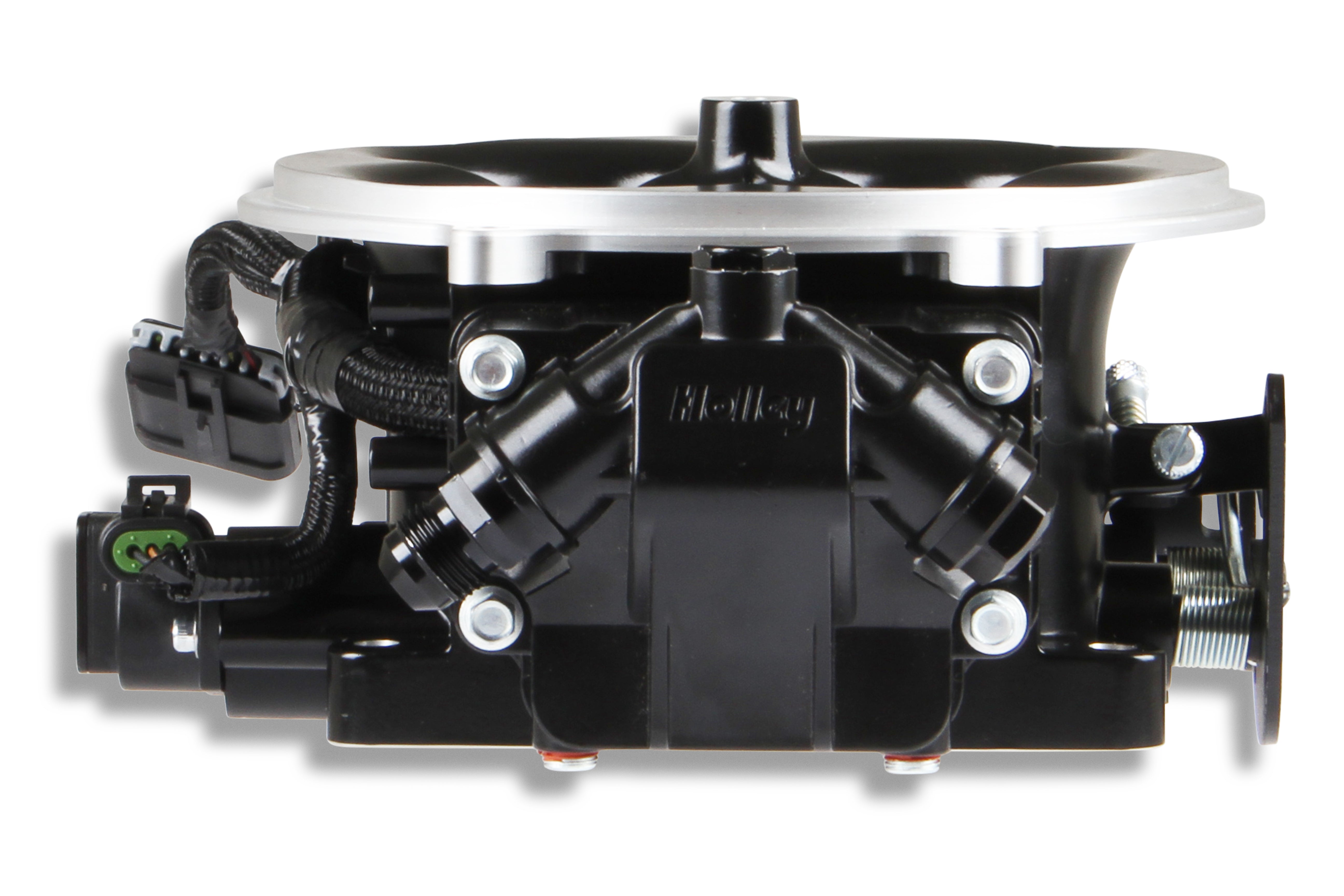

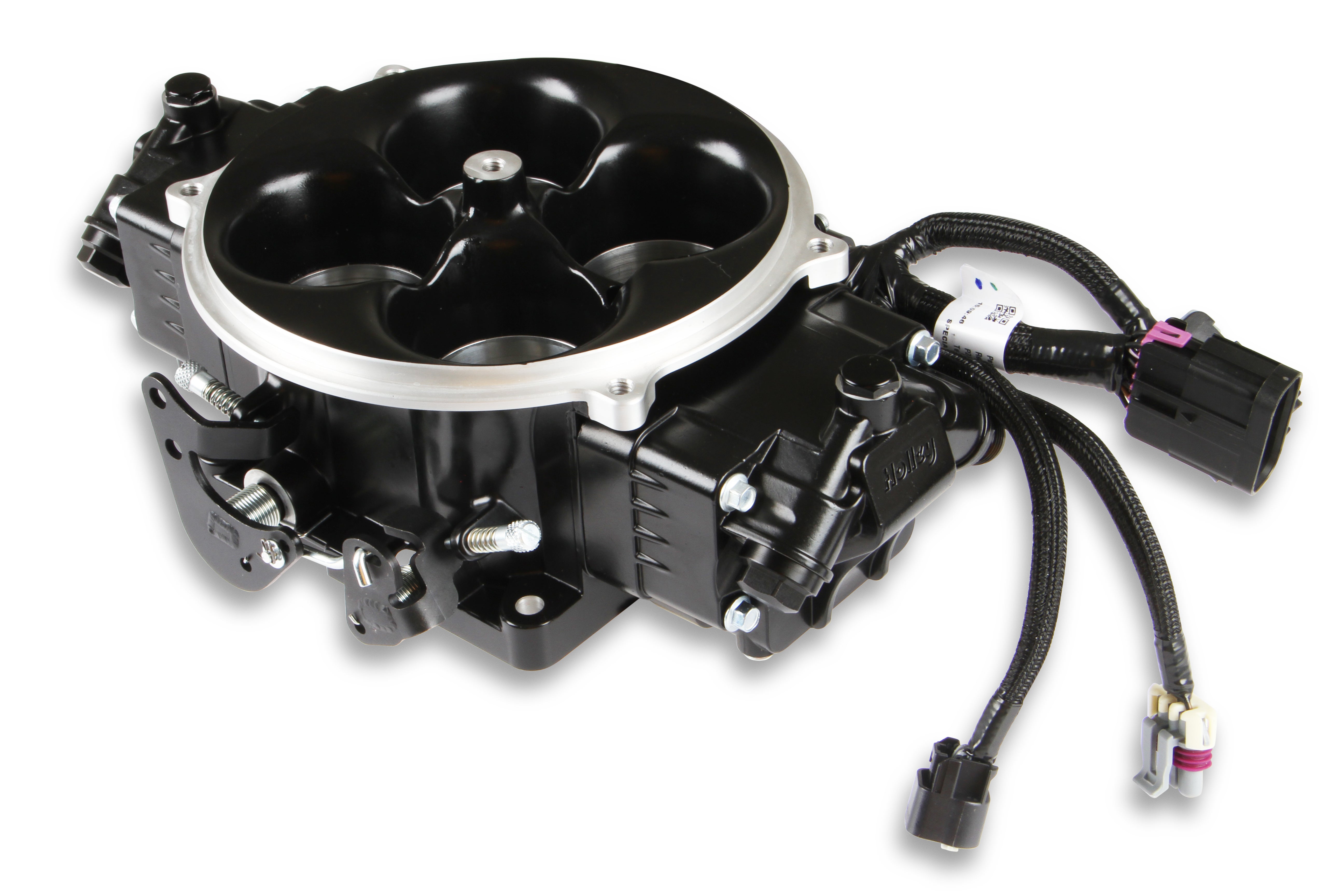

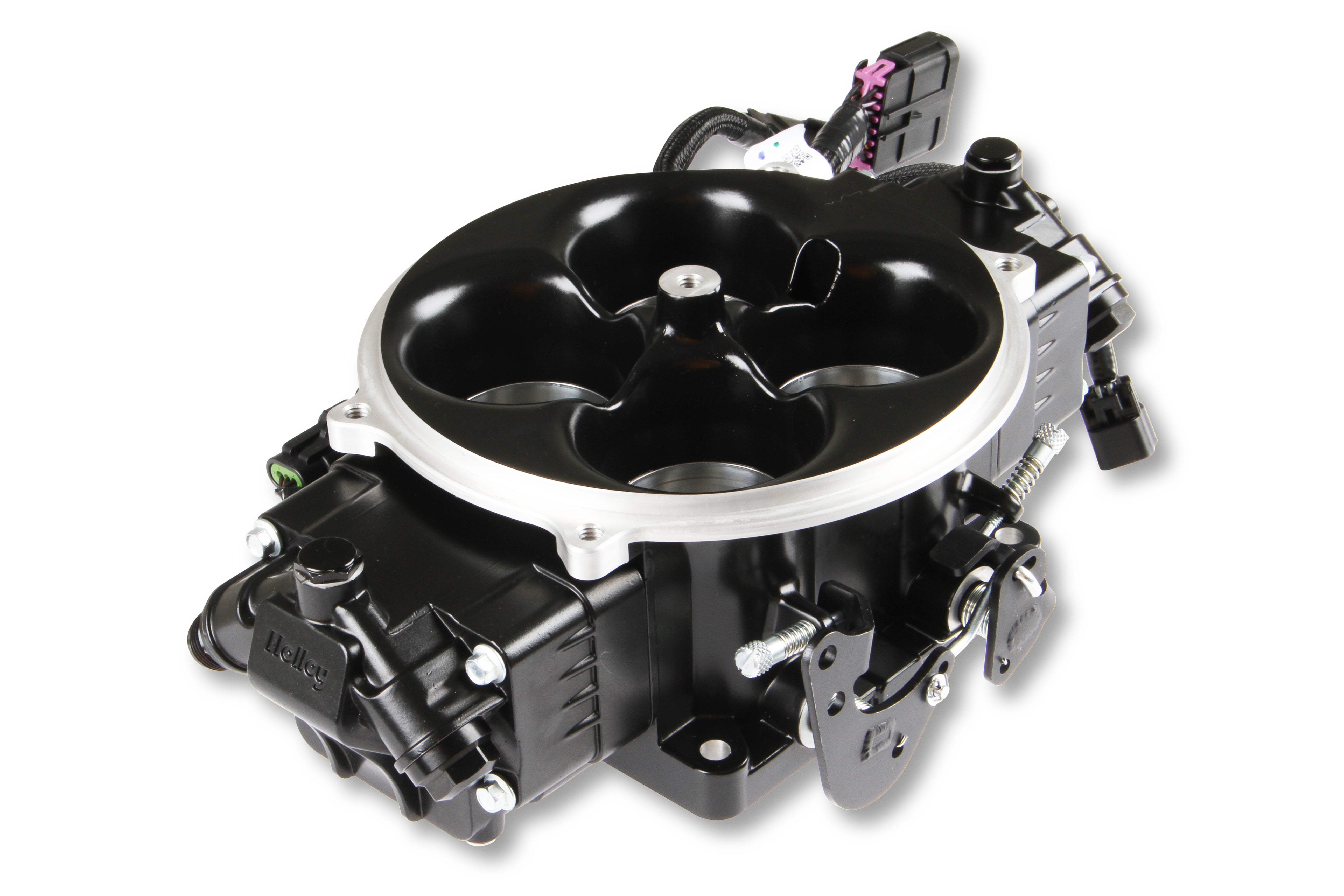

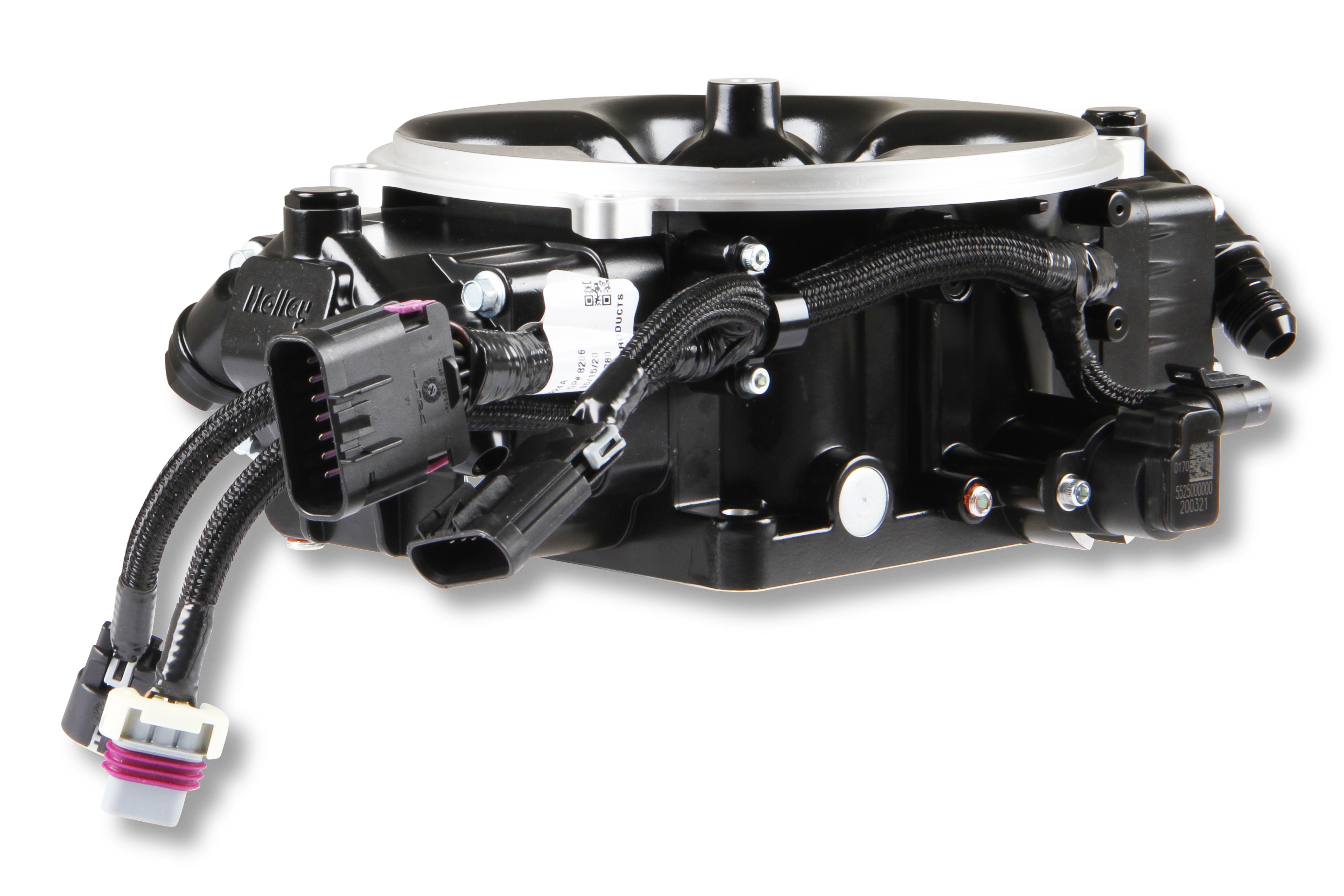

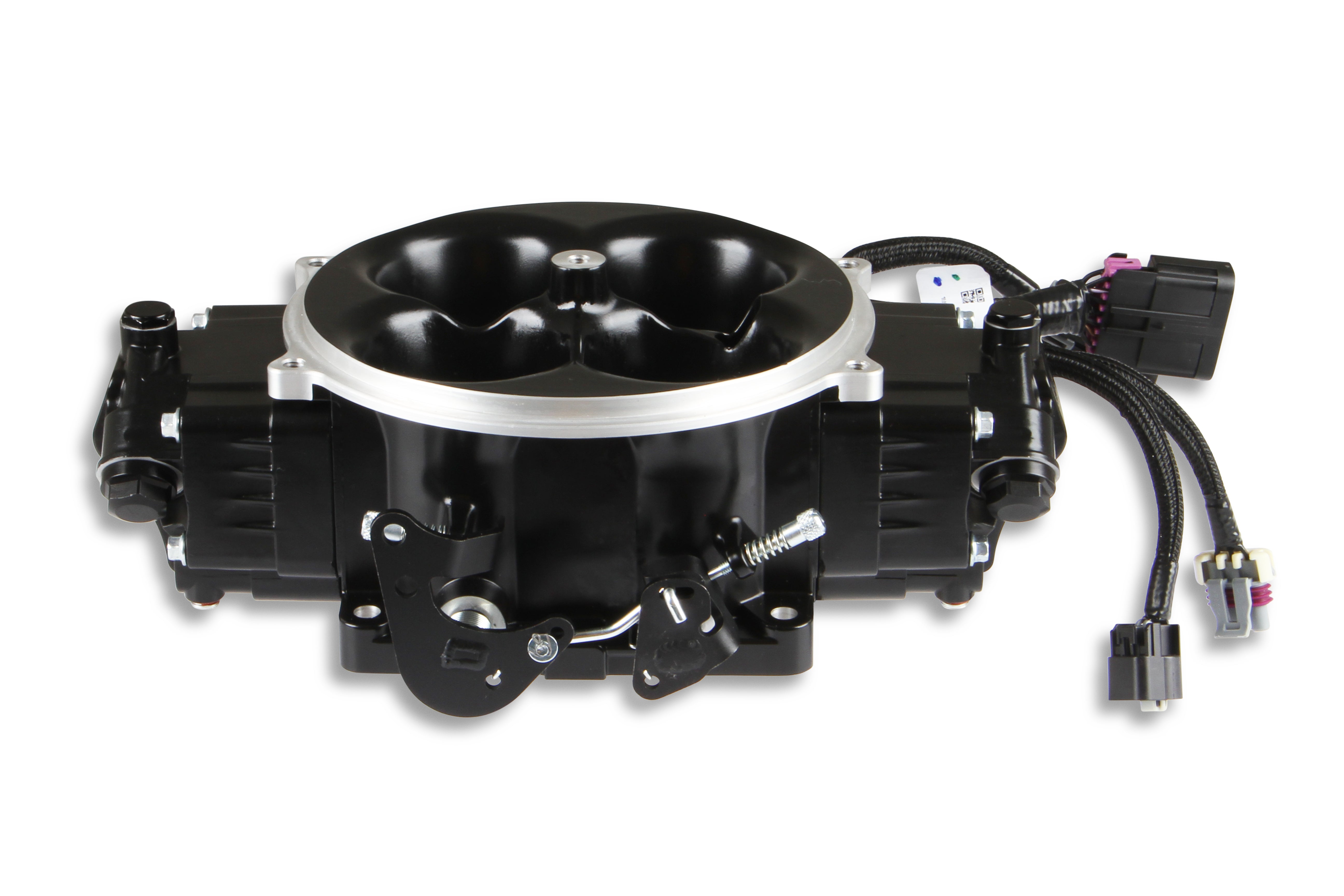

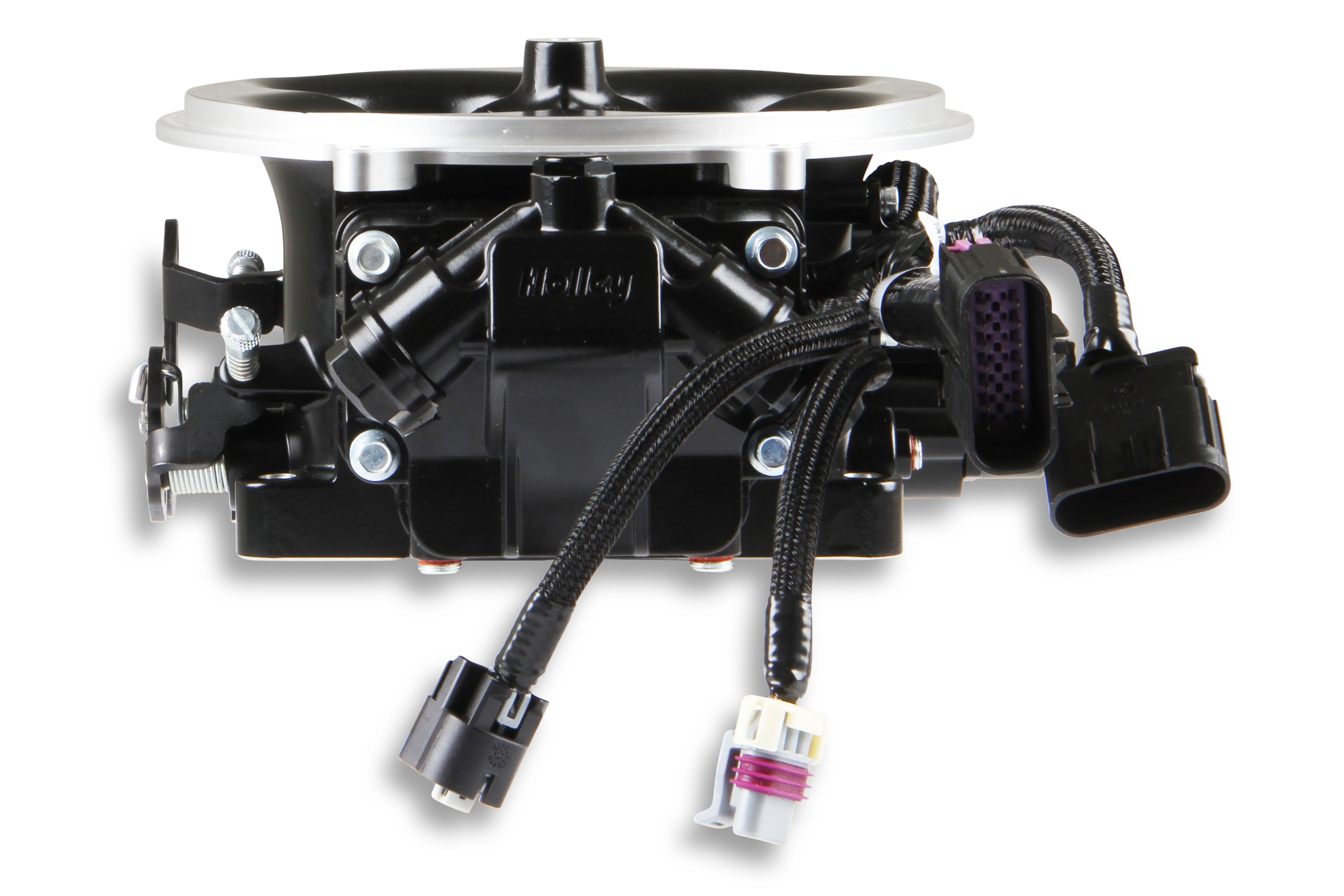

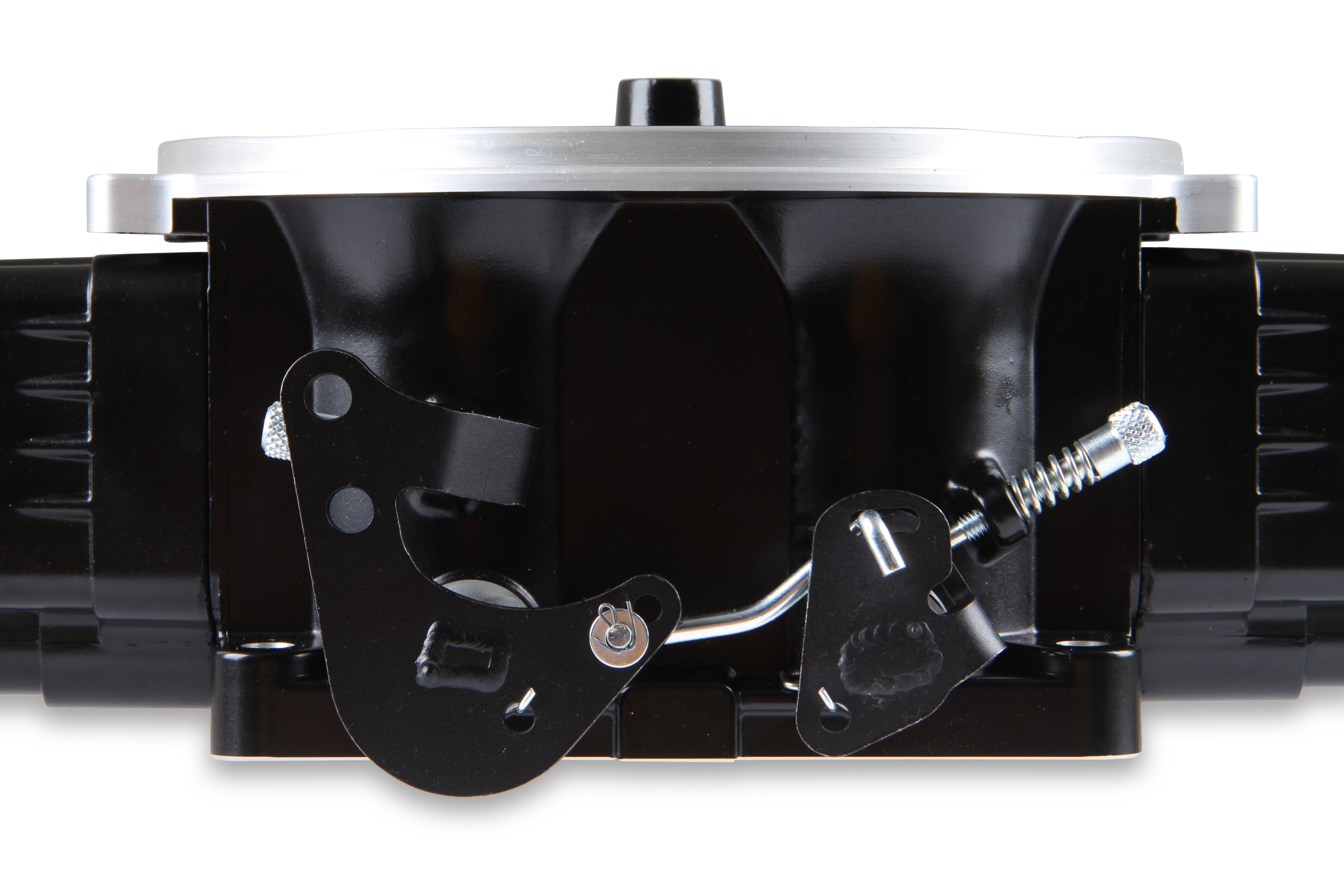

Holley EFI Terminator X Stealth 4500 - Black
The Terminator X Stealth 4500 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting up to 1500 HP naturally aspirated or 1250 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Designed to fit with Gen 3 Ultra Dominator air cleaners and fuel crossovers, allowing you to easily convert your 4500 equipped 800+ horsepower dragster or door car!
Features:

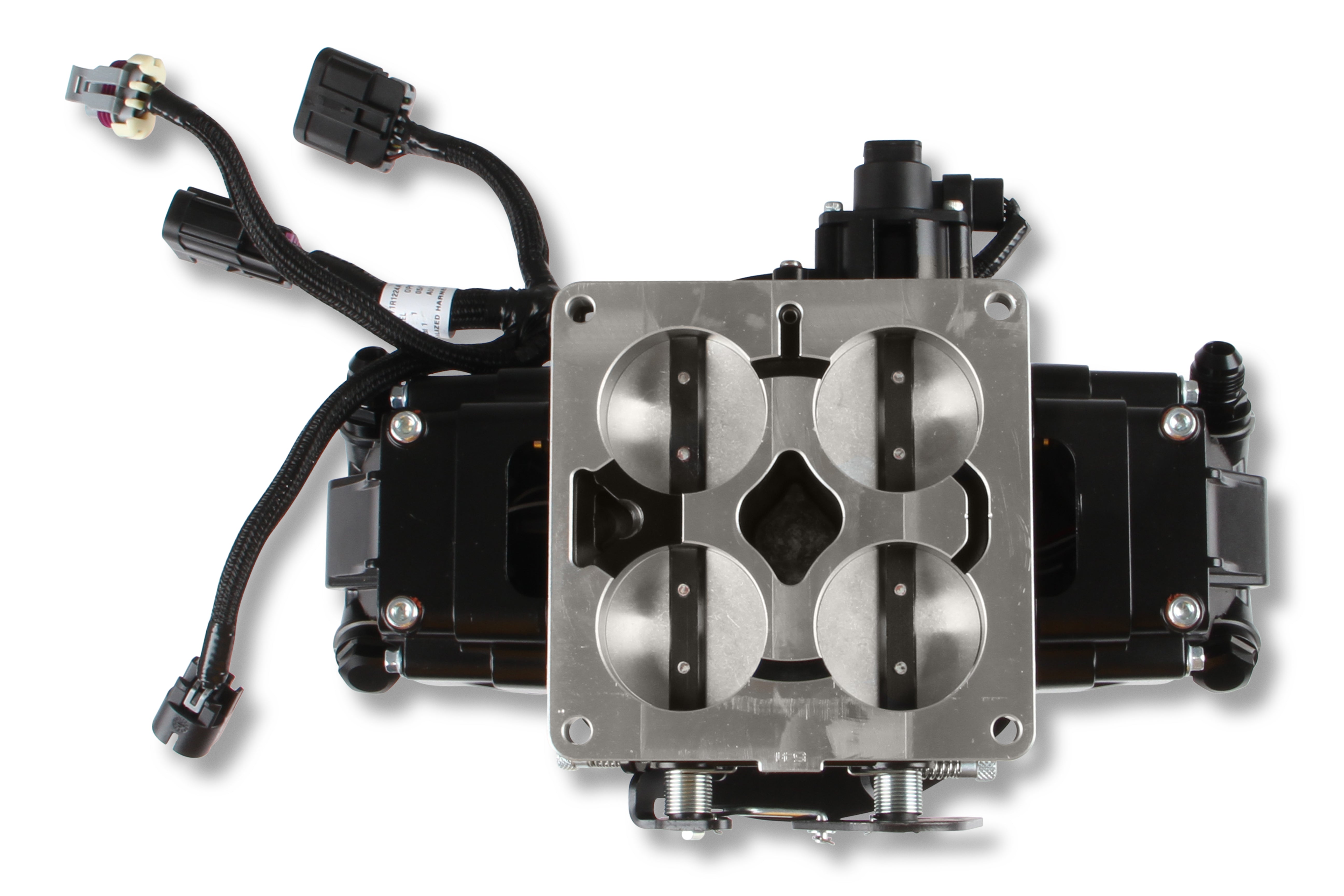

- Bolt on 4500 Flange Carburetor Replacement
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors

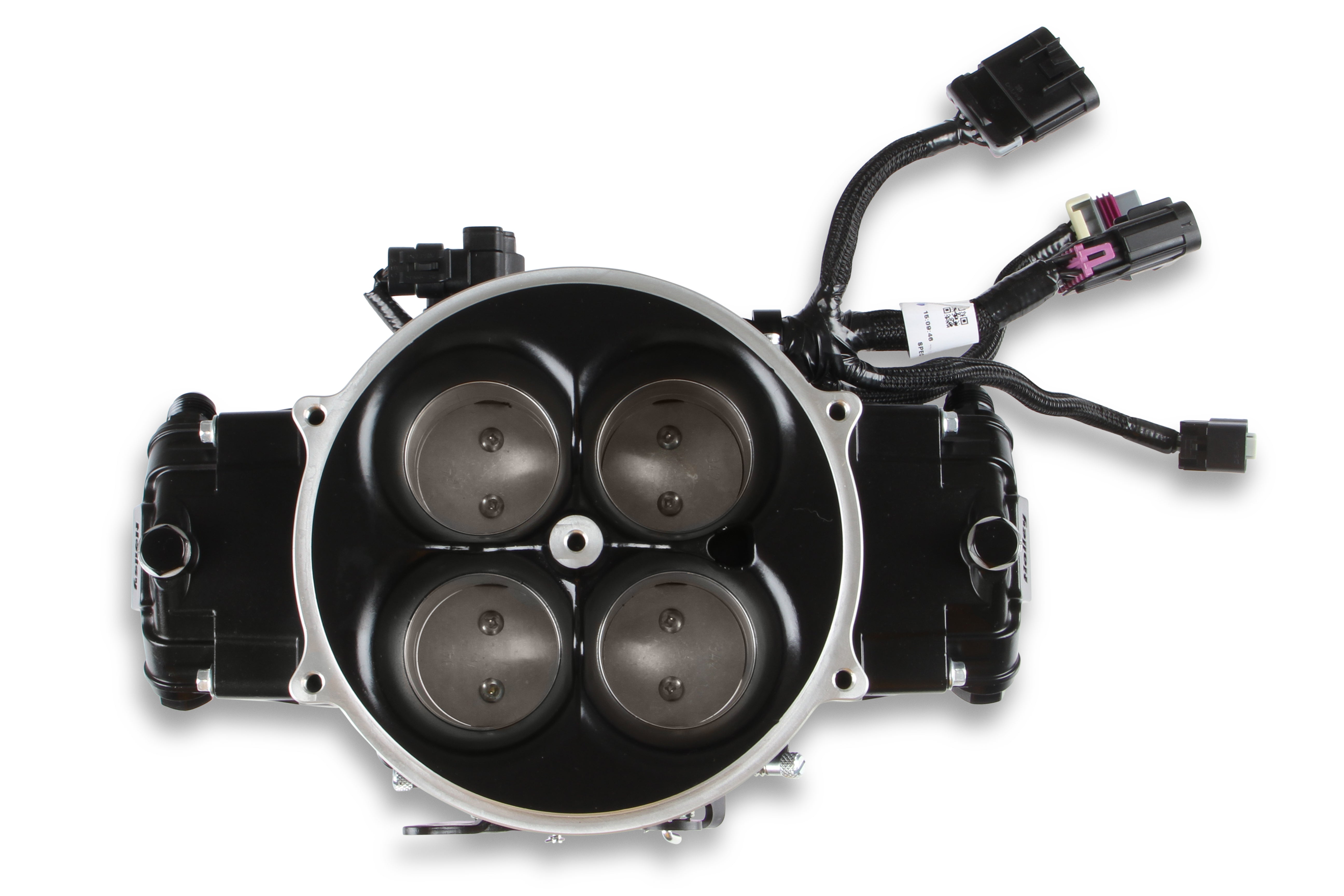

- 2.125” Throttle Plates, Flow 1440 CFM for large cubic inch engines
- Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options
- External fuel pressure regulator required, such as 12-848
- Integrated ignition timing control

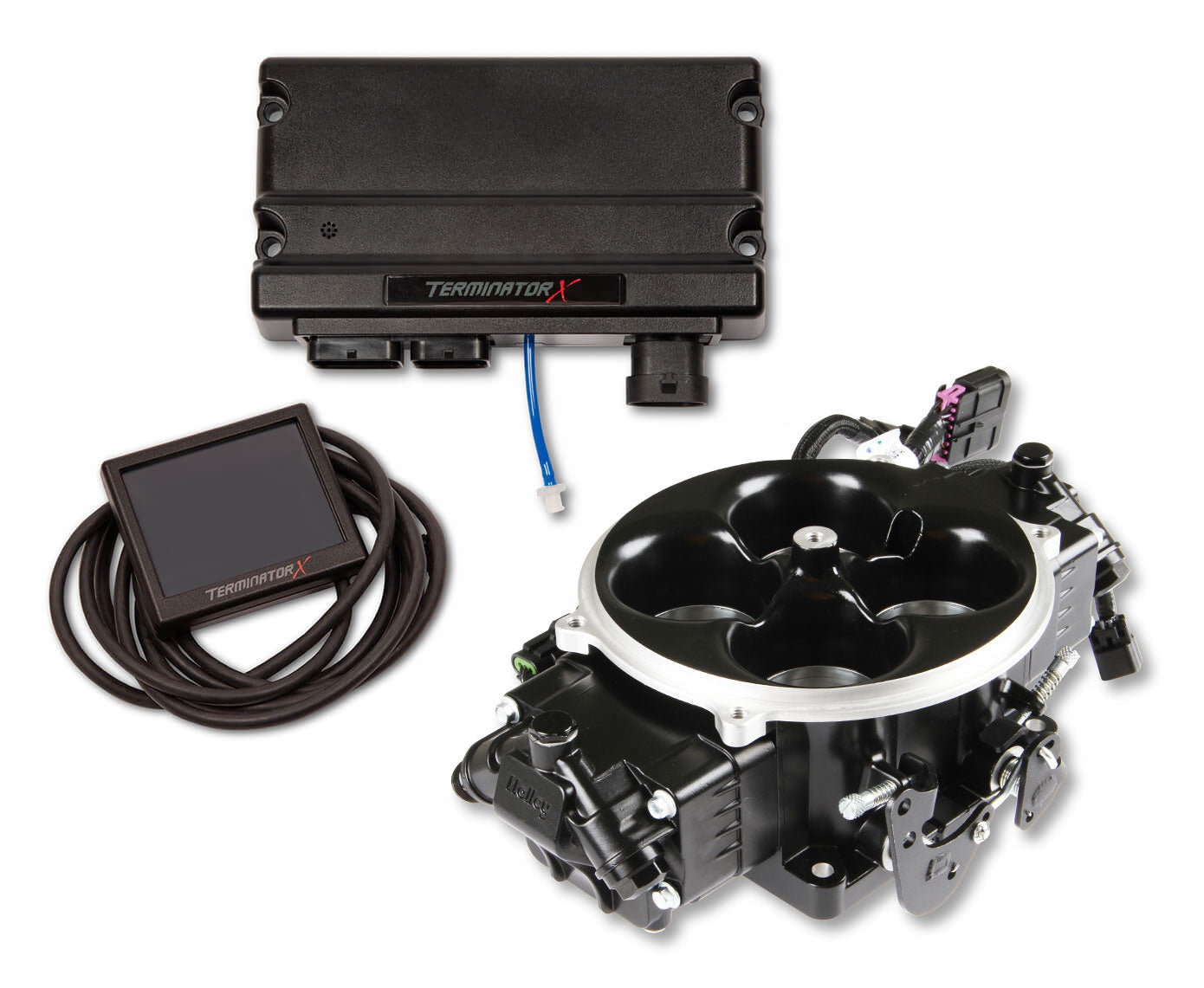

- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays

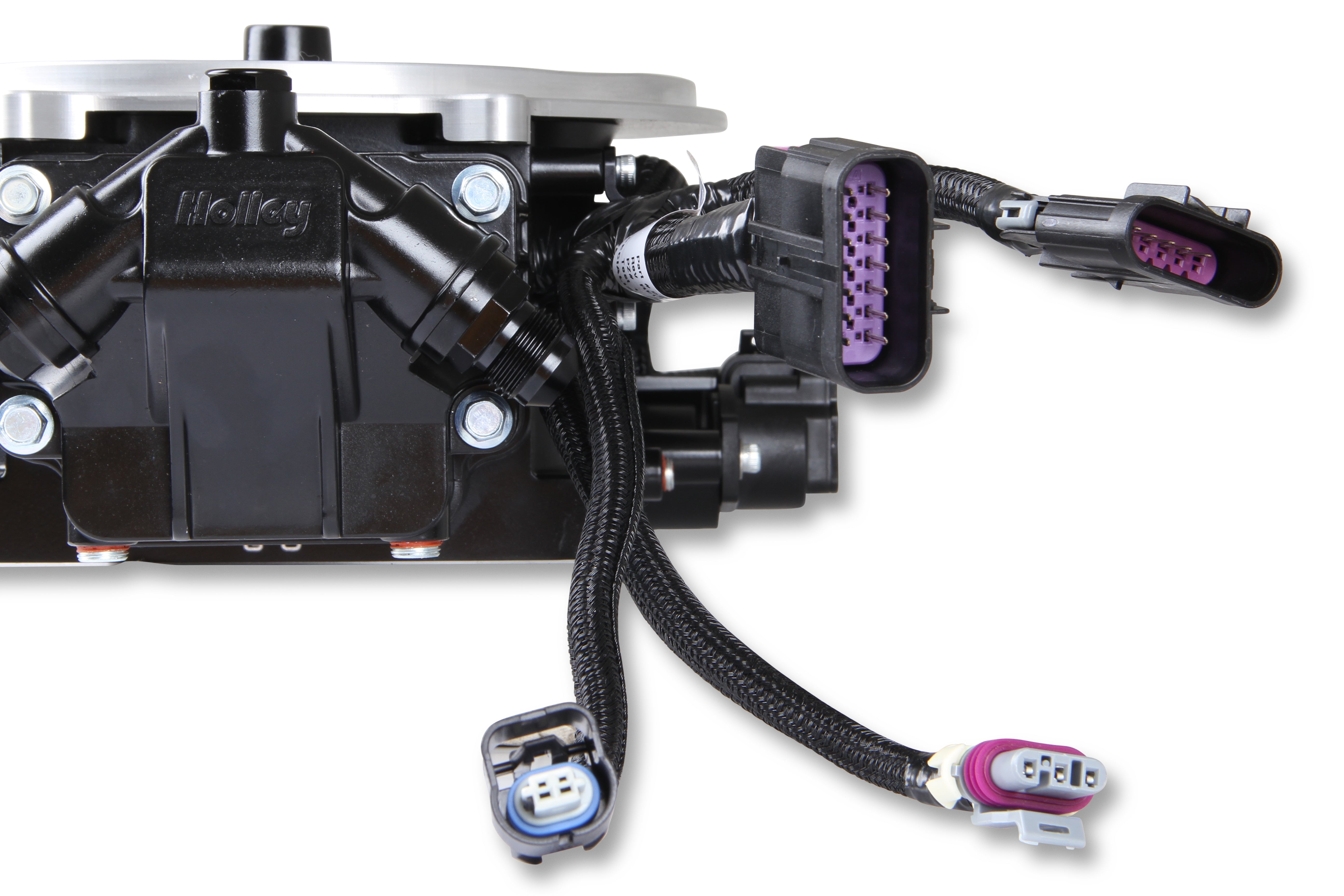

- Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!

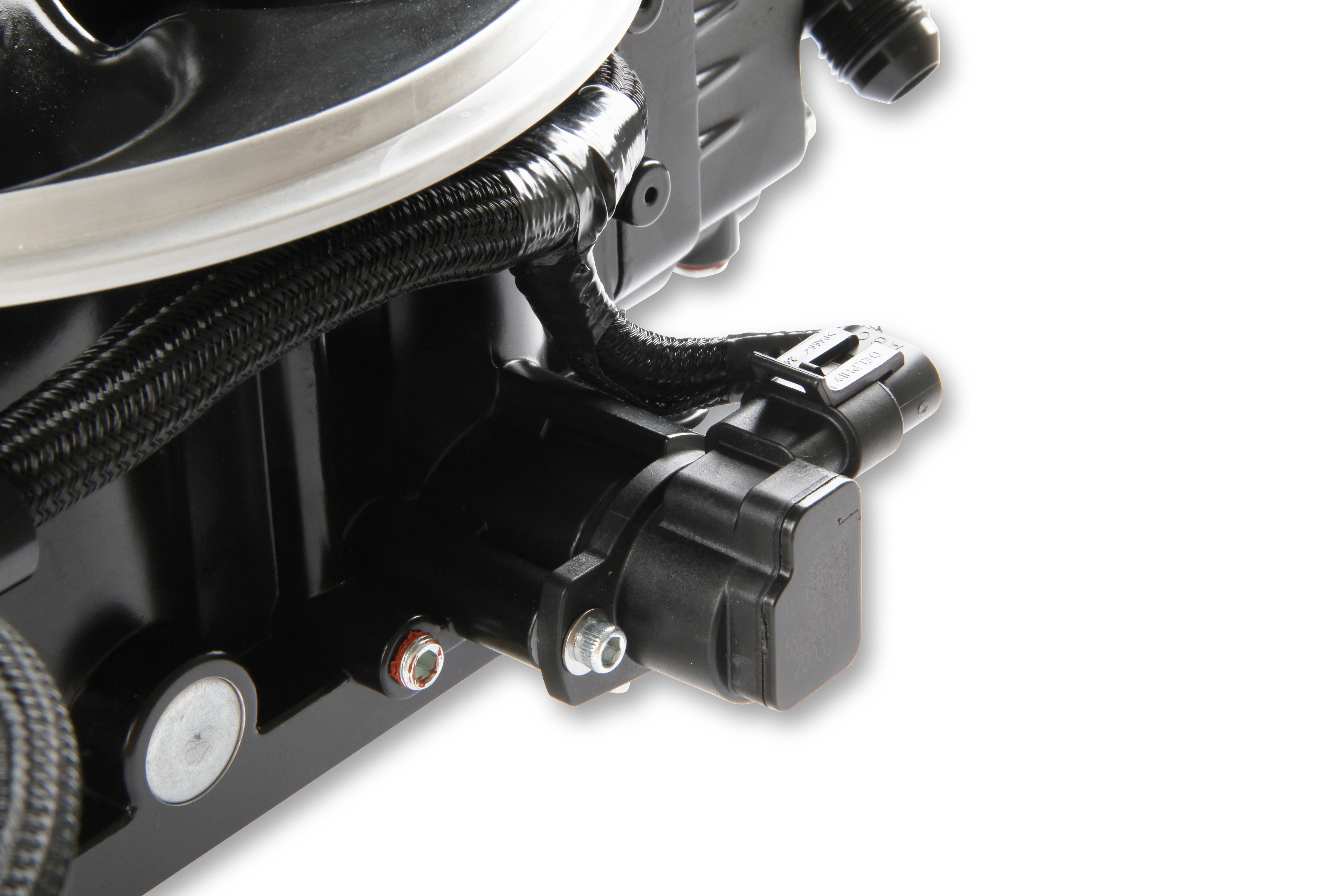

- OEM Style TPS/IAC, for years of dependable service.
- Plug and play with Holley EFI Accessories, such as the 12.3” and 6.86” Pro Dash, CAN EGT, and Digital Analog style EFI gauges
- Available in 2 finishes, Shiny and Black
- Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths)
Specs:
- Accelerometer Support: Yes
- Boost Control: Yes
- Brand: Holley EFI
- CAN-BUS Support: Yes
- Category: Air and Fuel Delivery
- CFM: 1440
- Coil Per Cylinder Ignition Support: Yes
- Color: Black
- Datalogging Support: Yes
- Distributor Included: No
- Dry Nitrous Control: Yes
- e85 Support: No
- EGT Support: Yes
- Emission Code: 3
- Finish: Black
- Flange Size: 4500
- Flange Style: Dominator
- Forced Induction Support: Yes
- Fuel Filter Included: No
- Fuel Hose Included: No
- Fuel Injectors Included: Yes
- Fuel Pressure: 58.5 PSI
- Fuel Pressure Regulator Included: No
- Fuel Pump Included: No
- Grade Type: Performance
- Handheld Included: Yes
- Idle Air Control Motor Included: No
- Ignition Timing Control: Yes
- Ignition Type: Universal
- Individual Cylinder Fuel Corrections: No
- Injector Size: 100 lb/hr @ 58.5 PSI
- Inlet / Outlet Size: 8AN
- Intake Manifold Included: No
- Knock Retard Support: Yes
- MAP Sensor: 1bar
- Max Horsepower Rating: 1500
- Mounting Hardware Included: No
- Multi-Stage Nitrous Control: Yes
- Part Type: Fuel Injection System
- Product Type: EFI System
- Progressive Nitrous Control: Yes
- Self-Tuning: Yes
- Sub Category: Fuel Injection System and Related Components
- Terminator LS Options: Fuel, Spark
- Throttle Bore: 2.125 in.
- Throttle Position Sensor Included: Yes
- Transmission: N/A
- User-Tuneable: Yes
