Holley EFI Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3
Take control of your LS engine with Terminator X Max! Don't settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price!
Terminator X Max features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Part number 550-918 also has 4L60E or 4L80E Transmission control. Terminator X Max comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X MAX has the features and technology you need at a price that won't break the bank!
Features:
- Designed for GM LS 4.8/5.3/6.0 LS Truck Engines and LS2/LS3 with 58x Crank, 4x Cam and 4L60E/4L80E transmissions, and EV1 Injectors
- Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.
- High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)
- All of the new Terminator X Max systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.

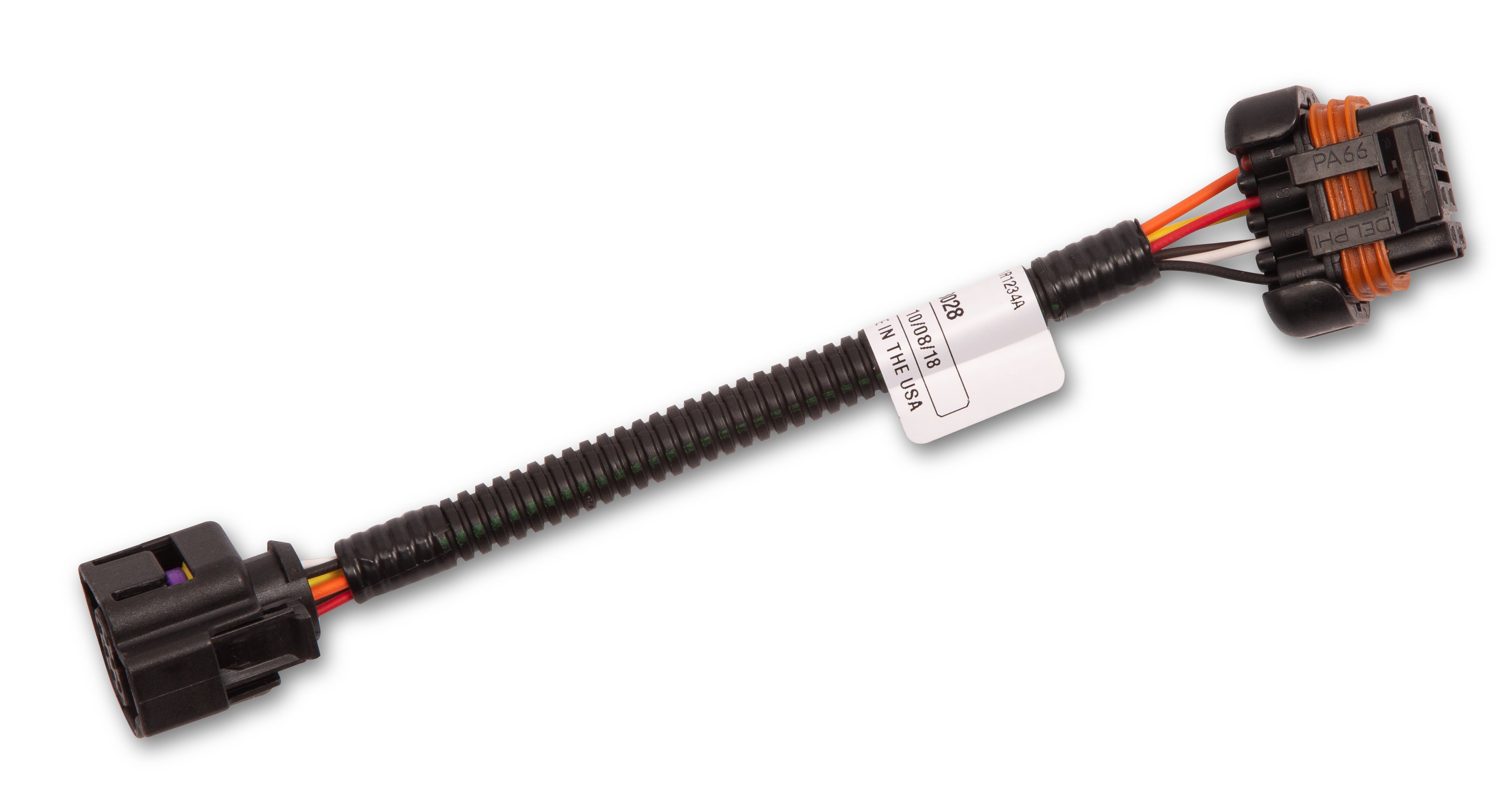

- On-Board 1bar MAP sensor, is perfect for N/A or Nitrous engine combos. If your combination requires a 2+Bar, we recommend GM 12592525, and our adapter part number 558-416.

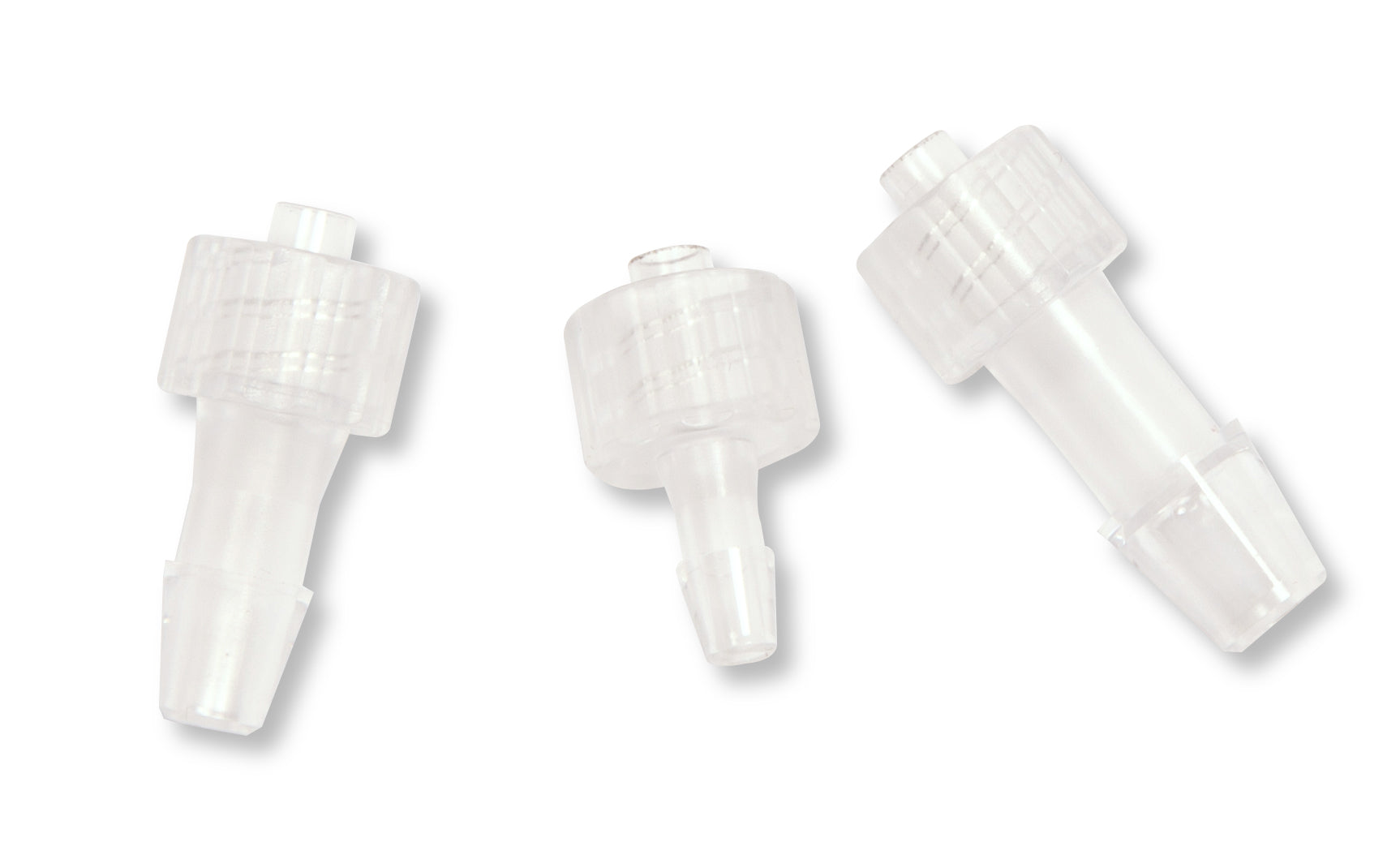

- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
- 4 Outputs – Ground, PWM - , for accessories such as, fans, boost control, nitrous control, IAC Kit, and More
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance

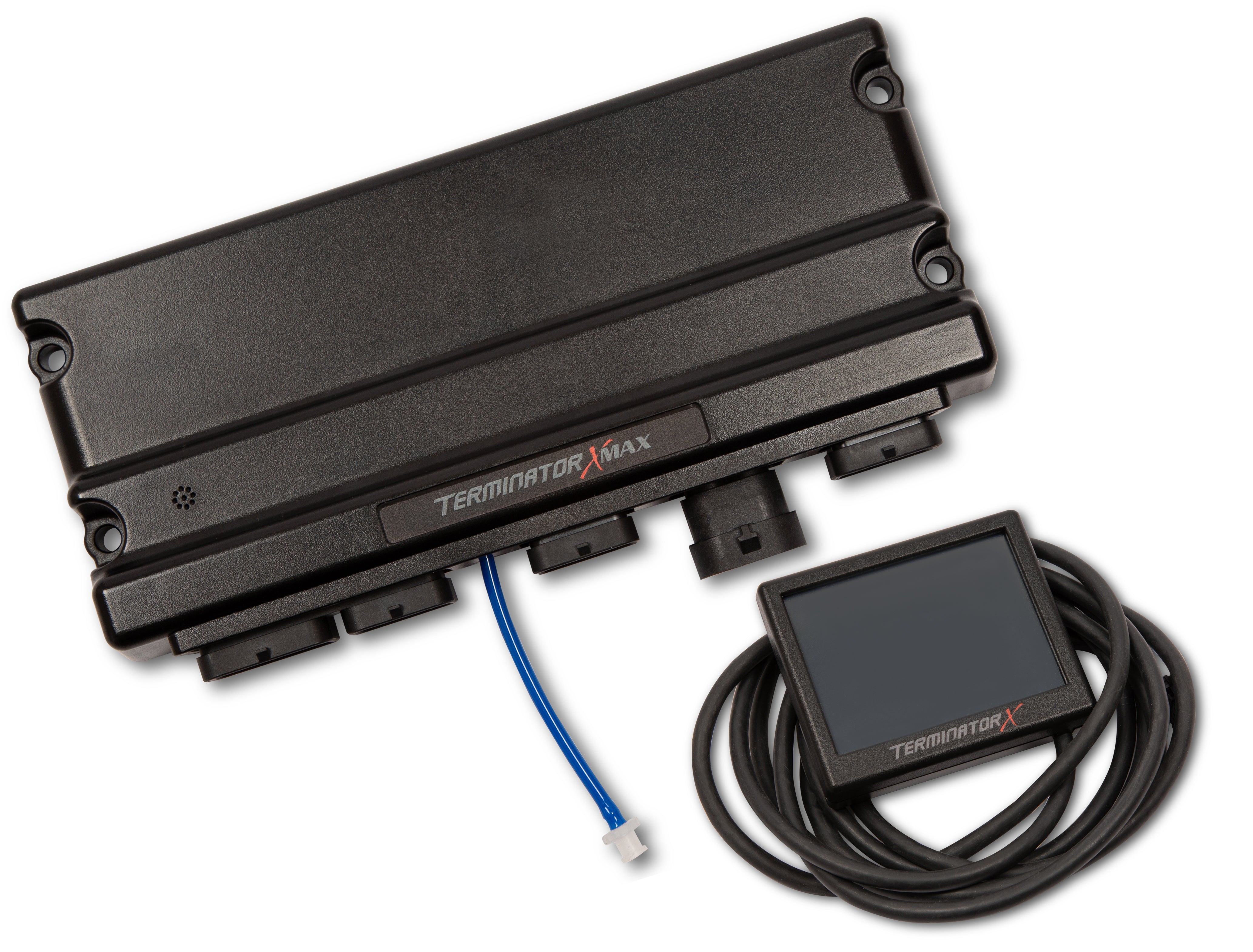

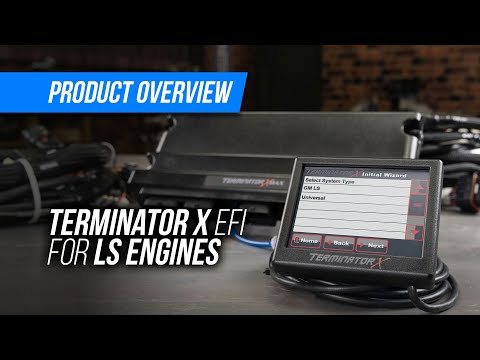

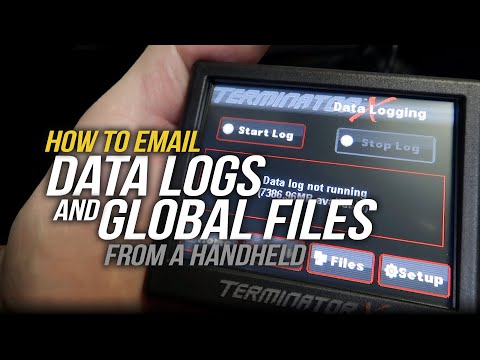

- The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.

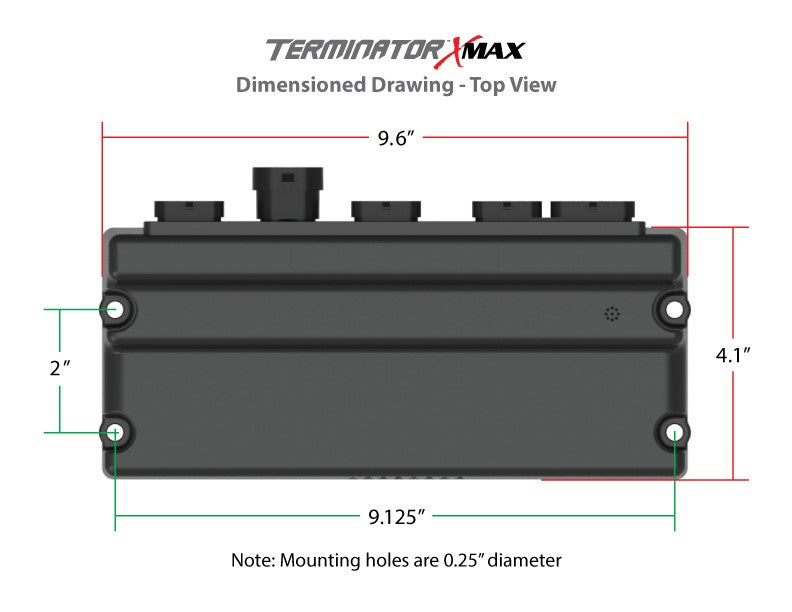

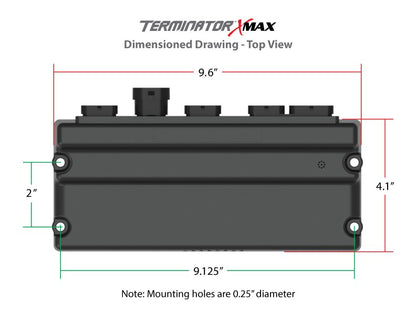

- The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
- Plug and play compatible with more Holley EFI accessories such as, analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!
- Free EFI Tuning Software for complete control of your Terminator X power plant

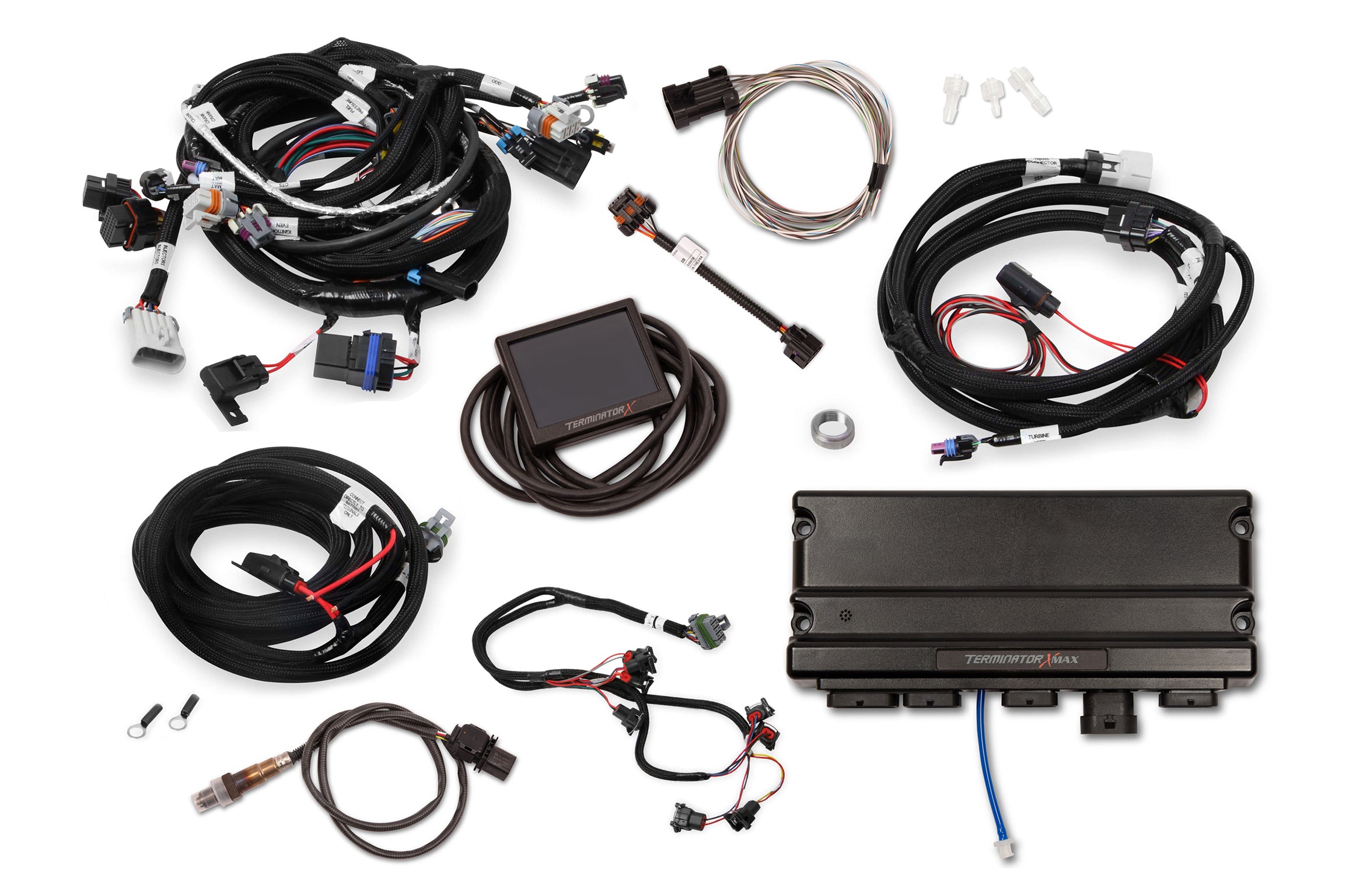

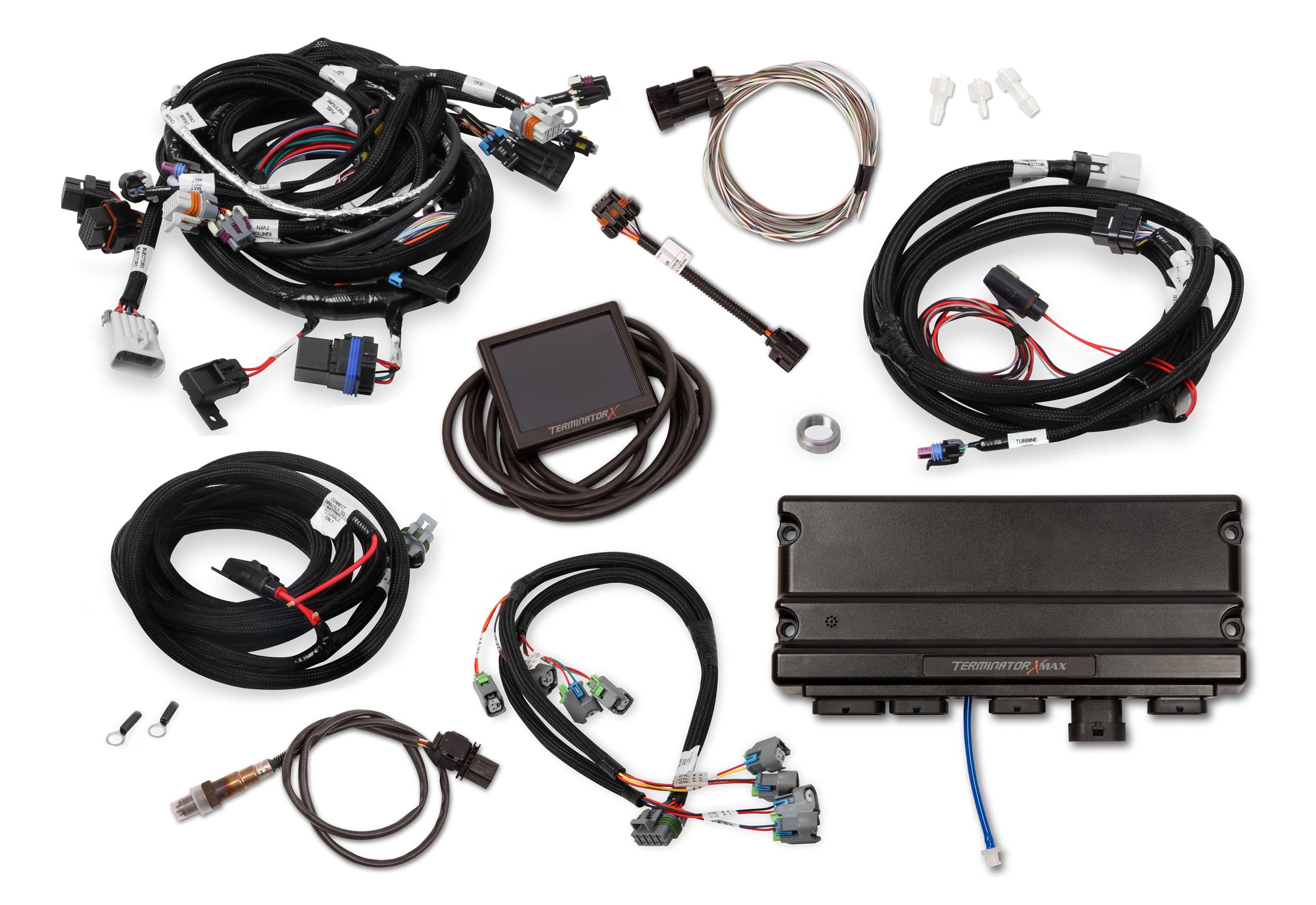

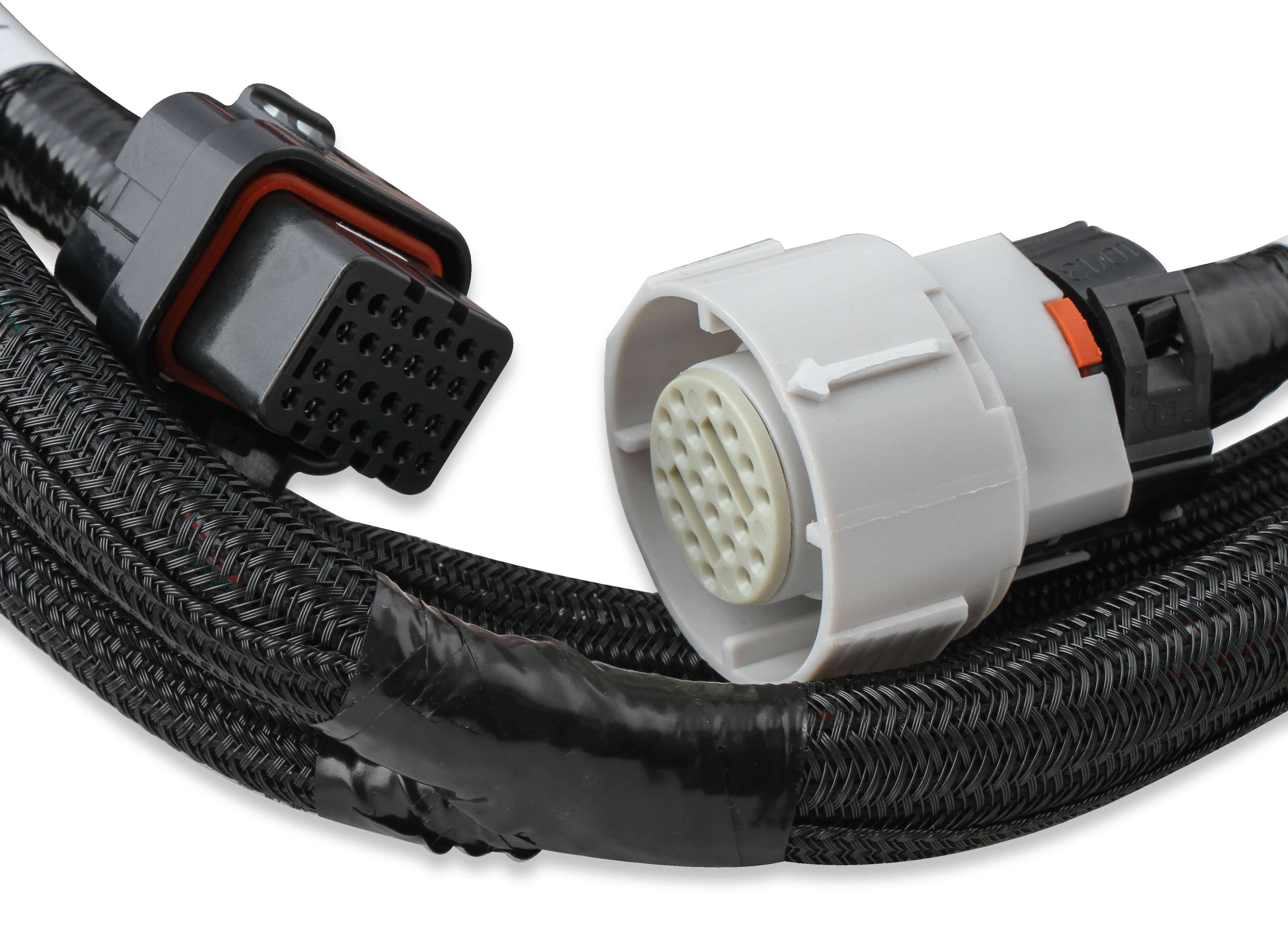

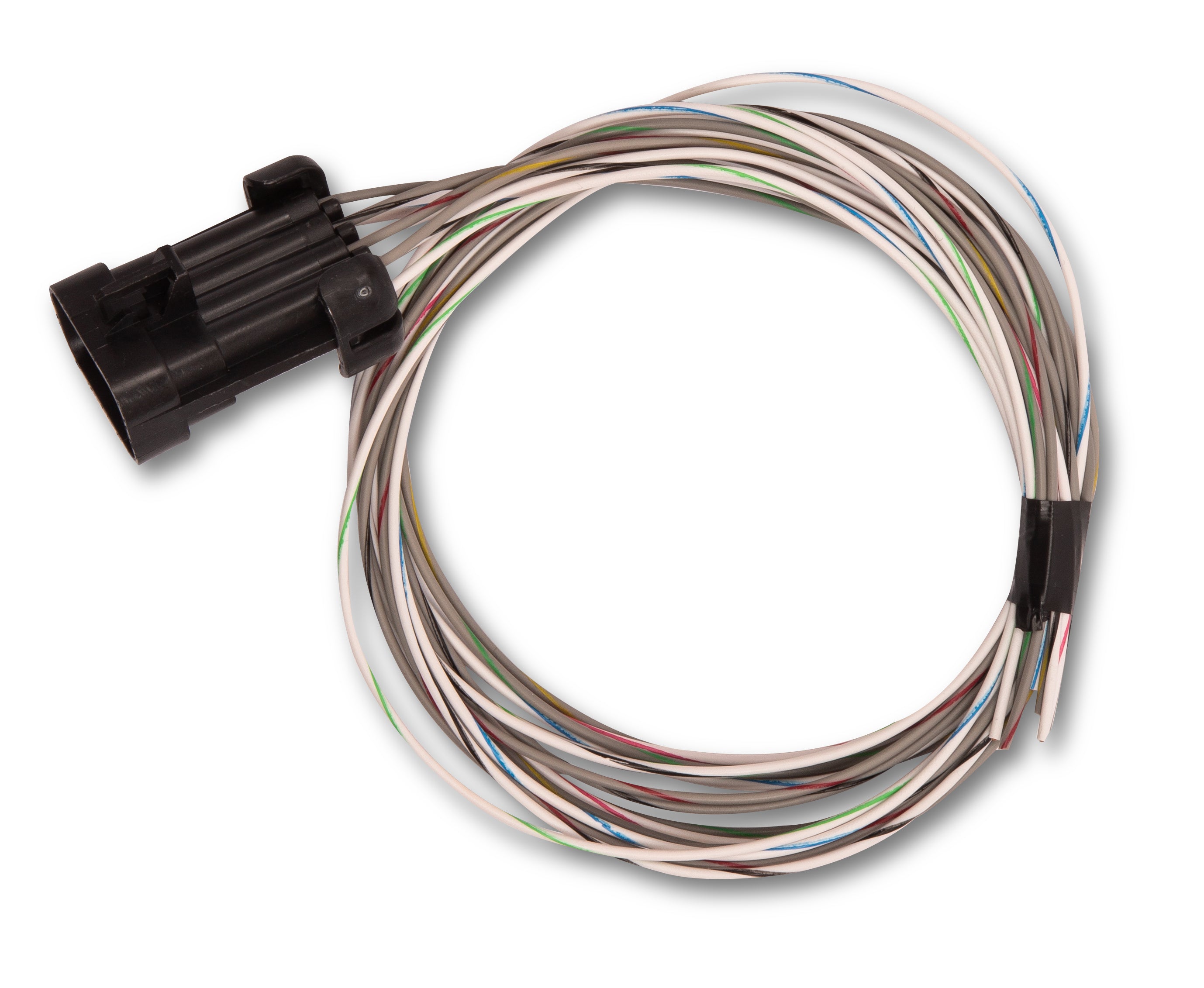

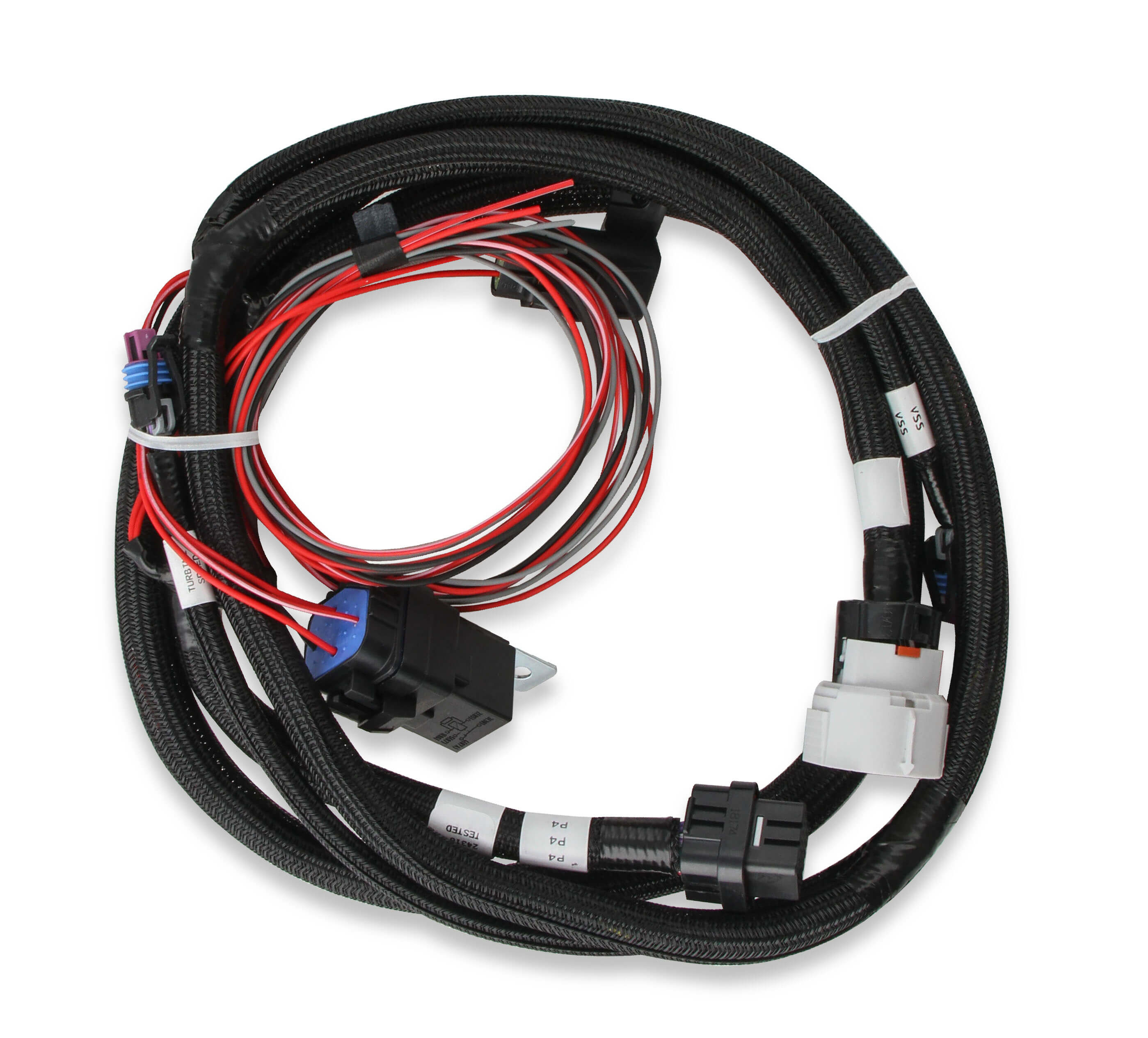

- Includes: 58x/4x LS Engine Main Harness - EV1 Injector Harness - 4L60E/4L80E Transmission Control Harness - Terminator X MAX ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - I/O Harness - and assorted vacuum adapters.
Specs:
- Accelerometer Support: Yes
- Boost Control: Yes
- Brand: Holley EFI
- CAN-BUS Support: Yes
- Category: Air and Fuel Delivery
- Coil Per Cylinder Ignition Support: Yes
- Crank Reluctor: 58x
- Datalogging Support: Yes
- Distributor Included: No
- Drive-By-Wire: No
- Dry Nitrous Control: Yes
- e85 Support: Yes
- EGT Support: Yes
- Emission Code: 3
- Engine: Gen IV GM LS
- Forced Induction Support: Yes
- Fuel Filter Included: No
- Fuel Hose Included: No
- Fuel Injectors Included: No
- Fuel Pressure Regulator Included: No
- Fuel Pump Included: No
- Grade Type: Performance
- Handheld Included: Yes
- Idle Air Control Motor Included: No
- Ignition Timing Control: Yes
- Ignition Type: GM LS 58x
- Individual Cylinder Fuel Corrections: Yes
- Injector Connector: Jetronic/Minitimer (Bosch EV1)
- Intake Manifold Included: No
- Knock Retard Support: Yes
- MAP Sensor: 1bar
- Mounting Hardware Included: No
- Multi-Stage Nitrous Control: Yes
- Part Type: Fuel Injection System
- Product Type: EFI System
- Progressive Nitrous Control: Yes
- Self-Tuning: Yes
- Sub Category: Fuel Injection System and Related Components
- Terminator LS Options: Fuel, Spark, Transmission
- Throttle Position Sensor Included: No
- Transmission: 4L60E/4L80E
- User-Tuneable: Yes
- Wet Nitrous Control: Yes
Tech Resources:
Not recommended for 4x4 applications with electronic transfer cases. Not compatible with 4L6X transmissions from model year 1995 or before due to year-by-year changes in converter lockup and downshift strategy. ECU is not recommended for marine applications, but can be used on off-road applications as long as you choose a safe location, keep it dry, protect from heat, and ensure proper wiring management.
