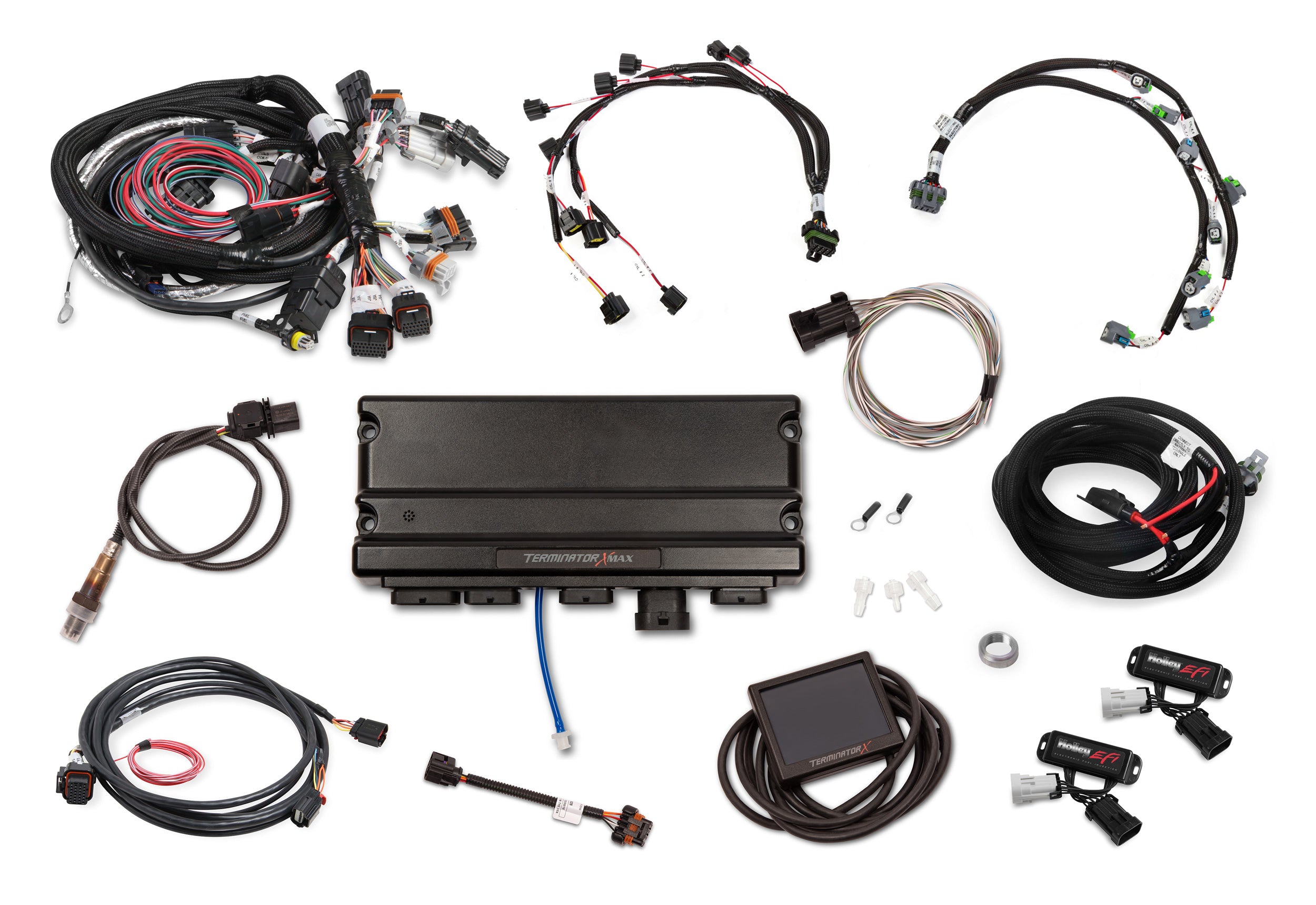

Holley EFI Terminator X Max - 2013+ Gen III HEMI 550-1425
Type: EFI System
Introducing Terminator X and X Max Kits for Chrysler GEN III HEMI engines from 2003-2013+ such as the 5.7L and 6.4L engines with the factory Drive-by-Wire throttle body. (Non-VVT only)
Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more.
Terminator X comes fully loaded with base maps for common HEMI engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions.
Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank!
Features:
- Plug and play Chrysler GEN III Hemi control - 2003-2006 Engines such as the 5.7L, 6.1L and 6.4L engines utilizing the factory DBW (Drive by Wire) throttle body. (Non-VVT only)
- Plug and Play compatible with Holley EFI accessories β Analog gauges, shift lights, modules, and both 6.86β and 12.3β Pro Dash
- EV6 (USCAR) injector harness included
- High Impedance Injector drivers power Holley EFI and most stock injectors - Injector support chart found in instructions (will not support low impedance injectors)
- Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control
- Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications β internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
- Vacuum hose adapters included - (1/8β, ΒΌβ, and 3/16β sizes)
- 4 inputs β 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
- Boost Control β boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
- Nitrous Control β channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
- Advanced Tables β (4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
- On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
- 3.5β touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
- Compact ECU (Engine Control Unit) β At only 7.45β x 4.1β x 1.66β the compact packaging allows mounting virtually anywhere. REMINDER: diagnostic LEDβs must face up!
- FREE EFI Tuning software β For compete control of your Terminator X power plant
Specs:
- Accelerometer Support: Yes
- Boost Control: Yes
- Brand: Holley EFI
- CAN-BUS Support: Yes
- Category: Fuel Injection - EFI
- Coil Per Cylinder Ignition Support: Yes
- Datalogging Support: Yes
- Distributor Included: No
- Drive-By-Wire: Yes
- Dry Nitrous Control: Yes
- e85 Support: Yes
- EGT Support: Yes
- Emission Code: 3
- Engine: Gen III Hemi
- Forced Induction Support: Yes
- Fuel Filter Included: No
- Fuel Hose Included: No
- Fuel Injectors Included: No
- Fuel Pressure Regulator Included: No
- Fuel Pump Included: No
- Grade Type: Performance
- Handheld Included: Yes
- Idle Air Control Motor Included: No
- Ignition Timing Control: Yes
- Individual Cylinder Fuel Corrections: Yes
- Injector Connector: USCAR (EV6)
- Intake Manifold Included: No
- Knock Retard Support: Yes
- Mounting Hardware Included: No
- Multi-Stage Nitrous Control: Yes
- Product Type: EFI System
- Progressive Nitrous Control: Yes
- Self-Tuning: Yes
- Throttle Position Sensor Included: No
- Transmission: None
- User-Tuneable: Yes
- Wet Nitrous Control: Yes
- Year Range: 2007-2013+
Tech Resources:
ECU is not recommended for marine applications, but can be used on off-road applications as long as you choose a safe location, keep it dry, protect from heat, and ensure proper wiring management.
