Holley Sniper EFI - Holley EFI Fuel Tank Module - 350 LPH - 1974-1981 Camaro and Firebird 12-374

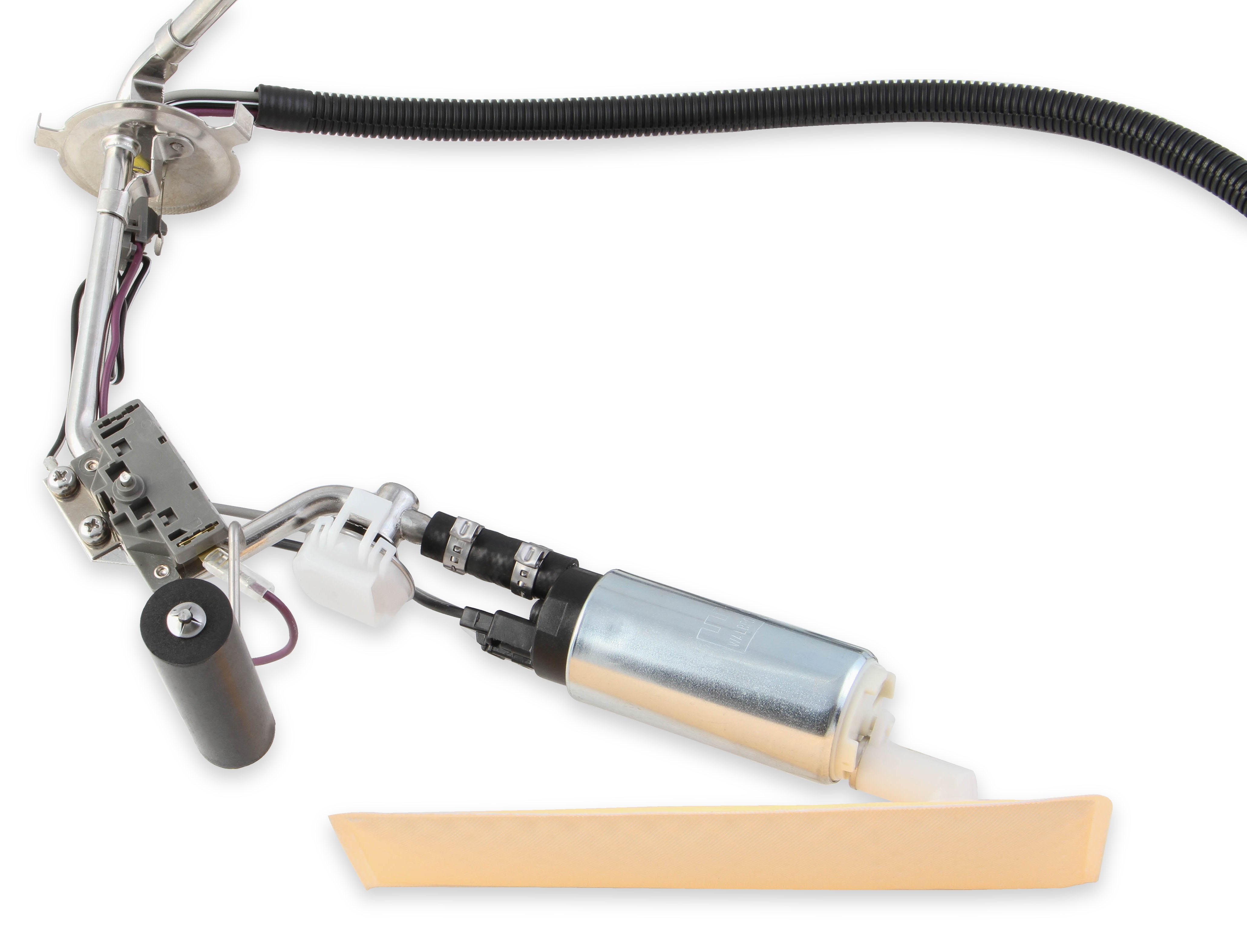

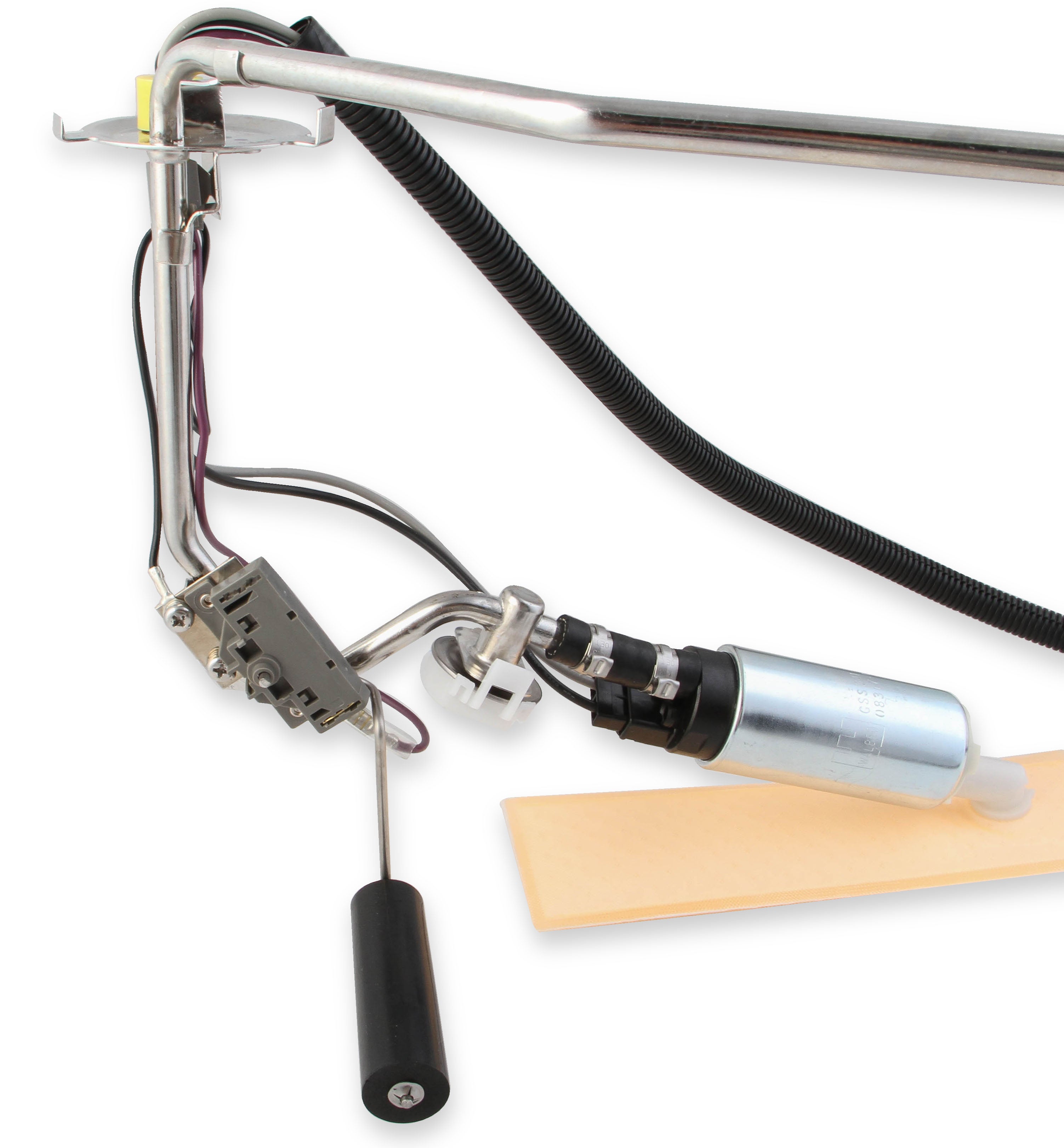

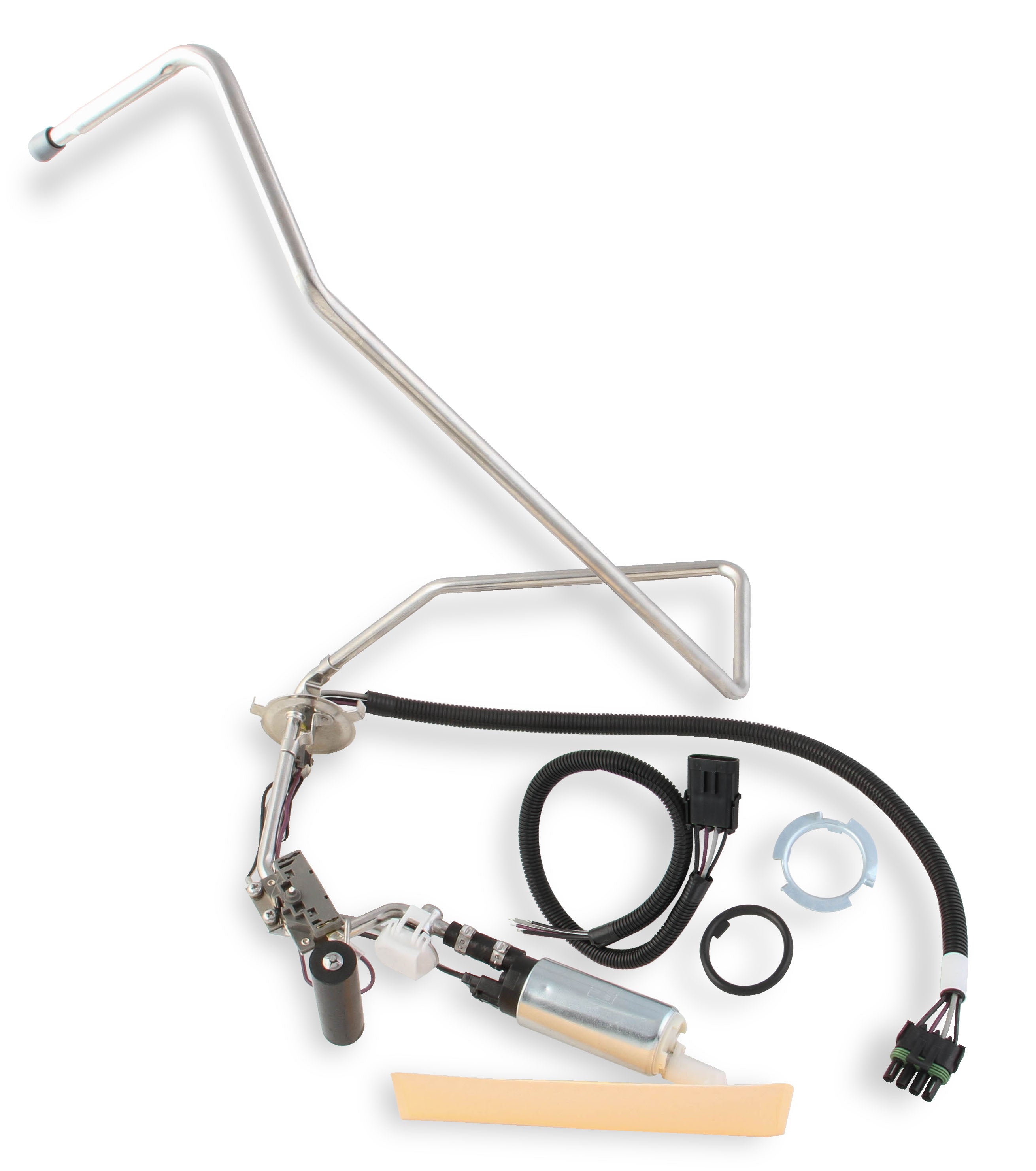

This in-tank fuel pump module is a high-pressure unit that flows 350 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 750 horsepower. A pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates.

Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1977-1981 F-body Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 350 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Features:

• Supports up to 750 horsepower (HP)
• Flows 350 liters per hour (LPH)
• Internally regulated to 58 PSI

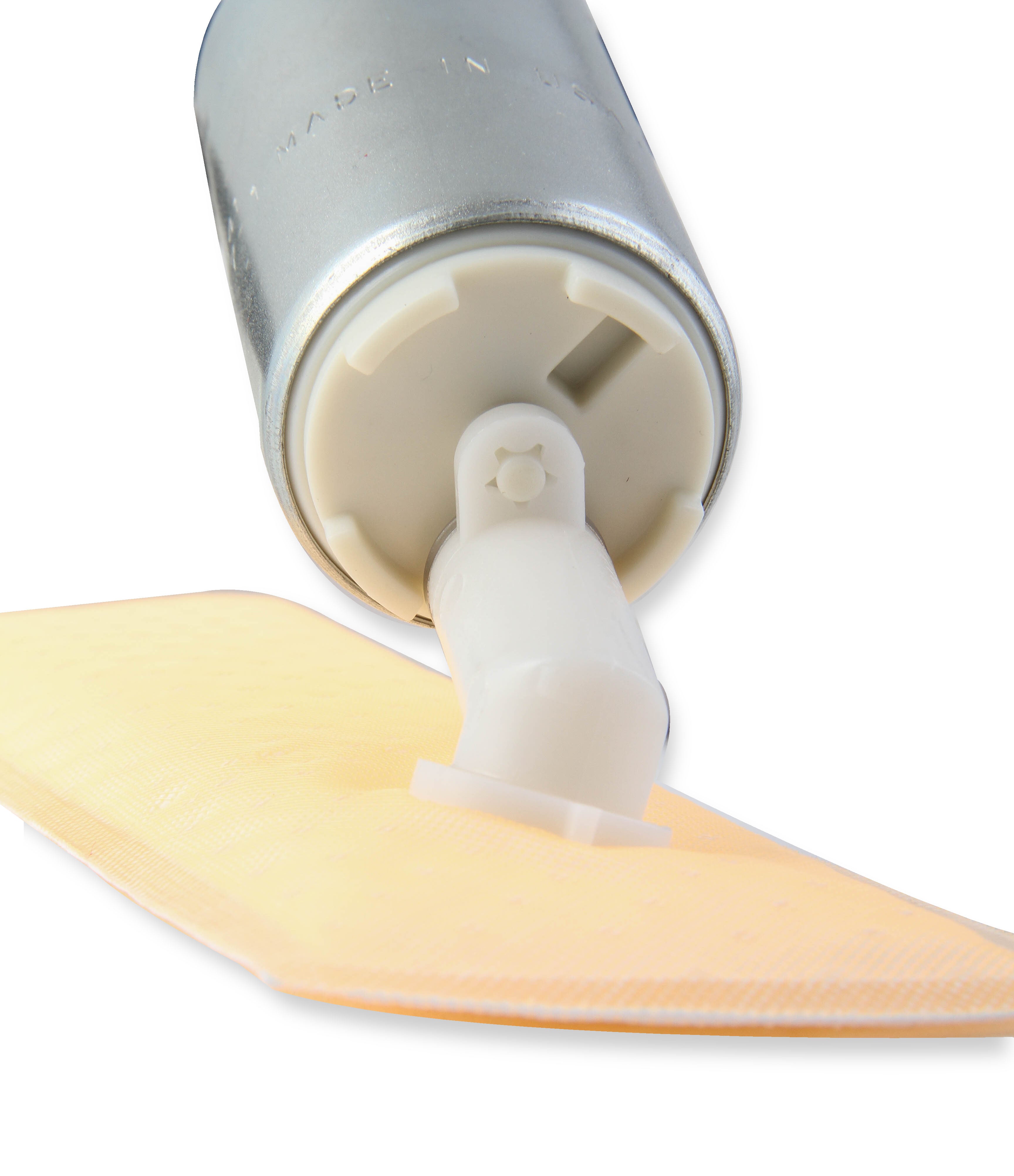

• Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Specs:

• Application: 1974-1981 Chevrolet Camaro/Pontiac Firebird
• Average Flow Rating: 350 LPH
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Connector Gender: Male
• Emission Code: 5
• Free Flow LPH: 350
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: Yes
• Fuel Sending Unit Ohms: 0-90 Ohms
• Fuel Tank Pressure Sensor Included: No
• Fuel Type: Gasoline
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• In Tank or External: In Tank
• Inlet Diameter (in): 5/16 IN
• Inlet Diameter (in): 5/16"
• Lock Ring Included: Yes
• Material: Steel and Plastic
• Maximum Pressure: 58 PS
• Negative Ground: Yes
• Outlet Outside Diameter: 3/8 IN
• Outlet Quantity: One
• Part Type: Fuel Pump Module Assembly
• Product Type: Fuel Pump Module
• Pump Type: Electric
• Regulator Included: Yes
• Resistance Ohms Empty: 0 82
• Resistance Ohms Full: 90 82
• Strainer Included: Yes
• Sub Category: Fuel Pumps and Related Components
• Universal Or Specific Fit: Specific
• Vent Size: N/A
• Warranty: Limited 90 Day
• Wire Harness Included: Yes

Tech Resources:

*** Notes for the 1980-81 Firebird/Trans-am applications and any older model Firebirds that have swapped in a Chevrolet small Block engine..

If the your car was equipped with the SBC (305 and 350) engine, the fuel line was routed up the passenger side of the chassis like our 12-374 is designed. (SBC fuel pump on passenger side of the engine. Just like Camaro with SBC)

If your car was built from the factory with the Pontiac or Oldsmobile engine (mechanical fuel pump is on the drivers side of engine) , they ran the factory fuel line up the drivers side of the chassis.

Thus, using a different fuel sending unit from the factory. Modification of the fuel lines will be necessary when connecting the 12-374 to the Pontiac/Oldsmobile engine chassis plumbing.

Instructions - 199r12275.pdf
