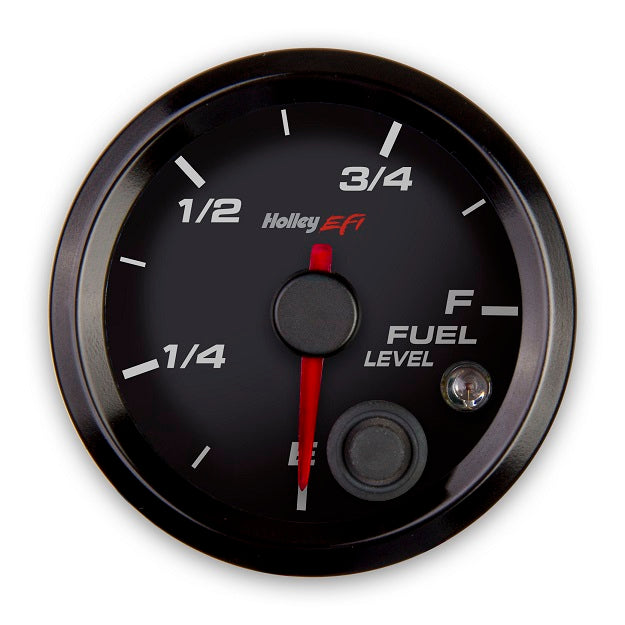

Holley EFI Fuel Level Gauge

Unlike the other Holley EFI gauges which daisy chain together, the fuel level gauge wires directly to the sending unit, eliminating the need for custom ECU configuration.

Features:

• Wires directly to sending unit, programmable for factory and aftermarket sending units with a range anywhere within 0-300ohms

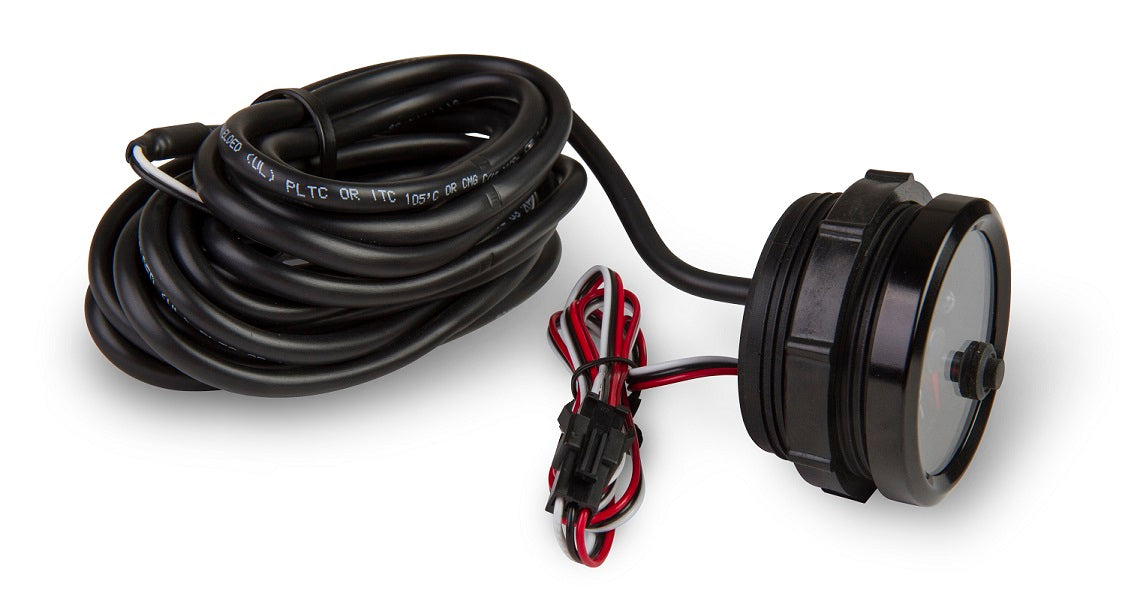

• Includes 12' shielded cable to connect directly to sending unit
• 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
• Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
• Adjustable LED warning light allows user to set low trigger points
• LED warning light brightness can be configured for both day and night
• Spin lock ring threads to back of gauge case for simple and secure gauge mounting
• CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
• Multiple bezel options available separately – User can customize the gauges to their preference

Specs:

• Bezel Color: Black
• Body Color: Black
• Brand: Holley EFI
• Category: Body
• Color Change Button: No
• Dimmable: No
• Display Format: Analog
• Emission Code: 5
• Face Color: Black
• Gauge Background Color: Black
• Gauge Type: Fuel Level
• Illuminated: No
• Indicator Markings Color: White
• Lens Color: Clear
• Liquid Filled: No
• Mounting Hardware Included: No
• Mounting Pod Included: No
• Part Type: Fuel Level Gauge
• Pointer Color: Red
• Product Type: Gauge
• Size: 2-1/16"
• Sub Category: Instrument Panel
• Universal Or Specific Fit: Universal
• Warning Light: No

Tech Resources:

Wires directly to sending unit. Programmable for use with any sending units with a range anywhere within 0-300ohms.

Instructions - 199r10949.pdf
