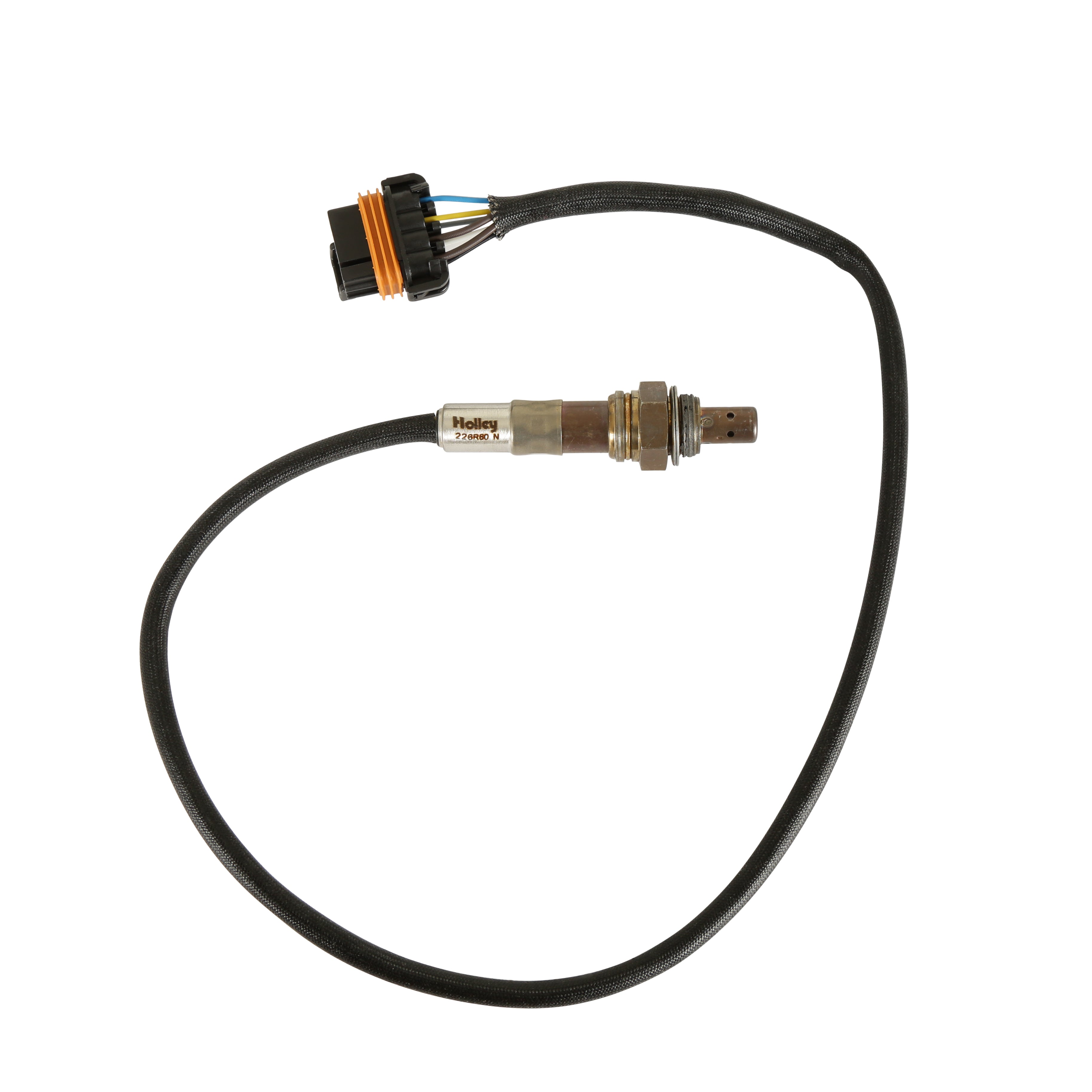

Holley EFI - Ford Coyote Ti-VCT Capable HP EFI Kit, NTK O2 550-628N
Type: ECU Assembly | Fits: Ford
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
Features:
- Now supports 2015-2017 Coyote engines
- HP EFI kits available

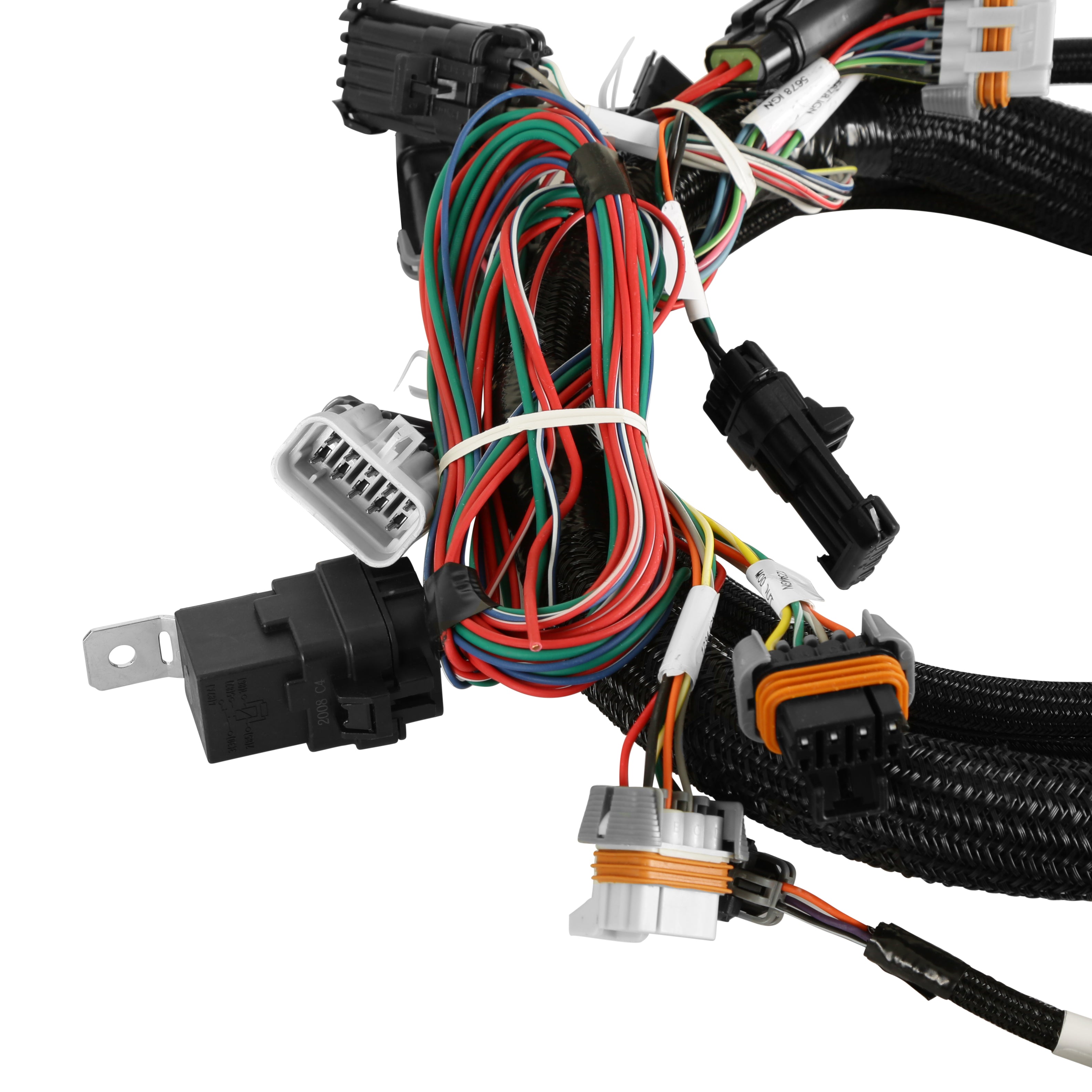

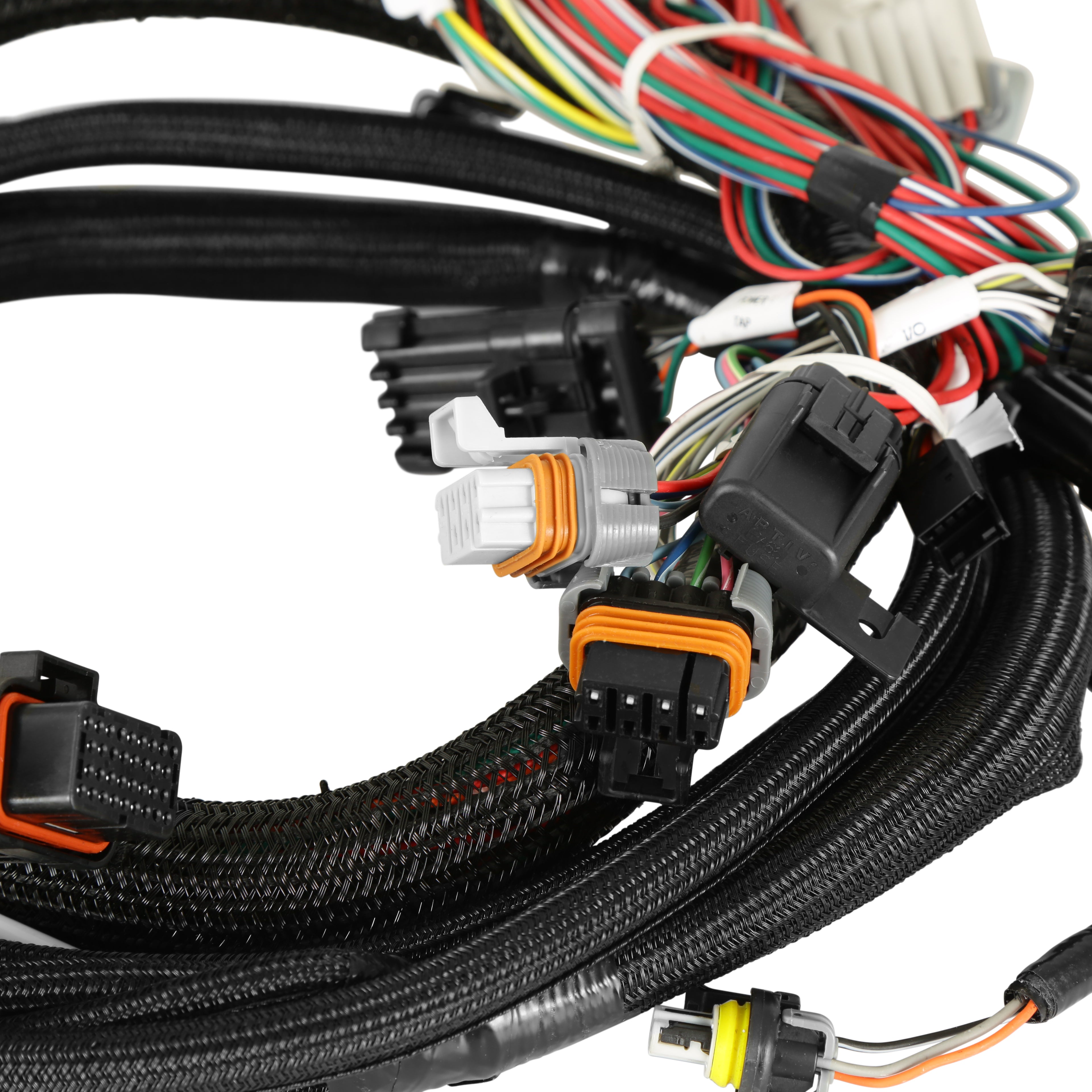

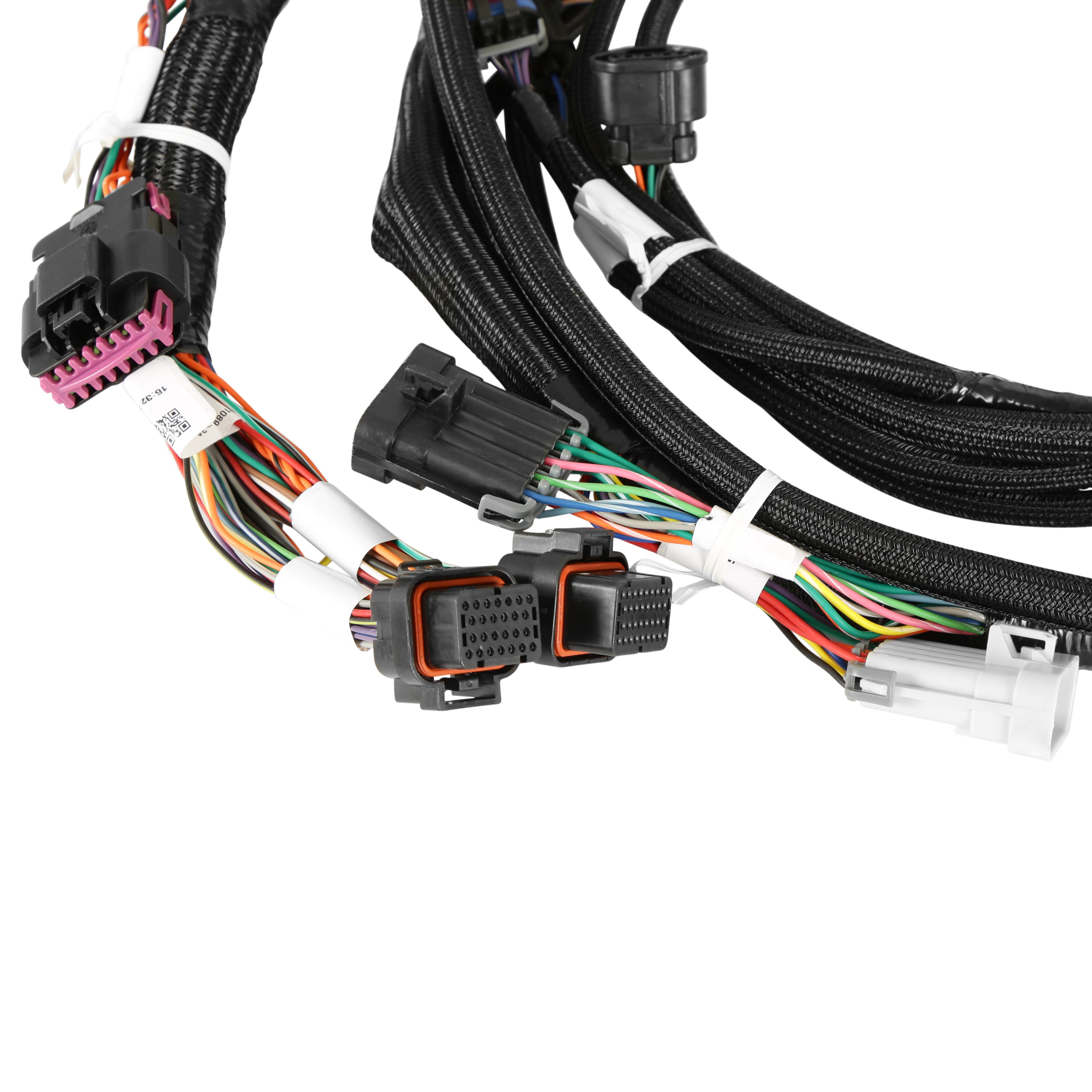

- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using stock coils (558- 110)
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using Holley EFI coils (558-122)
- Compatible with HP or Dominator EFI
- Pre-calibrated Ford sensor drop downs in the Holley EFI software
- Ti-VCT Cam control down to 400 RPM
- Commanded timing matched within 1 degree
- User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated stock cam position tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
- Main harnesses come terminated with Ford TPS and IAC connectors, making it easy to convert from a DBW throttle body to a manual throttle body
- Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
- Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
Specs:
- Brand: Holley EFI
- Category: Engine
- Emission Code: 3
- Grade Type: Performance
- Harness Application: Ford
- Harness Type: Ignition
- Ignition Type: Ford Coyote
- Injector Connector: USCAR (EV6)
- Mounting Hardware Included: No
- Part Type: Engine Control Module (ECM)
- Product Type: ECU Assembly
- Removable PROM: No
- Sub Category: Control Modules
Tech Resources:

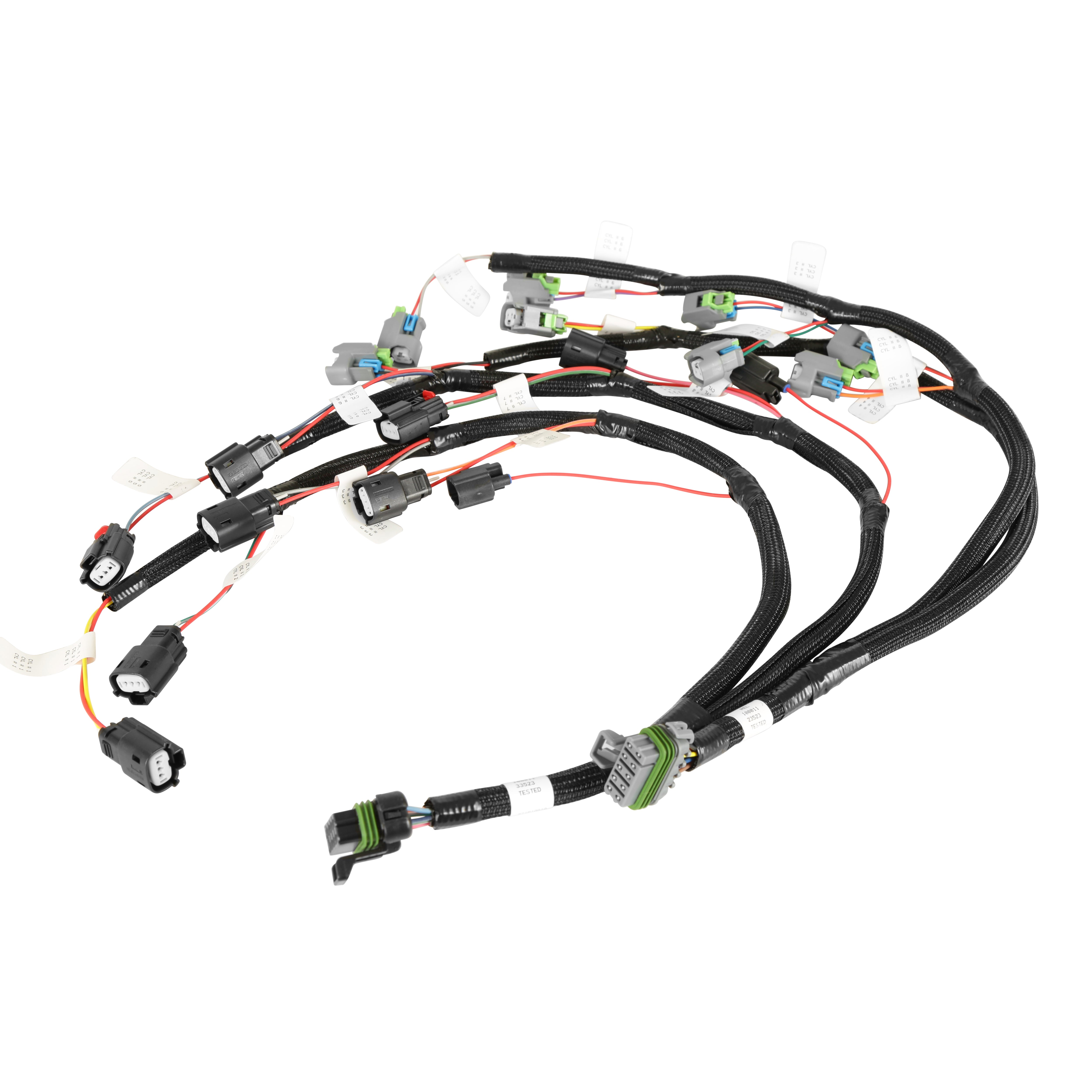

Complete system requirements: Coyote Ti-VCT Control Module 554-145, and the sub-harness for your engine, 2011-2012 Coyote Engines use 558-124, 2013+ Coyote Engines use 558-125. Designed to be used with a cable driven throttle body.
