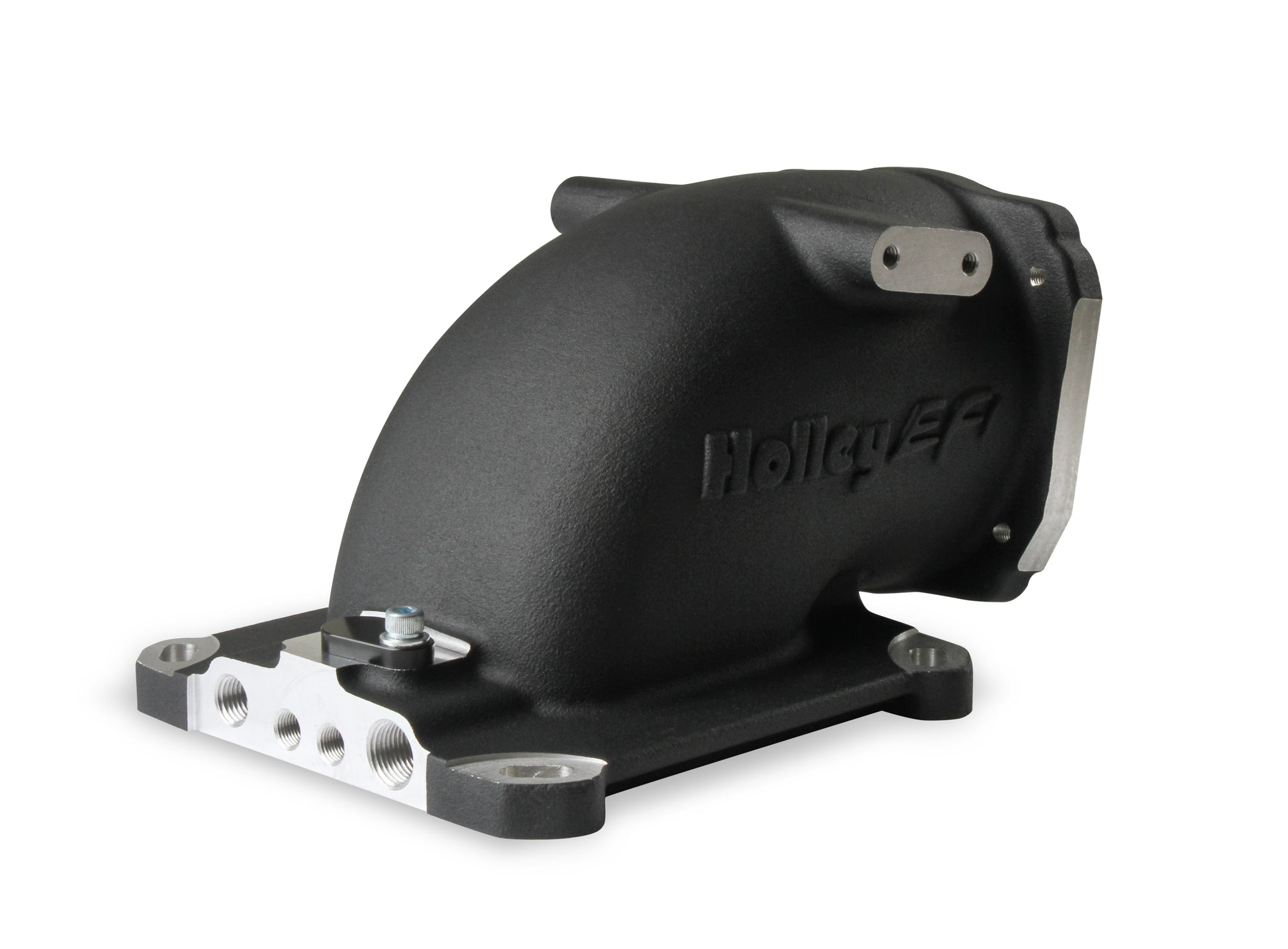

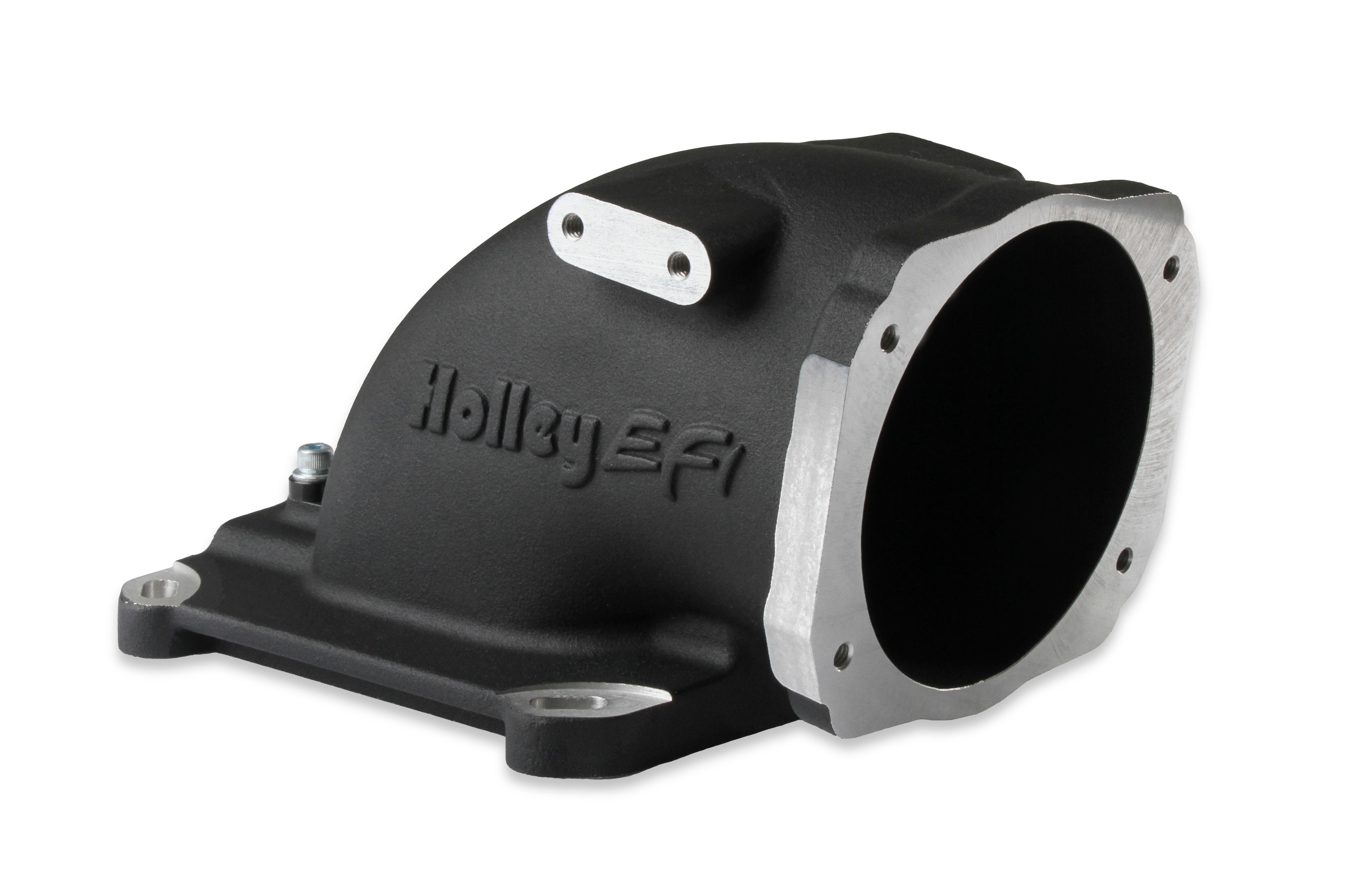

EFI Throttle Body Intake Elbow-Black Finish
Type: Intake Elbow

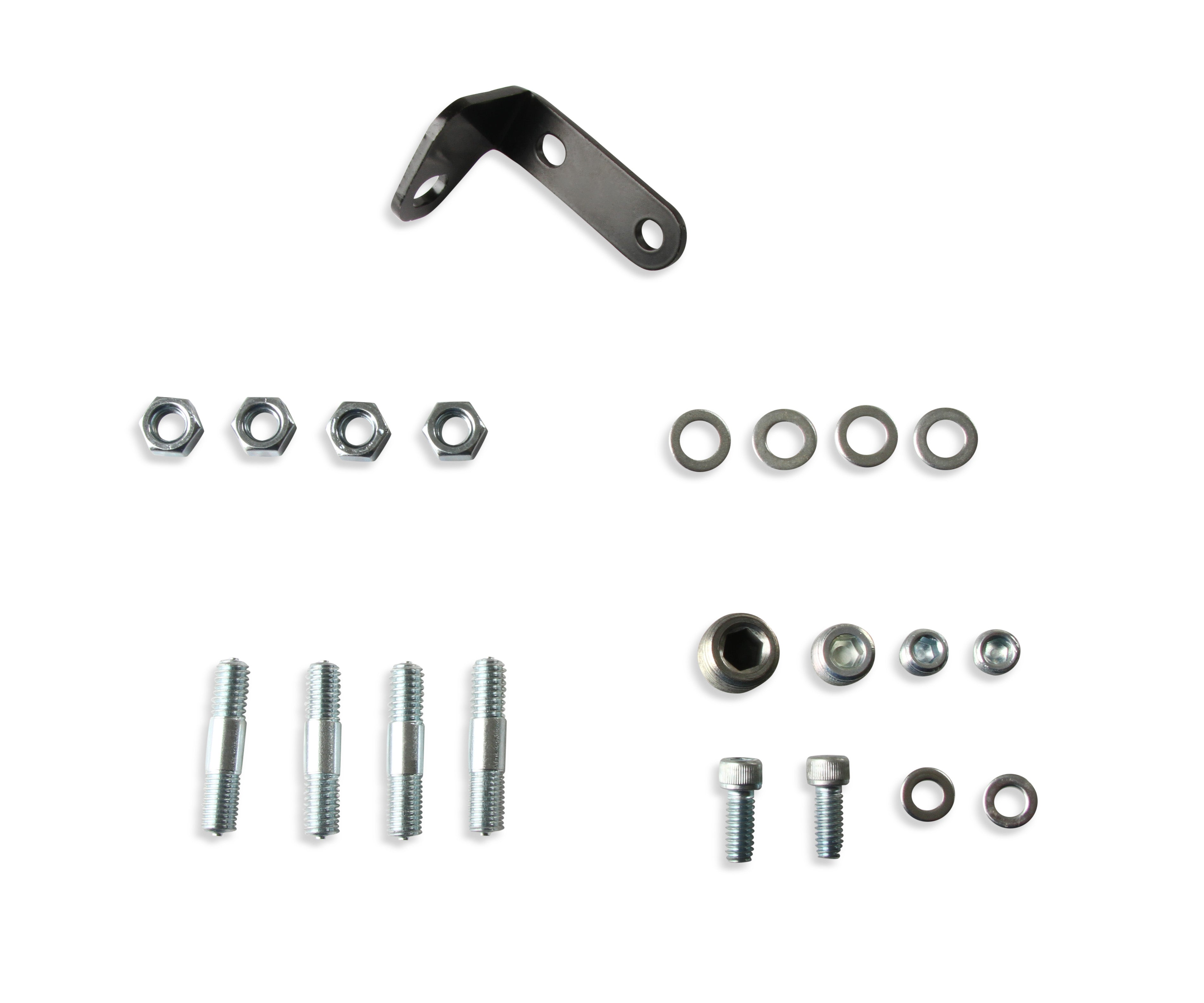

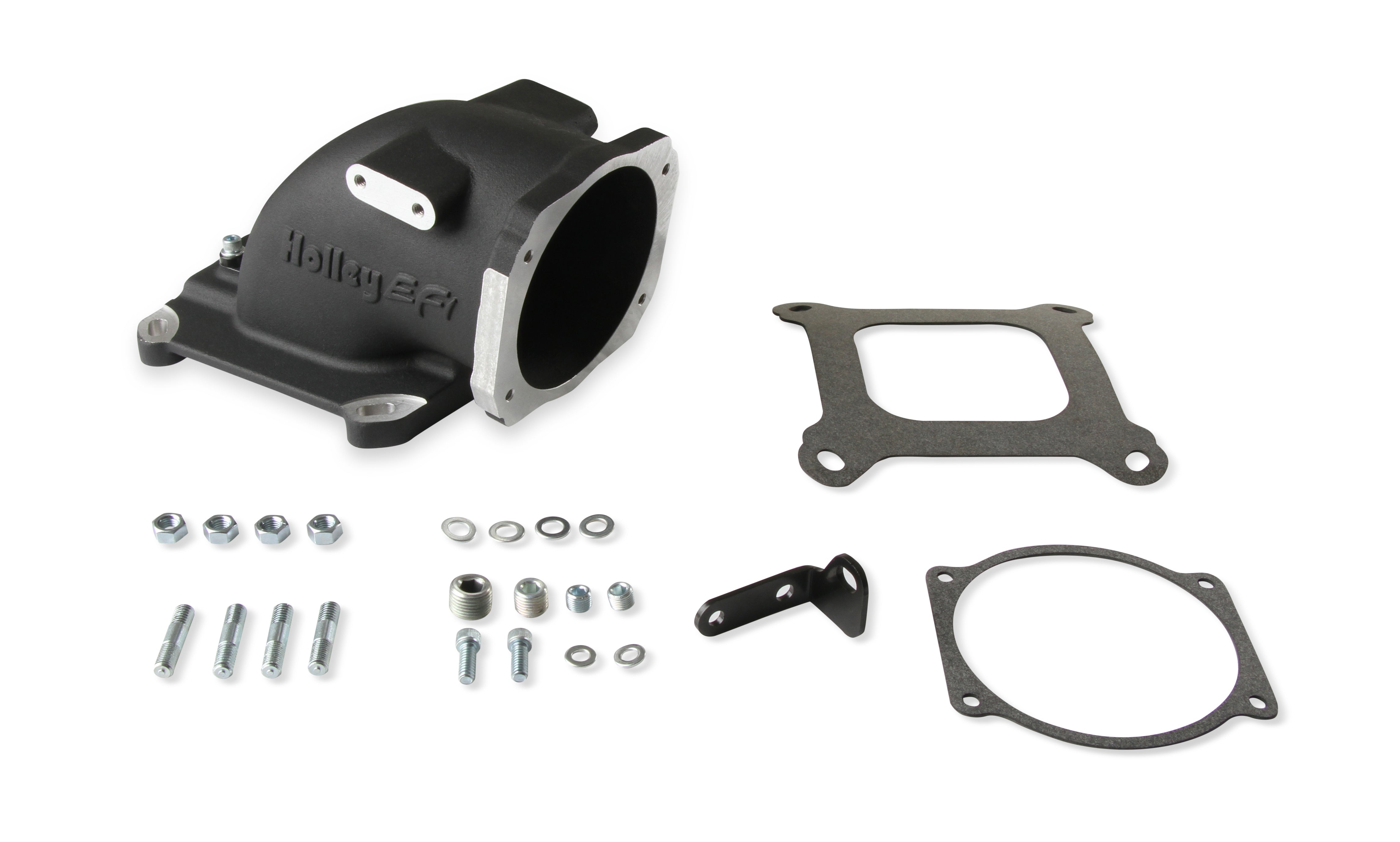

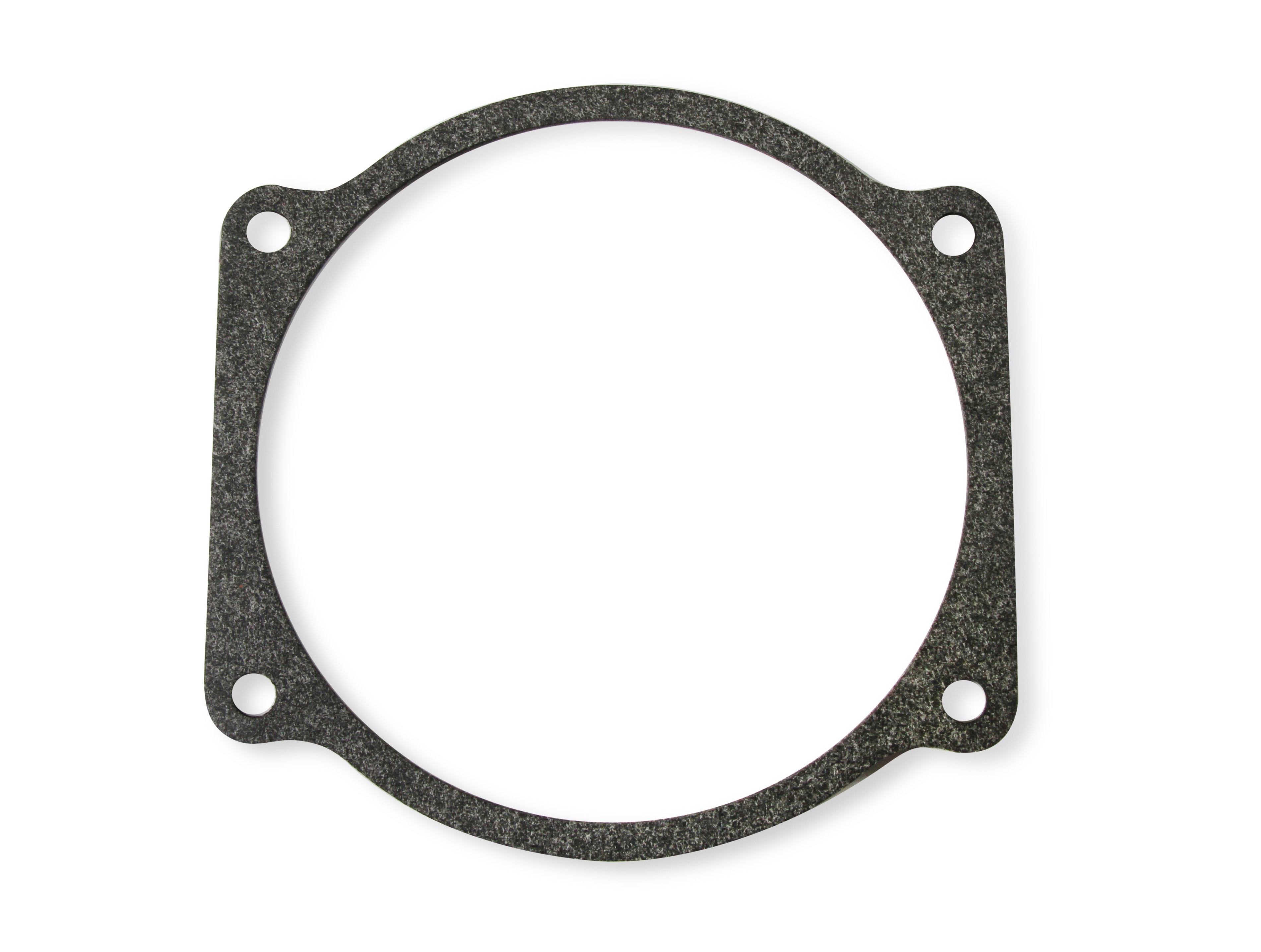

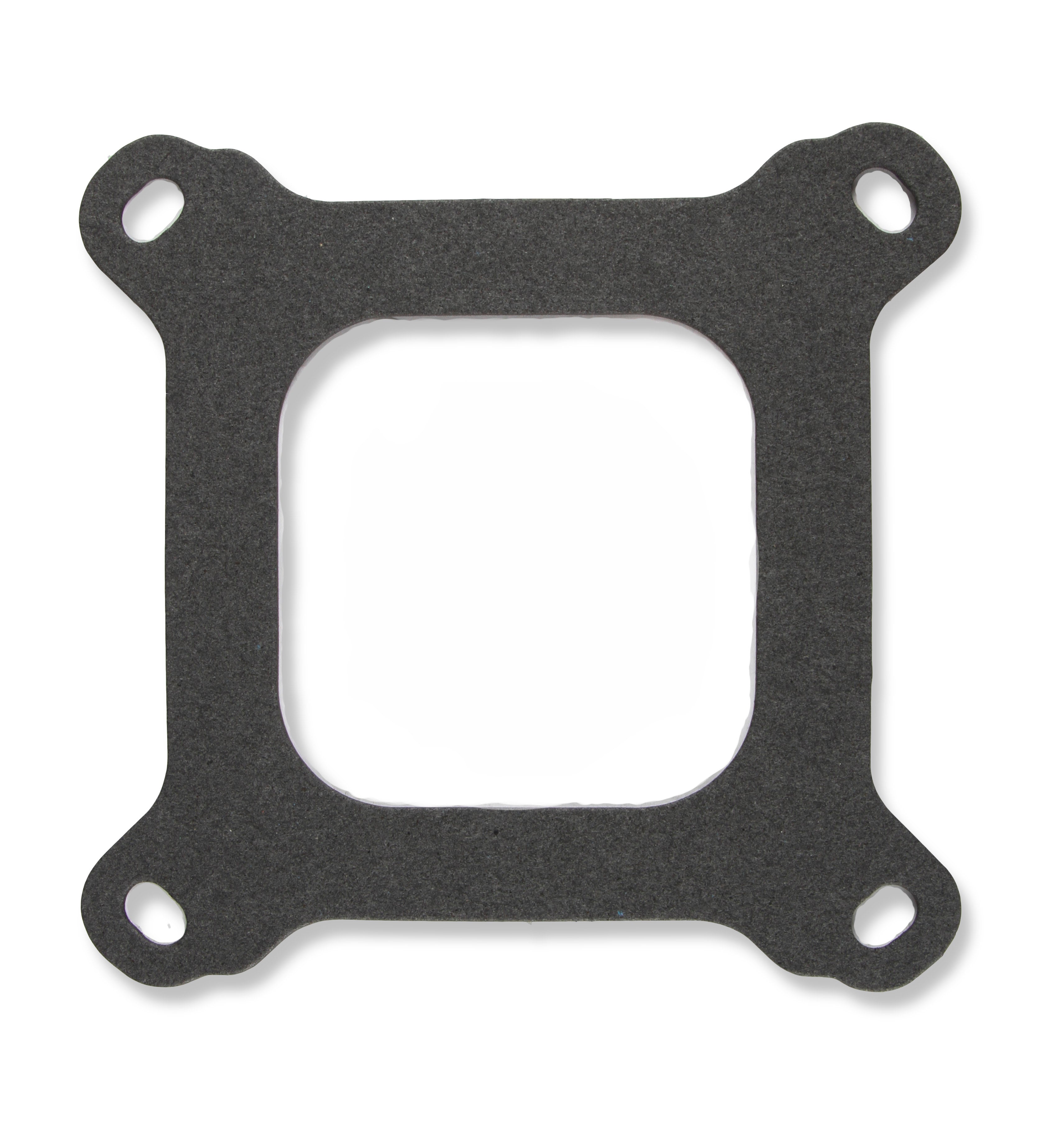

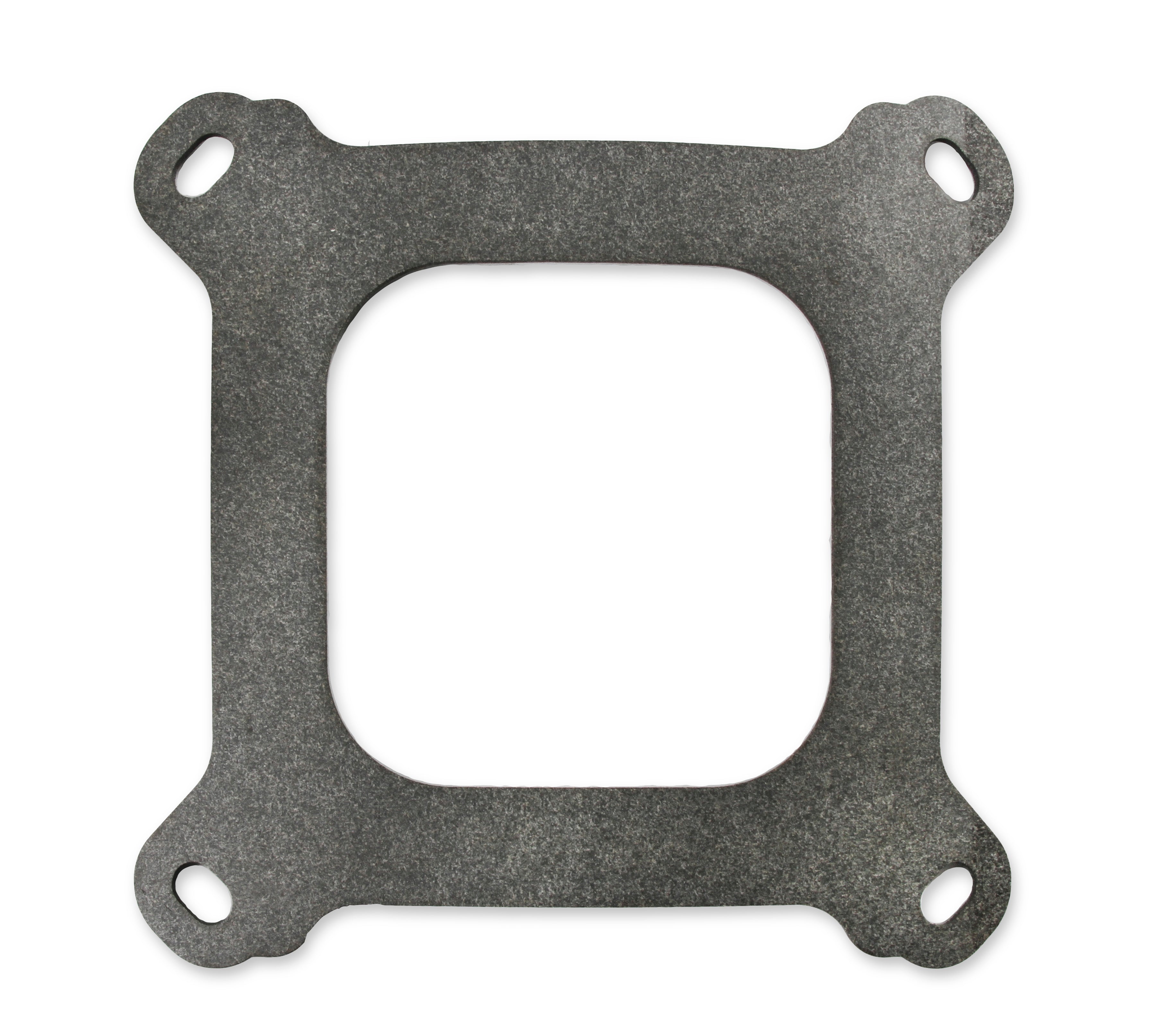

This cast EFI intake elbow allows the use of GM LS throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets & hardware.
Features:
- Fits GM LS Throttle Bodies
- (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT w/ Indirect Baffled Signal

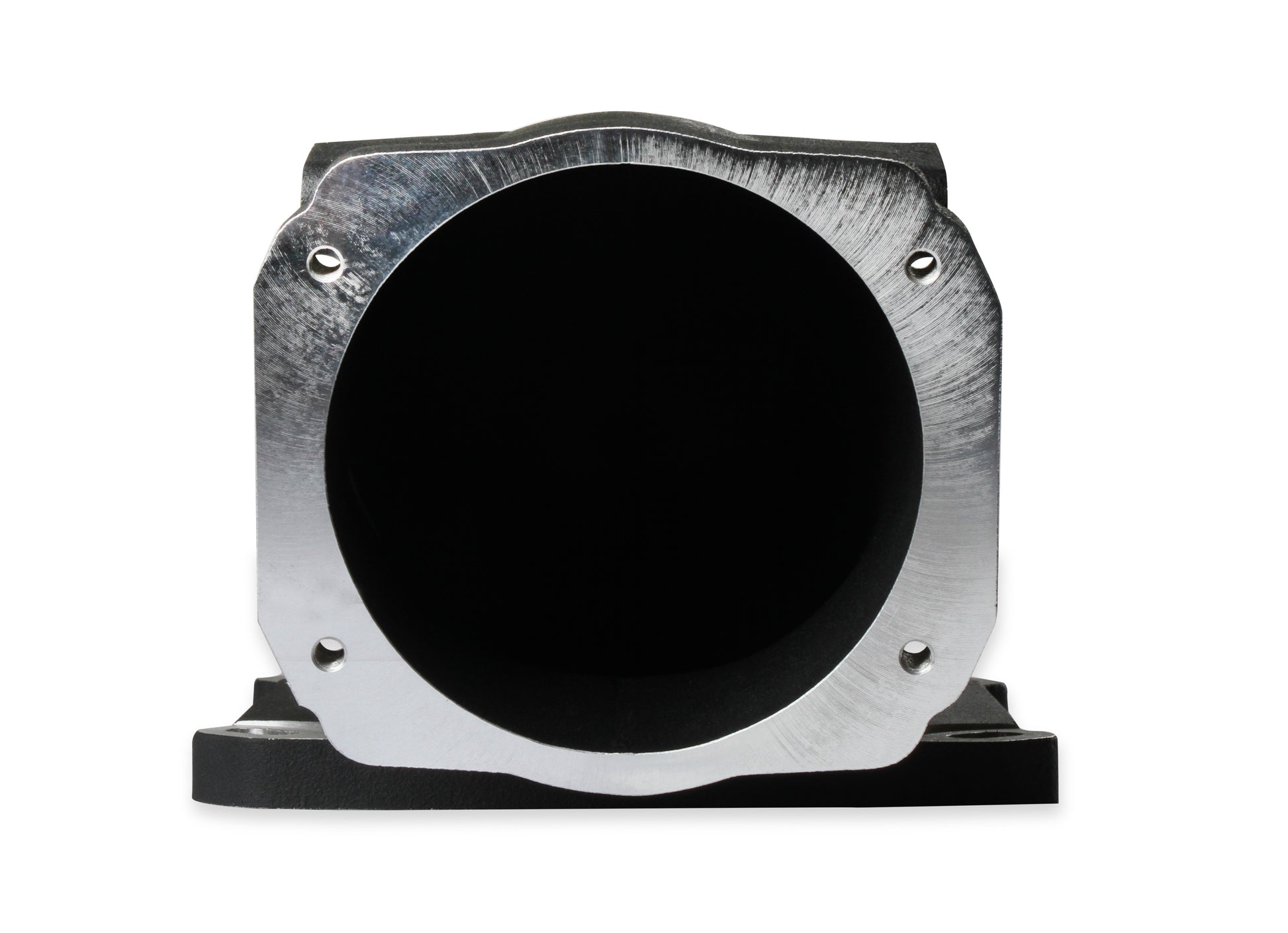

- 105mm Throttle Body Opening - 100° Mounting Angle
- (2) Throttle Linkage Mounting Bosses

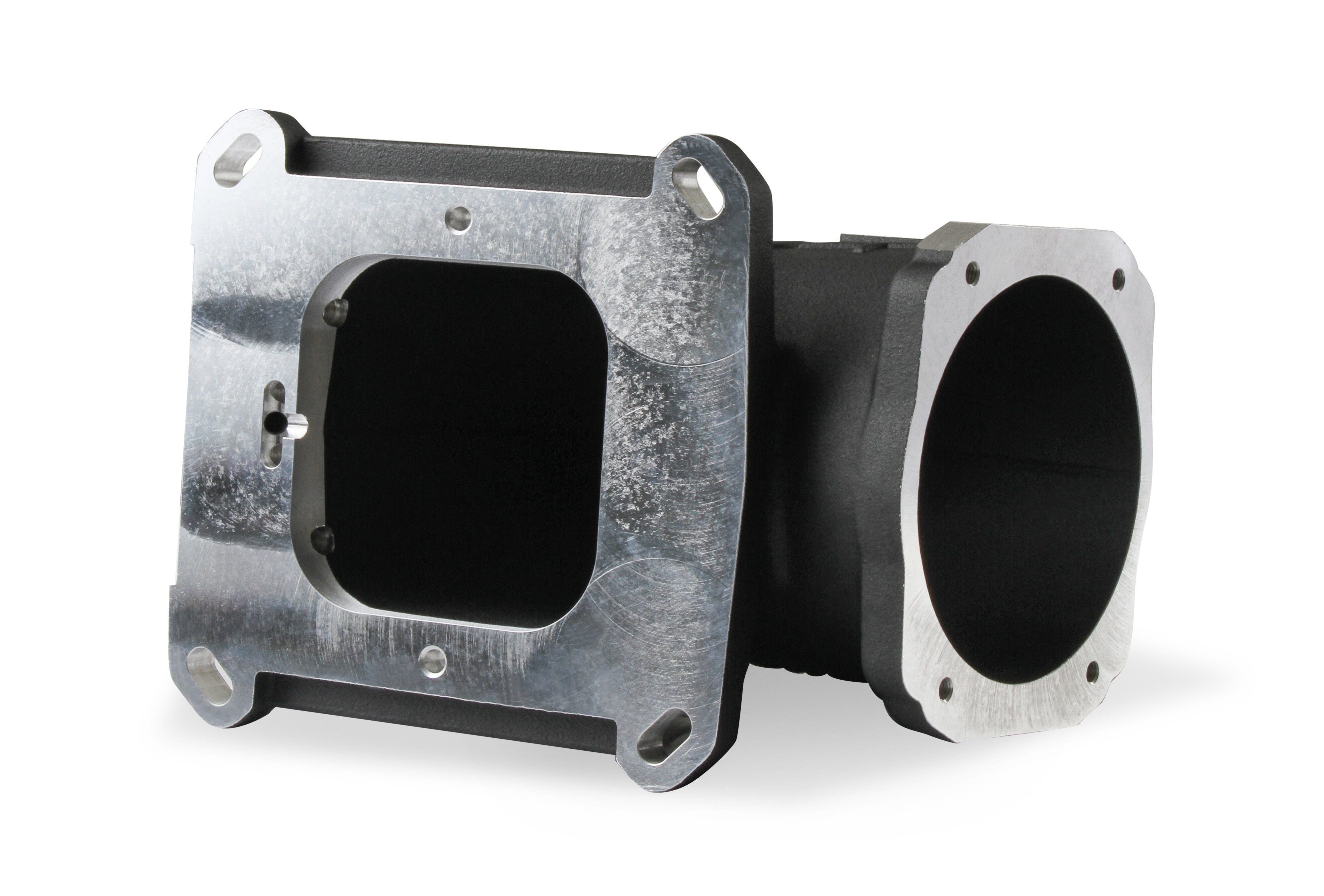

- Fits Intakes w/ 4150 Flange
- Sand Cast w/ Black Finish
- Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
- LS3 Style MAP Sensor Mounting
- Overall Height 5.12”
Specs:
- Brand: Holley EFI
- Category: Intake Manifolds
- Color: Black
- Construction: Cast
- Emission Code: 3
- Engine: GM LS1/LS2/LS6
- Finish: Black
- Flange Style: EFI
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Height: 5.12"
- Product Type: Intake Elbow
- Throttle Bore: 105mm
- Warranty: Limited 90 Day
