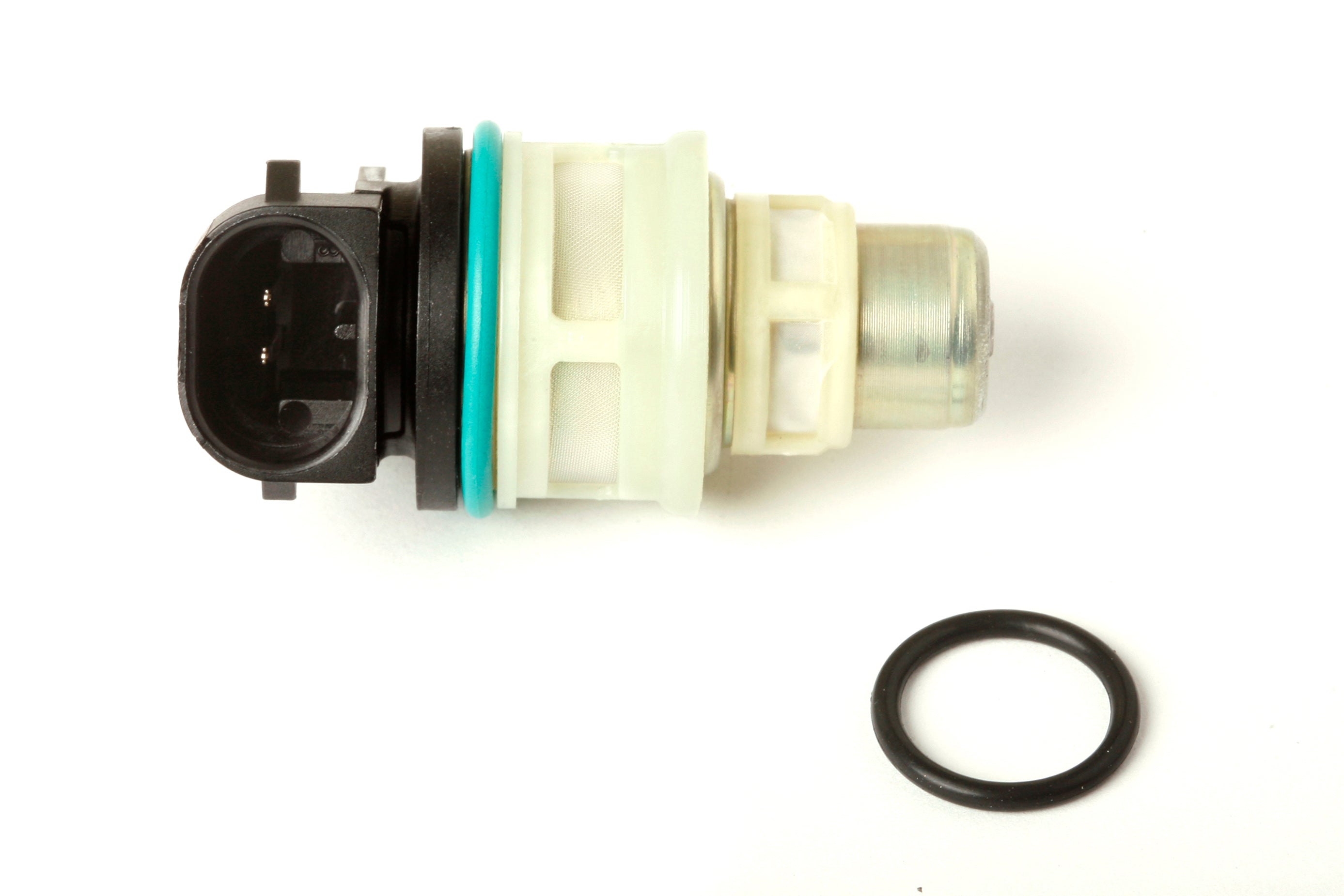

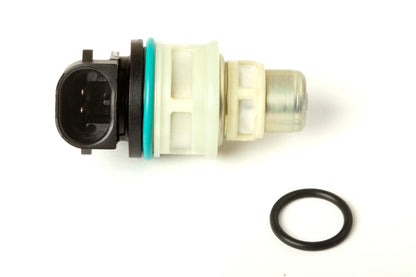

Holley EFI - Bottom-Fed Fuel Injector 522-80
Type: Fuel Injector
This electromagnetic valve meters fuel into the intake manifold proportional to the air being induced into the engine. When the valve is energized, the electromagnetic force generated by the solenoid lifts the pintle/ball from the seat. Fuel under pressure is then injected into the throttle body bore. For throttle body injection, a hollow conical spray is required to aim the metered flow around the throttle valve.
Features:
- Fits 502-4, 502-7, 502-8, and 950-24S throttle body injectors and systems
- TBI Flow @70kPa 6.35g/s
- Commander 950 Systems 50 PPH@12 PSI 72 PPH@21 PSI
- Silver color
- Sold individually
Specs:
- Body Diameter: 0.97
- Body Length: N/A
- Body Style: N/A
- Brand: Holley EFI
- Category: Air and Fuel Delivery
- Color: Black
- Connector Series: Early TBI
- Connector Shape: Early TBI
- Emission Code: 4
- Flow Rate: 72 4U
- Fuel Injection Type: Port
- Fuel Type: E-85, Gasoline
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: Low (2.0 Ohm)
- Mounting Hardware Included: No
- O-Ring Quantity: 2 per injector
- O-Ring to O-Ring: N/A
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Rated Injector Flow: 72 lb/hr
- Retainer Clips Included: No
- Sub Category: Fuel Injection System and Related Components
- Terminal Gender: Female
Tech Resources:
Typically used in TBI systems.
