Base Manifold and Rail Kit for Lo-Ram - LS1/LS2/LS6
Type: Intake Manifold Base | Fits: Ram

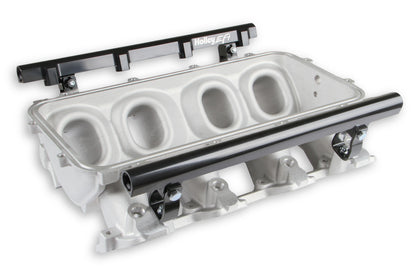

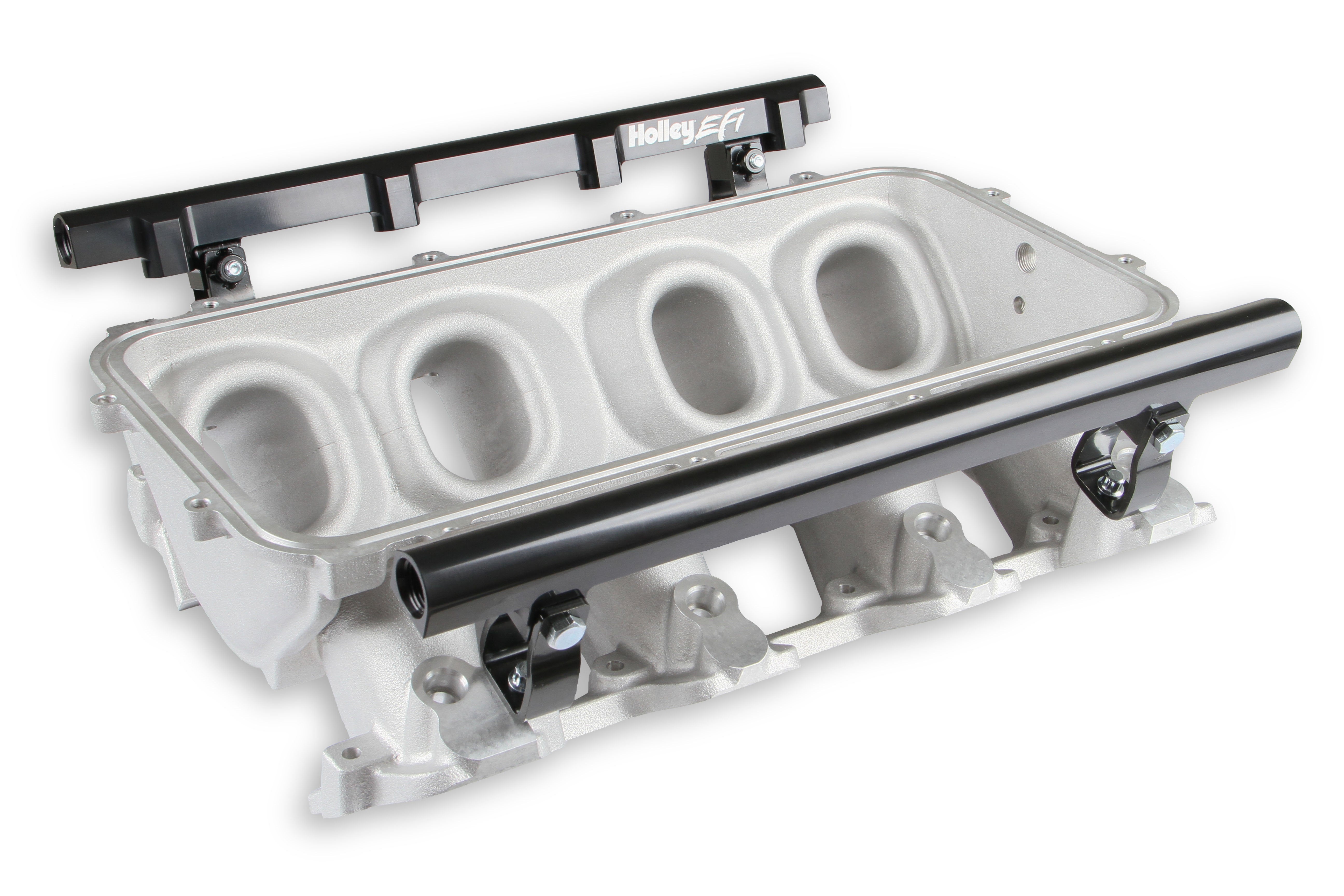

The Holley LS1/2/6 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads. These intake manifold and rail kits will work with OE (Original Equipment) or aftermarket cylinder heads.
The 300-600 is the lower manifold in the 300-620 complete kit. Offering this separately allows you to select your components individually as you build your system.
The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler in a top-feed configuration.

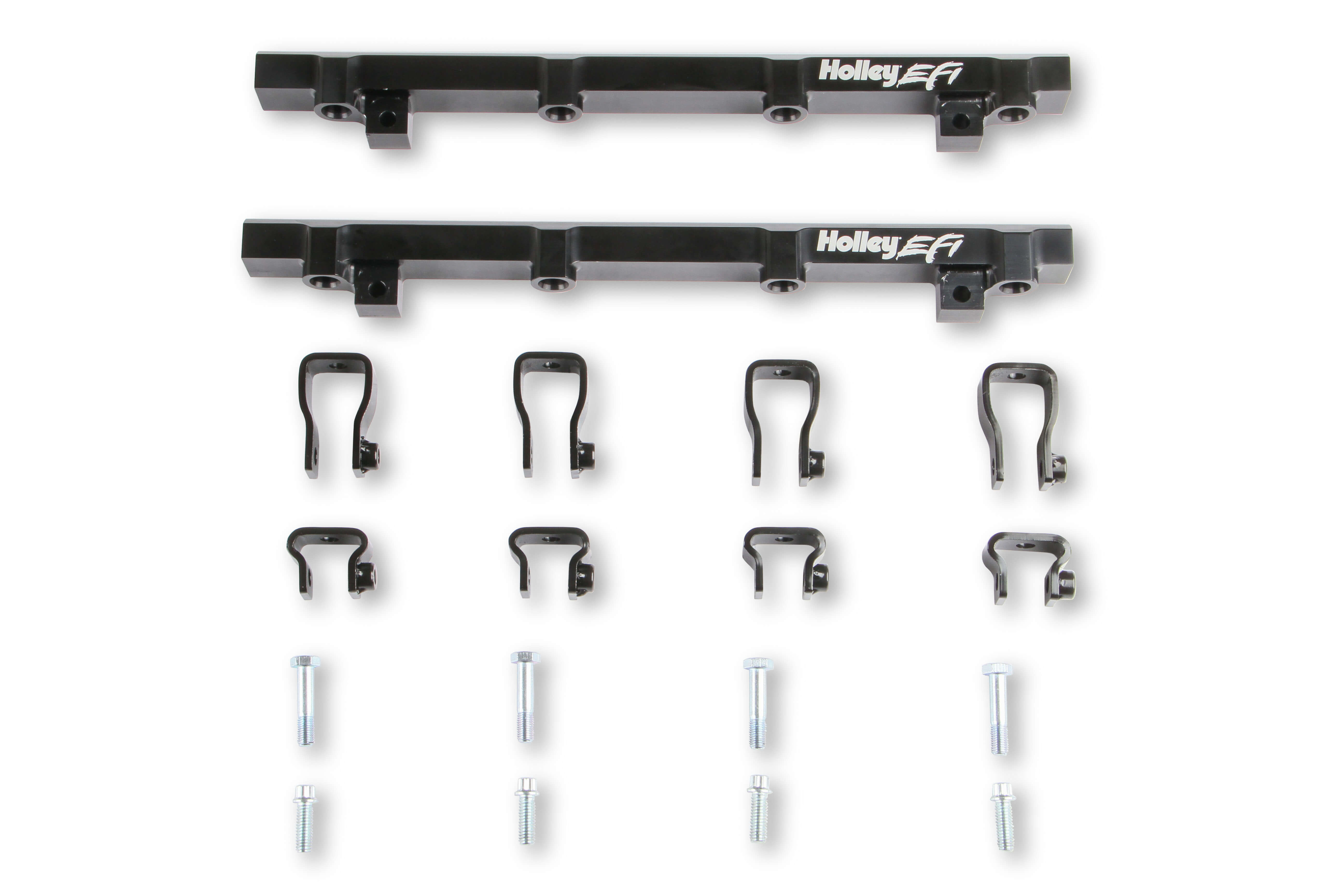

The short runner, low-profile base intake manifold intended for forced induction applications was conceived to package with an air to water plenum mounted intercooler with a shorter overall height than possible with other existing intake manifolds. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.
Features:
- Base manifold and rail kit for Low-Ram 300-620 allows you to select your components individually as you build your intake system
- Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
- Low height to aid the use of a plenum mounted air-to-water intercooler in a top-feed configuration
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application
- High volume fuel rails and mounting hardware included with ¾”-16 o-ring ports (8 AN)
Specs:
- Basic Operating RPM Range: 3500-8000 RPM
- Brand: Holley EFI
- Category: Engine
- Color: Silver
- Construction: Cast
- EGR Port: No
- Emission Code: 3
- Engine: GM LS1/LS2/LS6
- Finish: Silver
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Injector Quantity: Single
- Inlet Location: Top
- Intake Port Gasket(s) Included: No
- Manifold Type: Lo-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold Base
- Recommended Use: Forced Induction
- Removable Runners: No
- RPM Power Band: 3500-8000 RPM
- Single Or Dual Plane Type: Single Plane
- Sub Category: Cylinder Block Components
- Throttle Body Included: No
- Warranty: Limited 90 Day
Tech Resources:
