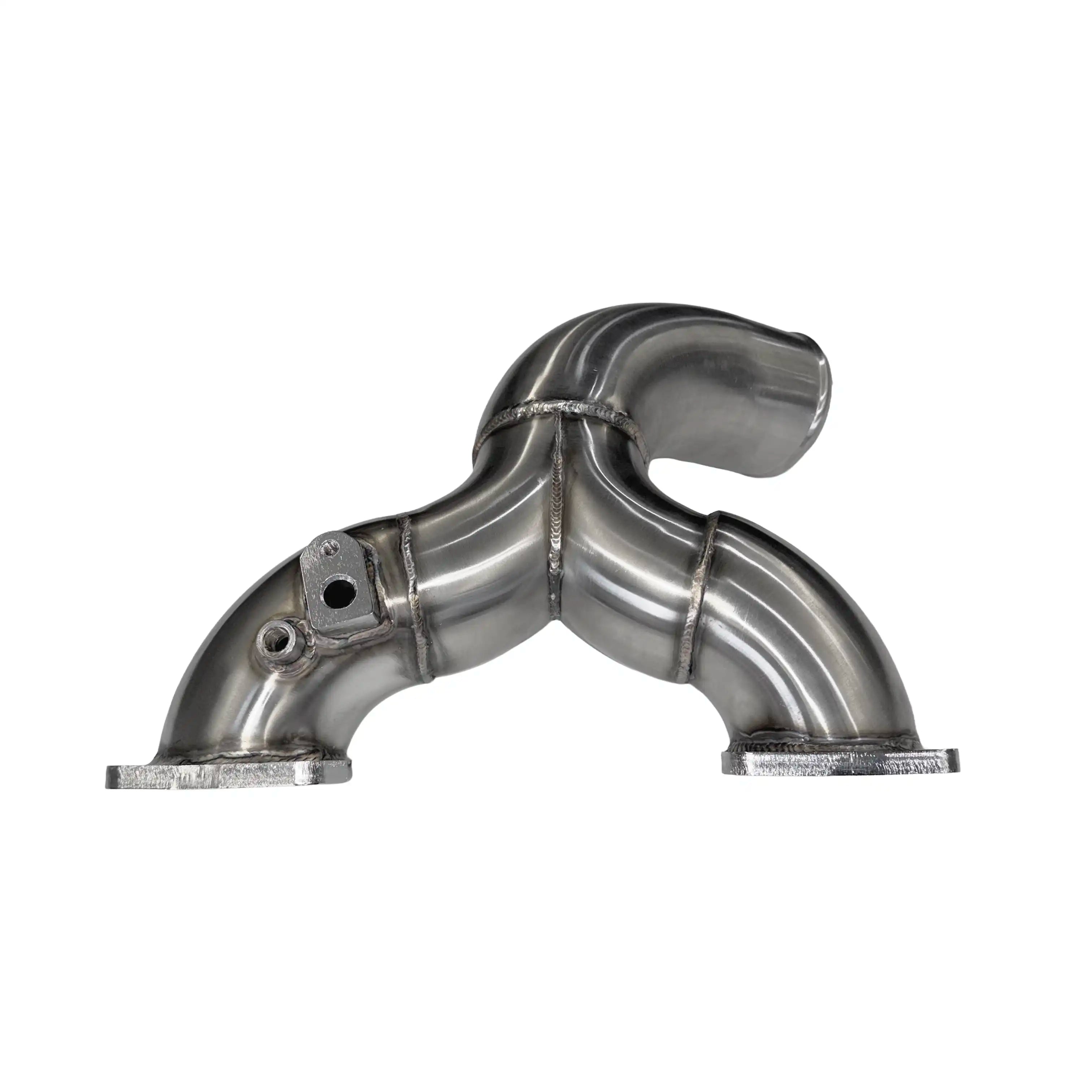

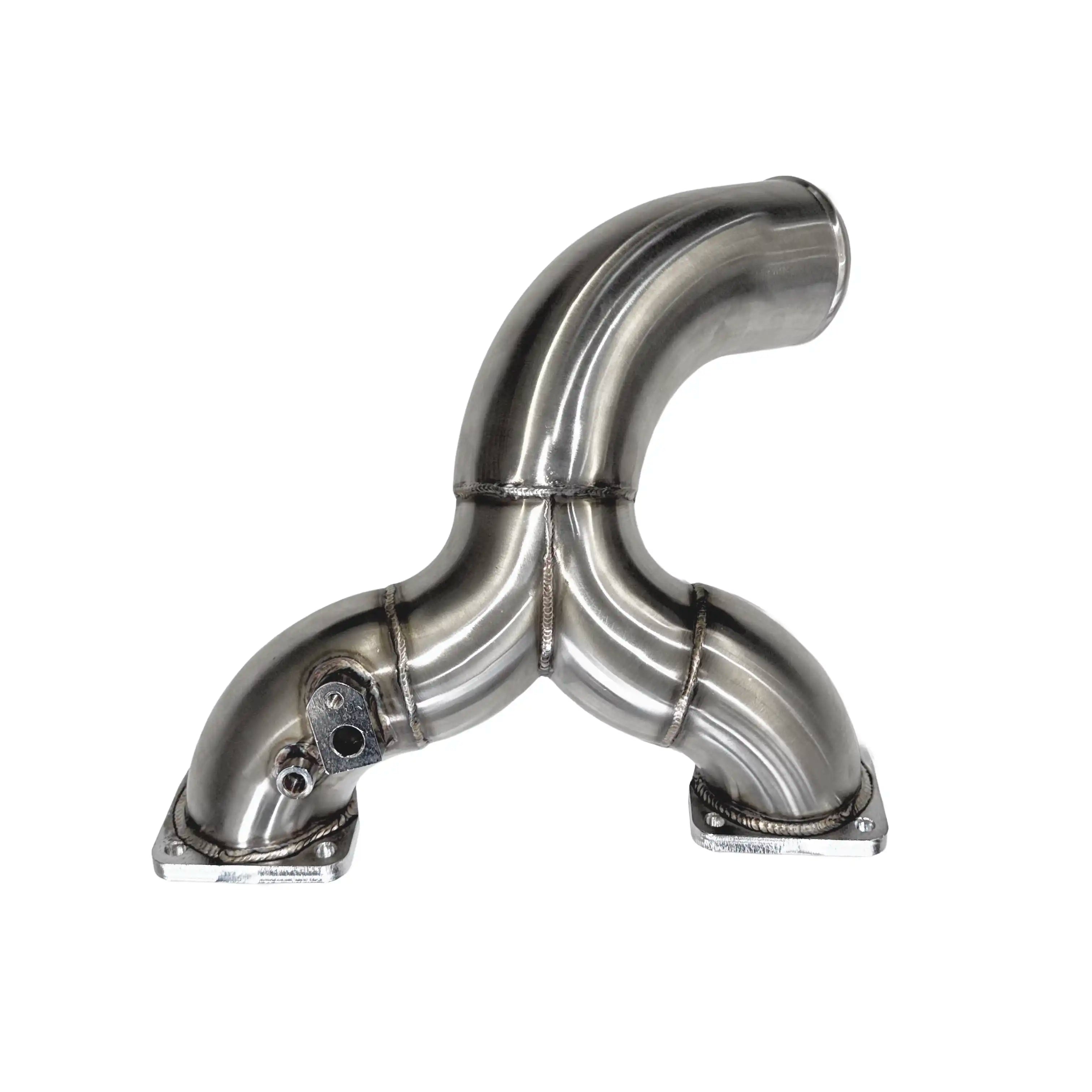

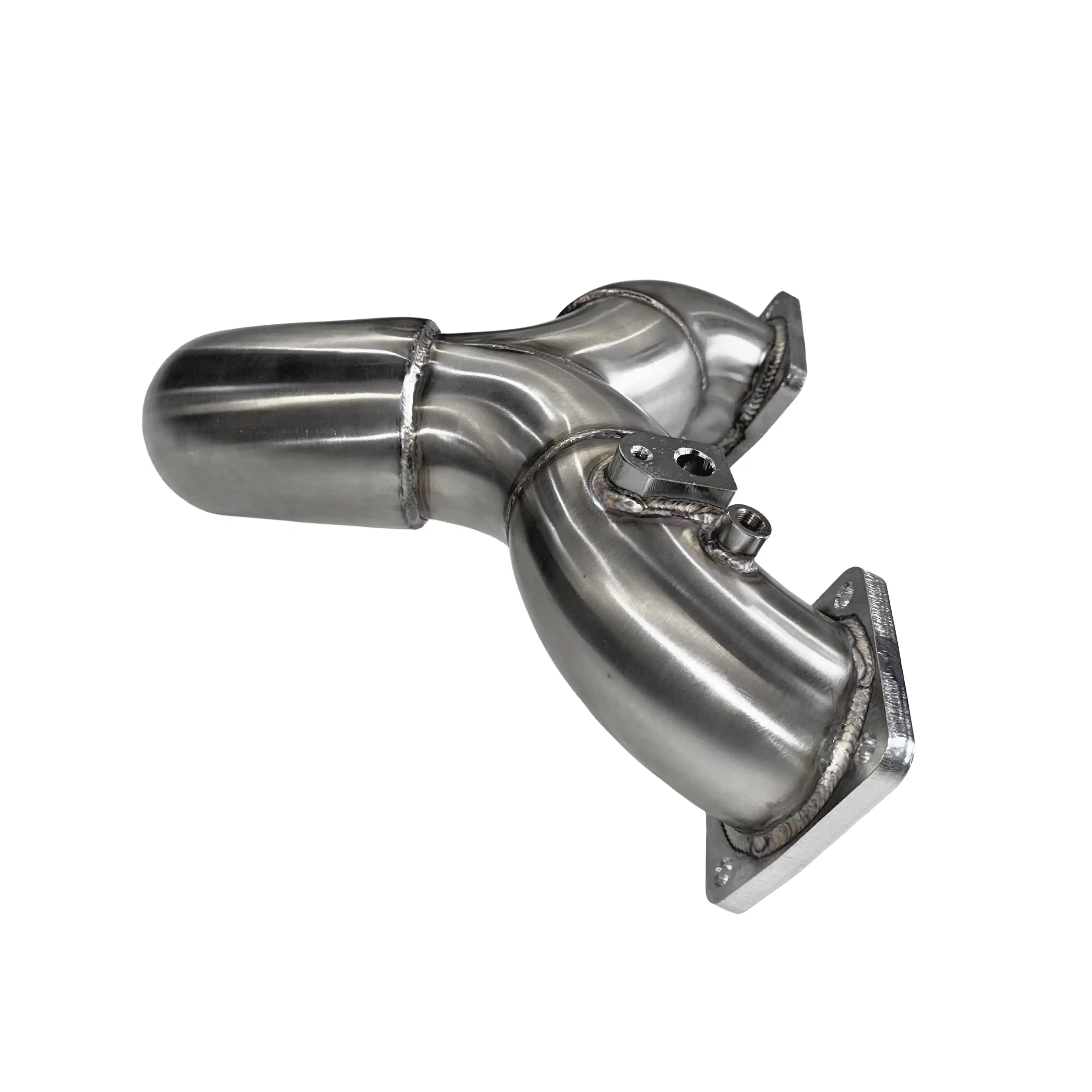

6.6L Duramax L5P High-Flow Y-Bridge | 3.5-inch | Chevy & GMC | 2017–2024
Type: exhaust-component
Guaranteed Secure Checkout
- Secure checkout
- Ships across Canada & USA
- Expert parts support
- Privacy protected
Secure payment options, trusted performance parts, and support before you order.
Building a custom turbo setup for your 6.6L Duramax L5P? This 3.5" stainless steel Y-bridge is designed for modified 2017–2024 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks running a compatible aftermarket turbo configuration.
Built from TIG-welded stainless steel, the Y-bridge features a 3.5" bead-rolled inlet, a factory MAP sensor connection, and a 1/8" NPT accessory port. It mounts to the original intake runners but requires compatible aftermarket charge piping and custom fabrication to complete the installation.
Important: This is not a direct-fit replacement for the factory Y-bridge. It is not compatible with the stock turbocharger or original intercooler piping.
Overview
When you're putting together a custom turbo system on the 6.6L Duramax L5P, the intake connections need to match the rest of your setup. This 3.5" Y-bridge provides a connection point for compatible aftermarket charge-air piping while retaining the original intake-runner mounting arrangement.
The bridge is constructed from TIG-welded stainless steel and features a bead-rolled inlet to help secure a properly sized silicone coupler. It also includes a provision for the factory MAP sensor and a 1/8" NPT port for a compatible fitting or accessory.
Unlike a stock replacement, this Y-bridge is intended for custom performance builds. The installer must provide compatible turbo and charge-pipe components and complete any fabrication required for the specific setup.
Vehicle Fitment
| Year Range | Make | Model | Engine | Requirements |
|---|---|---|---|---|
| 2017–2024 | Chevrolet | Silverado 2500HD / 3500HD | 6.6L Duramax L5P | Compatible Custom Turbo Setup |
| 2017–2024 | GMC | Sierra 2500HD / 3500HD | 6.6L Duramax L5P | Compatible Custom Turbo Setup |
Â
Important Fitment Notes:
- Designed for 2017–2024 Chevrolet Silverado and GMC Sierra 2500HD/3500HD trucks equipped with the 6.6L Duramax L5P engine.
- Requires a compatible aftermarket turbocharger configuration.
- Not compatible with the factory turbocharger setup.
- Not compatible with original intercooler piping.
- Mounts to the factory intake runners using the original hardware and seals.
- Custom charge piping and fabrication are required.
- Confirm your turbo and charge-air configuration before ordering.
What's In The Box
- 3.5" TIG-welded stainless steel Y-bridge
- Integrated factory MAP sensor provision
- Integrated 1/8" NPT accessory port
Note: This listing is for the Y-bridge assembly. Aftermarket turbo components, charge piping, silicone couplers, clamps, and fabrication materials are not specified as included.
The Y-bridge reuses the original intake-runner hardware and seals.
Technical Specifications
| Product Type | High-Flow Y-Bridge |
| Engine | 6.6L Duramax L5P Diesel |
| Vehicle Fitment | 2017–2024 Silverado / Sierra 2500HD & 3500HD |
| Material | TIG-Welded 304 Stainless Steel |
| Inlet Diameter | 3.5" |
| Inlet Design | Bead-Rolled |
| MAP Sensor Connection | Factory MAP Sensor Provision |
