2 Axis G-Meter

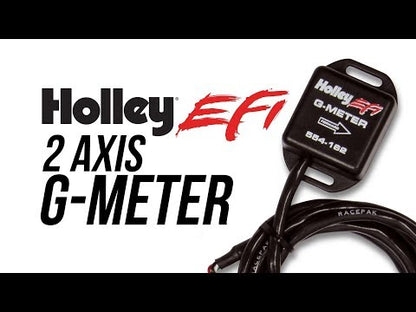

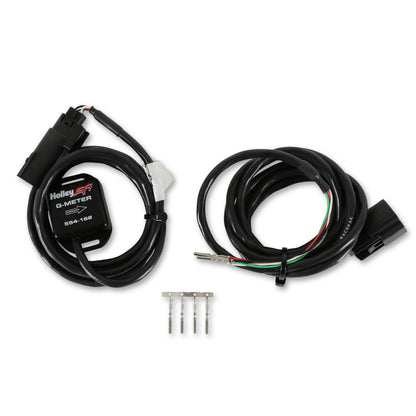

Introducing the Holley EFI 2 Axis G-Meter. Designed to be stable in the harshest environment. Co-designed with RACEPAK, this G-meter would be a perfect fit for your four digit horsepower drag radial machine or an autocross corner carver. The G-meter features both X and Y axis outputs. The X axis registers from a negative 3 G (deceleration) to a positive 12 G (acceleration). The Y axis registers +/-7.5 G. In order to ensure the installation is simplified, the ECU pins come pre crimped. Loose pins are also provided if the cable needs to be shortened for clean installations. This can also be used with non-Holley ECU's as long as they're are (2) 0-5V analog inputs available.

Features:

• The Y axis registers +/- 7.5 G for cornering
• The X axis registers from -3 G (deceleration) to +12 G (acceleration)
• Directional mounting arrow is provided, always pointing towards the front of the vehicle
• Displayed in real time or data logged

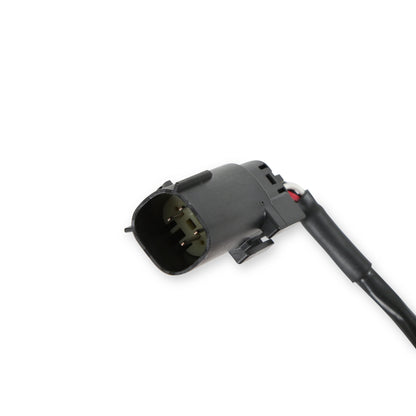

• Included harness to plug into Holley ECU connectors

Specs:

• Brand: Holley EFI
• Category: Body
• Color: Black
• Emission Code: 5
• Grade Type: Performance
• Part Type: Lateral Accelerometer Gauge
• Product Type: G-Meter
• Sub Category: Instrument Panel
• Terminal Type: Bullet

Tech Resources:

The unit can be mounted using Velcro, which helps dampen vibrations, or mounted solidly. The unit should be placed flat and positioned so the arrow points towards the front of the vehicle. It can also be screwed into the application.

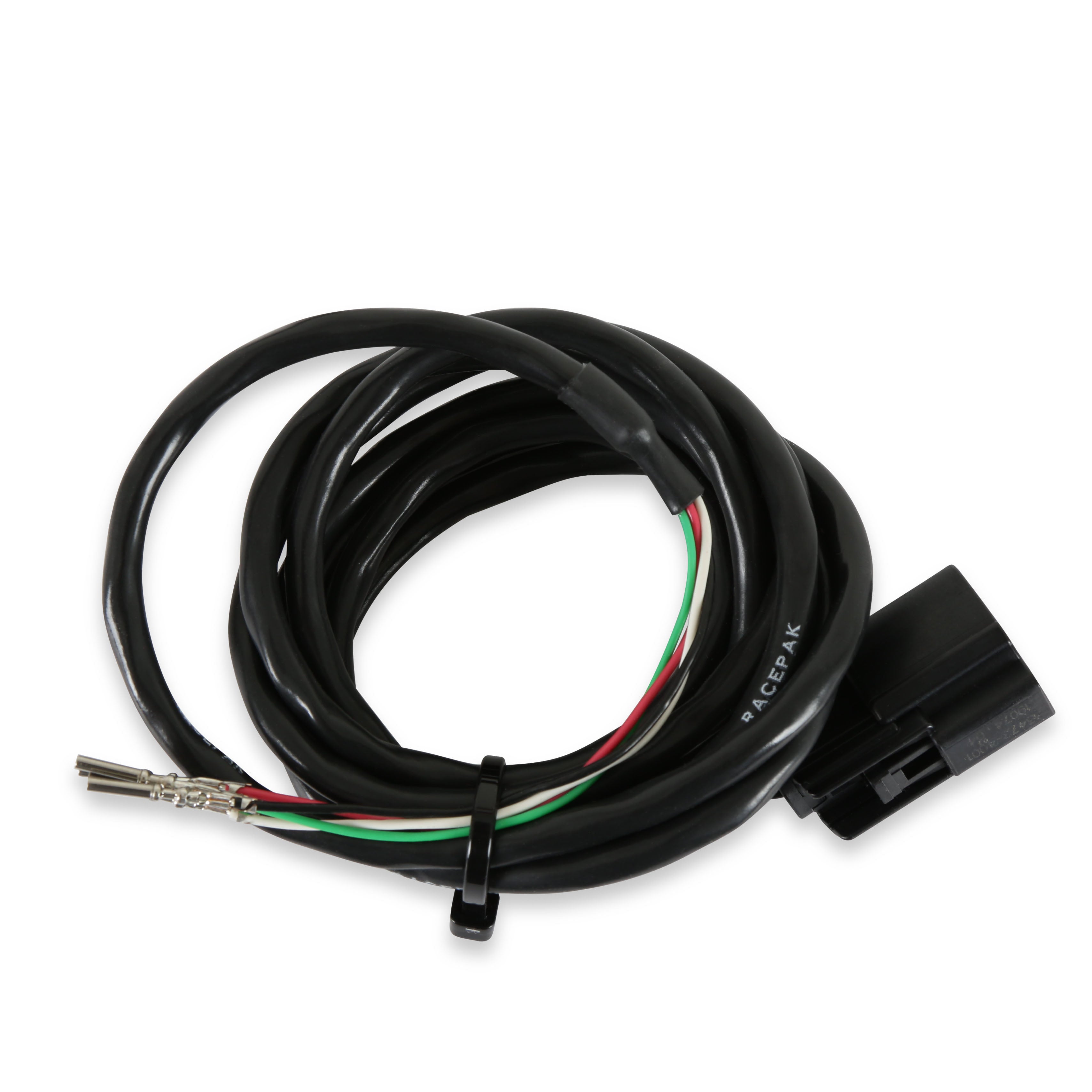

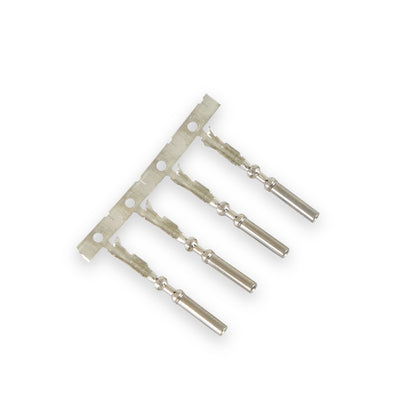

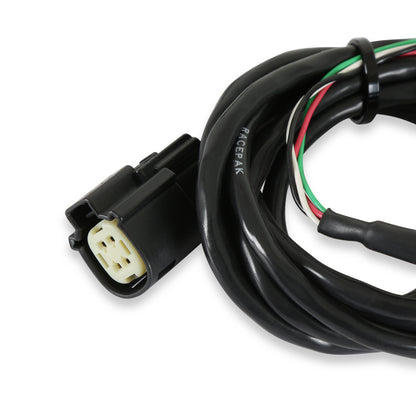

A harness is included that can plug into the Holley ECU connectors. Loose ECU pins are included if the harness needs to be shortened.
The unit must be powered by a battery voltage level supply (do not use 5V).

Instructions - 199r11478.pdf
