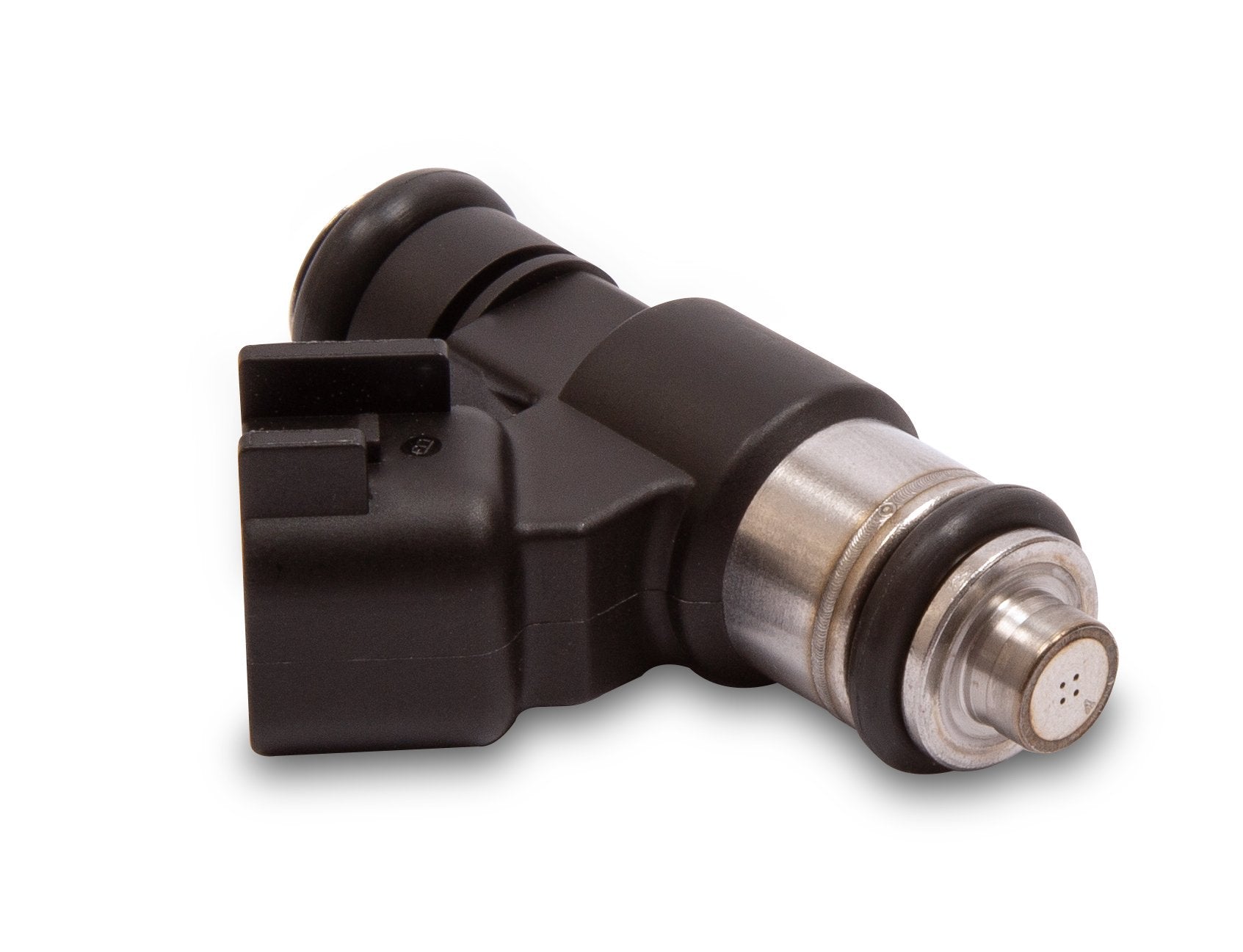

Holley Sniper EFI - Holley Terminator X Fuel Injector - Individual 522-361S

Sniper EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors.

Features:

• PICO/EV6 style performance injector
• High impedance (12.2 Ohms) for use with saturated drivers
• Rated injector flow: 36 lb/hr @ 43 PSI
• Supports up to 575 horsepower (set of 8)
• Tri-cone spray pattern

Specs:

• Body Diameter: 0.65
• Body Length: 1.85"
• Body Style: EV6
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Connector Series: EV6
• Emission Code: 4
• Flow Rate: 36 4U
• Fuel Type: E-85, Gasoline
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Impedance: High (12.2 Ohm)
• O-Ring to O-Ring: 1.421
• Part Type: Fuel Injector
• Product Type: Fuel Injector
• Rated Injector Flow: 36 lb/hr
• Sub Category: Fuel Injection System and Related Components
• Terminal Gender: Male
• Terminal Quantity: 1
• Terminal Type: Blade
• Wiring Harness Included: No

Tech Resources:

These injectors are intended to be used with the 300-260 intake manifold. They are NOT a service injector for the Sniper EFI TBI Product Line.
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
