Holley EFI - Holley LS EFI Manifold - 2x4 Dual Plane - Black GM LS1/LS2/LS6 300-121BK
Type: Intake Manifold | Fits: GM

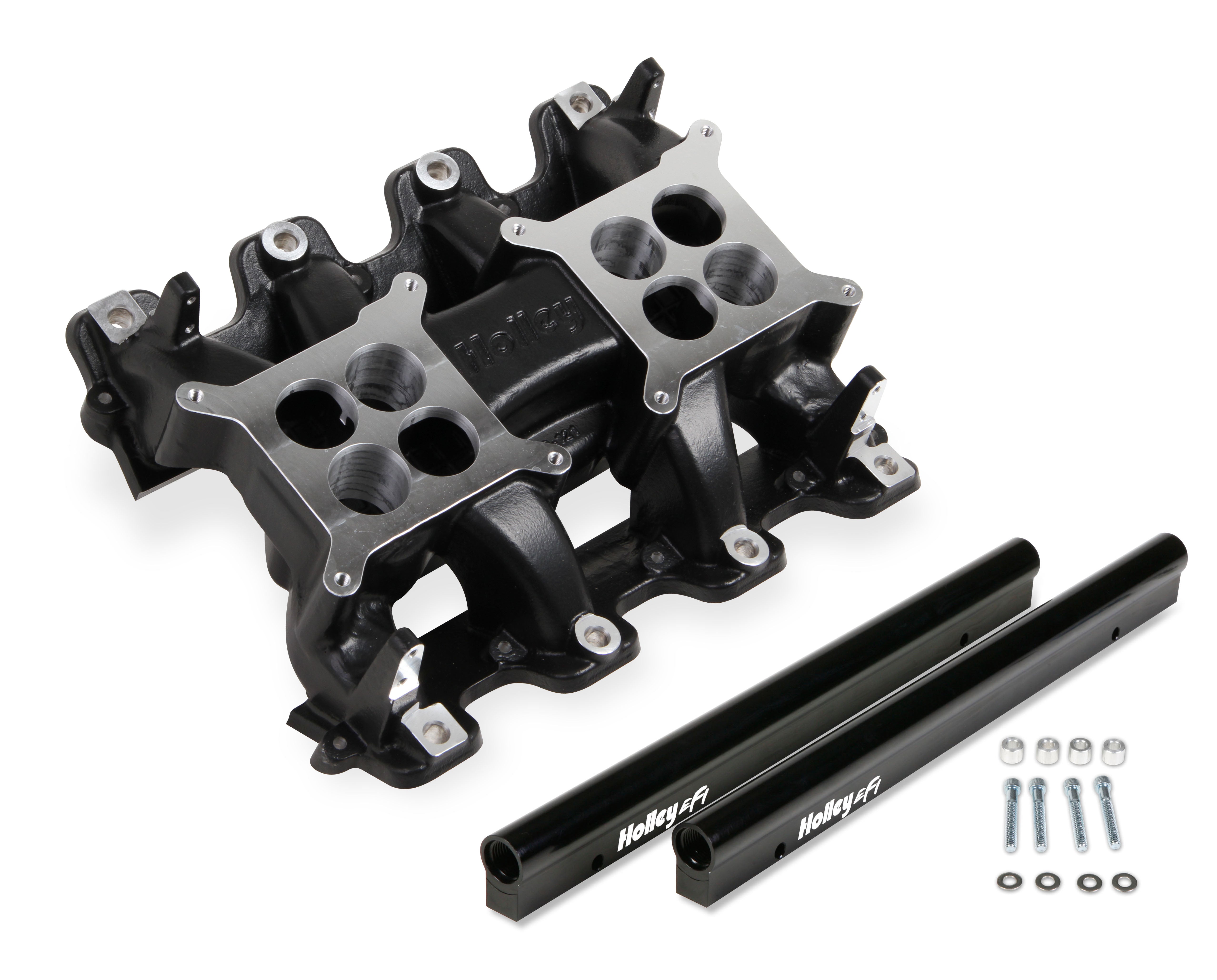

Holley EFI 2x4 Dual Plane Intake Manifold, LS Gen 3 LS1/LS2/LS6 engines
Features:
- The Holley GM LS1/LS2/LS6 2x4V dual-plane was designed in the tradition of the great dual Holley 4160 induction systems that competed on drag strips, in Trans-Am and at Lemans in the 1960’s.
- The dual-plane equal-distribution layout produces great mid-range torque without compromising top end power.
- Carbureted and EFI versions available
- Power band from 1500-7000 rpm
- Appropriate for any street/performance, muscle car, or street rod enthusiast
- Cast aluminum construction
- Intended for use on all GM LS Gen III engines equipped with LS1/LS2 style cathedral port cylinder heads
- Carb Flange Center-To-Center: 8-5/8”
Specs:
- Basic Operating RPM Range: 1500-6500 RPM
- Brand: Holley EFI
- Carburetor Flange: Square/4150
- Category: Engine
- Color: Black
- Construction: Cast
- EGR Port: No
- Emission Code: 4
- Engine: GM LS1/LS2/LS6
- Finish: Black
- Flange Style: 4150 Square Bore

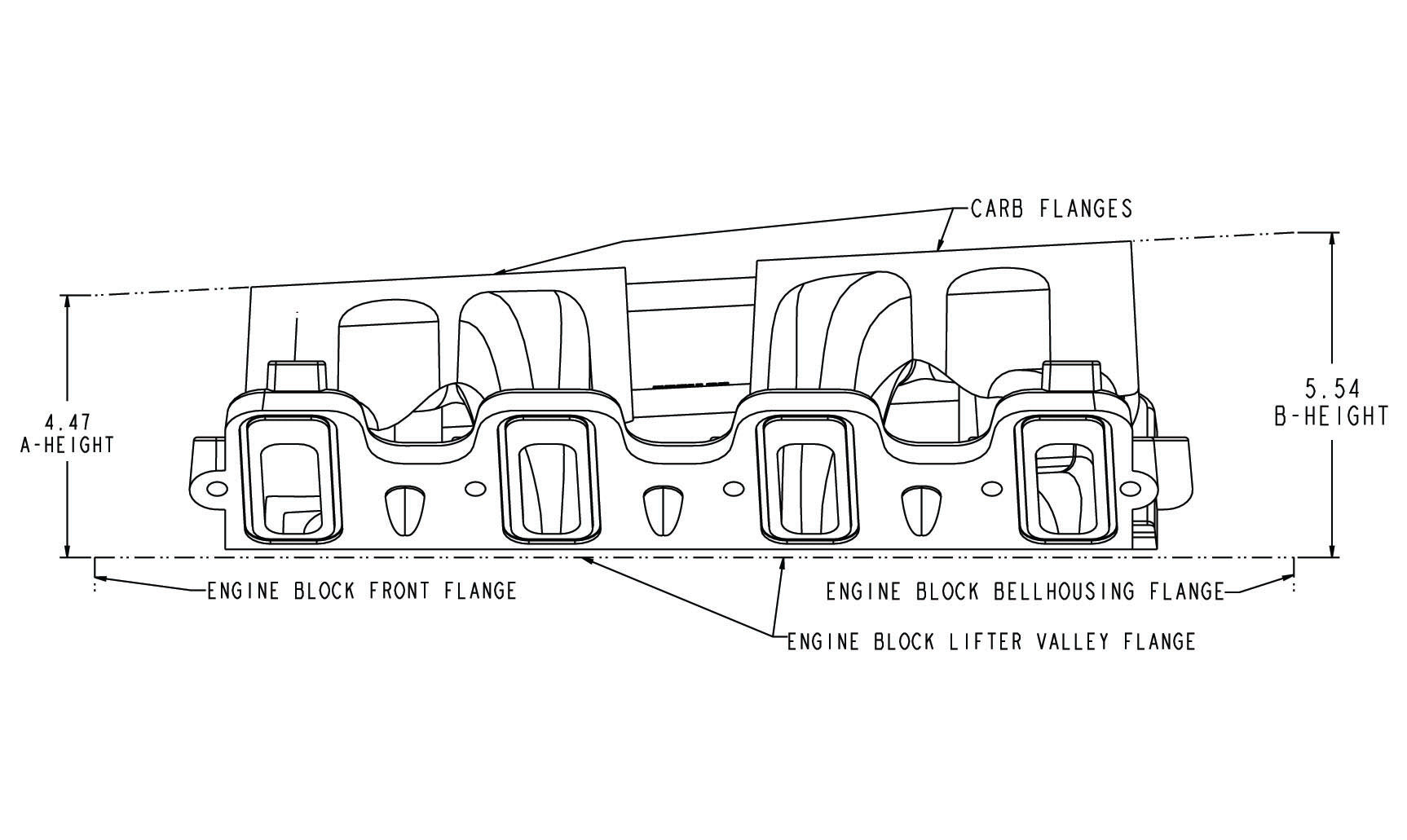

- Front Height: 4.47 inch
- Front Maximum Height: 4.47 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Dual Plane
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Black
- Product Type: Intake Manifold
- Rear Height: 5.54 inch
- Rear Maximum Height: 5.54 IN
- Removable Runners: No
- RPM Power Band: 1500-6500 RPM
- Single Or Dual Plane Type: Dual Plane
- Sub Category: Cylinder Block Components
- Throttle Body Included: No
- Warranty: Limited 90 Day
Tech Resources:
All GM LS Gen 3 engines equipped with LS1/LS2 style cathedral port cylinder heads.
NOTE: The EFI versions of the LS HI-Ram intake manifold and fuel rail are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors. OE LS fuel injectors may not fit properly in the Hi-Ram EFI intake manifold fuel rail assembly. There is a kit available separately for the LS7 Hi-Ram EFI to allow the use of stock LS7 fuel injectors, P/N 300-230 (see below in the service parts section).
