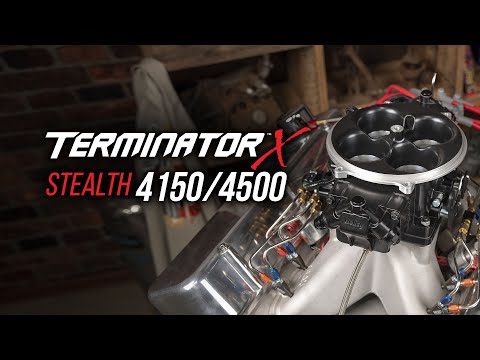

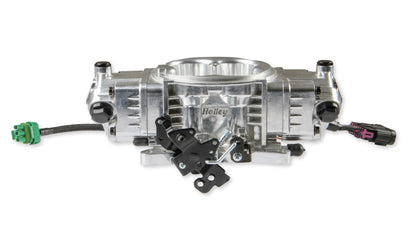

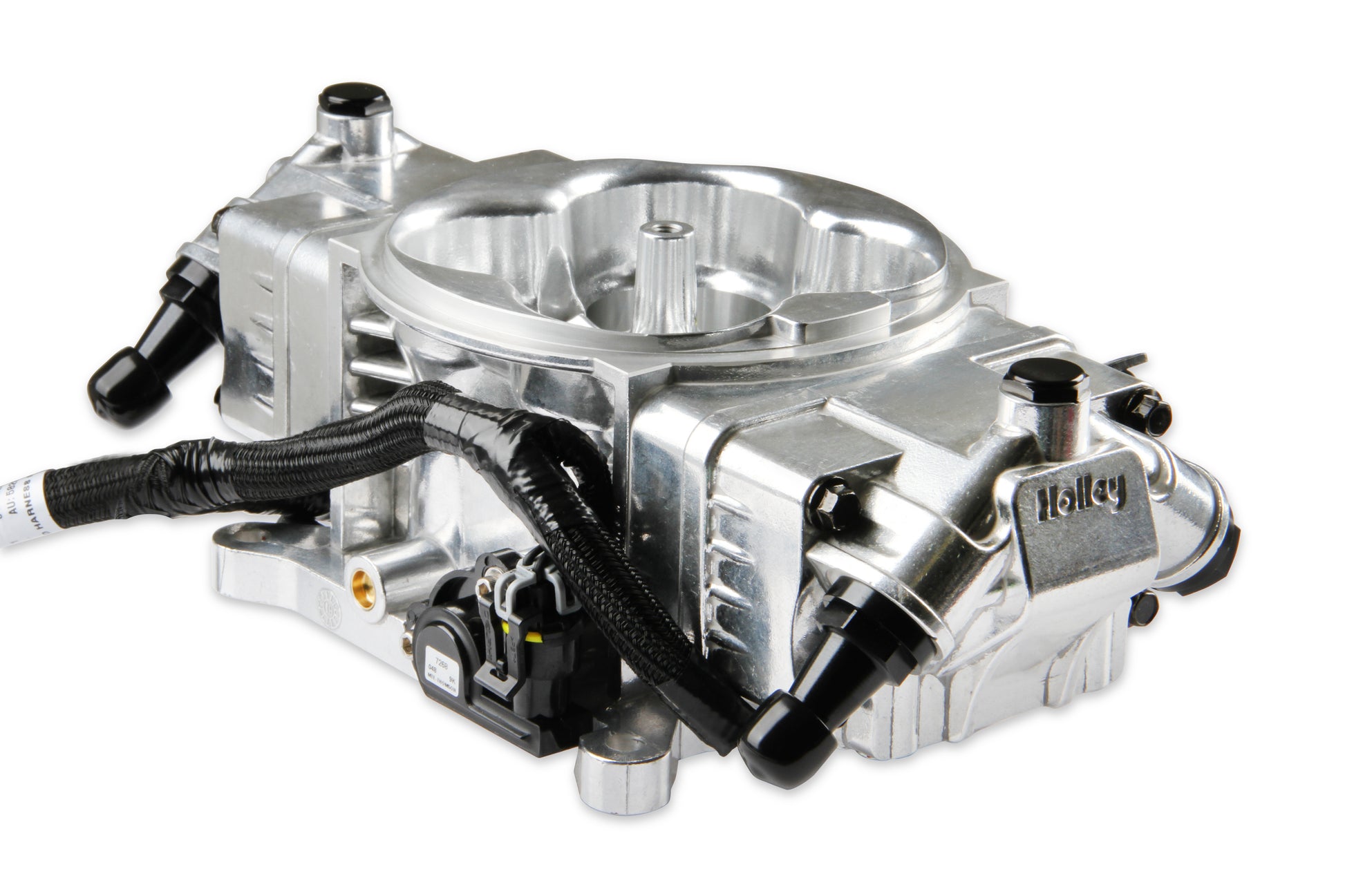

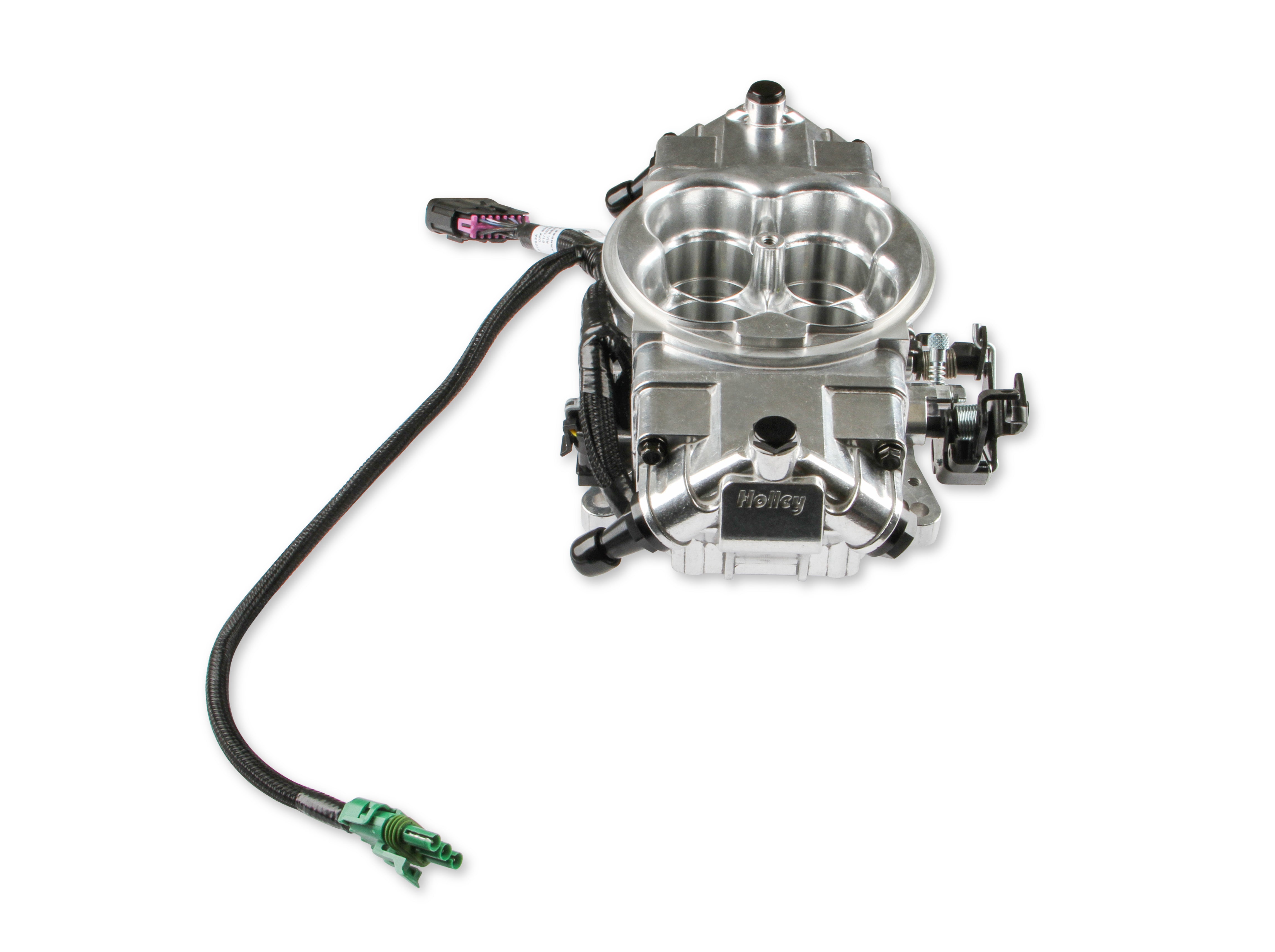

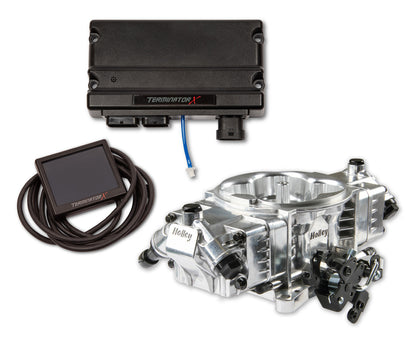

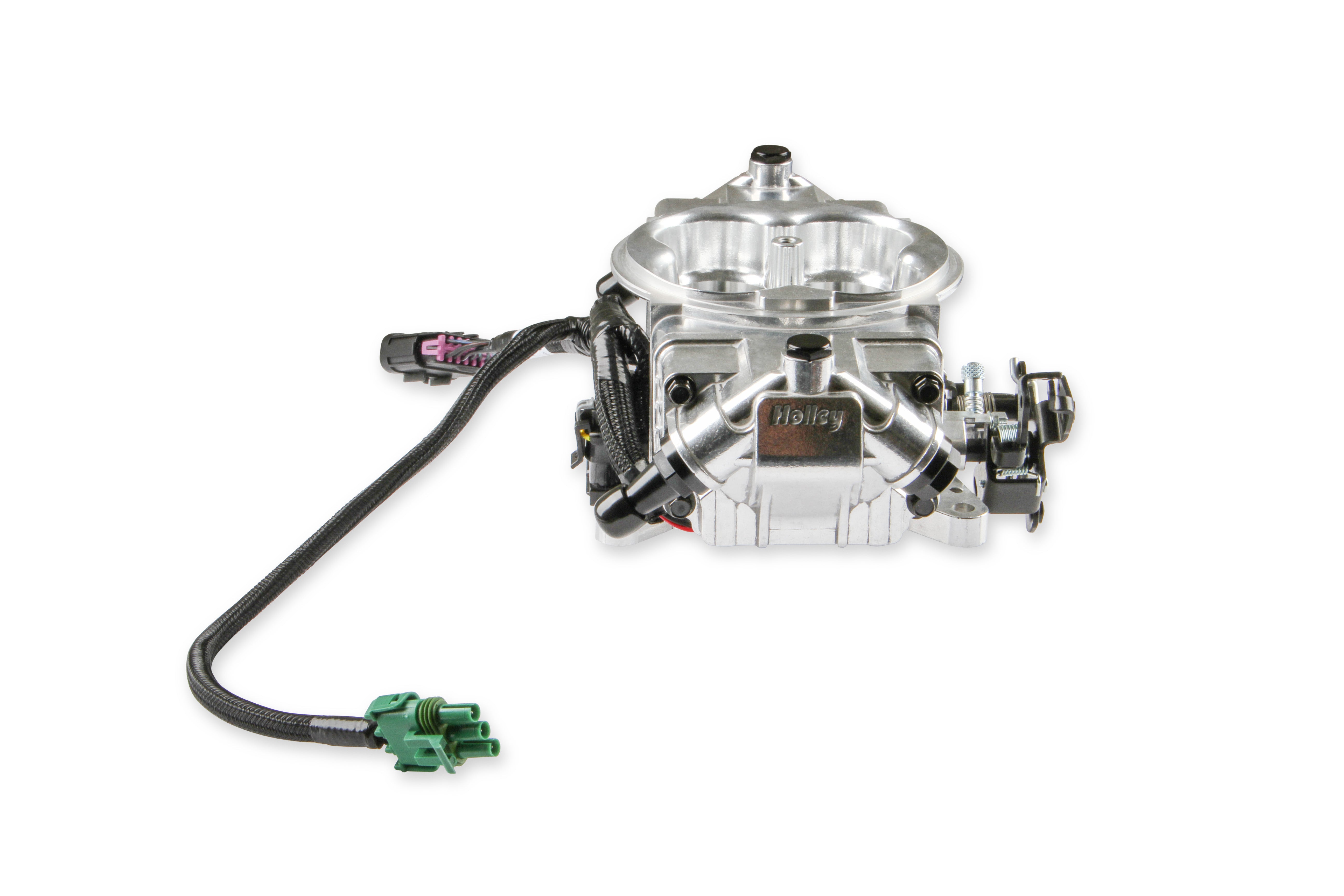

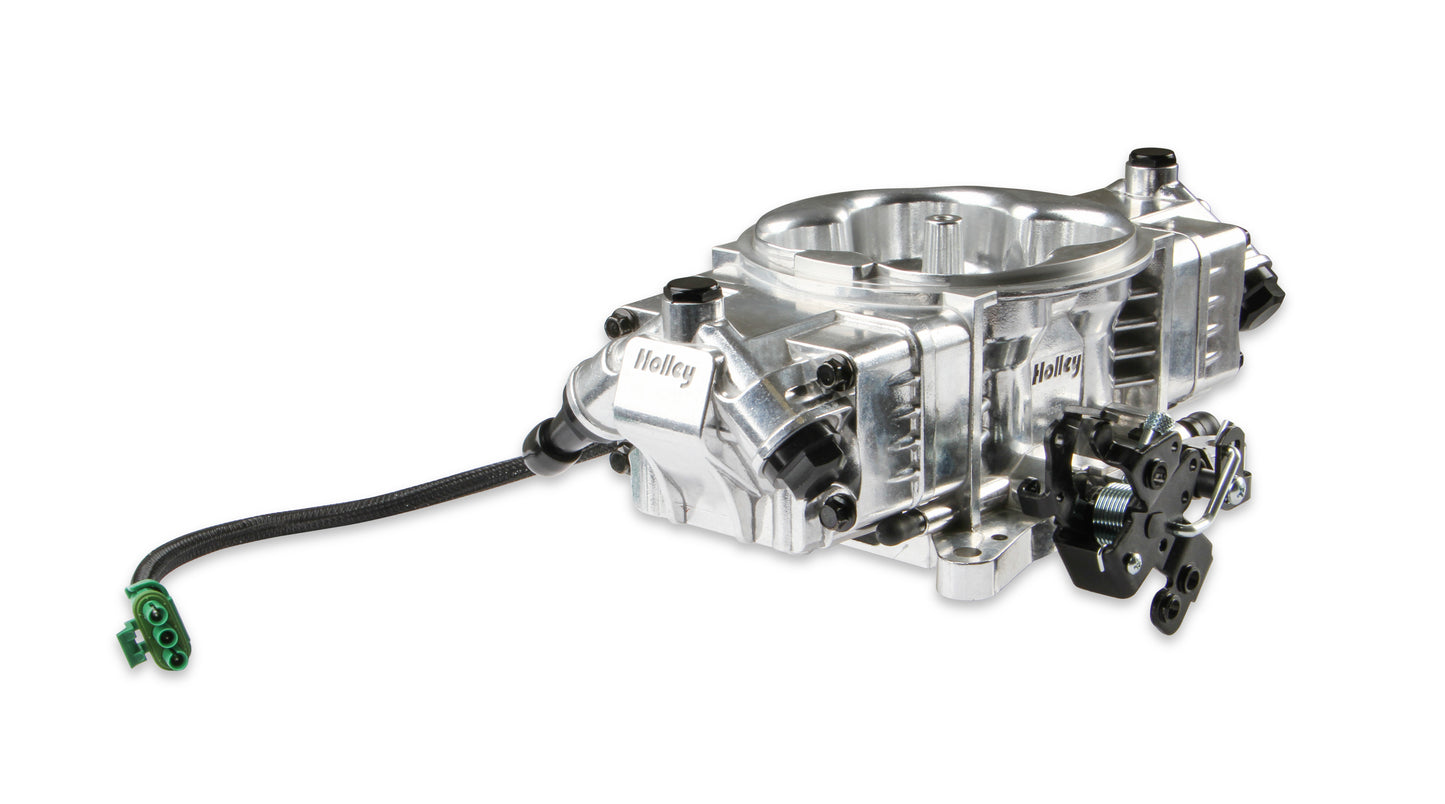

Holley EFI Terminator X Stealth 4150 - Shiny
Type: EFI System
The Terminator X Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Terminator X ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications? Terminator X Max Stealth 4150 kits provide transmission control for Pre-2009 GM 4L60E/4L80E Transmissions (Part numbers 550-1011, 550-1012, 550-1013)
Features:
- Bolt on 4150 Flange Carburetor Replacement
- Supports up to 650HP with Four 100lb/hr Injectors
- Terminator X Max Stealth 4150 kits provide transmission control for Pre-2009 GM 4L60E/4L80E Transmissions (Part numbers 550-1011, 550-1012,550-1013)
- Internal 1bar MAP sensor, built into the Terminator X ECU.
- All of the wiring exits below the rear fuel injector cover, for a completely stealth installation
- Timed spark port for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor
- Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
- Integrated ignition timing control improves idle stability, fuel economy, and wide open throttle performance
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn
- OEM Style TPS/IAC for years of dependable service
- Available in 3 finishes: Shiny, Black, and Gold
Specs:
- Accelerometer Support: Yes
- Boost Control: Yes
- Brand: Holley EFI
- CAN-BUS Support: Yes
- Category: Air and Fuel Delivery
- CFM: 950
- Coil Per Cylinder Ignition Support: Yes
- Color: Shiny
- Datalogging Support: Yes
- Distributor Included: No
- Dry Nitrous Control: Yes
- e85 Support: No
- EGT Support: Yes
- Emission Code: 3
- Finish: Shiny
- Flange Size: 4150
- Flange Style: Squarebore
- Forced Induction Support: Yes
- Fuel Filter Included: No
- Fuel Hose Included: No
- Fuel Injectors Included: Yes
- Fuel Pressure: 58.5 PSI
- Fuel Pressure Regulator Included: No
- Fuel Pump Included: No
- Grade Type: Performance
- Handheld Included: Yes
- Idle Air Control Motor Included: No
- Ignition Timing Control: Yes
- Ignition Type: Universal
- Individual Cylinder Fuel Corrections: No
- Injector Size: 100 lb/hr @ 58.5 PSI
- Inlet / Outlet Size: 6AN
- Intake Manifold Included: No
- Knock Retard Support: Yes
- MAP Sensor: 1bar
- Max Horsepower Rating: 650
- Mounting Hardware Included: No
- Multi-Stage Nitrous Control: Yes
- Part Type: Fuel Injection System
- Product Type: EFI System
- Progressive Nitrous Control: Yes
- Self-Tuning: Yes
- Sub Category: Fuel Injection System and Related Components
- Terminator LS Options: Fuel, Spark
- Throttle Bore: 1.75 in.
- Throttle Position Sensor Included: Yes
- Transmission: N/A
- User-Tuneable: Yes
