Sniper EFI Universal Fuel Tank System 400 LPH
Type: Fuel Tank

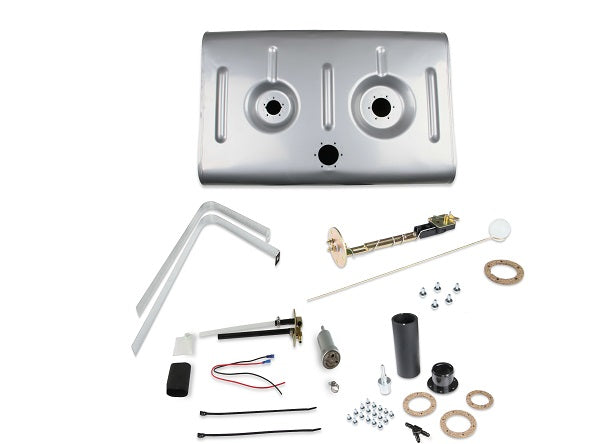

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. The kit includes the tank, a 400 lph fuel pump, internal baffling, a fuel level sender, and the filler neck. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!
Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
•Size: 27-3/4" x 17-3/4" x 8-1/2"

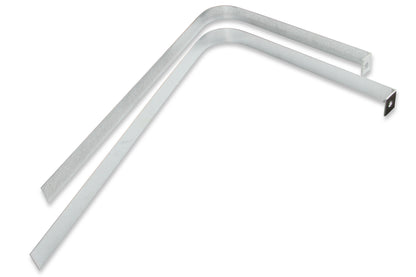

***Two straps 42" long by 1 3/8" wide.
***No gas cap included. 19-166 and 19-167 Filler Necks with Gas Cap options
These universal tanks are perfect for your next classic truck EFI conversion project.
Features:

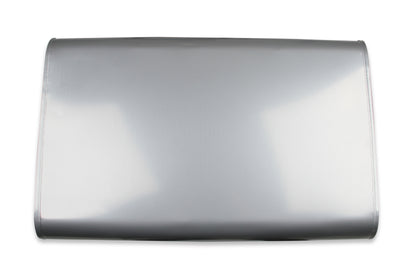

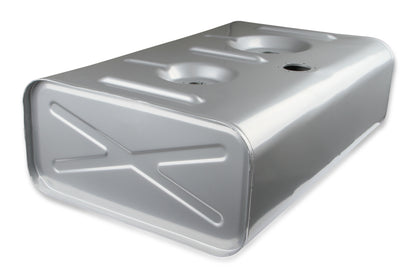

- Tanks are coated galvanized steel then powder coated silver for total corrosion protection

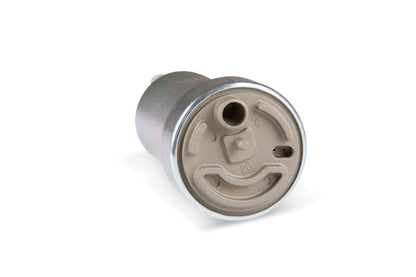

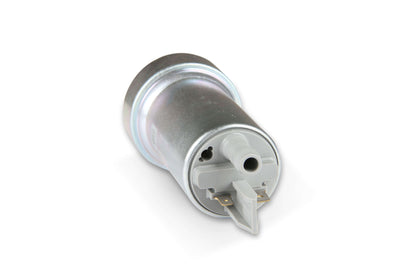

- 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

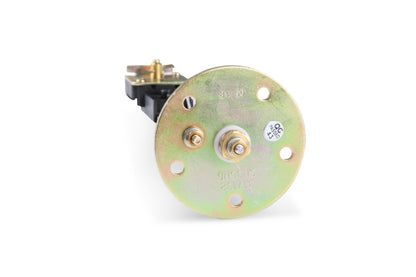

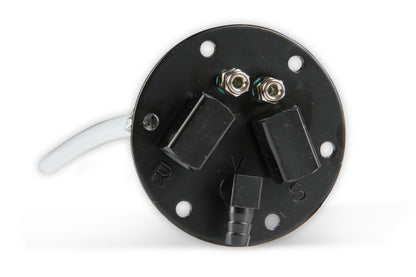

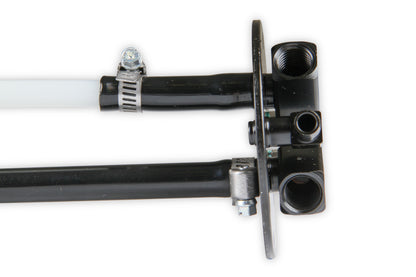

- Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

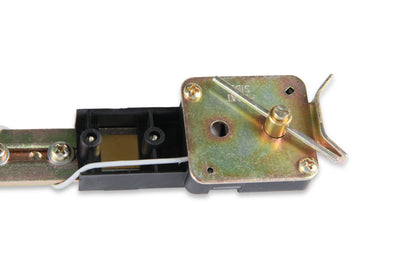

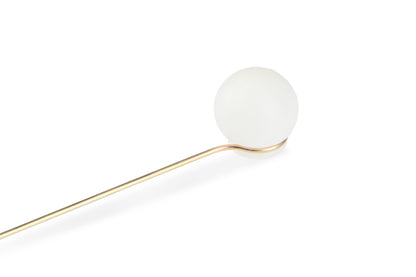

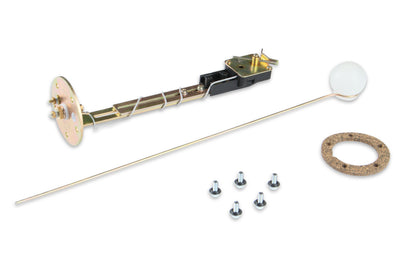

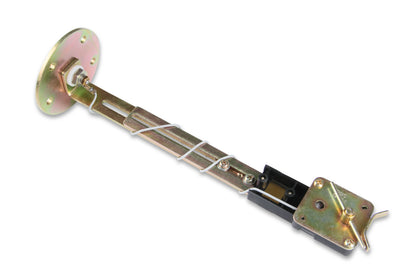

- Fuel sender is set up for 70-10 ohm fuel gauge
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car

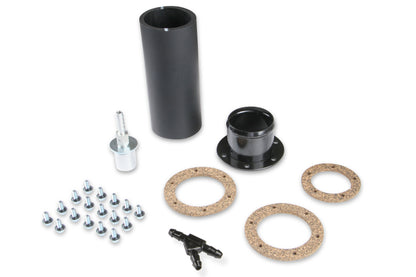

- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Complete solution for your EFI conversion
- Includes universal mounting straps
Specs:
- Application: Universal
- Attached Sump: Yes
- Baffled Sump: Yes
- Brand: Holley Sniper EFI
- Category: Air and Fuel Delivery
- Color: Silver
- Drain Plug: No
- Emission Code: 3
- Filler Neck Attached: No
- Finish: Powdercoated
- Free Flow LPH: 400
- Fuel Sending Unit Ohms: 73-10 Ohms
- Fuel System Compatibility: Electronic Fuel Injection
- Fuel System Type: Gasoline
- Fuel Tank Coating: Powder Coated
- Gallon Capacity: 16
- Grade Type: Performance
- Lock Ring Included: Yes
- Material: Steel
- Maximum Flow Rating: 400 LPH
- Mounting Straps Included: Yes
- New Straps Included: Yes
- O-Ring Included: Yes
- Part Type: Fuel Tank and Pump Assembly Combination
- Product Type: Fuel Tank
- Resistance Ohms Empty: 73 82
- Resistance Ohms Full: 10 82
- Sending Unit Included: Yes
- Sub Category: Fuel Pumps and Related Components
- Tank Capacity: 16 GA
- Tank Color: Gray
- Tank Material: Steel
- Warranty: Limited 90 Day
Tech Resources:
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
