Sniper EFI Universal Fuel Tank System 400 LPH
Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. The kit includes the tank, a 400 lph fuel pump, internal baffling, a fuel level sender, and the filler neck. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project!
Supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
•Size: 27-3/4" x 17-3/4" x 8-1/2"

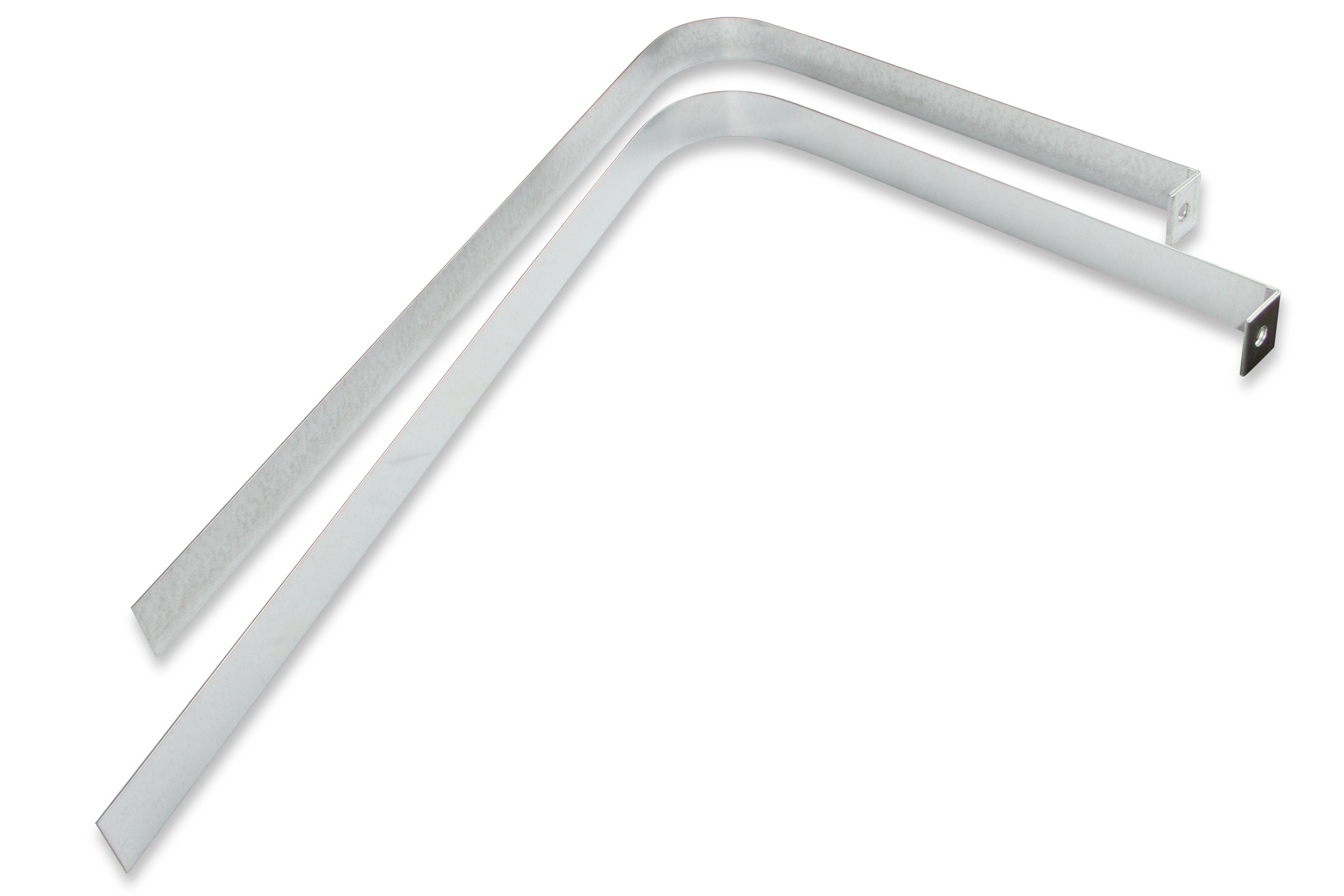

***Two straps 42" long by 1 3/8" wide.
***No gas cap included. 19-166 and 19-167 Filler Necks with Gas Cap options
These universal tanks are perfect for your next classic truck EFI conversion project.
Features:

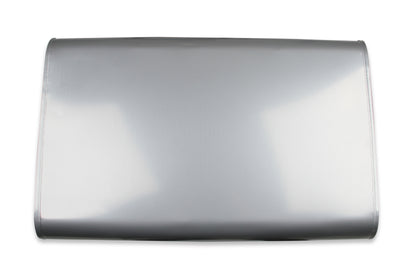

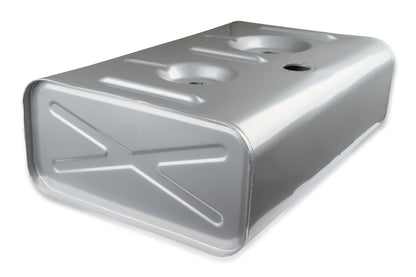

- Tanks are coated galvanized steel then powder coated silver for total corrosion protection

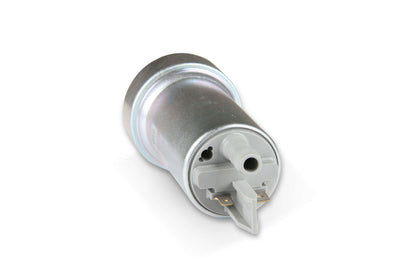

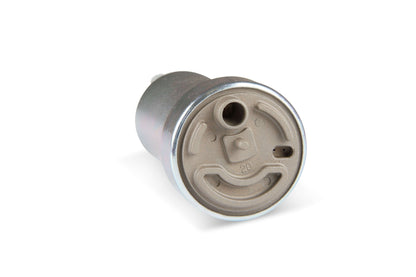

- 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

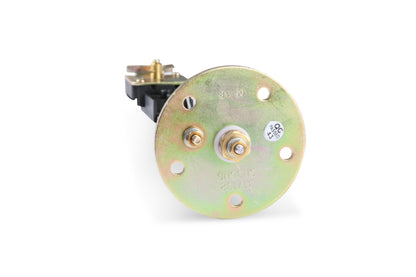

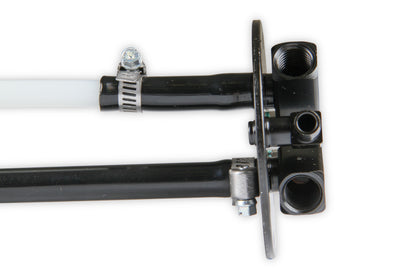

- Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting

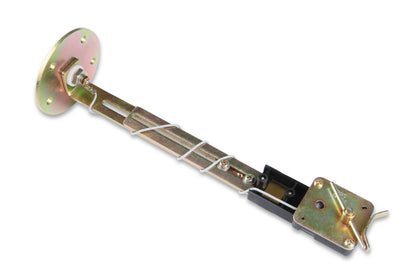

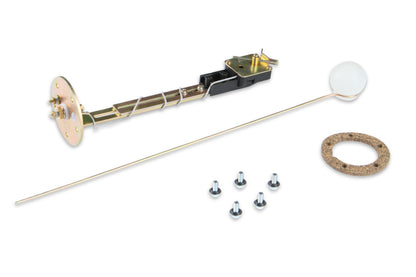

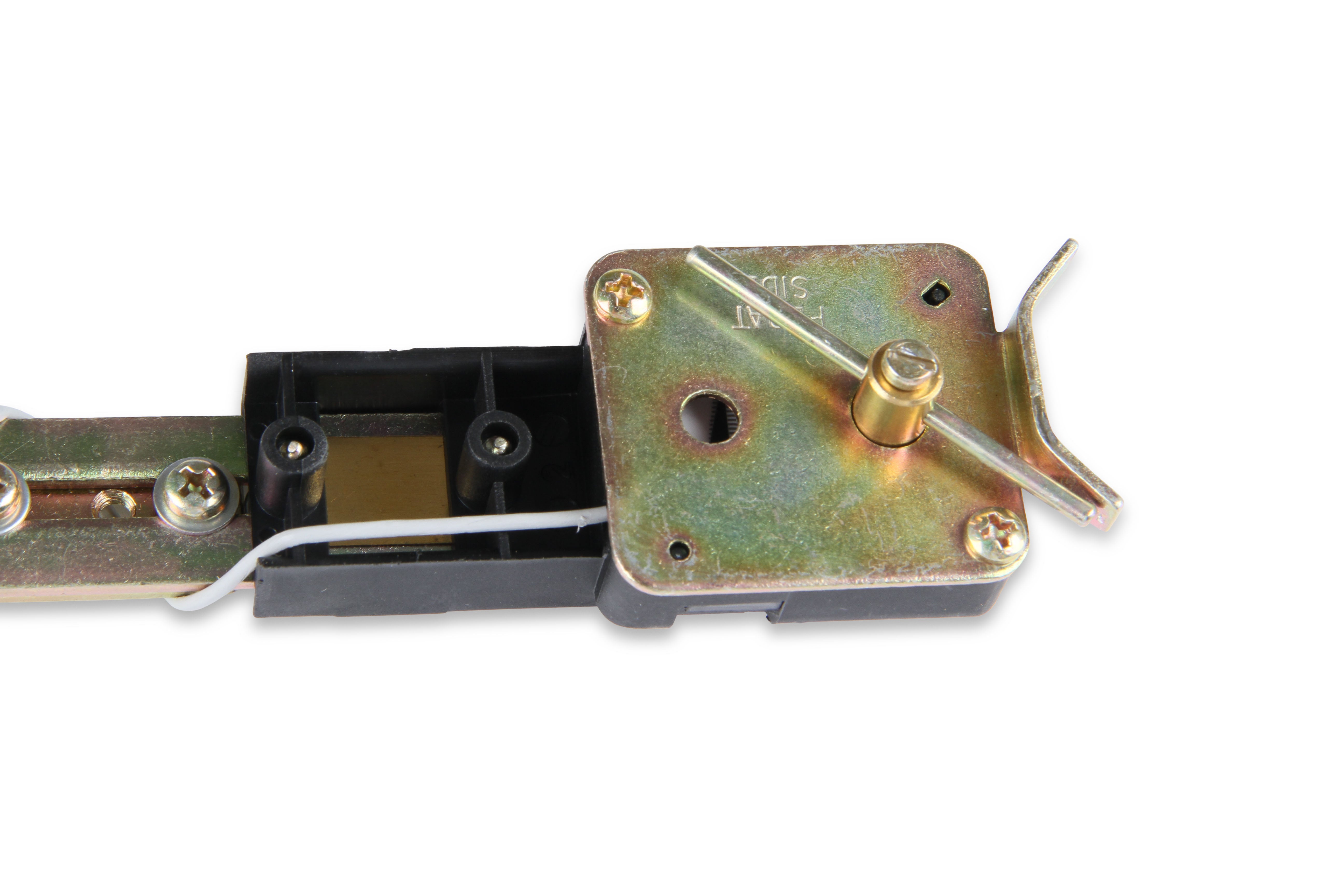

- Fuel Sender for 0-90 ohm fuel gauge
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Sender has ¼" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Complete solution for your EFI conversion
- Includes universal mounting straps
Specs:
- Application: Universal
- Attached Sump: Yes
- Baffled Sump: Yes
- Brand: Holley Sniper EFI
- Category: Air and Fuel Delivery
- Color: Silver
- Drain Plug: No
- Emission Code: 3
- Filler Neck Attached: No
- Finish: Powdercoated
- Free Flow LPH: 400
- Fuel Sending Unit Ohms: 0-90 Ohms
- Fuel System Compatibility: Electronic Fuel Injection
- Fuel System Type: Gasoline
- Fuel Tank Coating: Powder Coated
- Gallon Capacity: 16
- Grade Type: Performance
- Lock Ring Included: Yes
- Material: Steel
- Maximum Flow Rating: 400 LPH
- Mounting Straps Included: Yes
- New Straps Included: Yes
- O-Ring Included: Yes
- Part Type: Fuel Tank and Pump Assembly Combination
- Product Type: Fuel Tank
- Resistance Ohms Empty: 0 82
- Resistance Ohms Full: 90 82
- Sending Unit Included: Yes
- Sub Category: Fuel Pumps and Related Components
- Tank Capacity: 16 GA
- Tank Color: Gray
- Tank Material: Steel
- Warranty: Limited 90 Day
Tech Resources:
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
