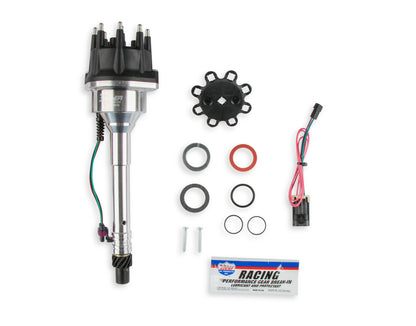

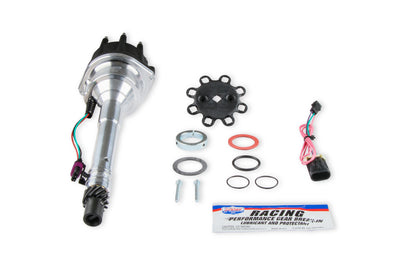

Sniper EFI HyperSpark Distributor - Tall Deck Chevrolet

HyperSpark distributors are plug and play with all Holley Sniper EFI systems, featuring a high quality billet distributor housing, Hall Effect crank trigger sensor, and they come included with the fool proof patented clear installation cap. All of our HyperSpark distributors are also available in a stylish black housing.

Features:

• Hall Effect crank trigger sensor provides a noise-free RPM signal to the Sniper ECU
• Billet distributor housing provides corrosion resistance and stylish looks
• Easiest plug and play way to add timing control to a Sniper EFI Installation
• The distributor shutter wheel is CNC machined to provide solid, cylinder to cylinder timing accuracy
• Includes Wire Retainer for a clean installation
• Features adjustable slip collar with 1.5" of adjustment so you can be sure the distributor is installed correctly
• Comes with Cast Gear Installed – contact camshaft manufacturer for recommended gear material
• Designed to be used with Sniper EFI HyperSpark CD box P/N 556-151 and Ignition Coil 556-152
• Or the Sniper EFI Ignition Coil Driver 556-150 and Sniper EFI Ignition Coil 556-153
• Available in Black or Shiny Billet Aluminum to match any engine bay

Specs:

• Adjustable Collar: No
• Advance Type: Locked-Out
• Brand: Holley Sniper EFI
• Cap Color: Black
• Cap Terminal Gender: Male
• Category: Ignition
• Clamp Hardware Included: No
• Clamp Included: No
• Coil Wire Included: No
• Color: Silver and Black
• Computer Controlled Compatible: Yes
• Connector Type: Sealed
• Distributor Cap Included: Yes
• Distributor Gear Included: Yes
• Distributor Type: Hall Effect
• Emission Code: 3
• Gear Material: Steel Melonized QPQ Coated
• Grade Type: Performance
• Housing Color: Polished
• Housing Finish: Polished
• Housing Material: Billet Aluminum
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Module Included: No
• Ignition Rotor Included: Yes
• Material: Billet Aluminum
• Mechanical Tach Drive Provision: No
• Part Type: Distributor
• Product Type: Distributor
• Sub Category: Distributor and Magneto
• Trigger Type: Hall Effect

Tech Resources:

Designed to be used with Sniper EFI HyperSpark CD box P/N 556-151 and Ignition Coil 556-152, or the Sniper EFI Ignition Coil Driver 556-150 and Sniper EFI Ignition Coil 556-153

Instructions - 199R11525.pdf
