Sniper EFI Fuel Tank System 400 LPH
Type: Fuel Tank

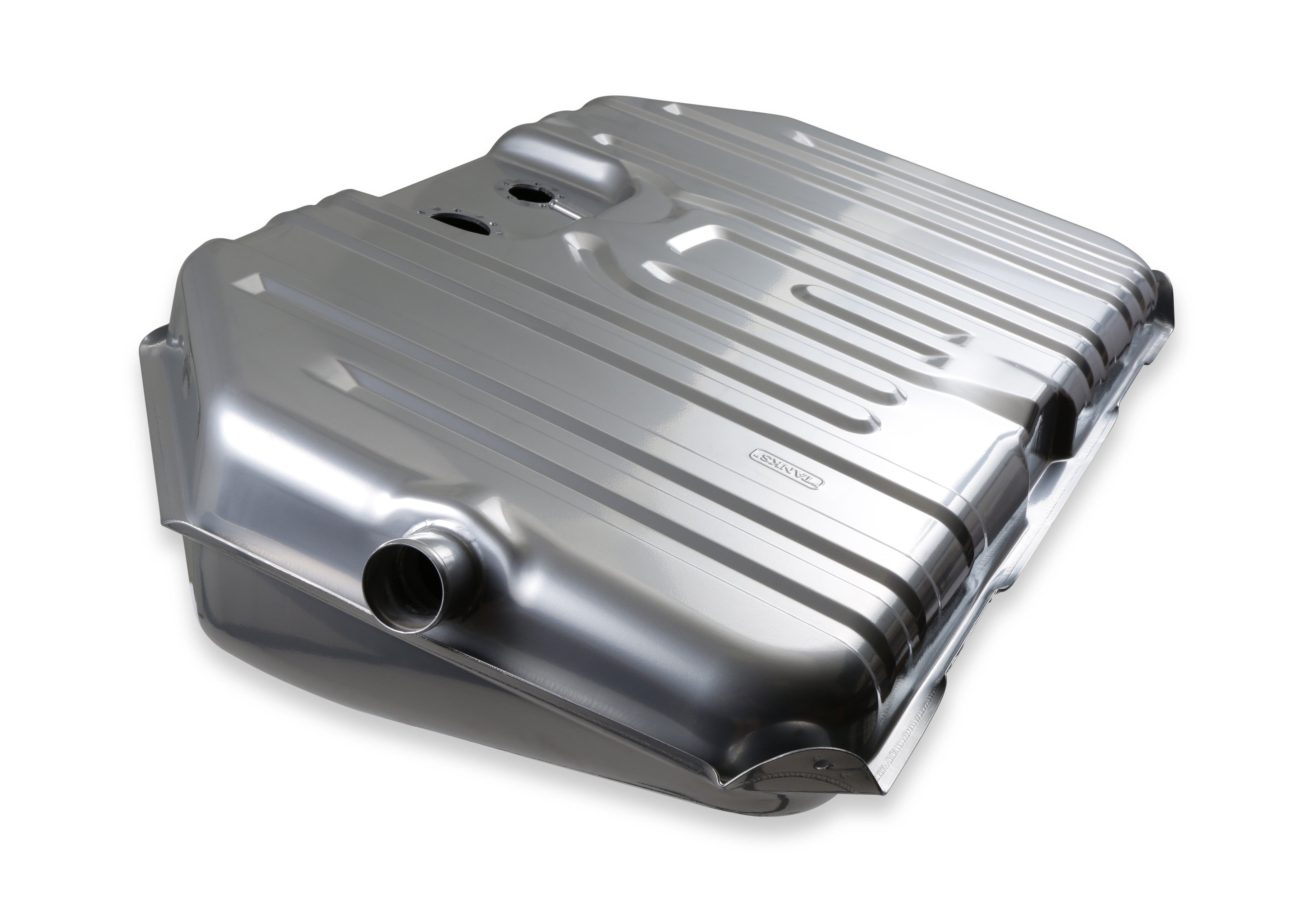

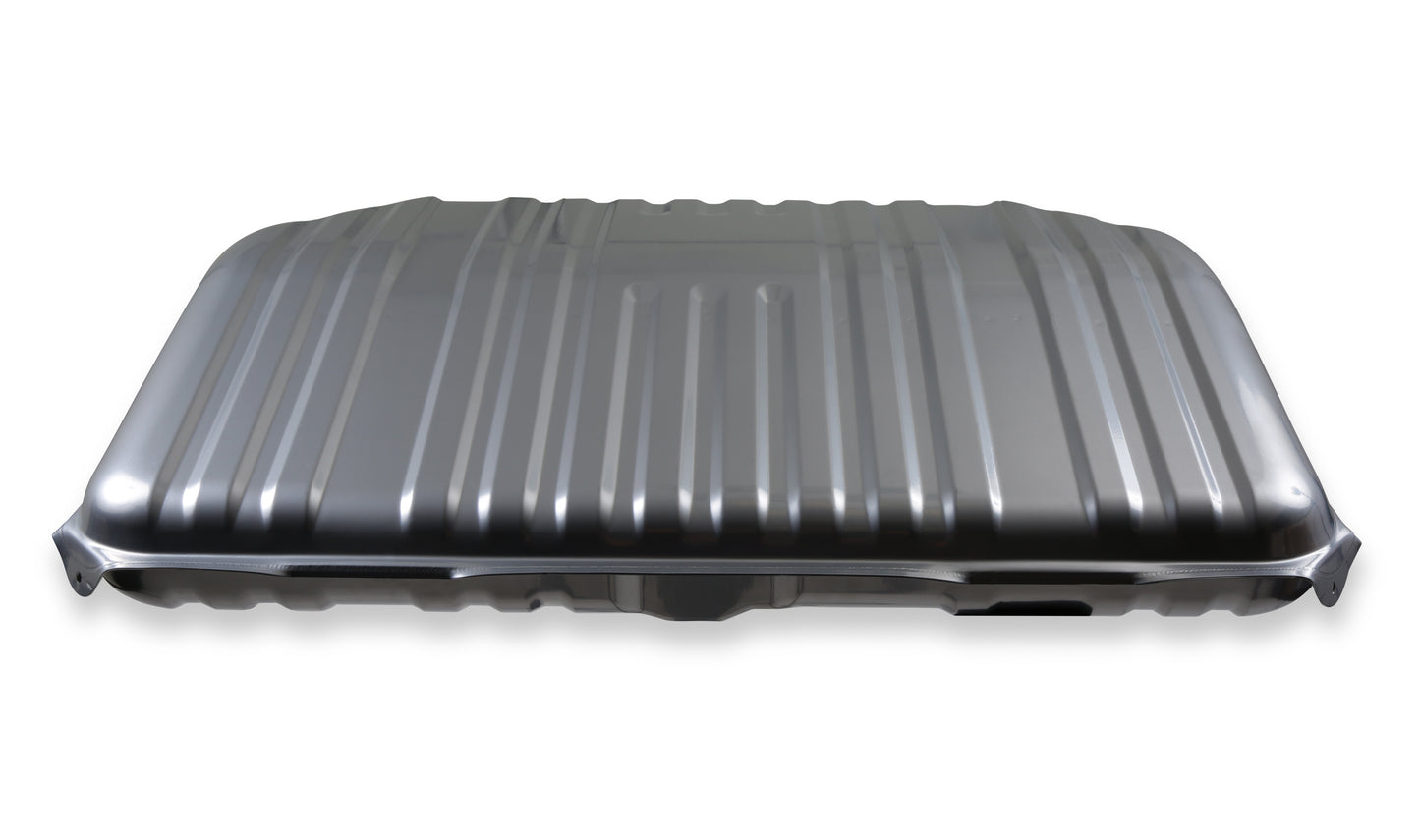

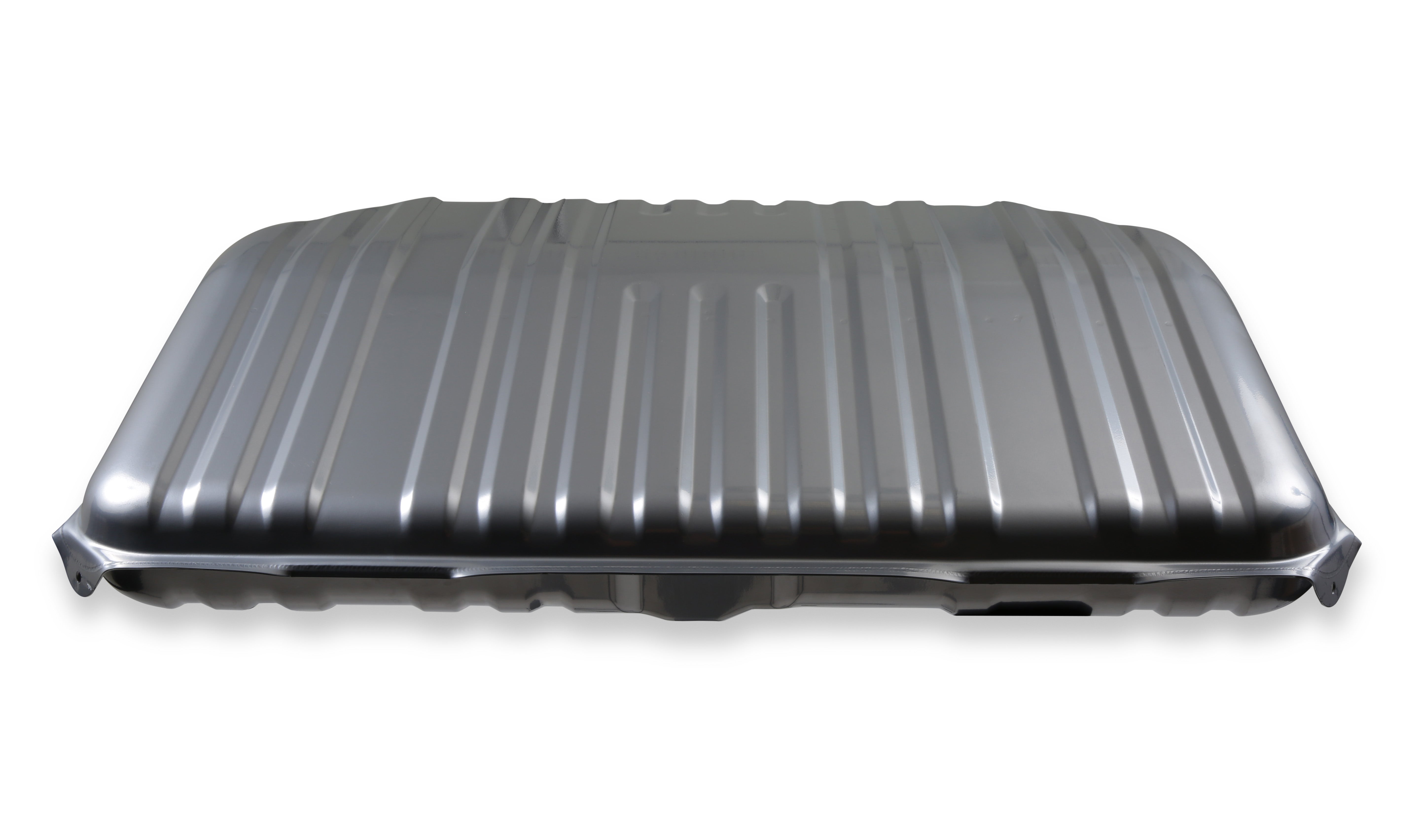

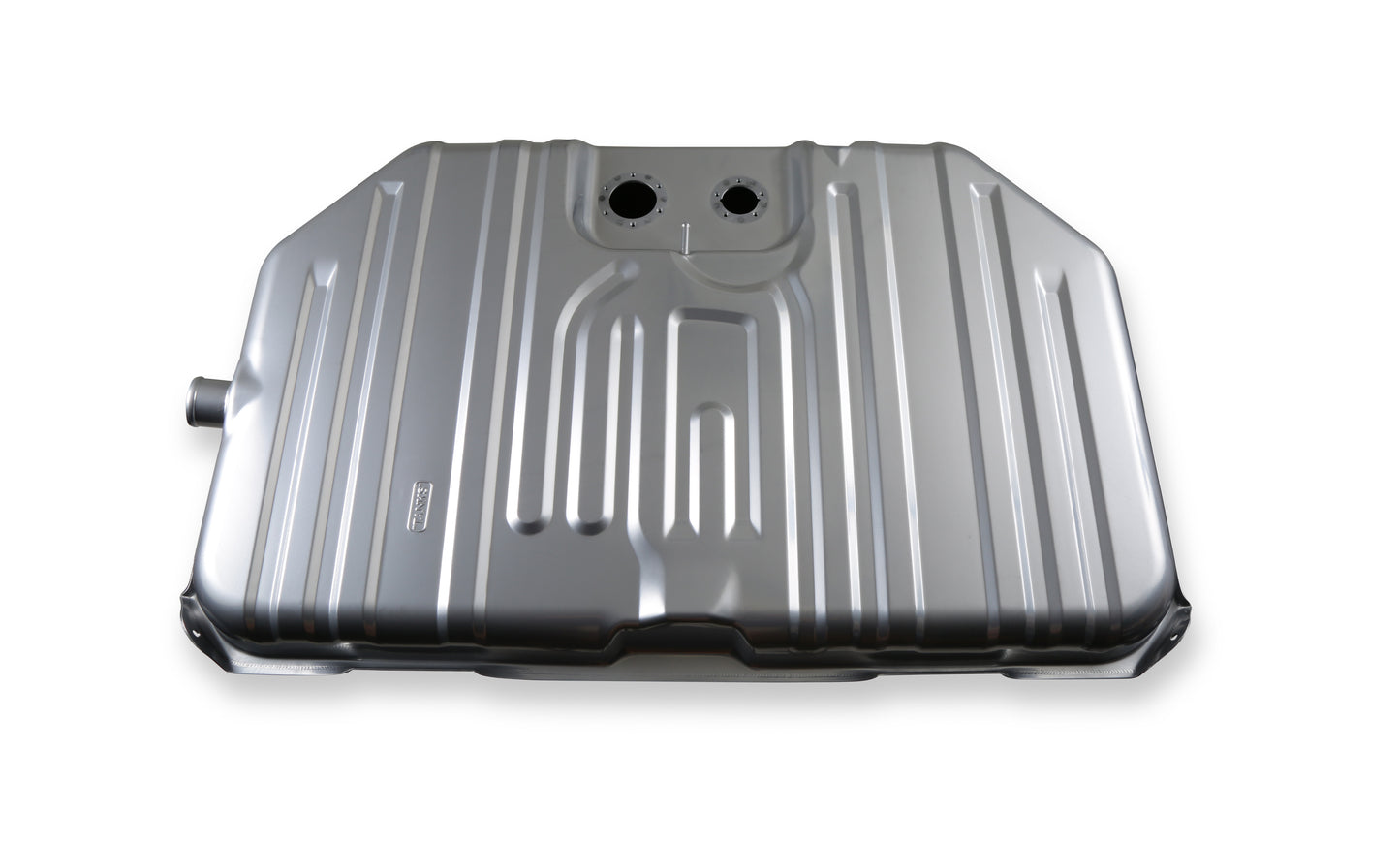

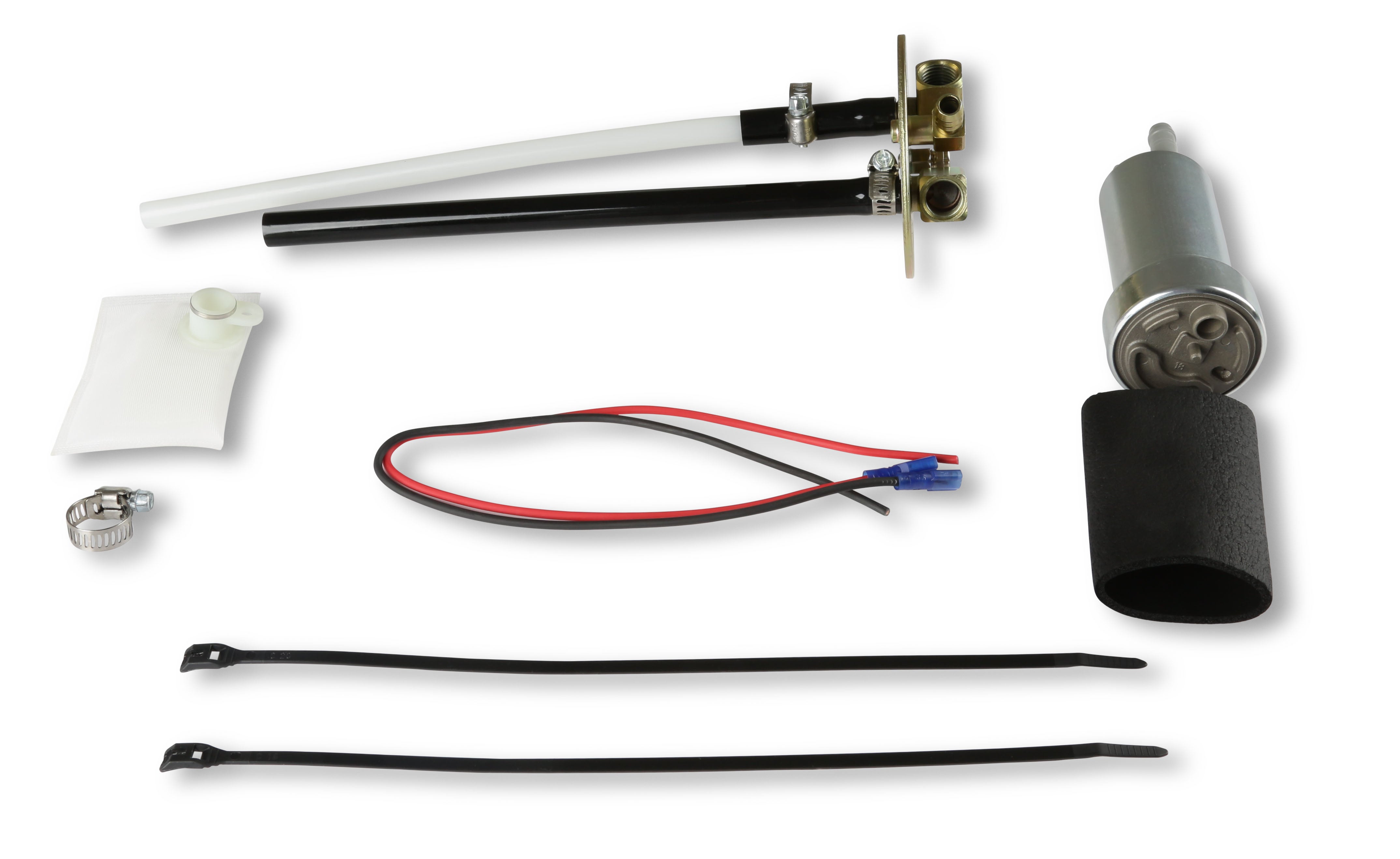

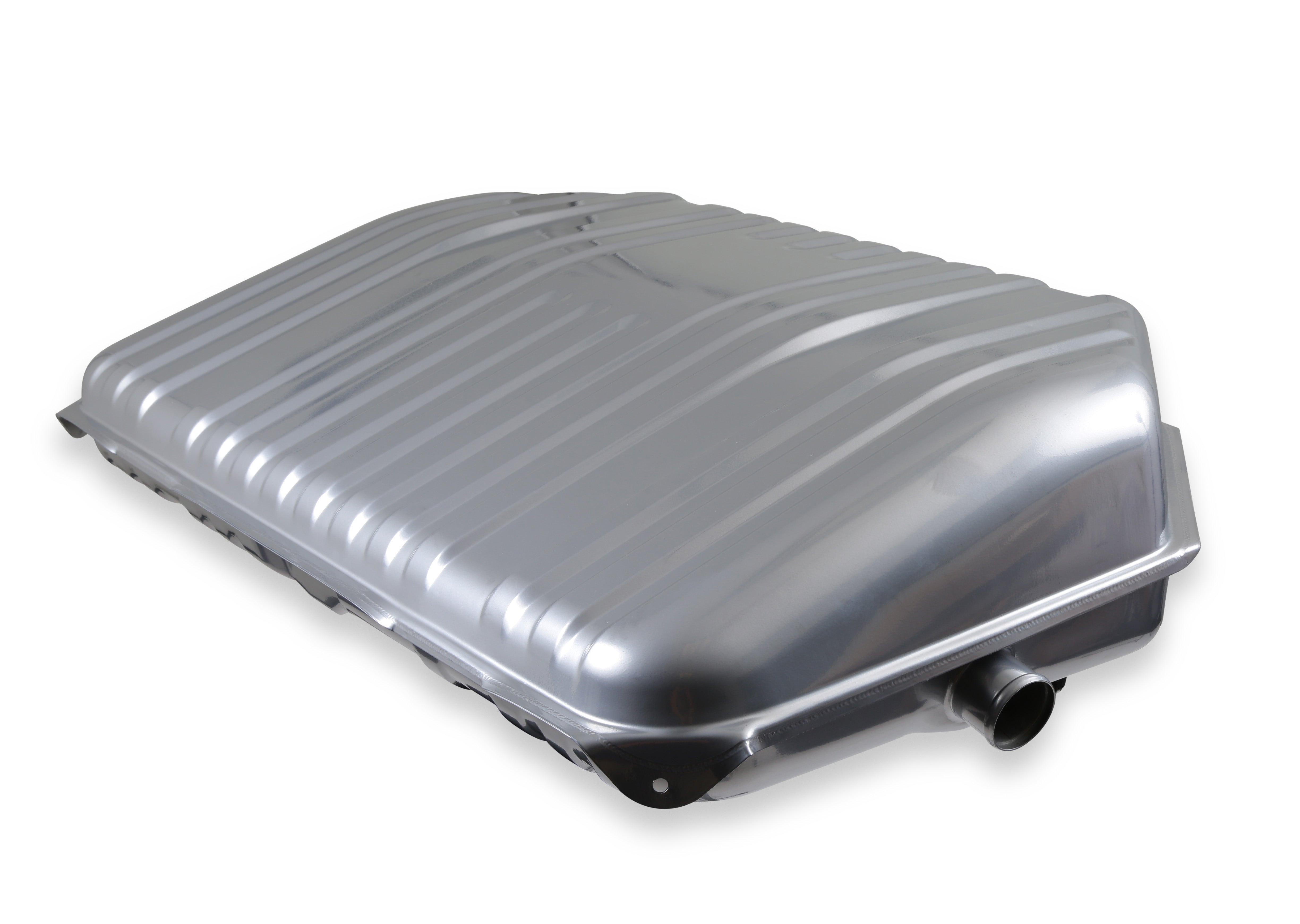

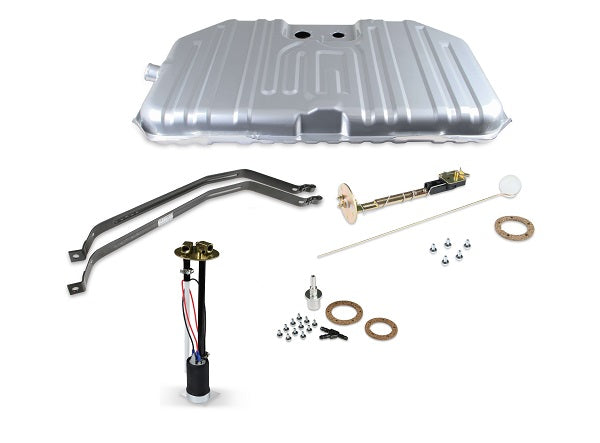

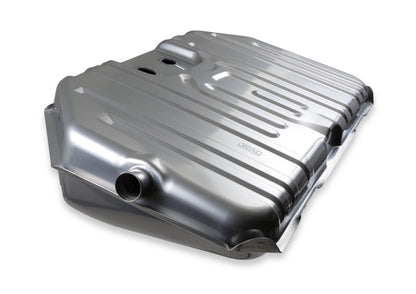

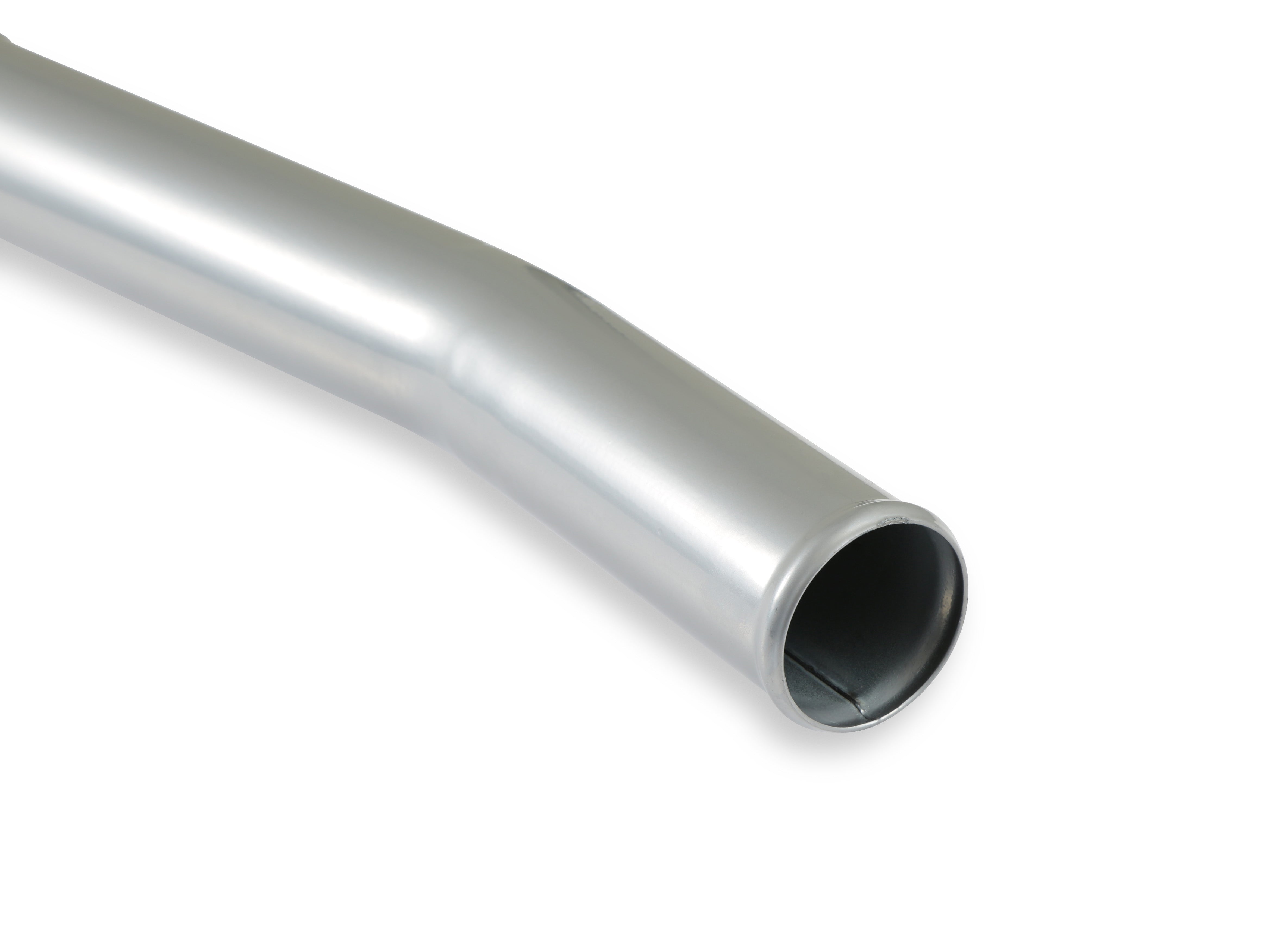

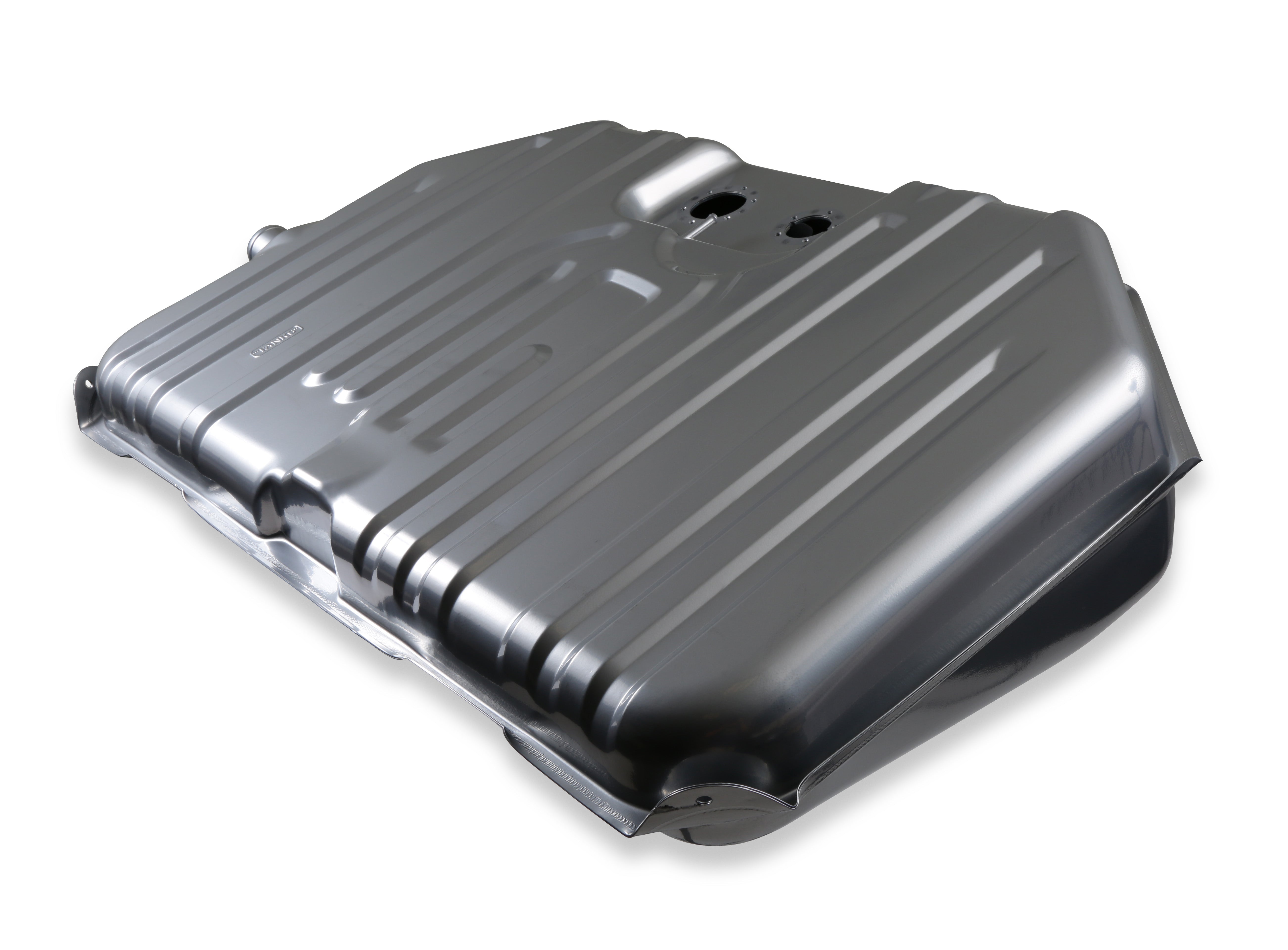

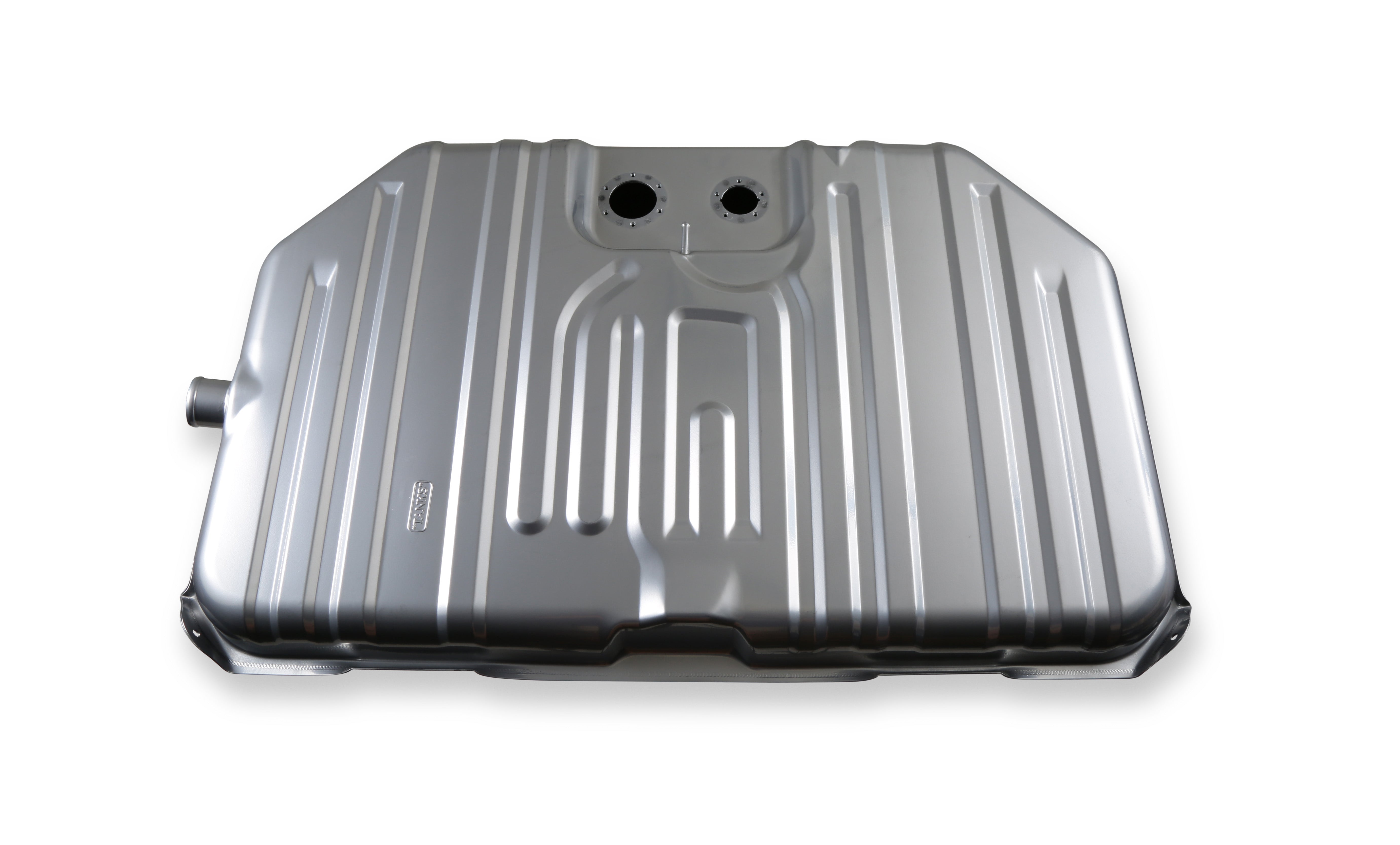

Fuel tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 400 lph fuel pump, fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. This notched corner tank is perfect for mini-tub applications. Both corners are notched 7" in and 7" back for better tire and exhaust clearance. The rear of the tank is the stock depth while the front of the tank is 1" deeper than stock. The 255 LPH fuel pump supports up to 750 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).
Features:
- Tanks are galvanized steel then powder coated silver for total corrosion protection

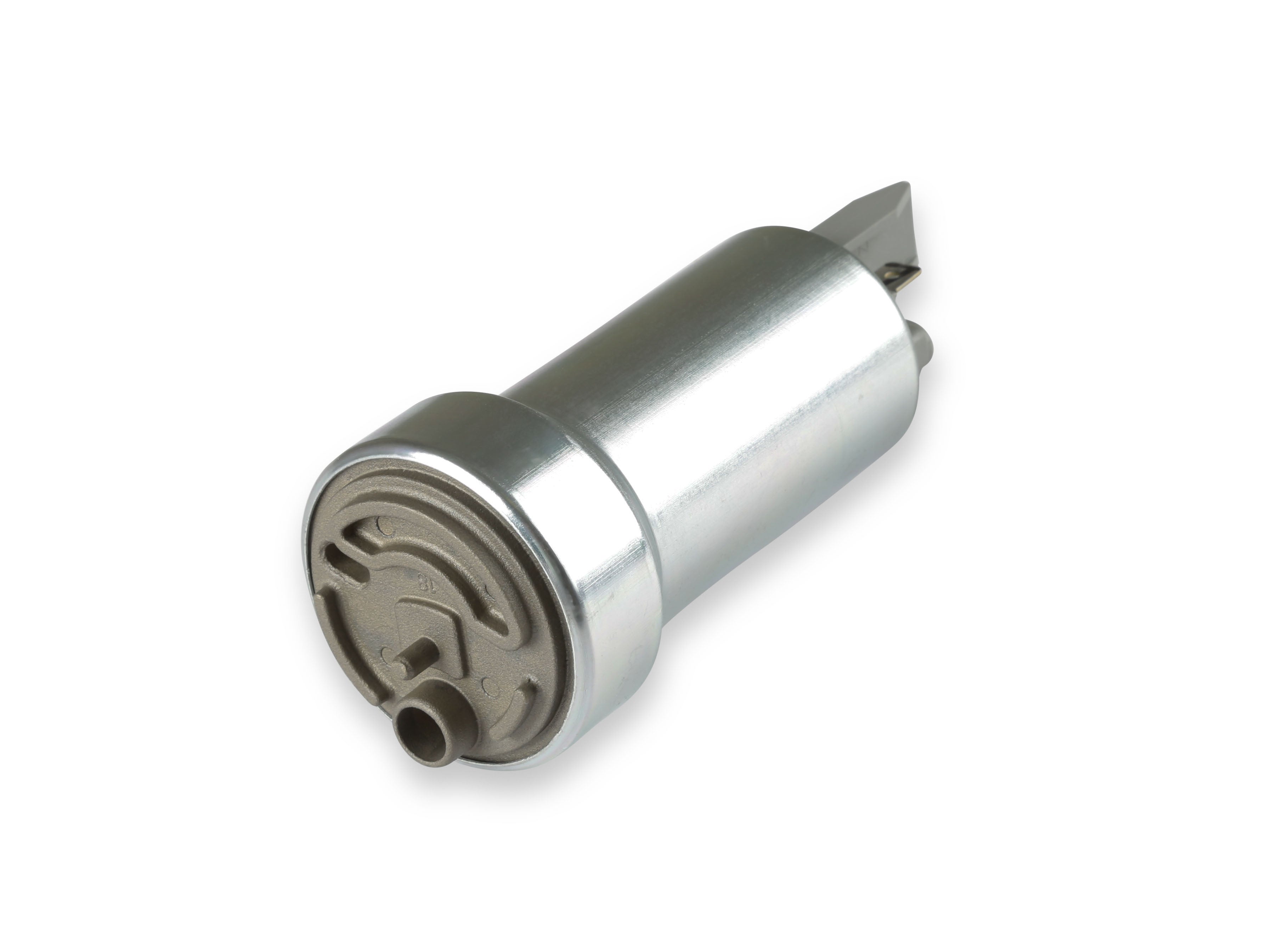

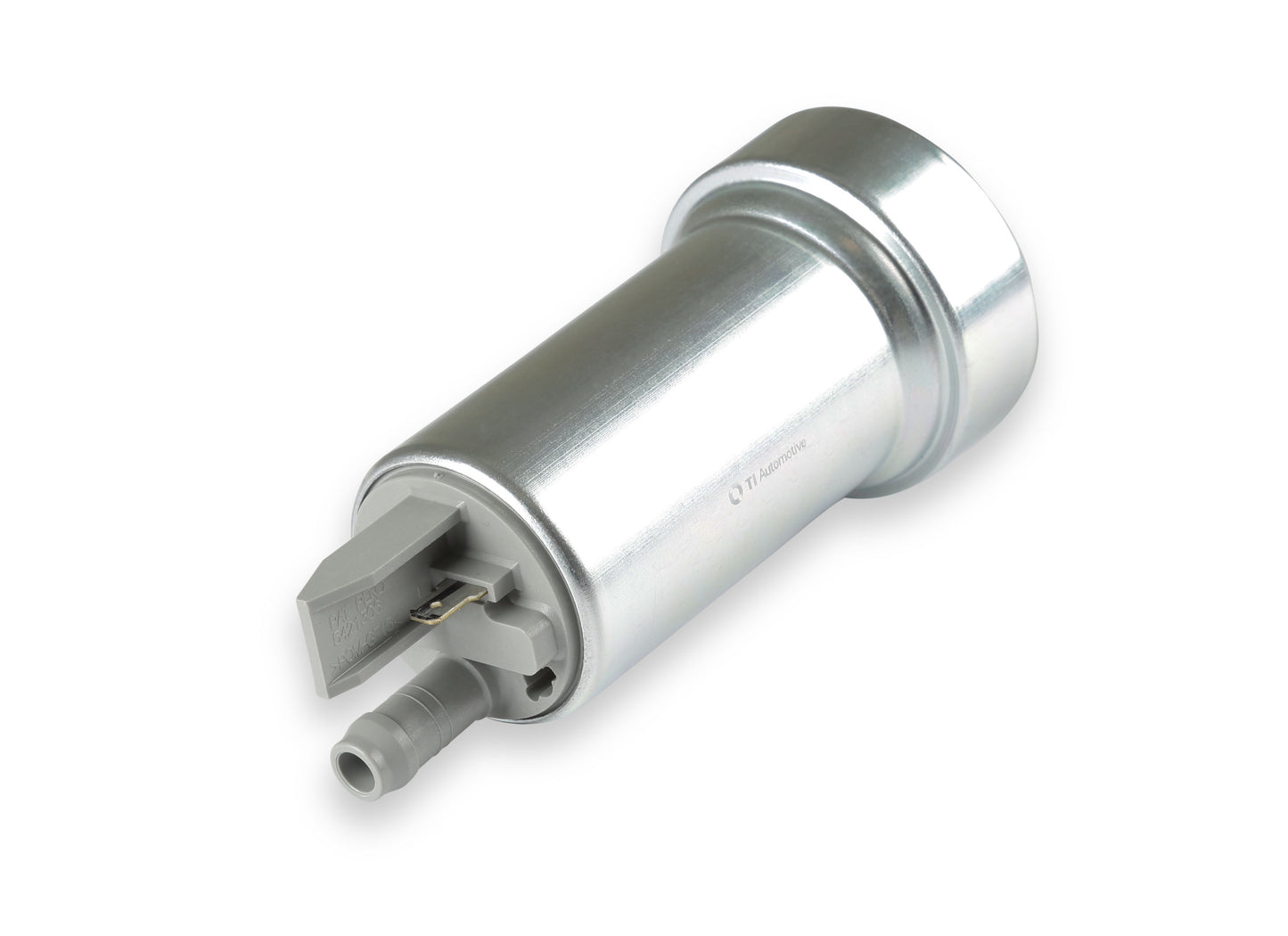

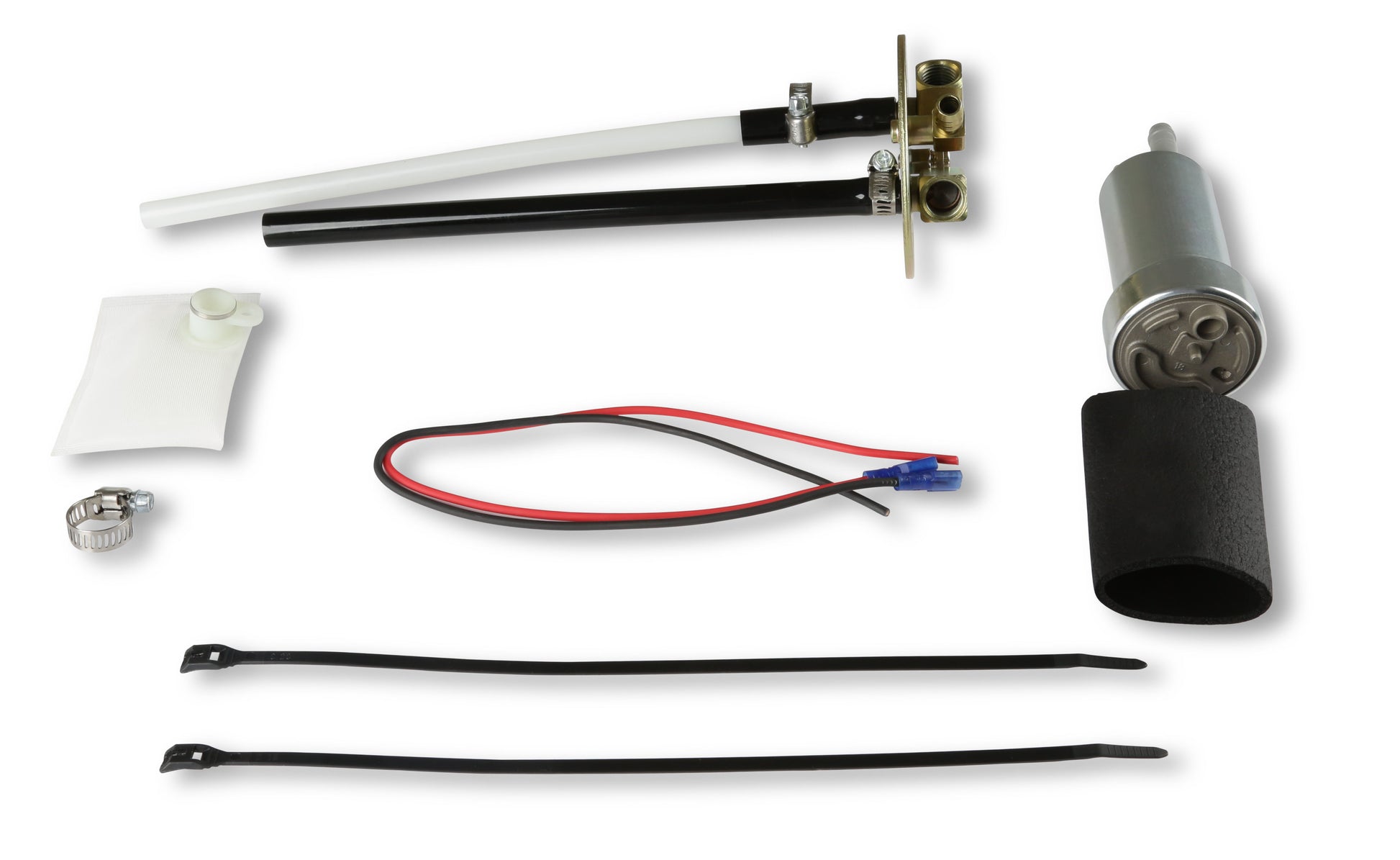

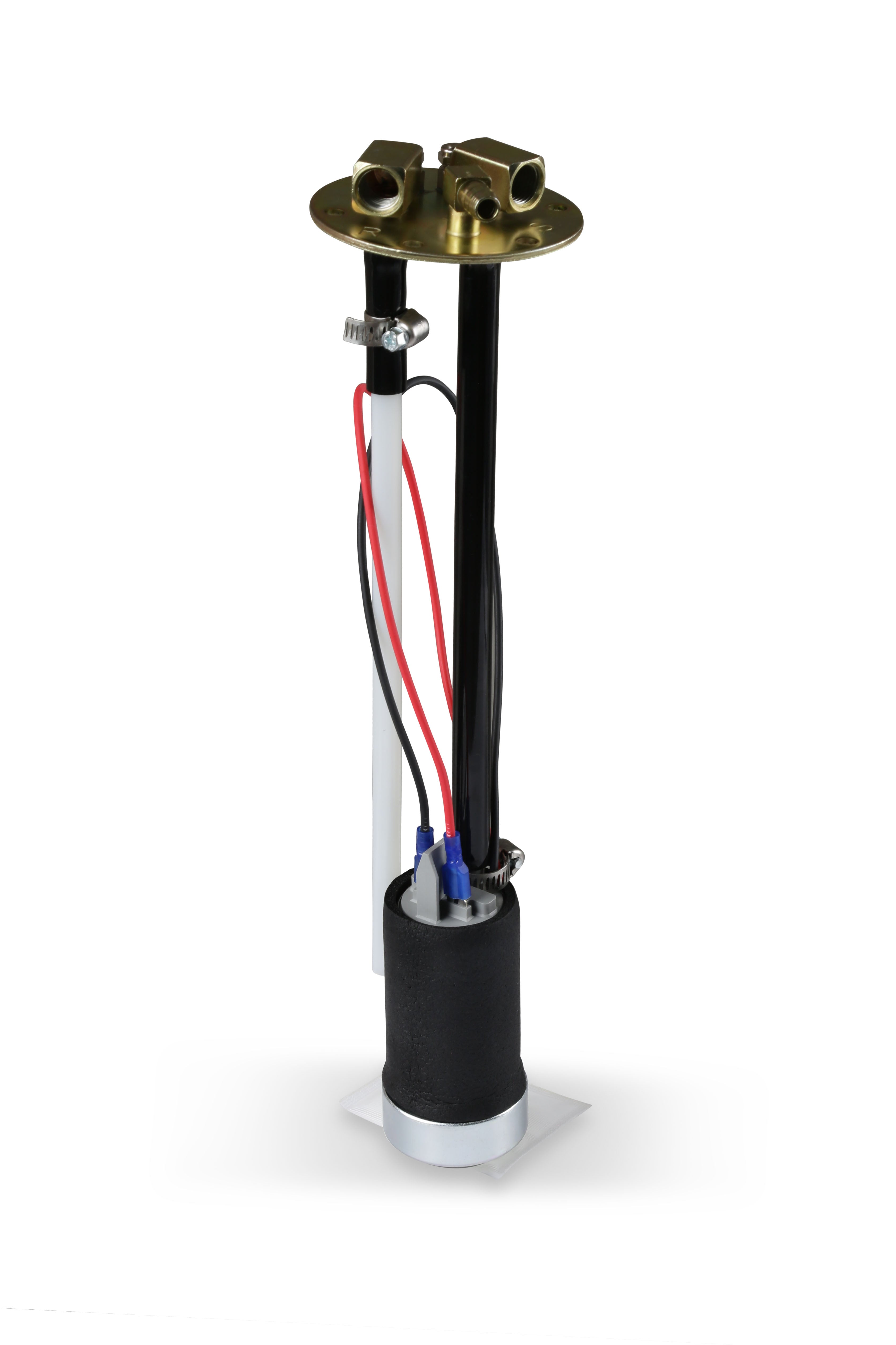

- 400 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness

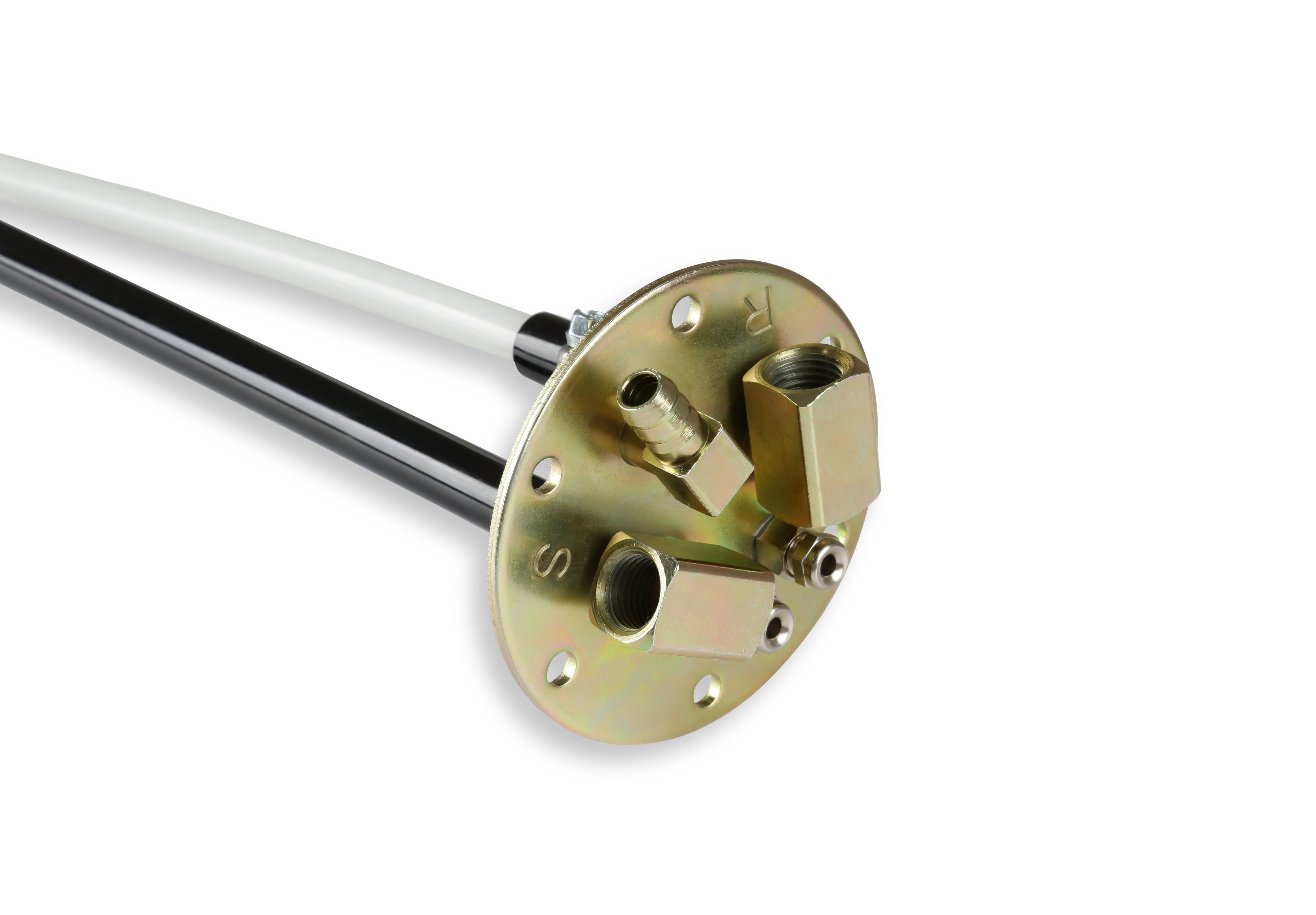

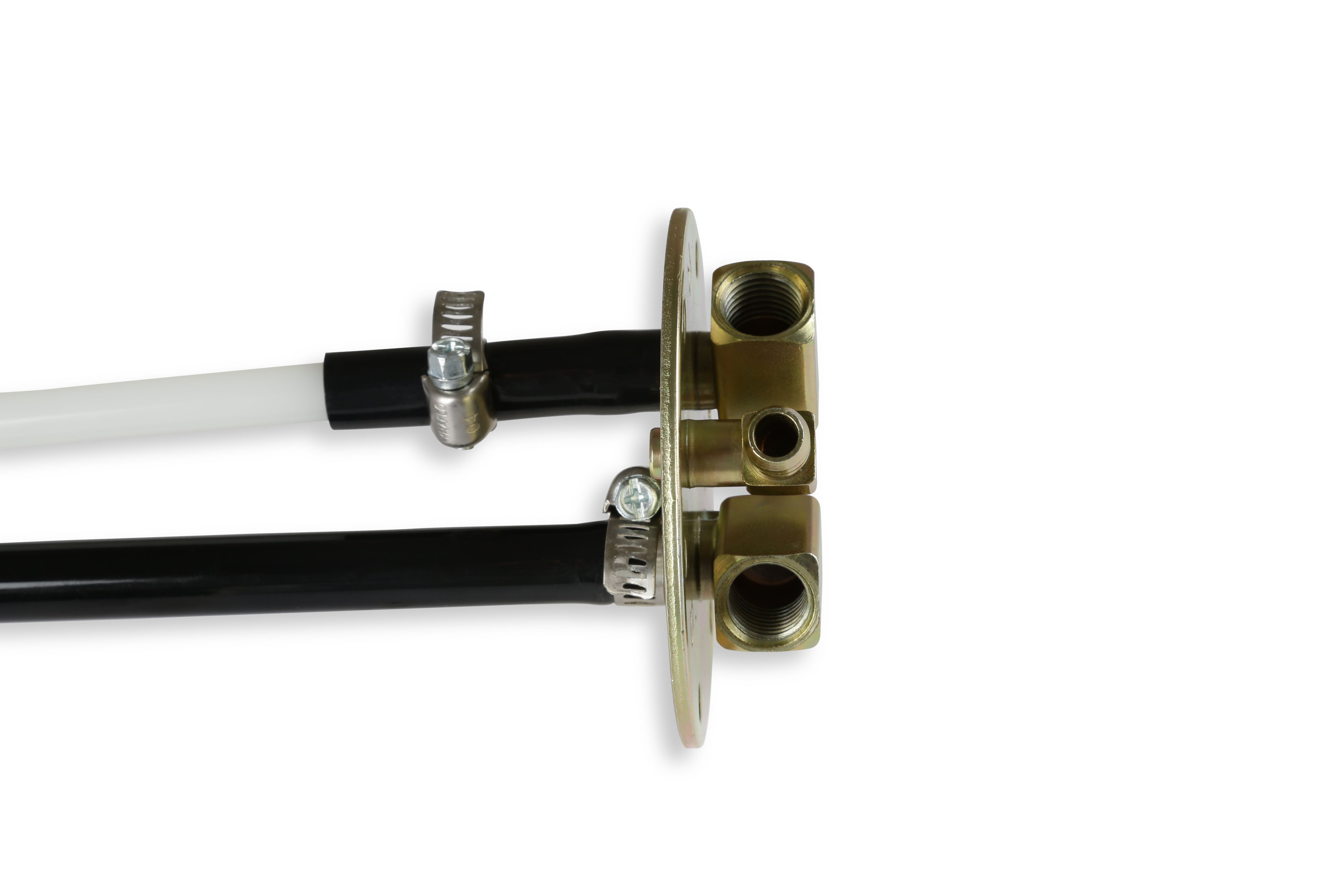

- Sender has 1/4" NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Fuel level sender included with the correct Ohm range for your factory gauges
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- Internal tank baffling includes a large 4.8 liter internal fuel tray to prevent fuel pump starvation

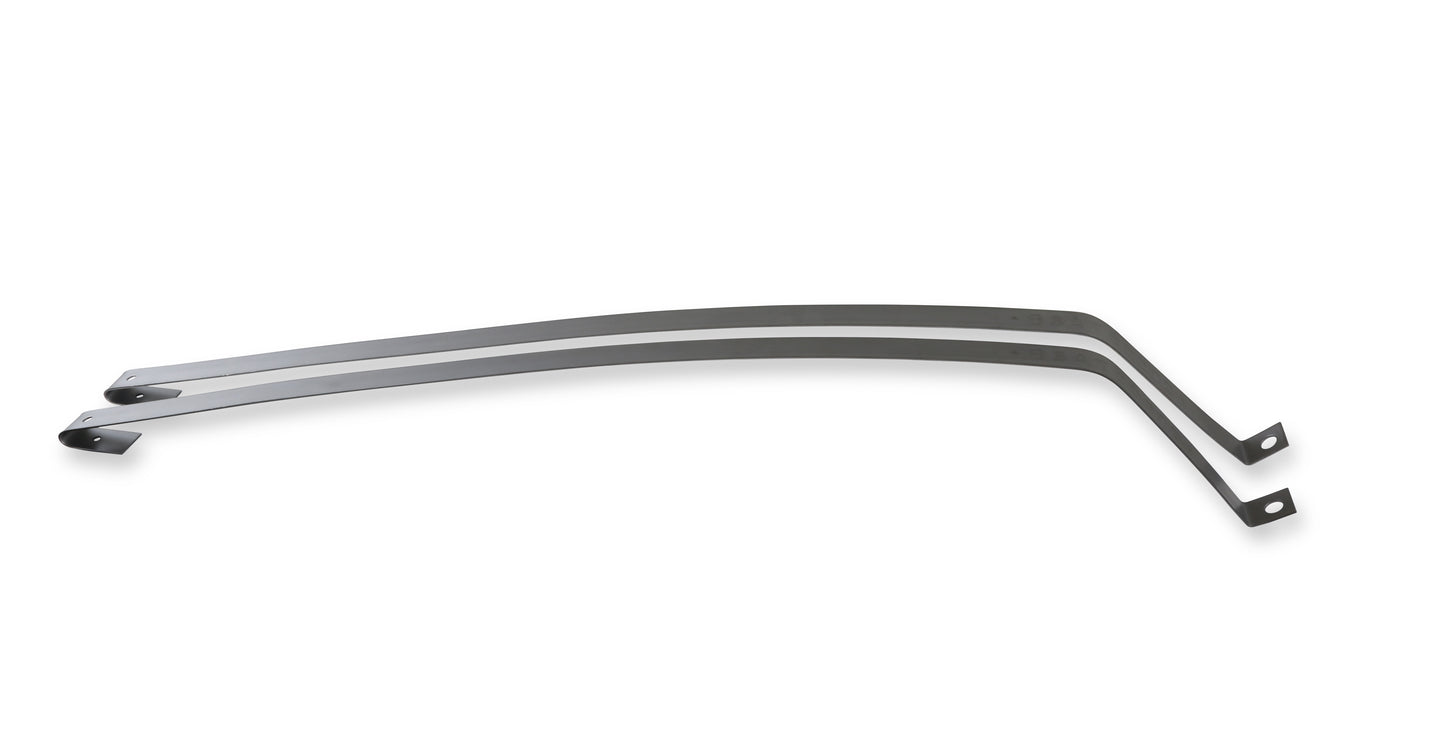

- Fits and looks like an OE tank when installed. New tank straps included.
- Notched front corners for additional tire and exhaust clearance.
- Complete bolt in solution for your EFI conversion
Specs:
- Application: 1968-1972 EL Camino / Sprint
- Attached Sump: Yes
- Baffled Sump: Yes
- Brand: Holley Sniper EFI
- Category: Air and Fuel Delivery
- Color: Silver
- Drain Plug: No
- Emission Code: 4
- Filler Neck Attached: No
- Finish: Powdercoated
- Free Flow LPH: 400
- Fuel Sending Unit Ohms: 0-90 Ohms
- Fuel System Compatibility: Electronic Fuel Injection
- Fuel System Type: Gasoline
- Fuel Tank Coating: Powder Coated
- Gallon Capacity: 20
- Grade Type: Performance
- Lock Ring Included: Yes
- Material: Steel
- Maximum Flow Rating: 400 LPH
- Mounting Straps Included: Yes
- New Straps Included: Yes
- O-Ring Included: Yes
- Part Type: Fuel Tank and Pump Assembly Combination
- Product Type: Fuel Tank
- Resistance Ohms Empty: 0 82
- Resistance Ohms Full: 90 82
- Sending Unit Included: Yes
- Sub Category: Fuel Pumps and Related Components
- Tank Capacity: 20 GA
- Tank Color: Gray
- Tank Material: Steel
- Warranty: Limited 90 Day
Tech Resources:
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
