Holley Sniper EFI - Holley EFI Fuel Tank Module - 255 LPH - 1963-1976 Mopar A-Body 12-319

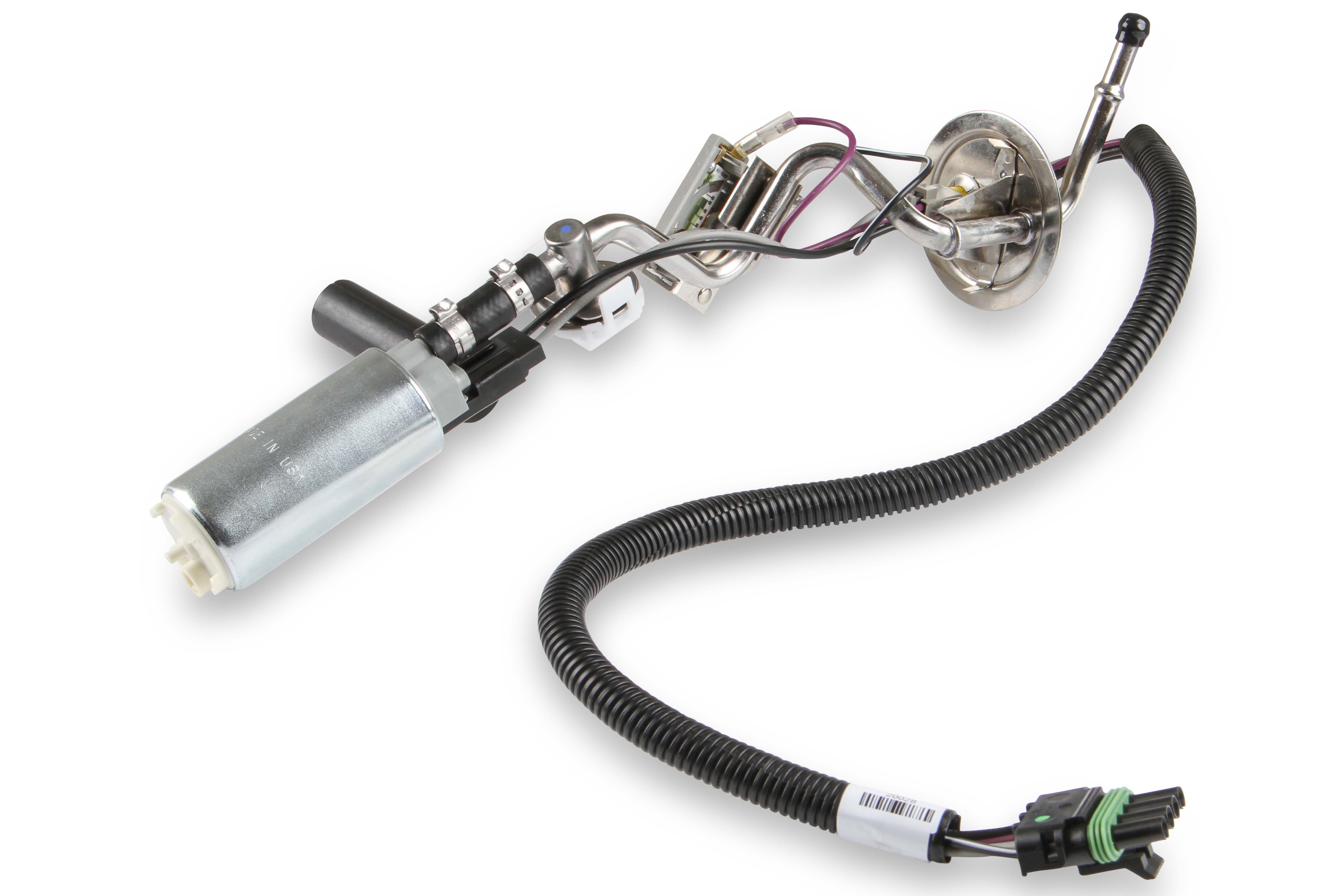

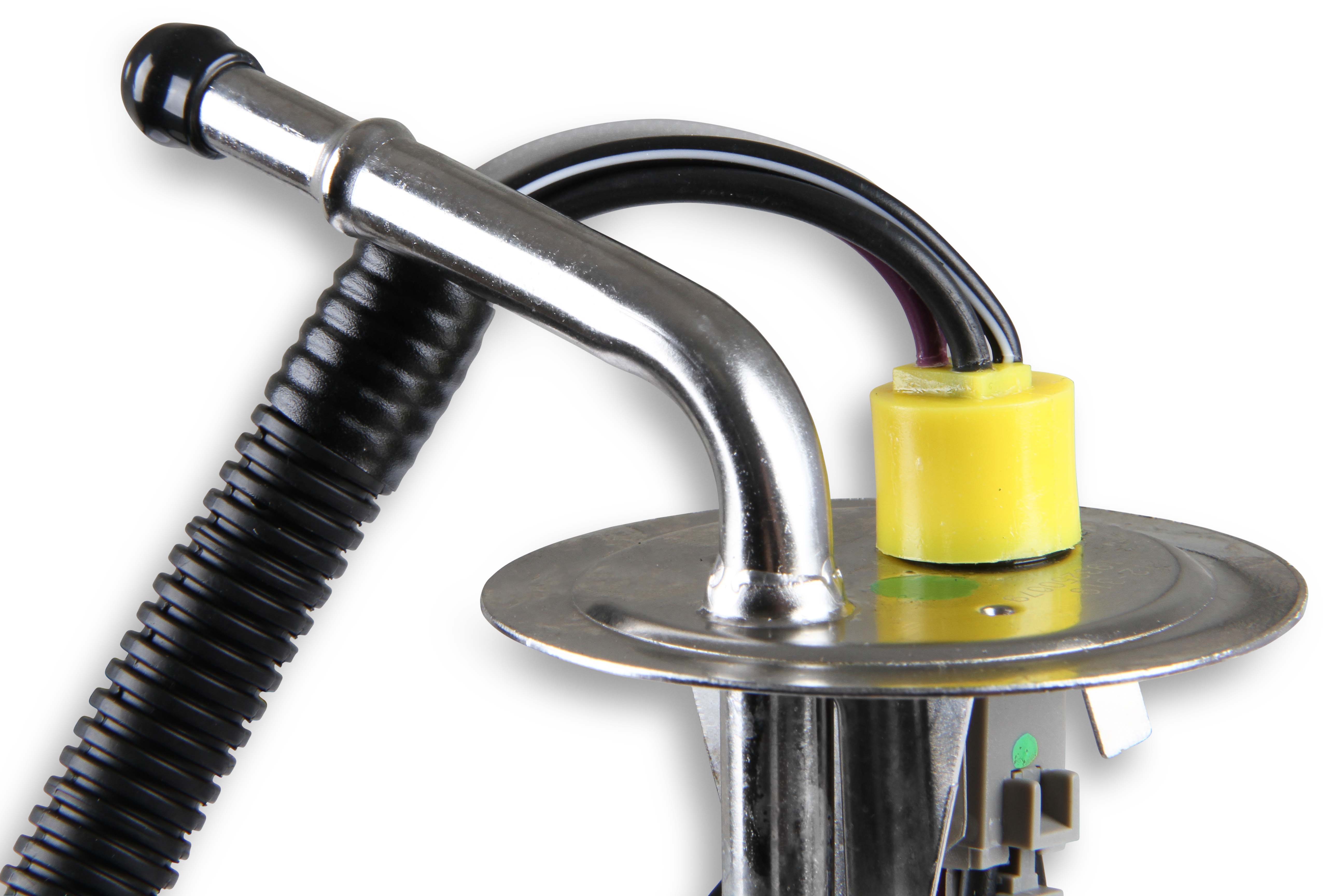

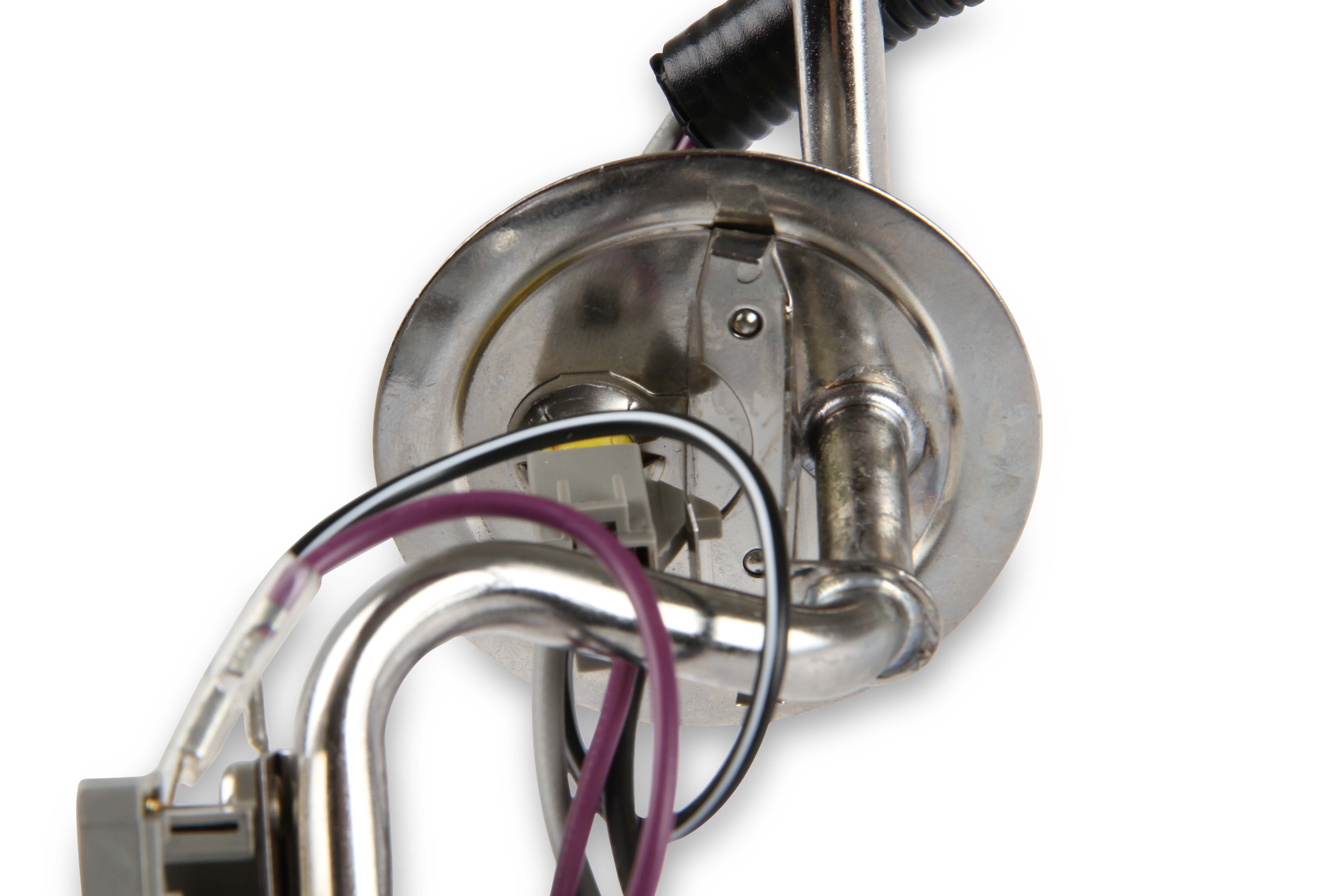

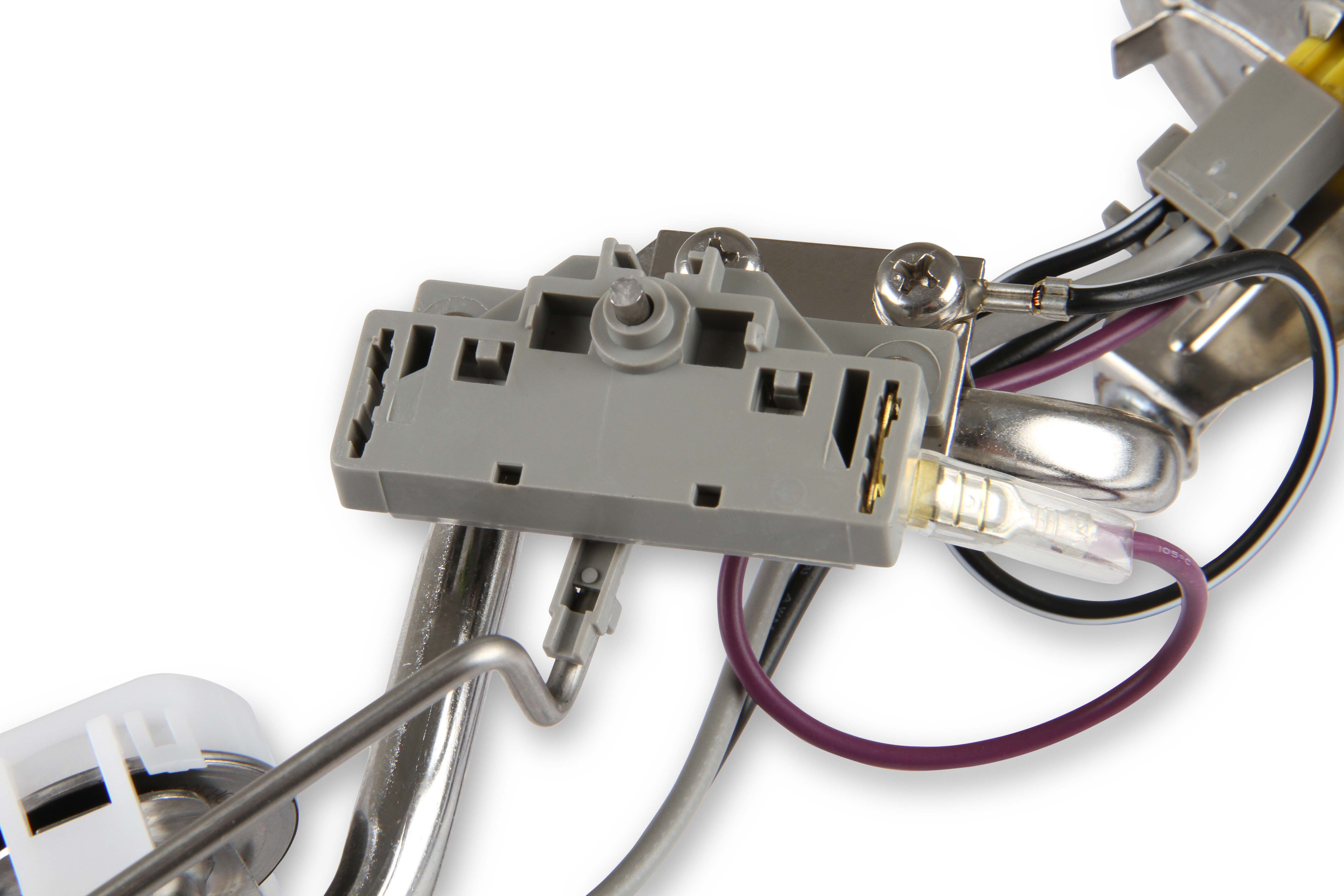

This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 550 horsepower. Fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator. A pre-calibrated fuel-level sending unit (73-10 ohm) designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminants

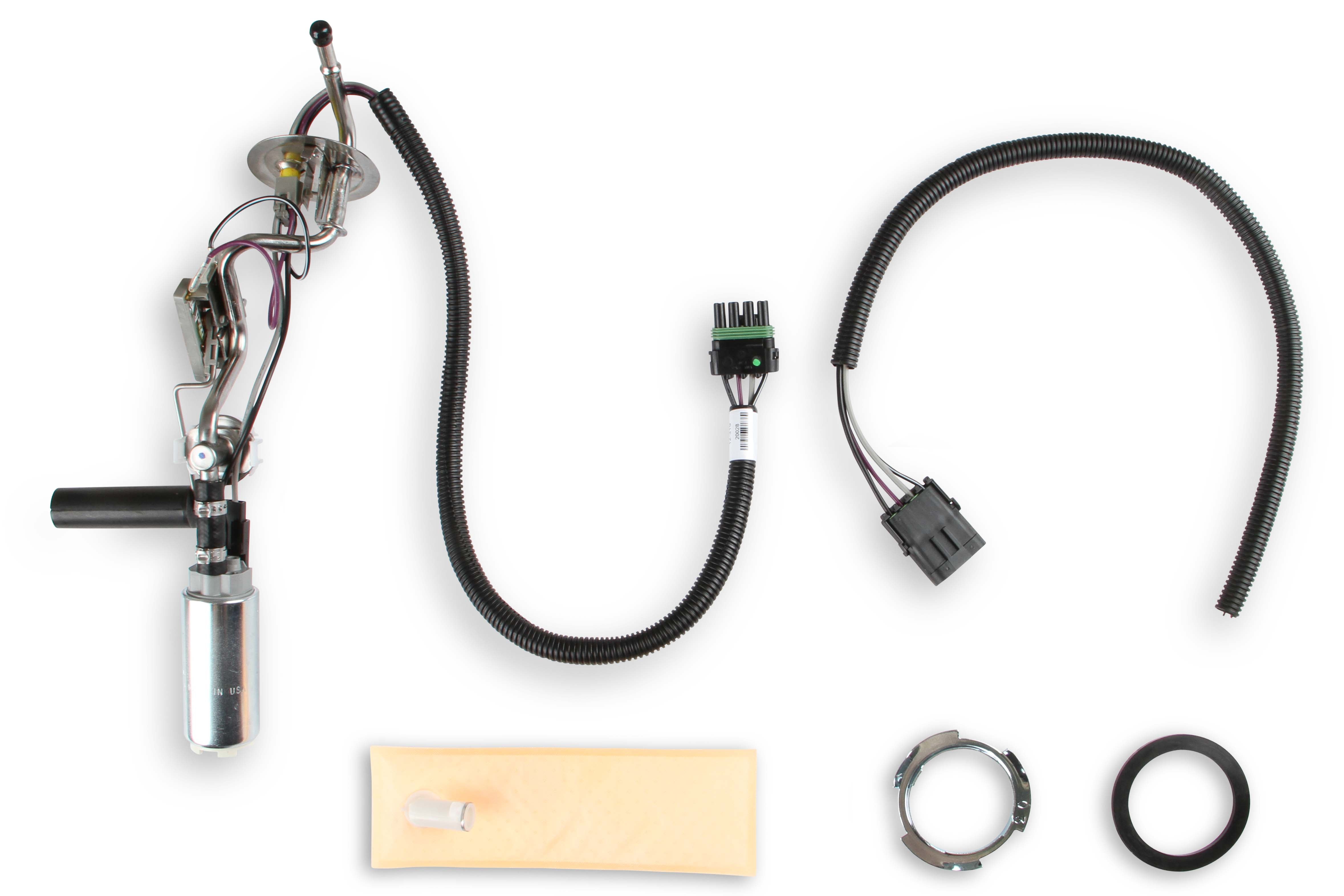

This 1963-1976 Dodge/Plymouth A Body Muscle Car EFI Fuel Pump modules are designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line, just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Features:

• Supports up to 550 horsepower (HP)

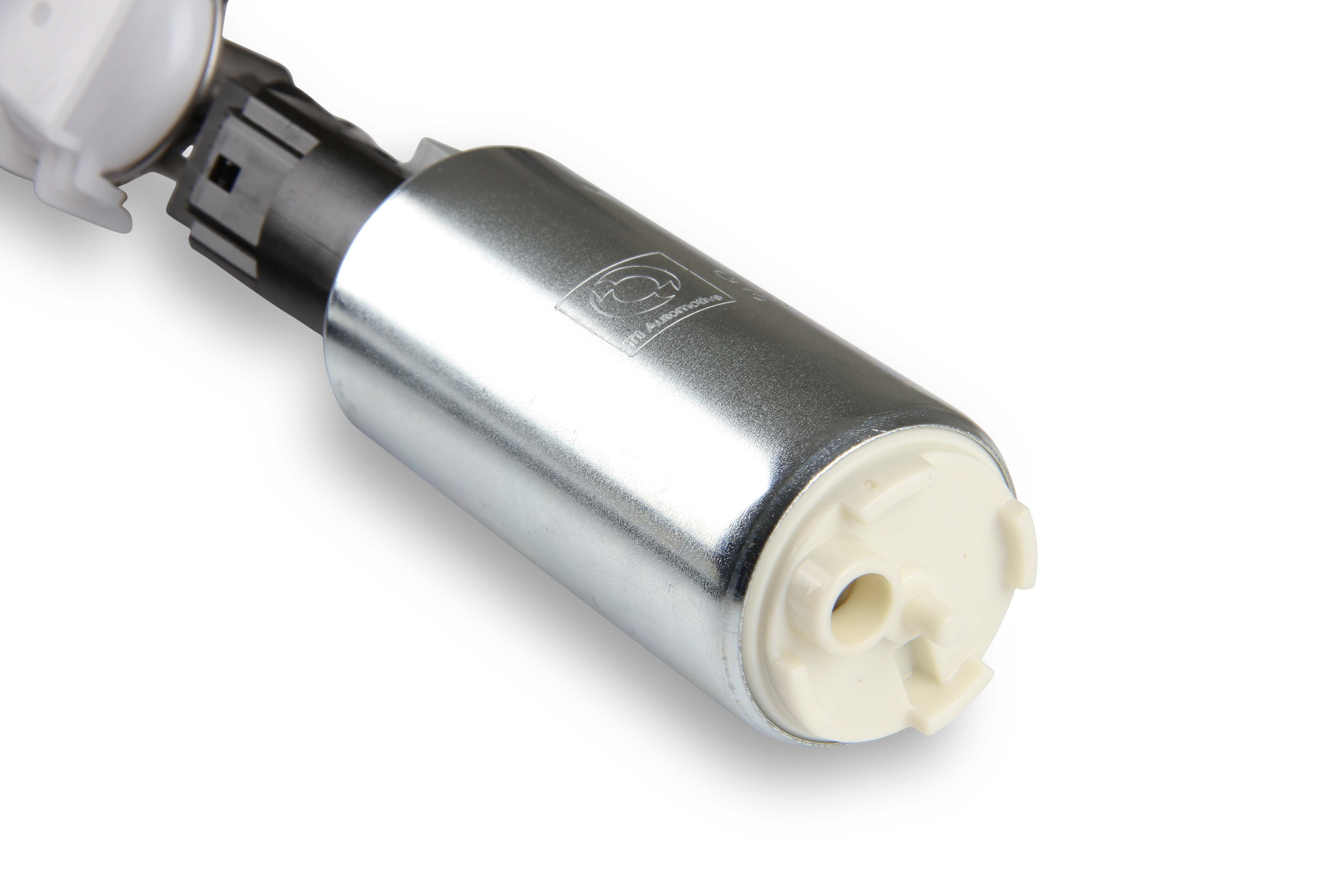

• Flows 255 liters per hour (LPH)
• Internally regulated to 58 PSI

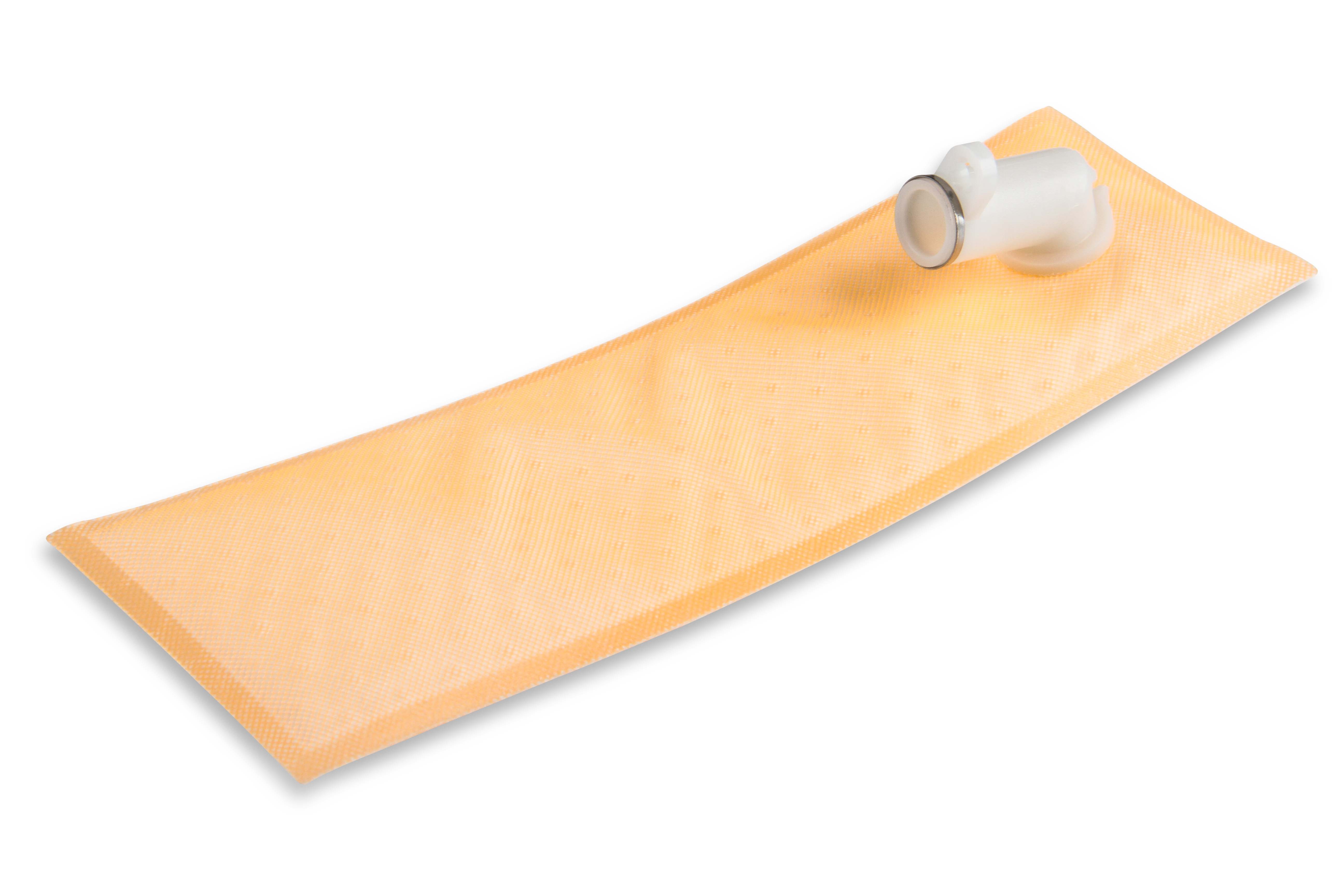

• Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Specs:

• Application: 1963-1969 Plymouth Valiant, 1963-1976 Dodge Dart, 1964-1969 Plymouth Barracuda, 1970-76 Plymouth Duster/Valiant/Scamp
• Average Flow Rating: 255 LPH
• Brand: Holley Sniper EFI
• Category: Air and Fuel Delivery
• Connector Gender: Male
• Emission Code: 5
• Free Flow LPH: 255
• Fuel Filter Included: Yes
• Fuel Sending Unit Included: Yes
• Fuel Sending Unit Ohms: 73-10 Ohms
• Fuel Tank Pressure Sensor Included: No
• Fuel Type: Gasoline

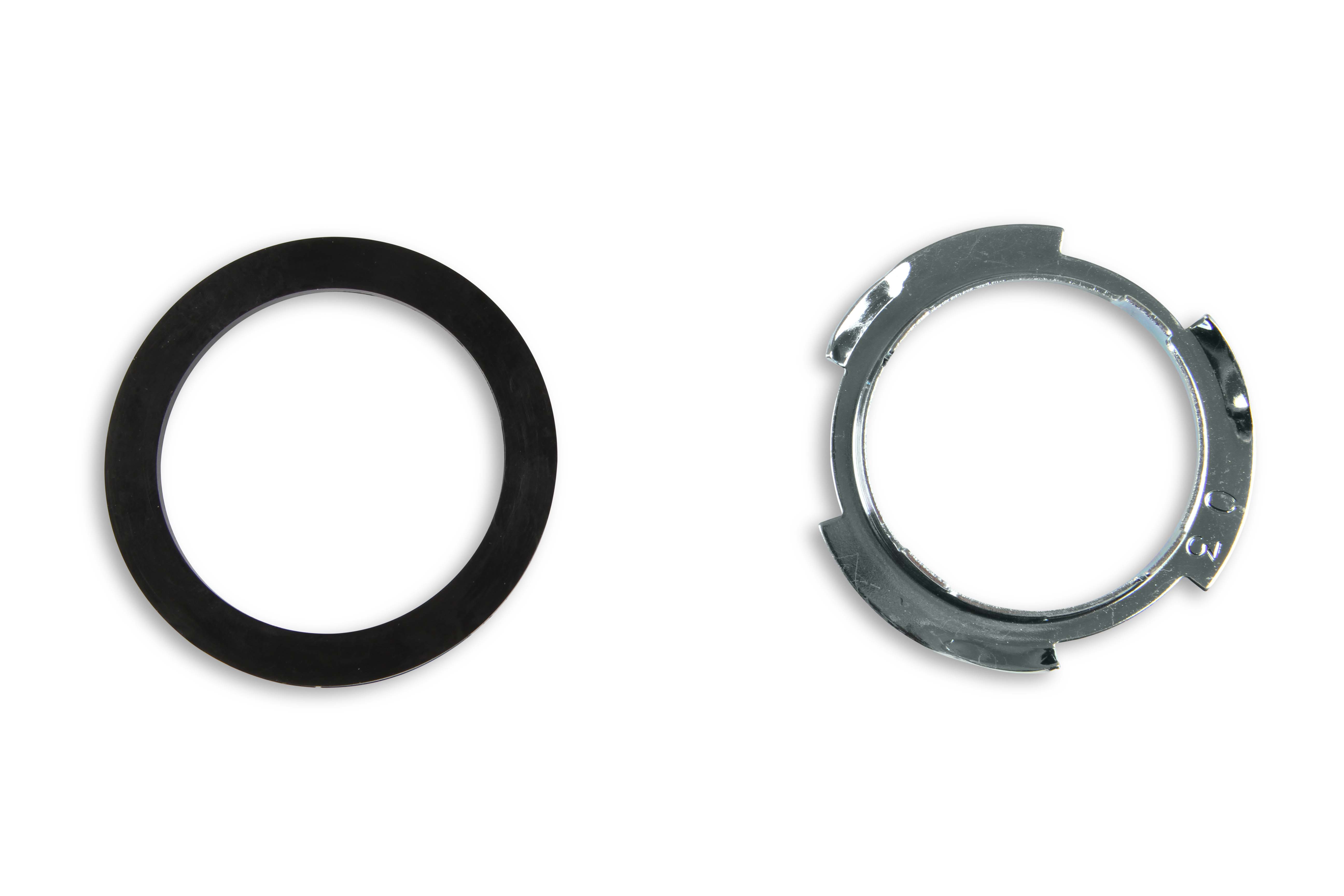

• Gasket Or Seal Included: Yes
• Grade Type: Performance
• In Tank or External: In Tank
• Inlet Diameter (in): 5/16 IN
• Inlet Diameter (in): 5/16"
• Inlet Quantity: One
• Lock Ring Included: Yes
• Make: Dodge/Plymouth
• Material: Steel and Plastic
• Maximum Pressure: 58 PS
• Model: A Body
• Negative Ground: Yes
• Outlet Outside Diameter: 3/8 IN
• Outlet Quantity: One
• Part Type: Fuel Pump Module Assembly
• Product Type: Fuel Pump Module
• Pump Type: Electric
• Regulator Included: Yes
• Resistance Ohms Empty: 73 82
• Resistance Ohms Full: 10 82
• Strainer Included: Yes
• Sub Category: Fuel Pumps and Related Components
• Universal Or Specific Fit: Specific
• Vent Size: N/A
• Warranty: Limited 90 Day

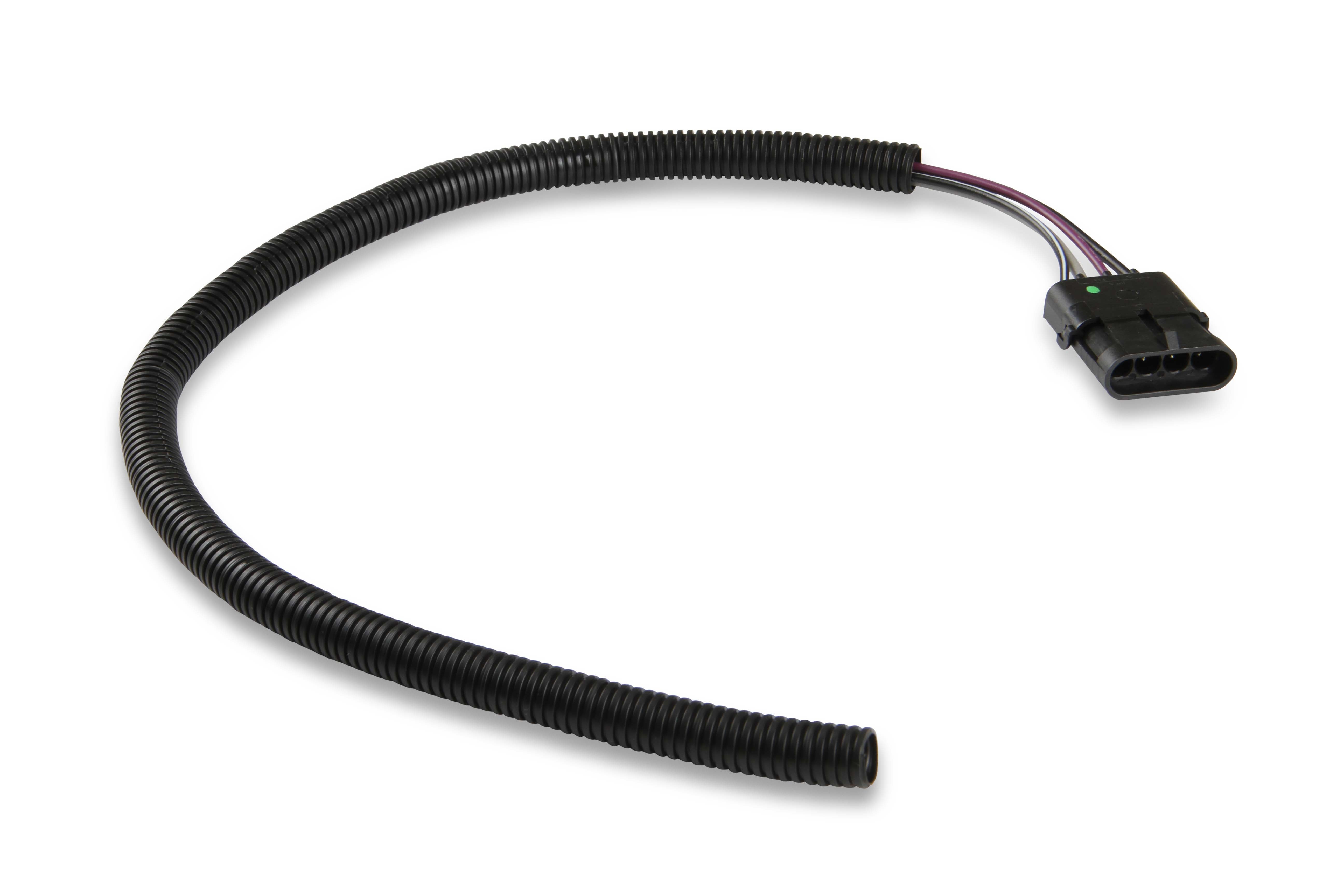

• Wire Harness Included: Yes

Tech Resources:

Instructions - 199r11469.pdf
