Holley Sniper EFI - Sniper EFI Fuel Pump Module - 340 LPH 12-353
Type: Fuel Pump Module

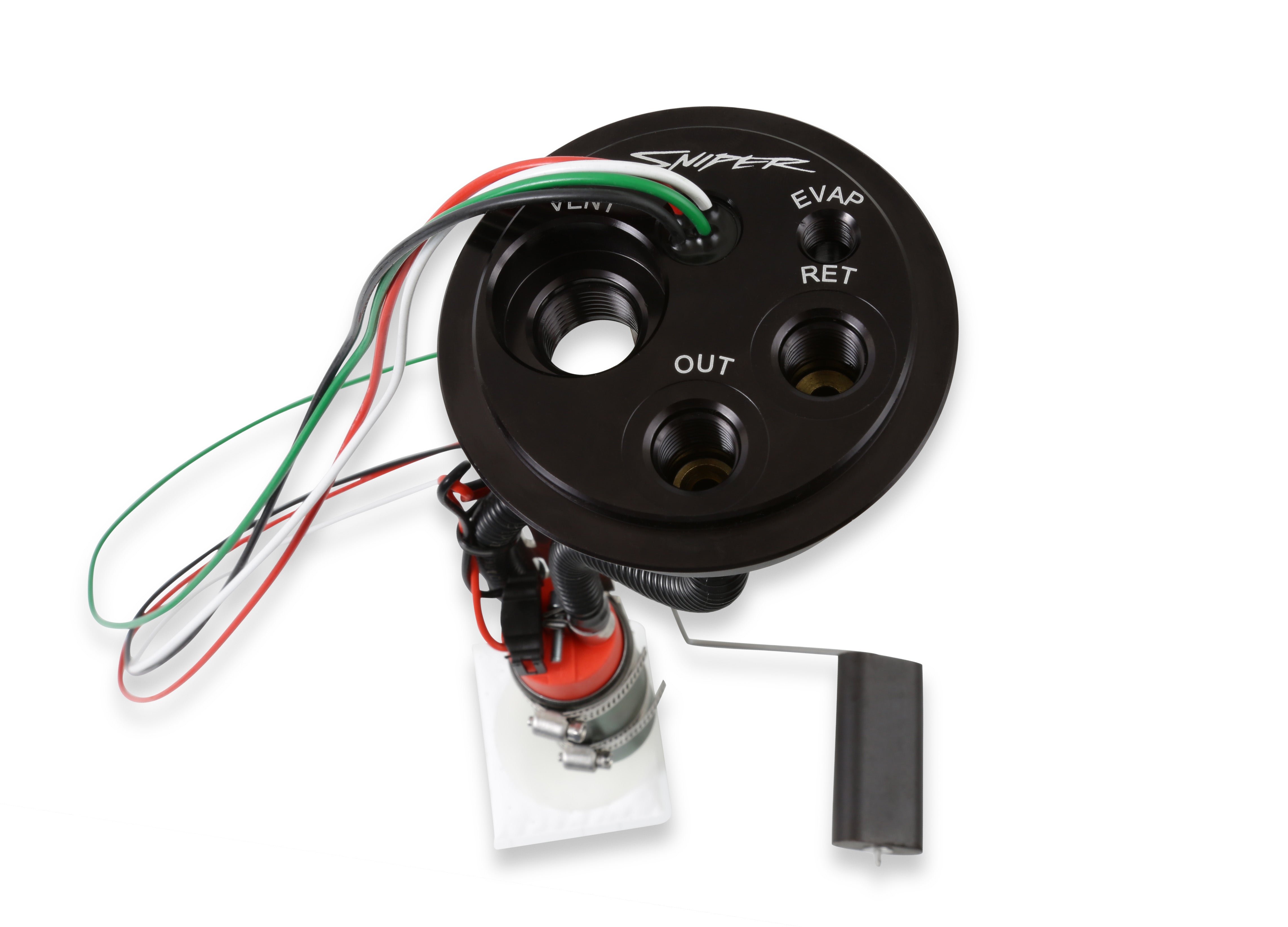

This direct fit fuel pump module will drop directly into any 1988-1997 GM C/K Series truck EFI fuel tank. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
We also have a 525 LPH module for the 1988-1998 GM C/K Trucks that supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)
The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.
Features:
- The 6061-T6 Aluminum fuel pump module is a high-pressure unit that flows 340 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 700 EFI horsepower.
- For the 1988-1998 GM Trucks, we also offer the unit with a 525 LPH pump which supports up to 1200 EFI horsepower
- Includes a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application
- 6AN o-ring outlet and return ports for easy plumbing connections

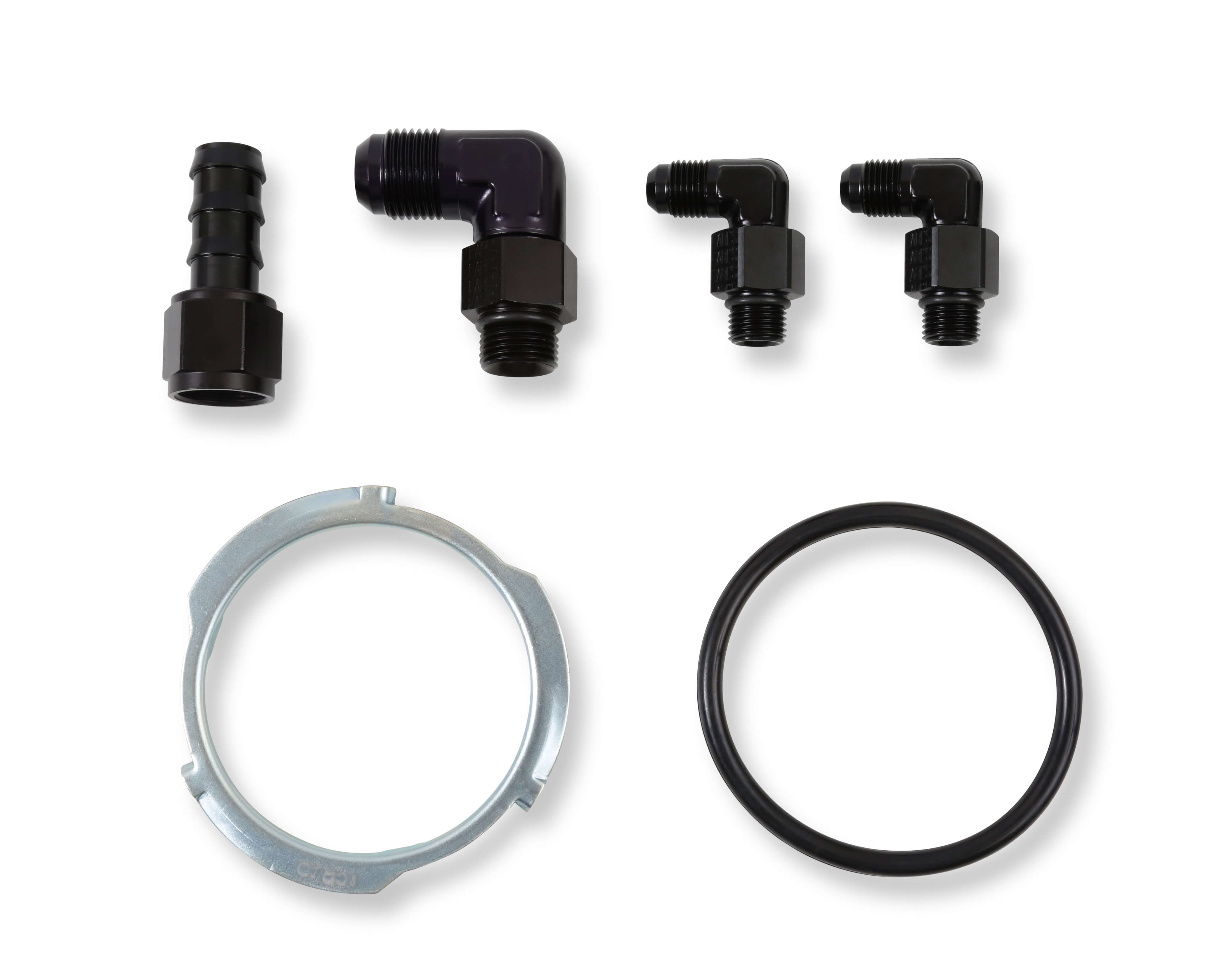

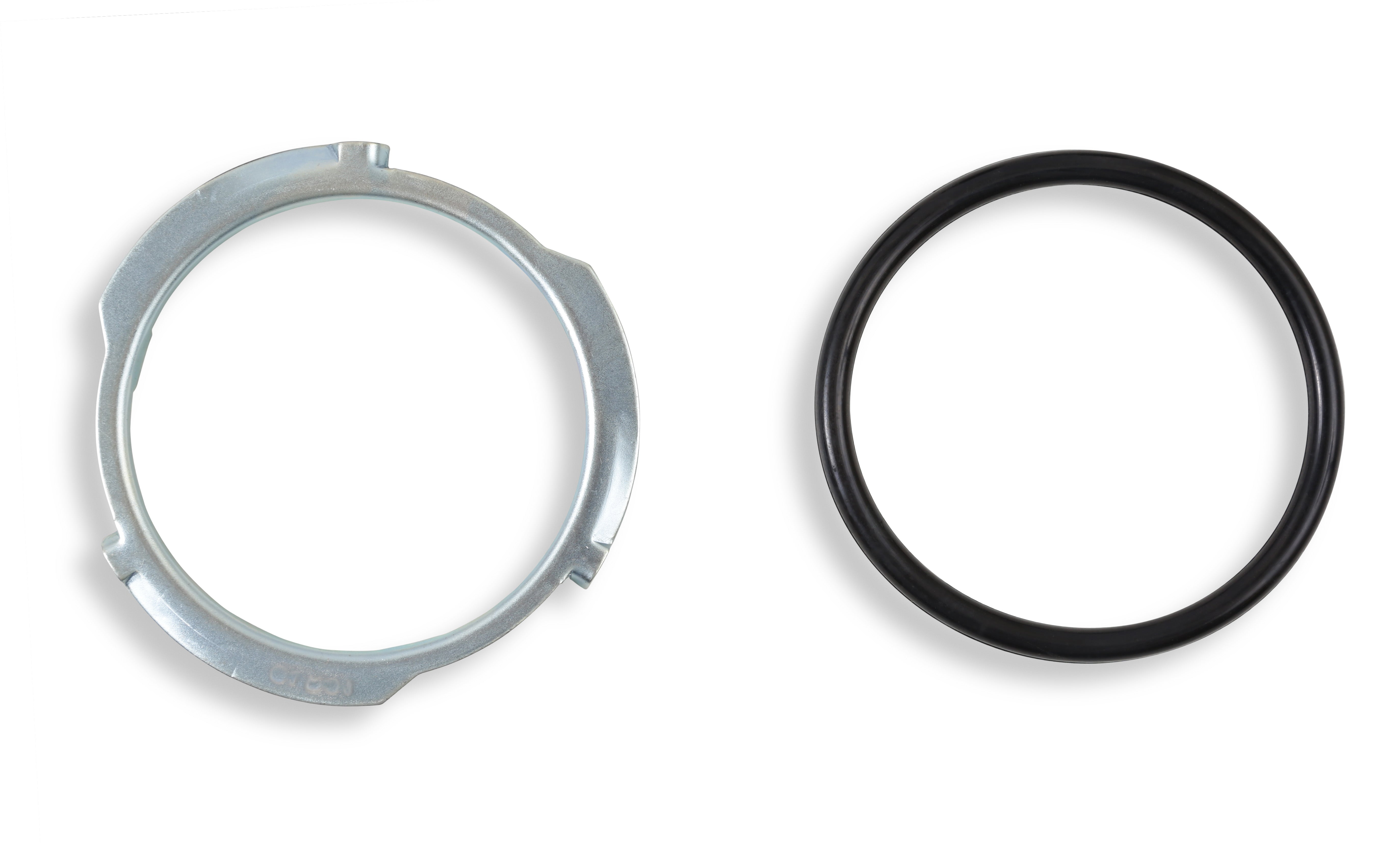

- Filter sock, flange O-ring, and fuel tank lock ring included to complete your installation
- Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your need
- Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations. They can be used for both carbureted and EFI systems)
- The flange is bright dip black anodized for corrosion protection from undercar moisture.
Specs:
- Application: 1988-1998 GM C/K Trucks
- Average Flow Rating: 340 LPH
- Brand: Holley Sniper EFI
- Category: Air and Fuel Delivery
- Color: Black
- Emission Code: 5
- Free Flow LPH: 340
- Fuel Filter Included: Yes
- Fuel Sending Unit Included: Yes
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Gasoline/E85 Compatible
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- In Tank or External: In Tank
- Inlet Size: 6 AN
- Lock Ring Included: Yes
- Material: 6061-T6 Aluminum
- Negative Ground: Yes
- Outlet Size: 6 AN
- Part Type: Fuel Pump Module Assembly
- Product Type: Fuel Pump Module
- Pump Type: Electric
- Regulator Included: No
- Resistance Ohms Empty: 0 82
- Resistance Ohms Full: 90 82
- Strainer Included: Yes
- Sub Category: Fuel Pumps and Related Components
- Universal Or Specific Fit: Specific
- Warranty: Limited 90 Day
- Wire Harness Included: Yes
Tech Resources:
Recommended Regulators (Holley 12-879, 12-880)
