Holley Sniper EFI - Sniper 1 Transmission Control Kit 551-101
Type: Transmission Controller

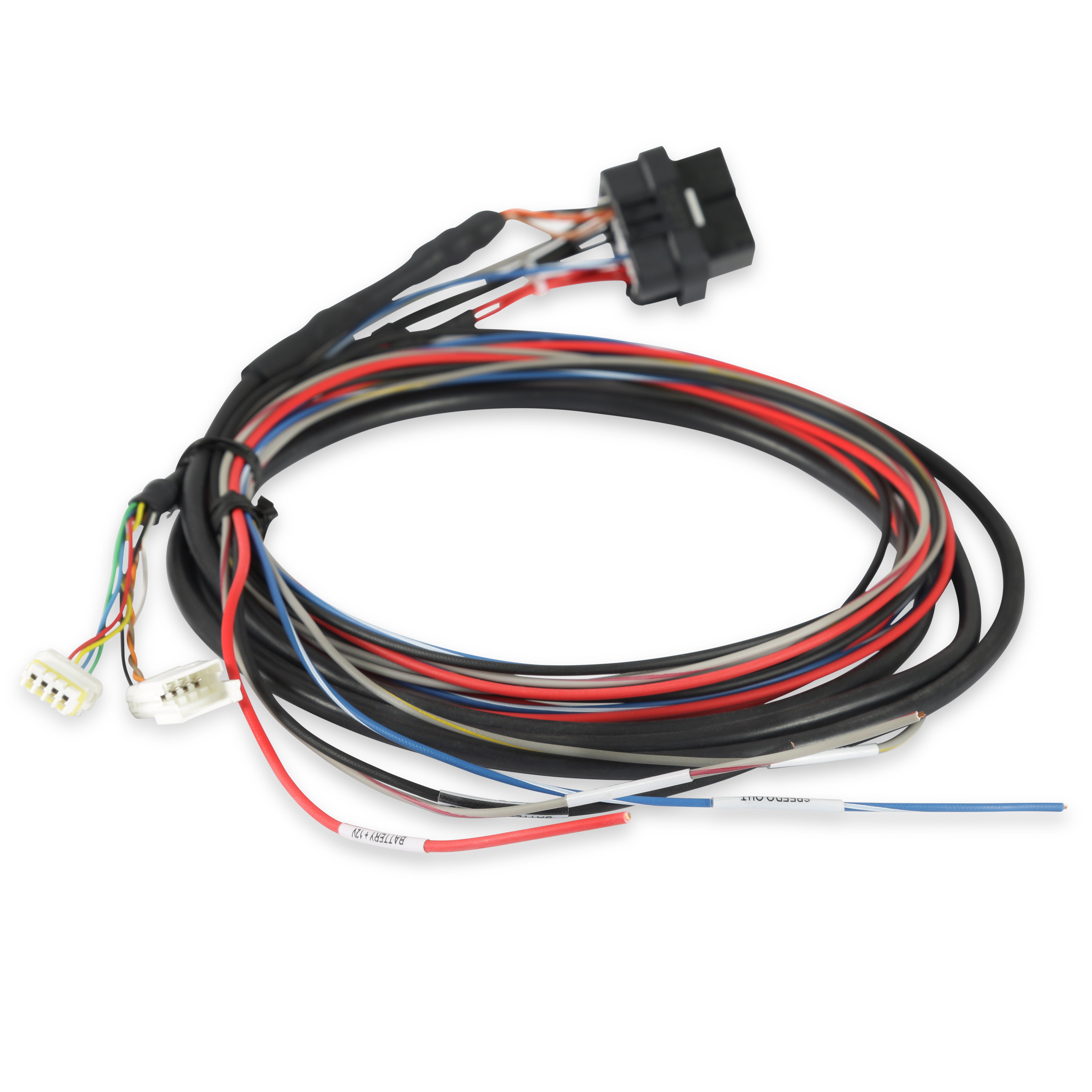

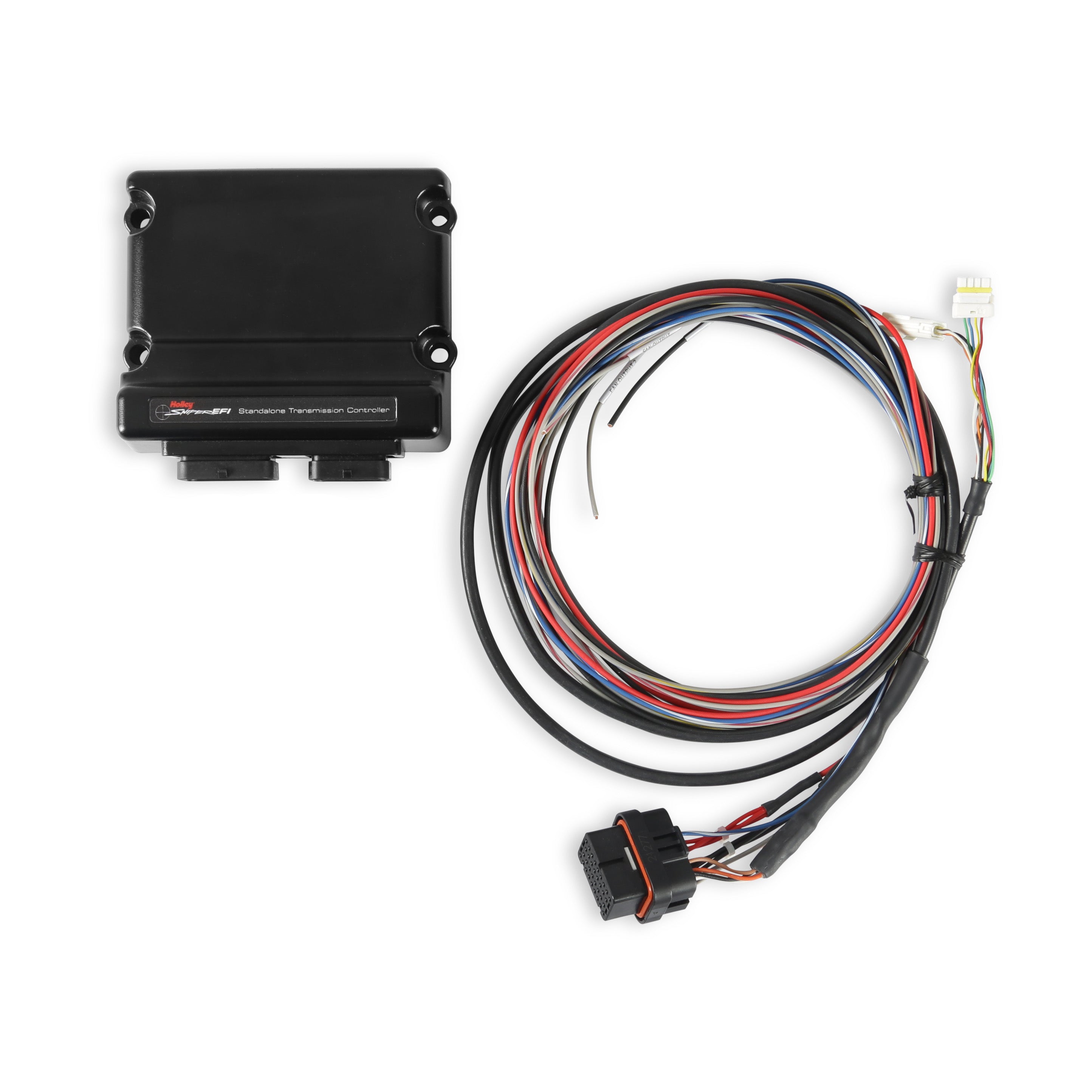

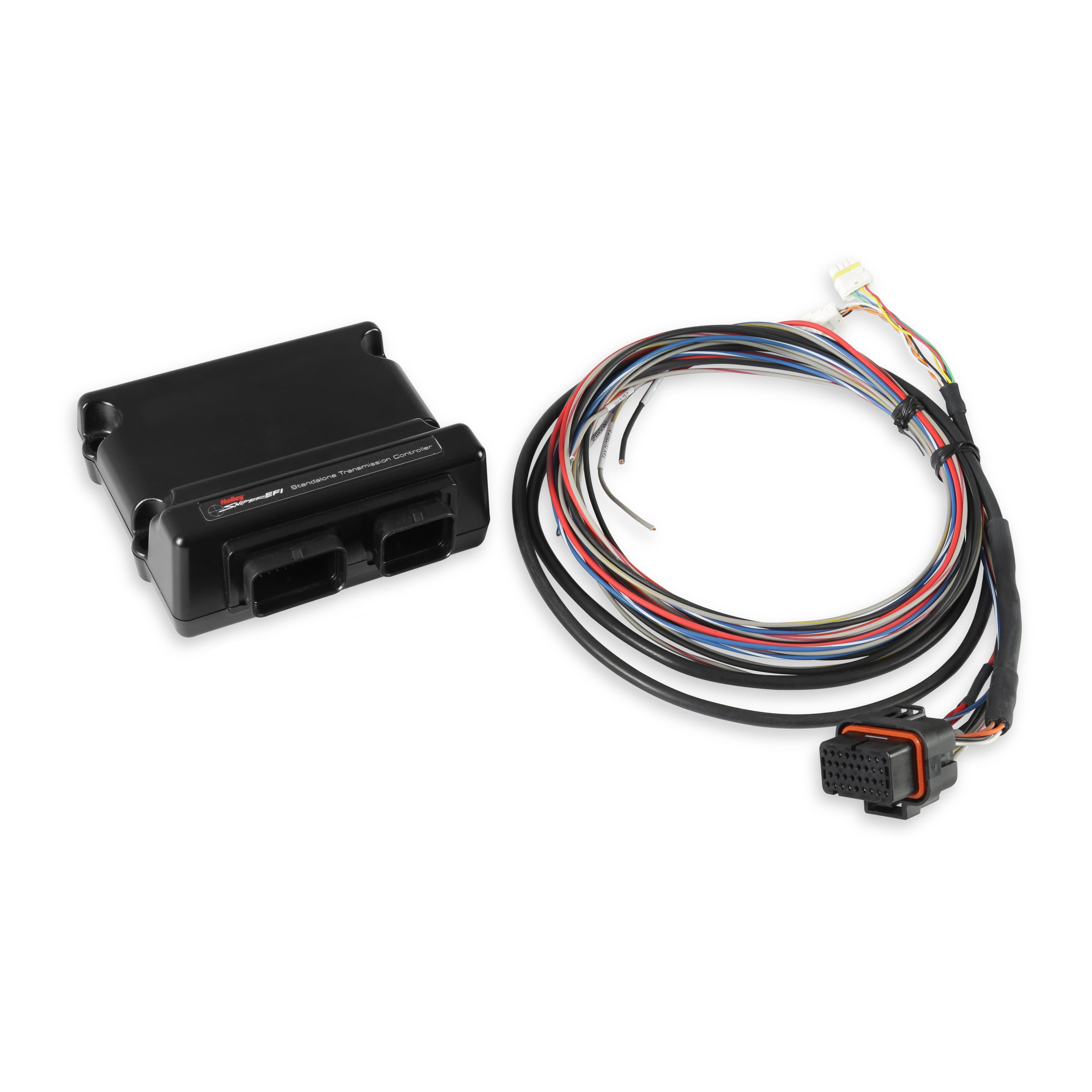

The Sniper Transmission Controller (STC) allows the use of common Ford and GM electronic four speed transmissions. It connects to your Sniper EFI system via CAN bus and is programmed through the existing Sniper 3.5” touchscreen (not included). No programming is available with PC computer software, but the transmission functions can be data logged and reviewed with Sniper PC software. This kit is intended to work with Sniper throttle body injection systems only as it contains the Sniper Transmission Control Module as well as the Power/CAN bus harness.
Features:
- Adds electronic transmission control functionality to a Sniper 1 system
- Tune upshifts, downshifts and wide open throttle (WOT) shift points
- Full programmability of torque converter lockup
- Full tuning of transmission line pressure (shift firmness)

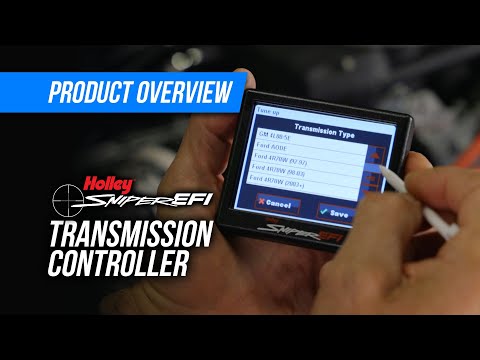

- Tuning is performed through an LCD touchscreen (not included)
- Transmissions harnesses sold separately
Specs:
- Application: Sniper 1
- Brand: Holley Sniper EFI
- Category: Transmission
- Emission Code: 5
- Grade Type: Performance
- Part Type: Automatic Transmission Control Module
- Product Type: Transmission Controller
- Sub Category: Control Modules
Tech Resources:
Requires Sniper Version 2 ECU and handheld firmware.
Ford and GM 4 speed electronic overdrive transmissions are simple in operation, as they have 4 speeds with the top gear being an overdrive and all have a lockup torque converter that eliminates any slippage when the lockup is applied. With a stock torque converter, the lockup should only be applied under light throttle conditions or excessive wear will occur. Upshifts, downshifts, and torque converter lockup, are based on vehicle speed and throttle position (or optionally the MAP sensor) and are adjustable with the 3.5-inch touchscreen (not included).
MAP sensor is needed if using MAP for line pressure, which is usually only done with forced induction applications.
Controls conventional electronic 4 speed transmission applications, transmission specific harnesses sold separately:
558-405 - 1996-2008 GM 4L60/70/80E
558-455 - 2009+ GM 4L60E
558-470 - 1998+ Ford 4R70W/4R75W
558-471 - 1992-1997 Ford AODE/4R70W
