Holley EFI - Holley Lo-Ram Manifold Kit Single Injector- Satin - GM LS3/L92 300-679
Type: Intake Manifold | Fits: GM

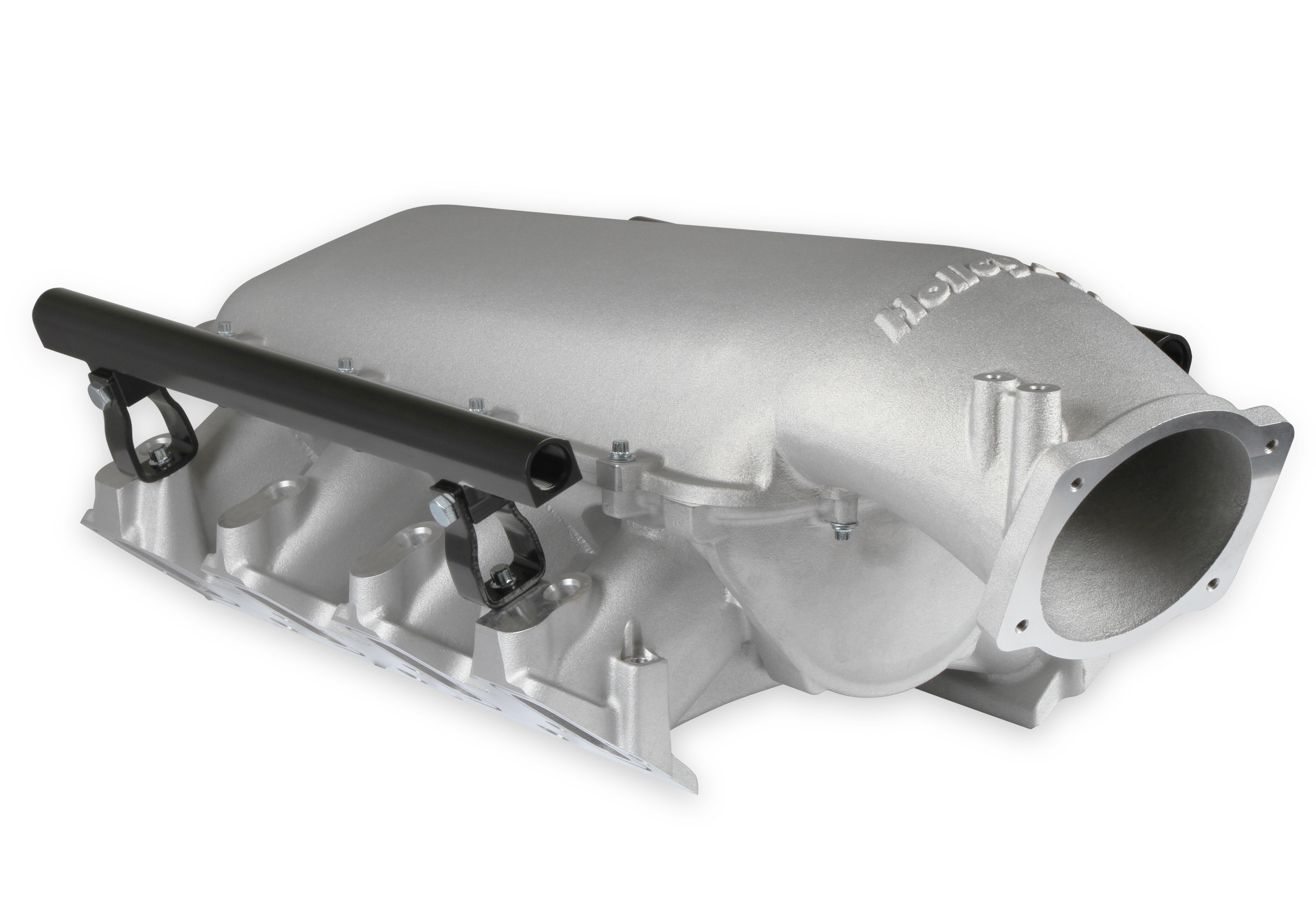

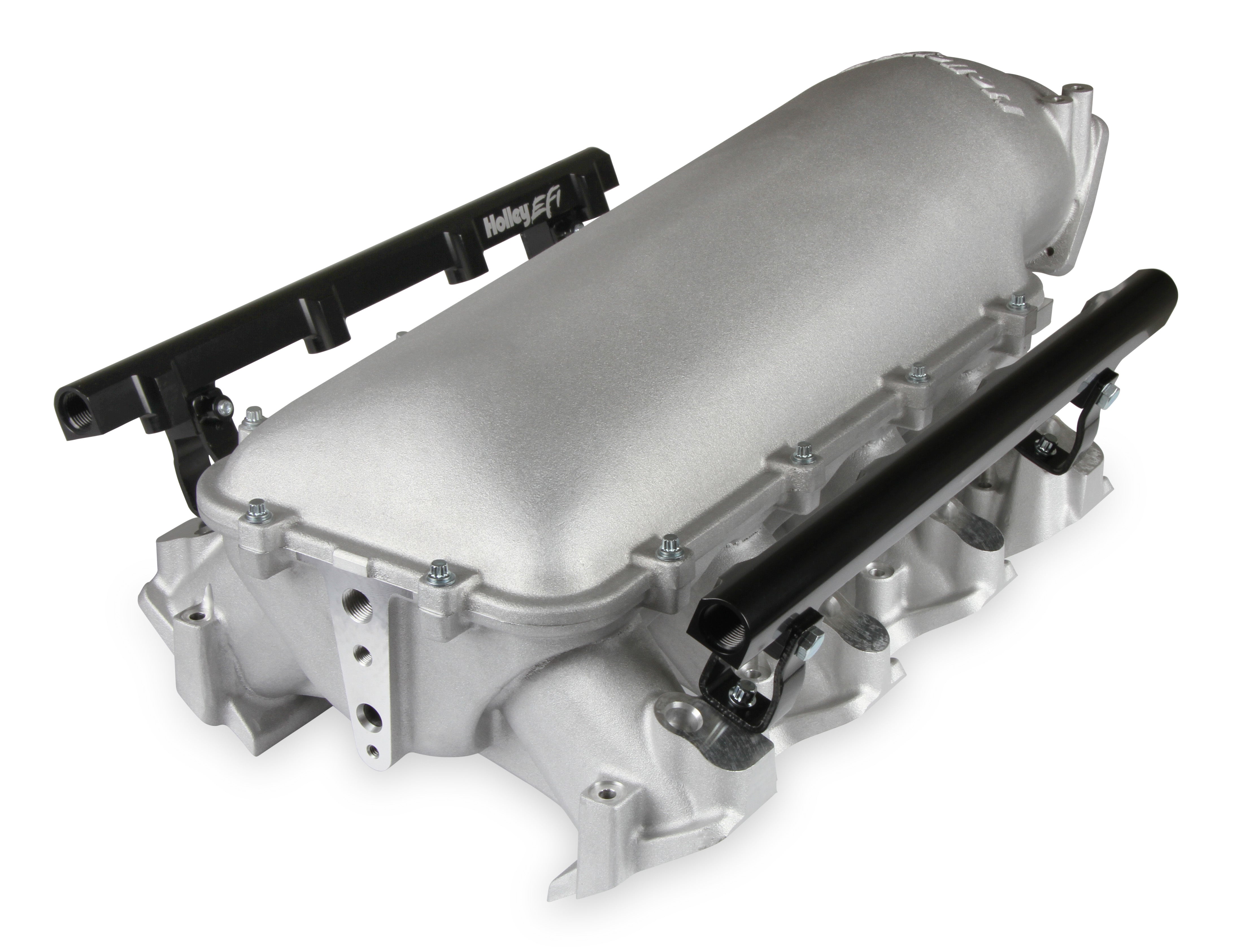

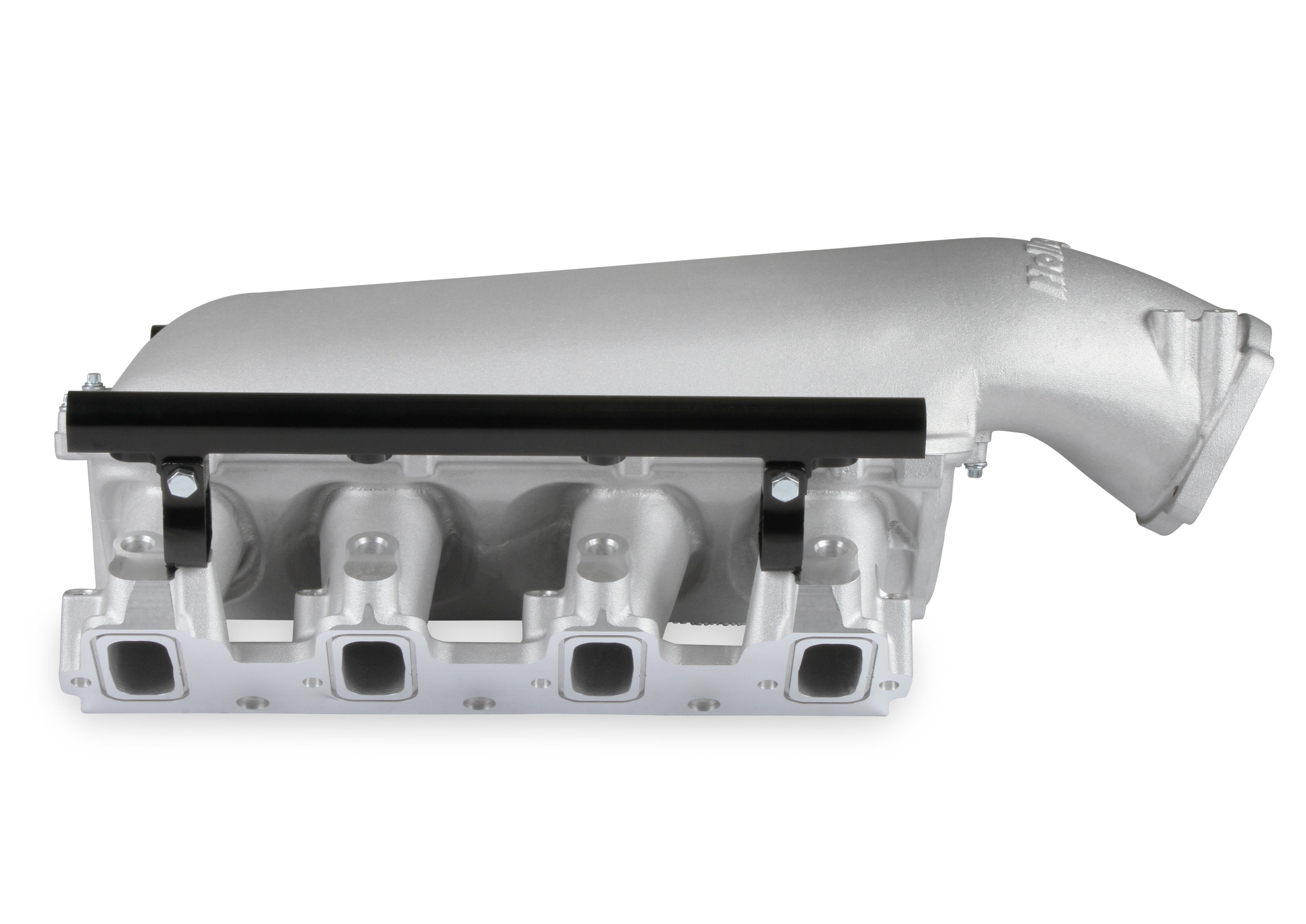

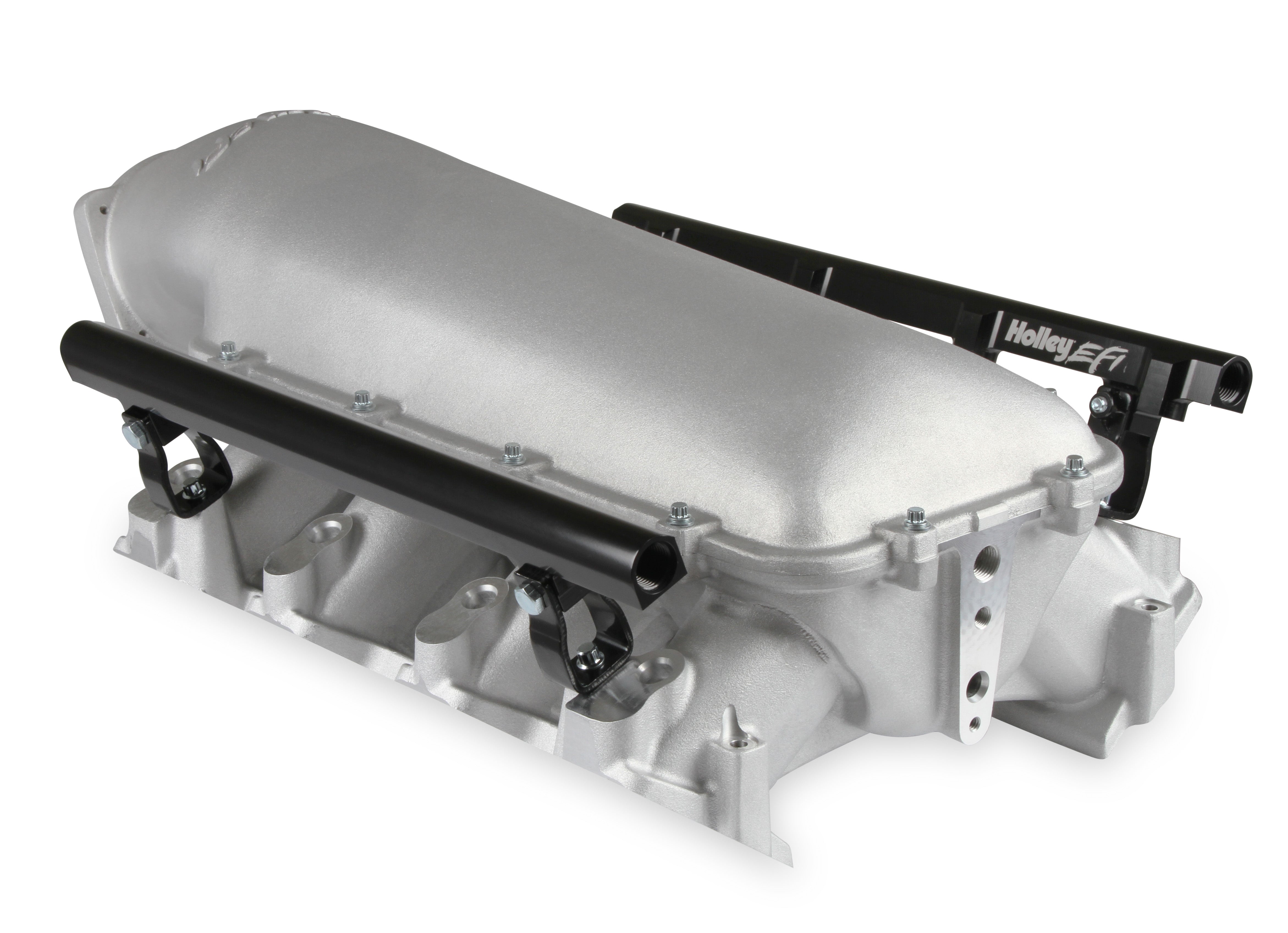

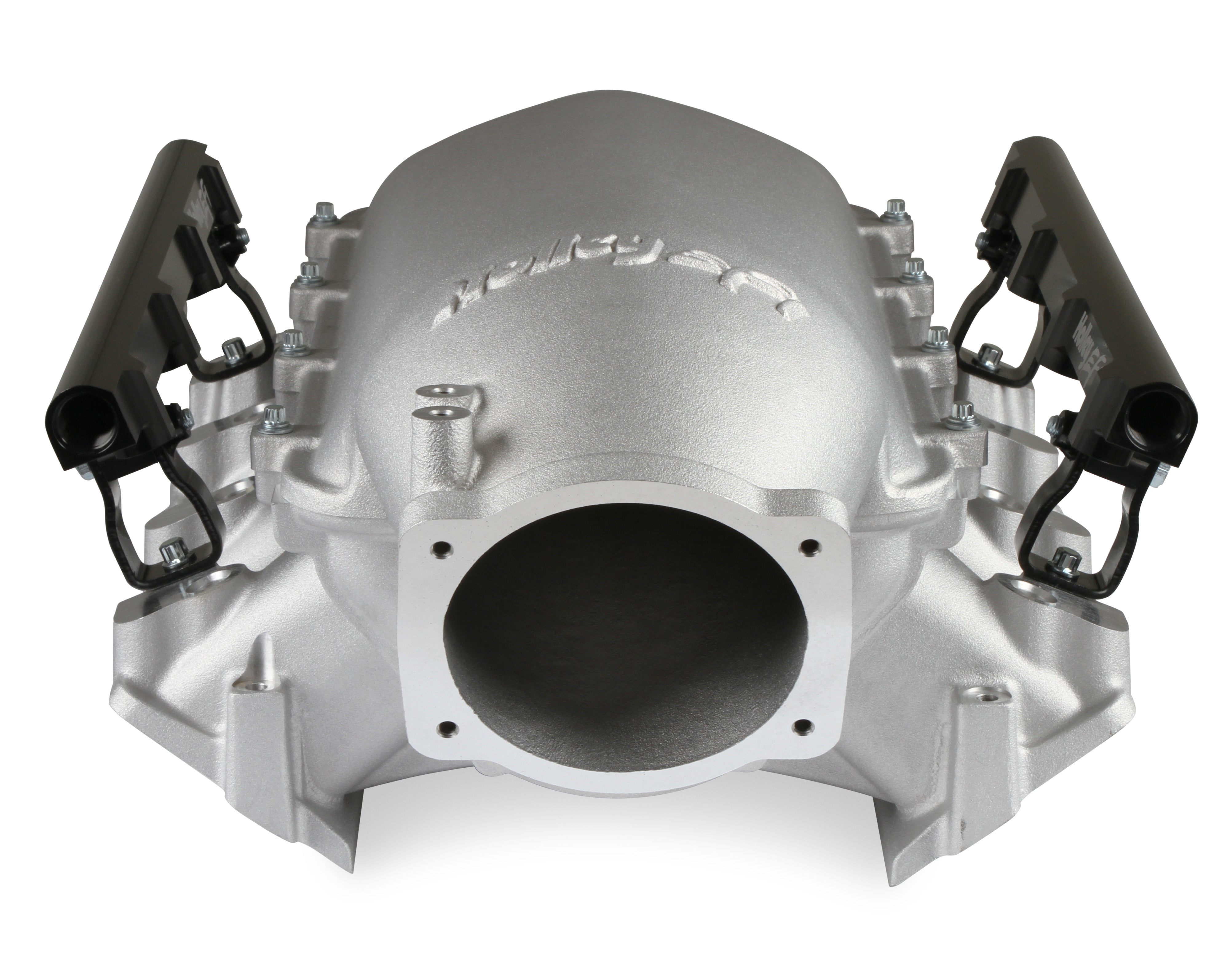

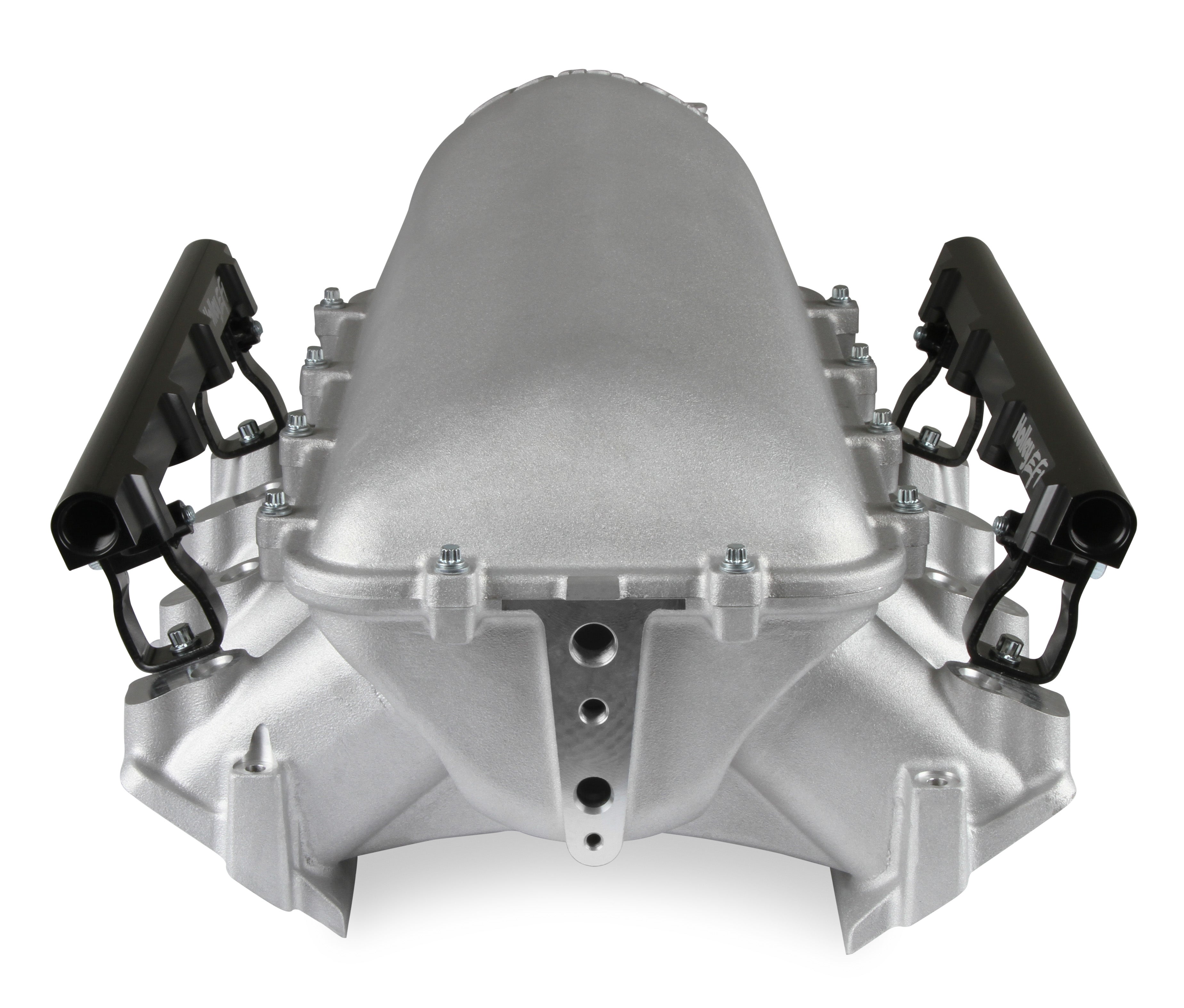

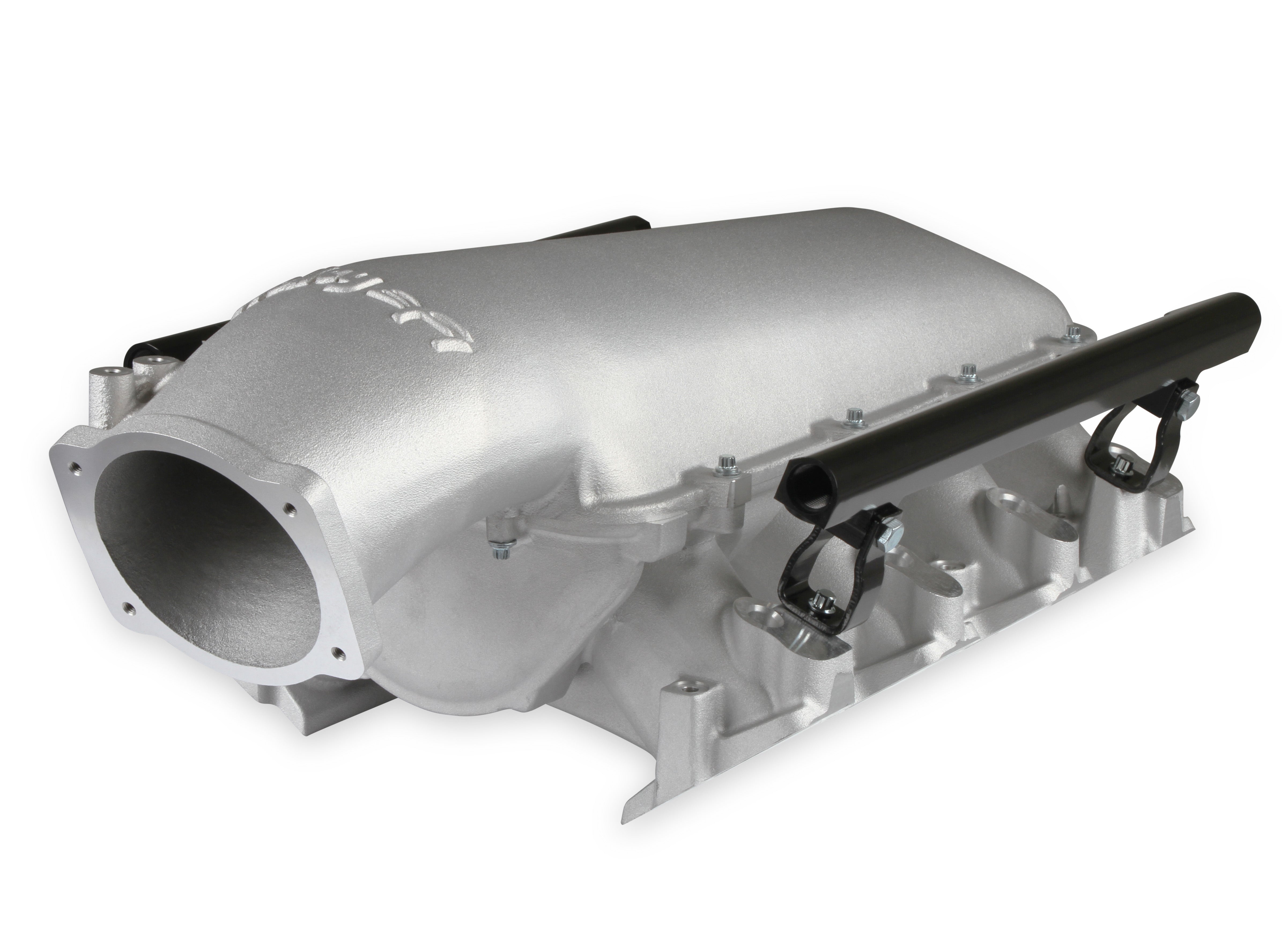

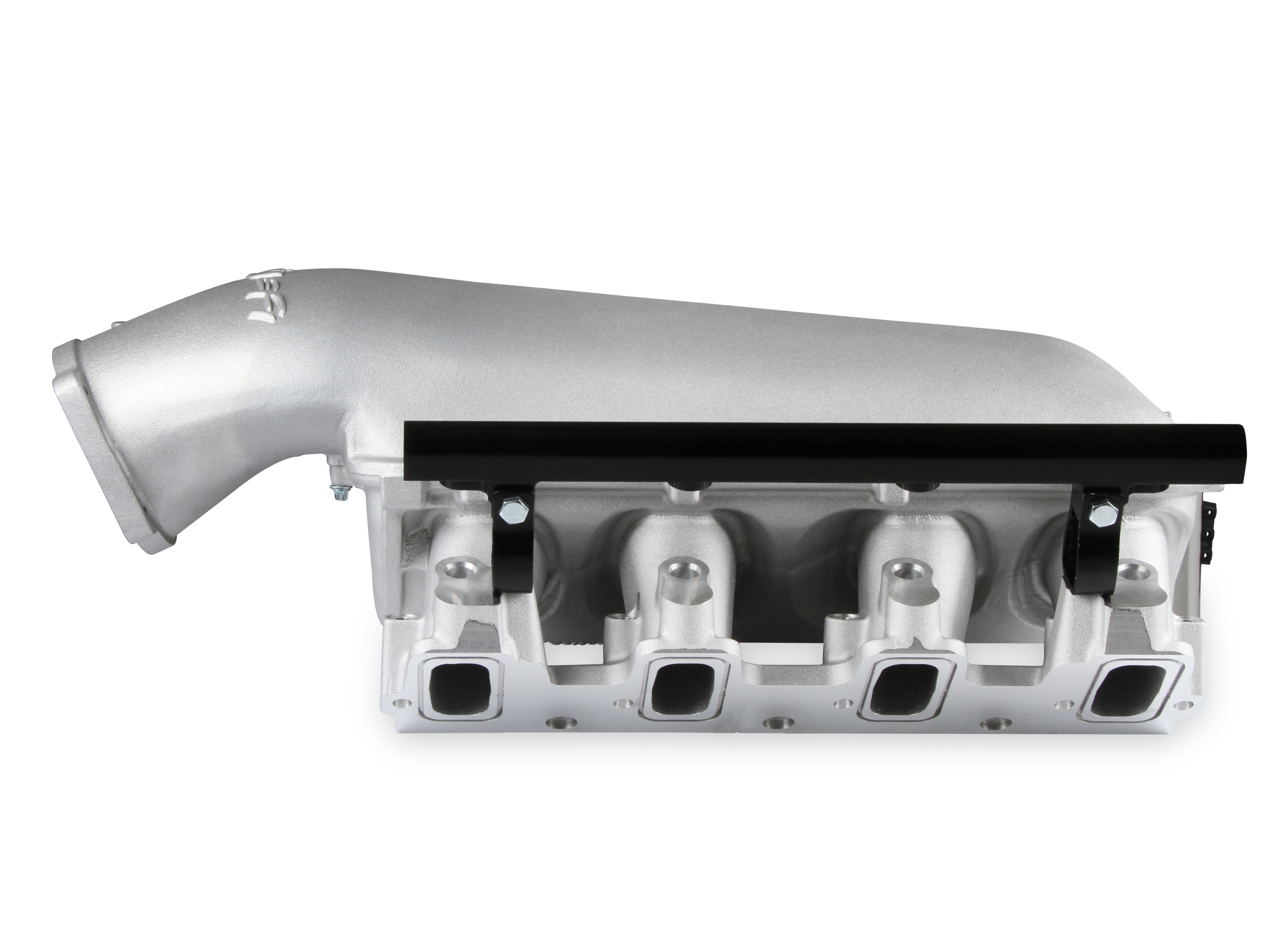

The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped
with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram
intake manifolds are designed for forced induction (supercharged or turbocharged) engine
applications and the 105 mm throttle body part number 112-581 or similar models. The base intake
manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water
intercooler in a top-feed configuration. Additional manifold designs include both single and dual
injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel
rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring
ports (8 AN)
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm

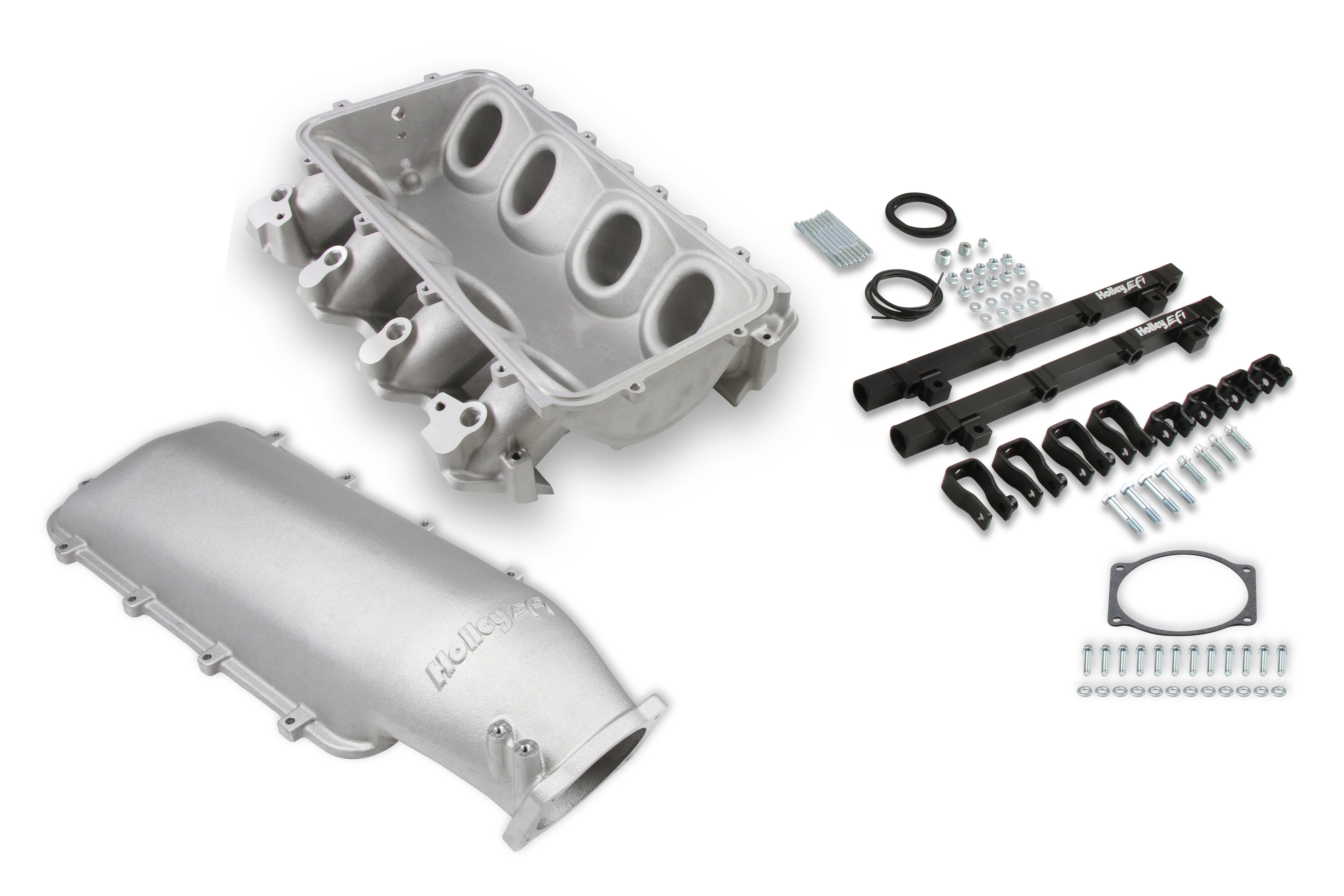

- Modular design allowing the use of the included plenum entry
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration

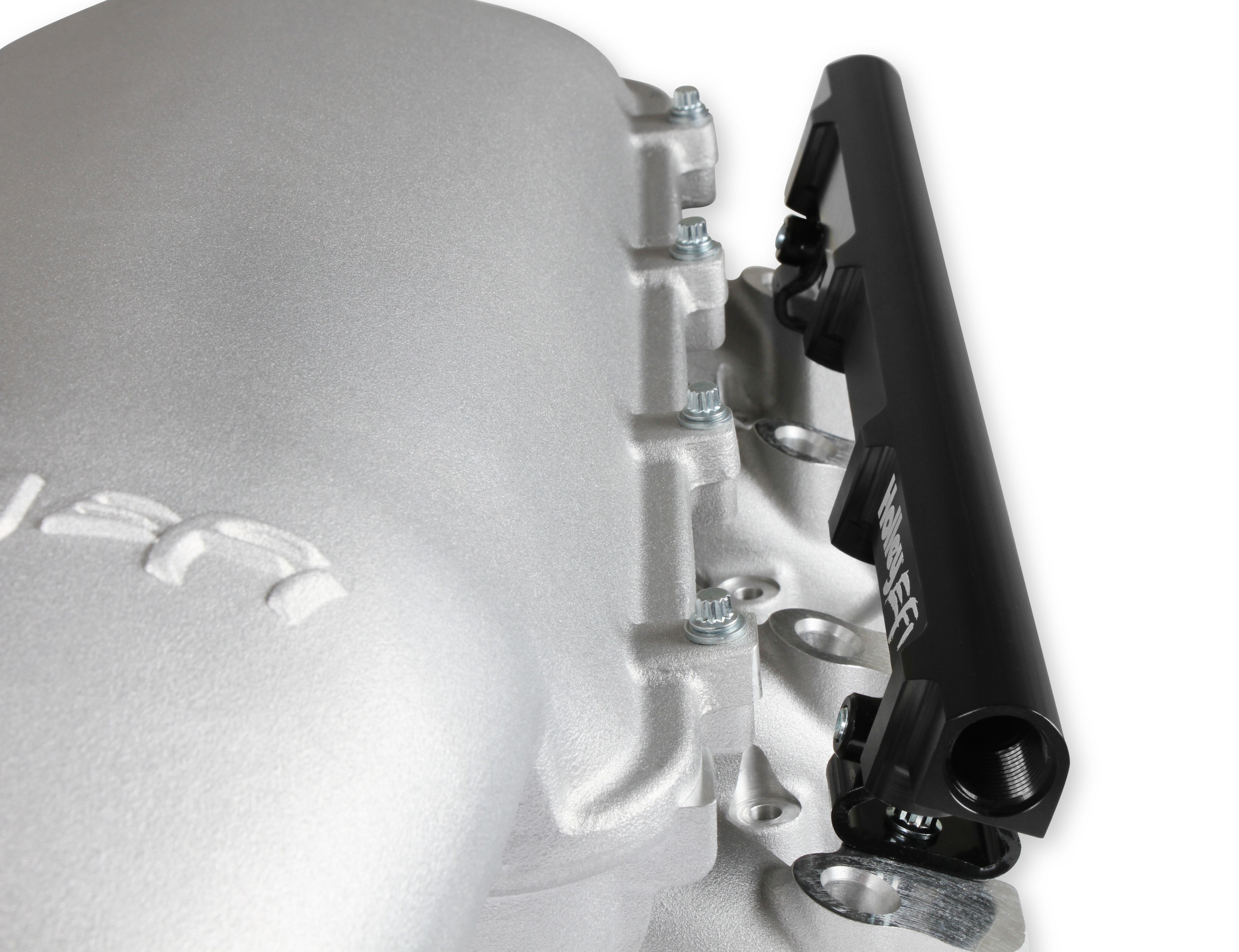

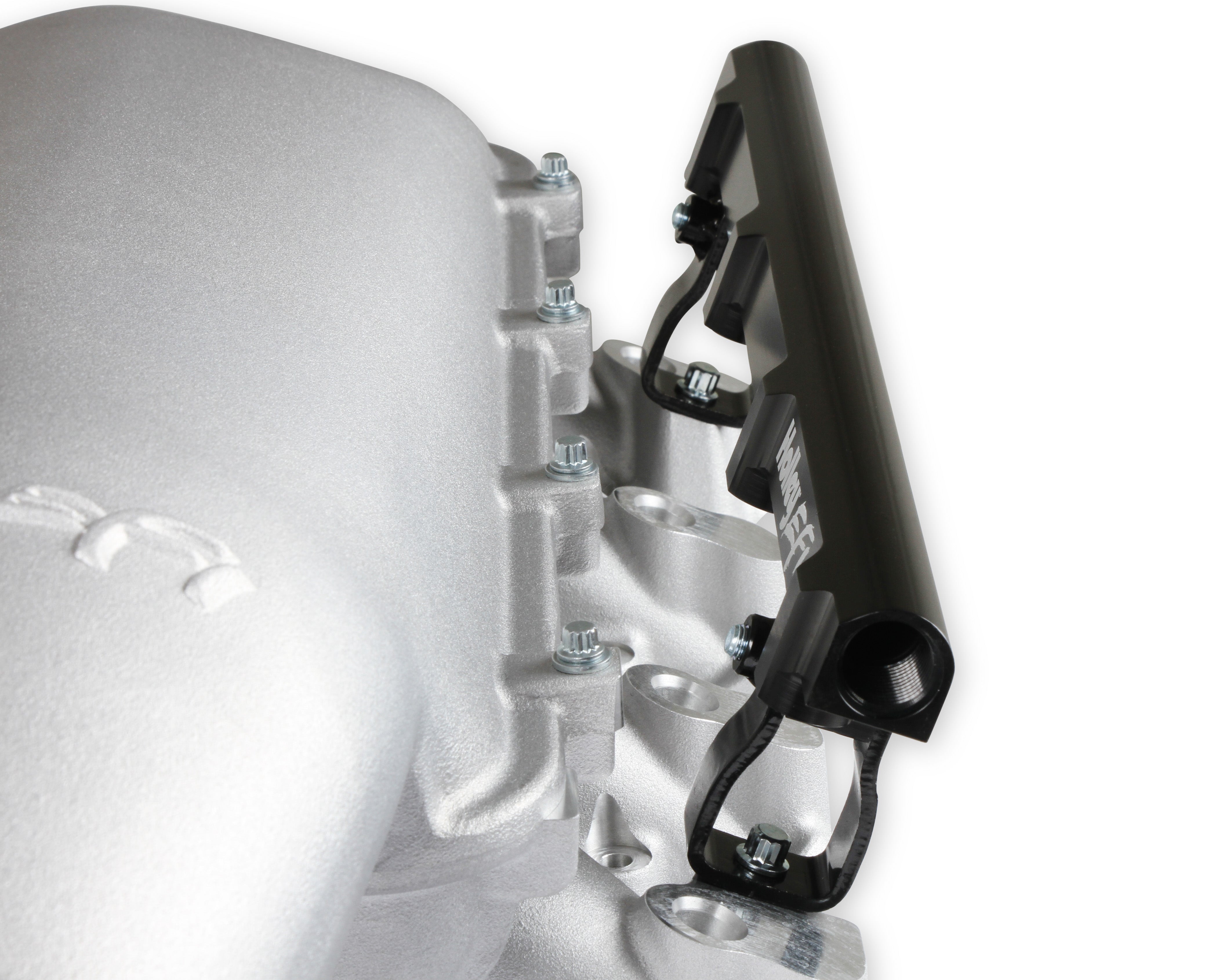

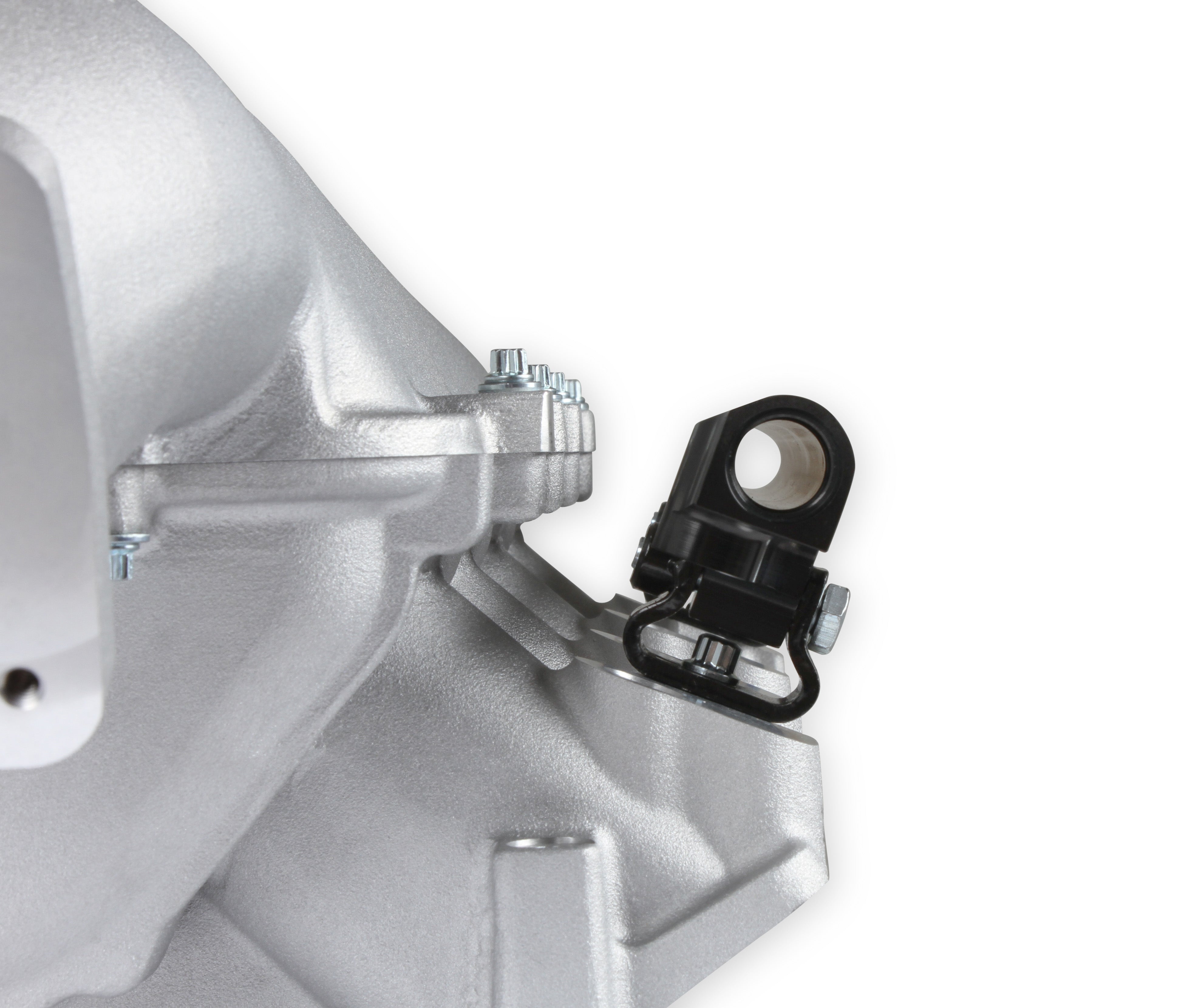

- High volume fuel rails for eight and sixteen injector configurations.

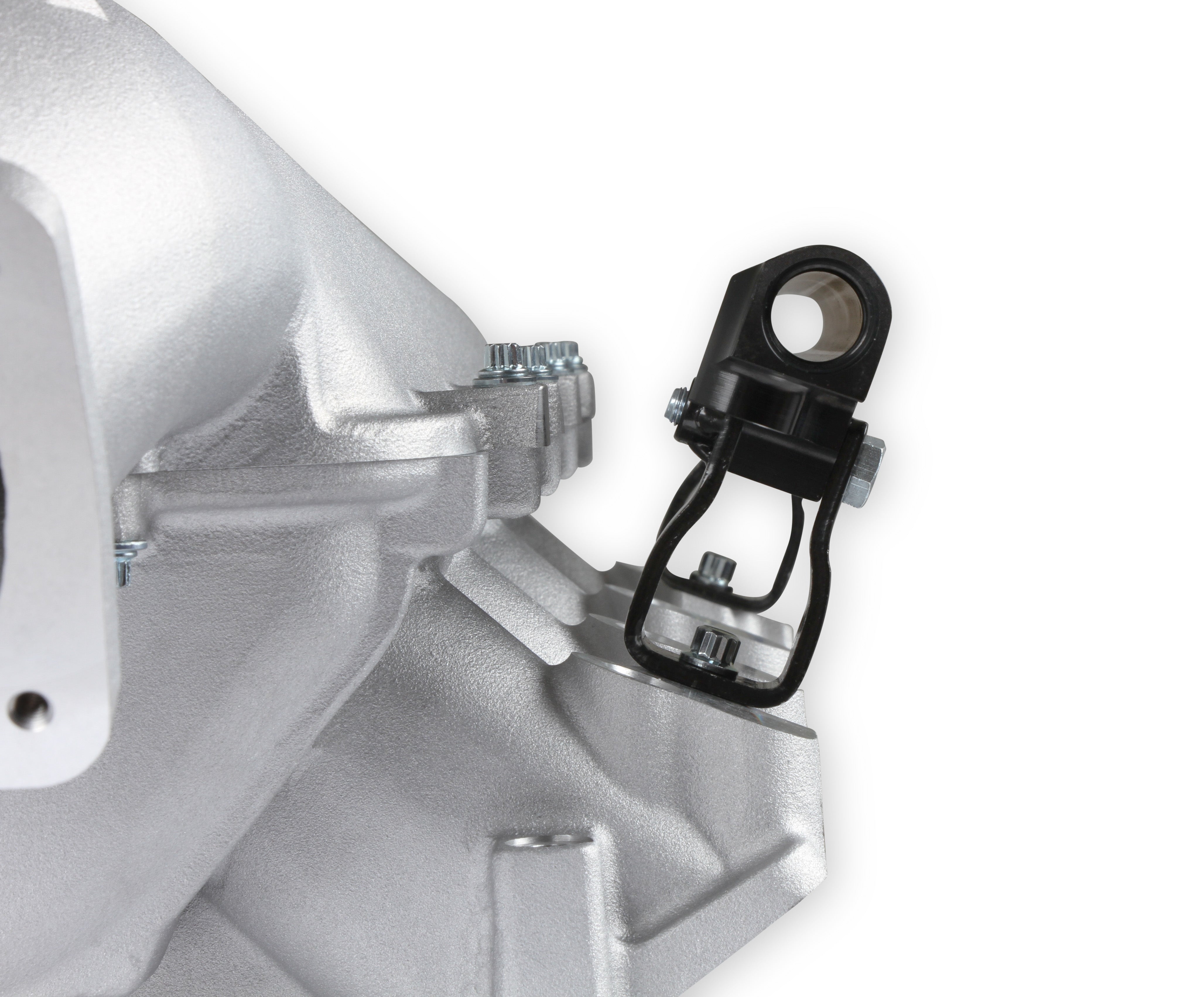

- Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
Specs:
- Basic Operating RPM Range: 3500-8000 RPM
- Brand: Holley EFI
- Category: Engine
- Color: Silver
- Construction: Cast
- EGR Port: No
- Emission Code: 3
- Engine: GM LS3/L92
- Finish: Silver
- Flange Style: EFI
- Front Height: 9.25" without Intercooler
- Front Maximum Height: 9.25 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Injector Quantity: Single
- Inlet Location: Top
- Intake Port Gasket(s) Included: No
- Manifold Type: Lo-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold
- Recommended Use: Forced Induction
- Removable Runners: No
- RPM Power Band: 3500-8000 RPM
- Single Or Dual Plane Type: Single Plane
- Sub Category: Cylinder Block Components
- Throttle Body Bore Diameter: 105 MM
- Throttle Body Included: No
- Warranty: Limited 90 Day
Tech Resources:

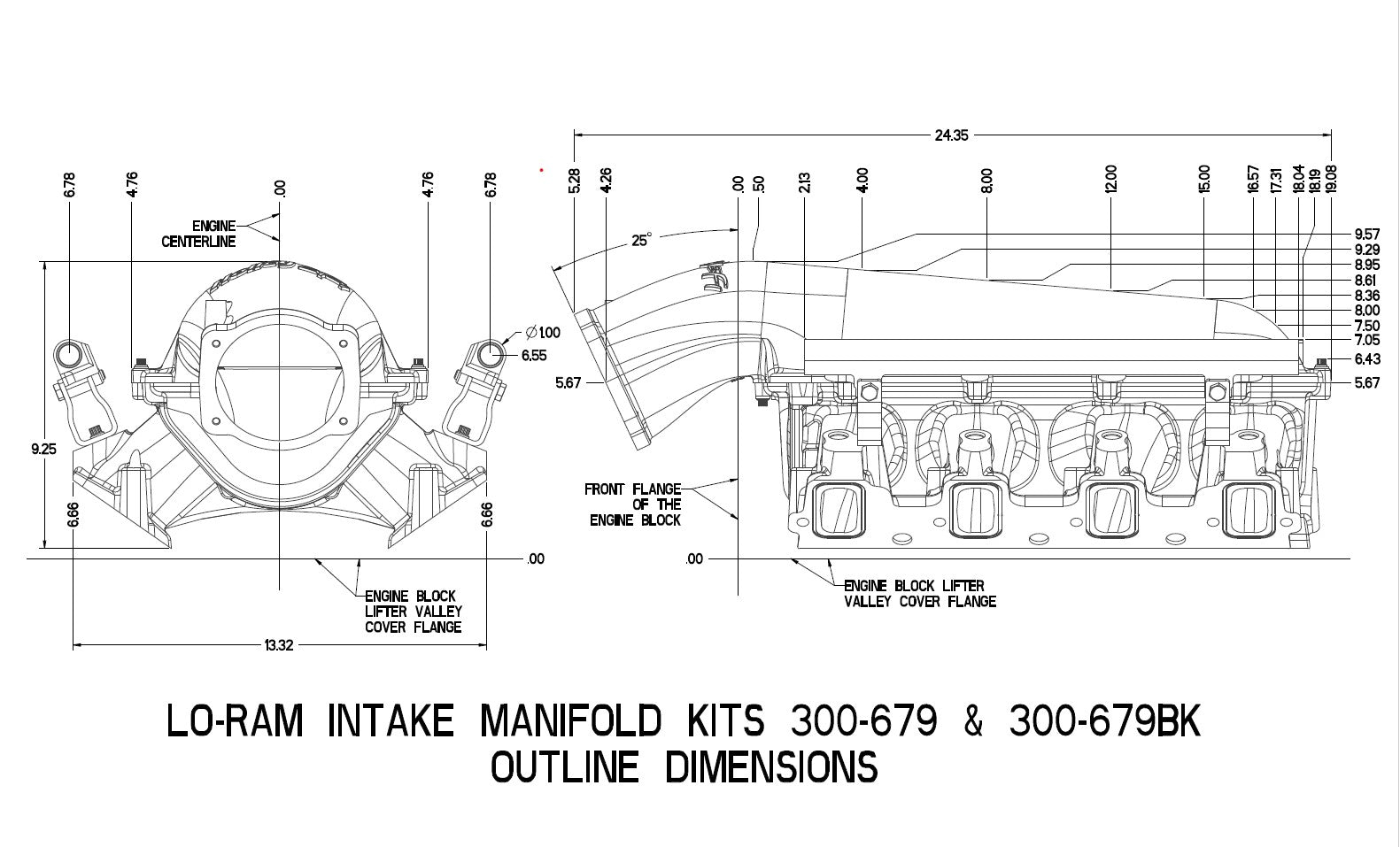

Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top, w/an intercooler installed - 9.25"+ the intercooler thickness
