8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top
Type: Intake Manifold | Fits: Ford

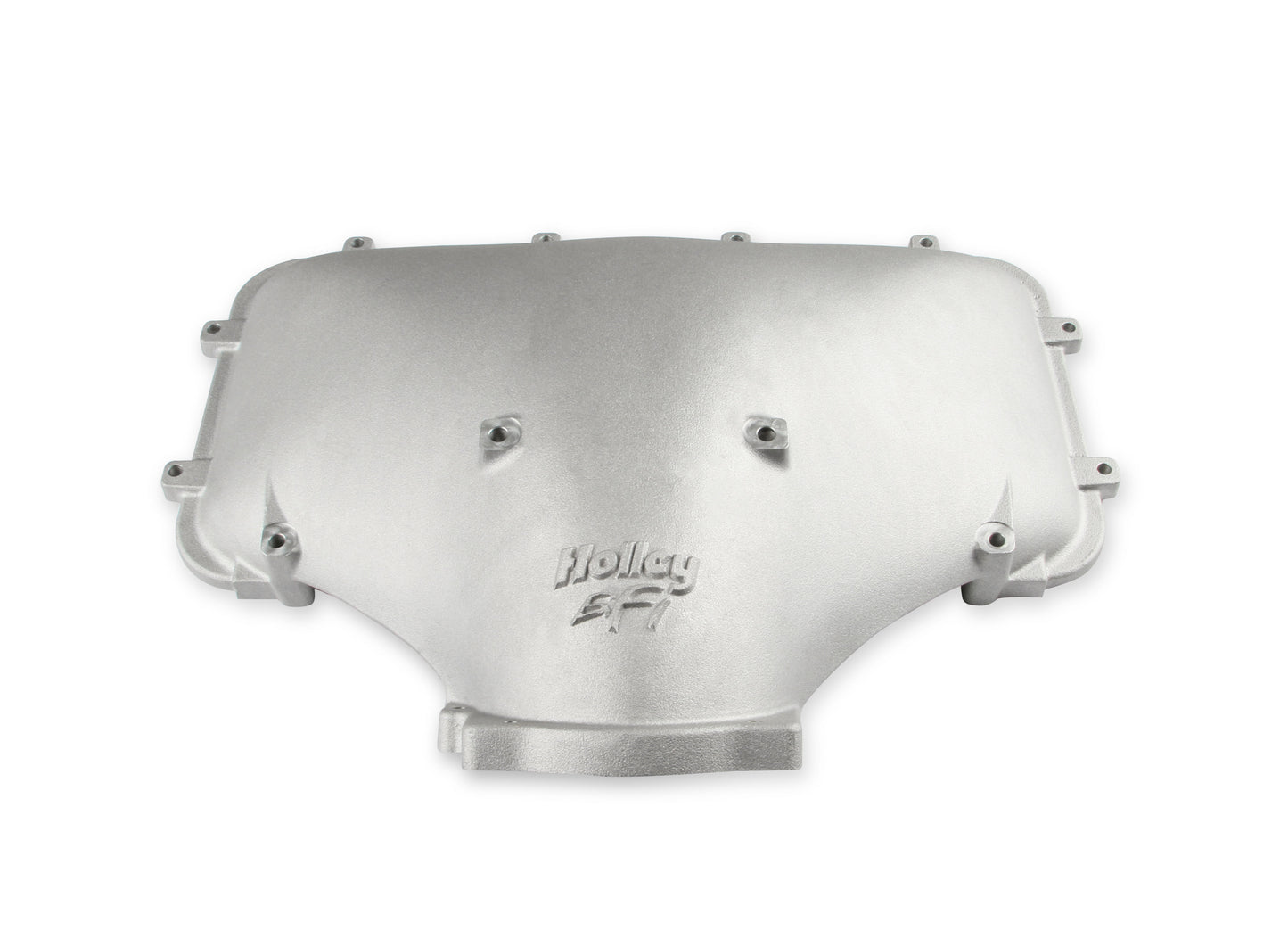

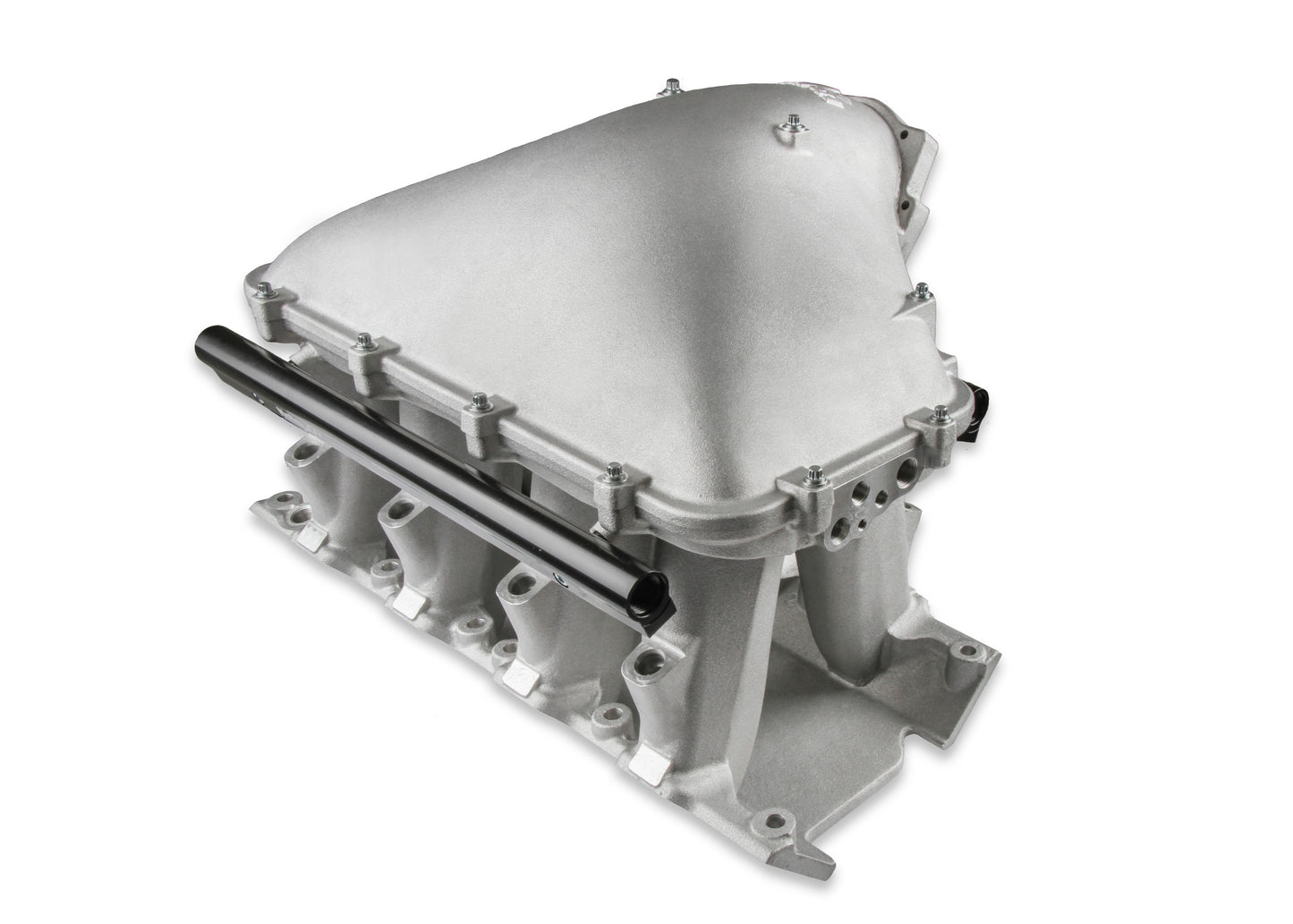

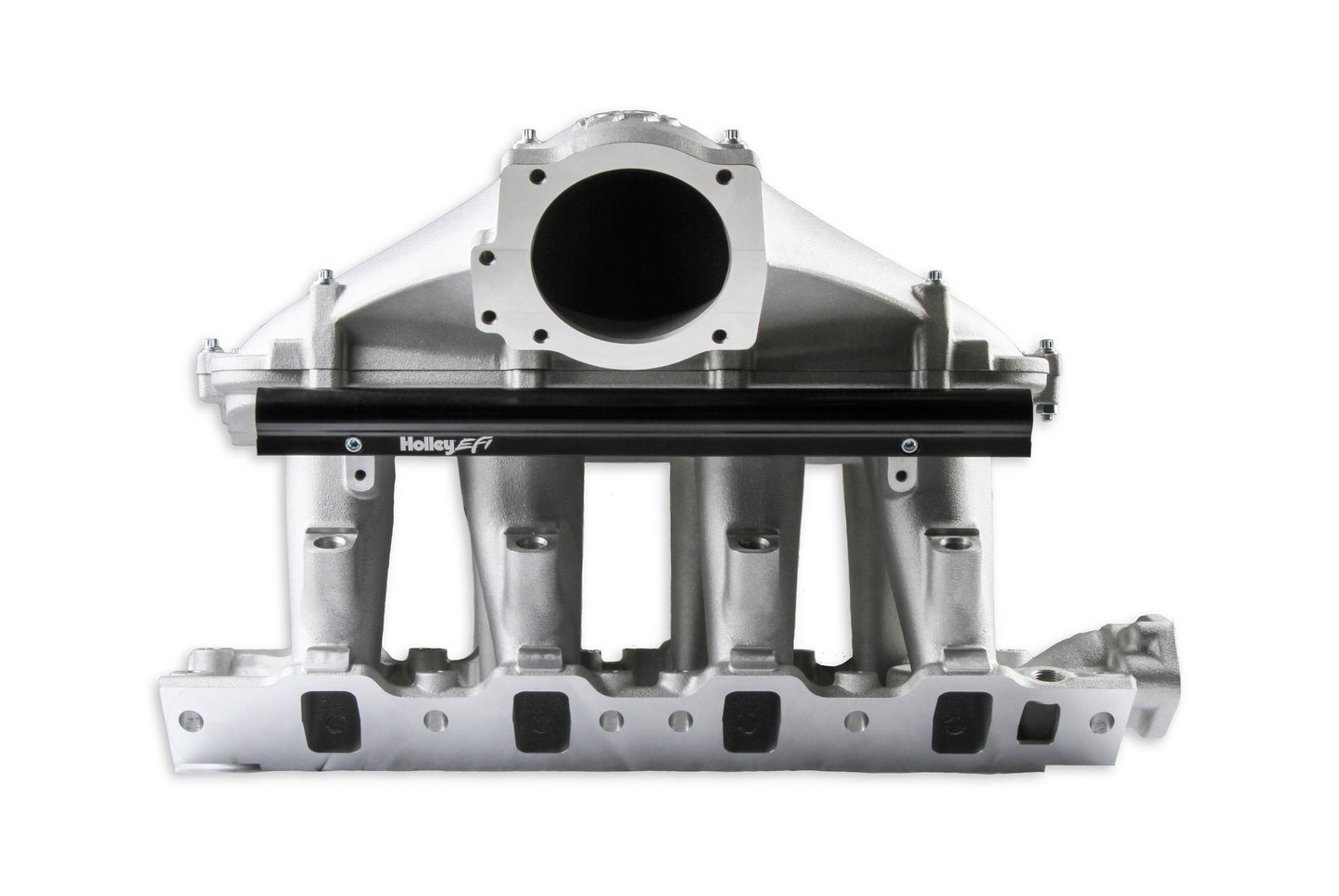

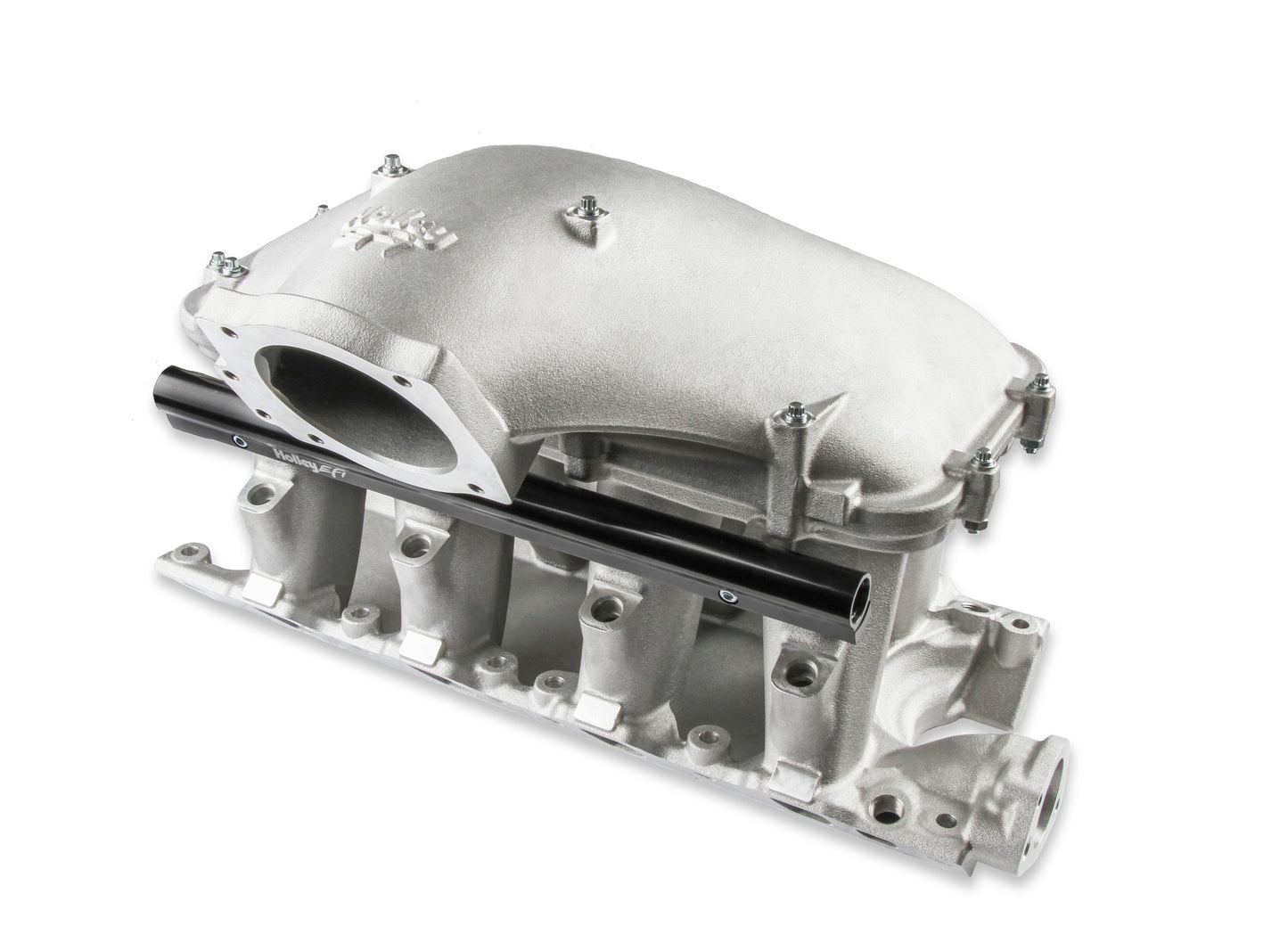

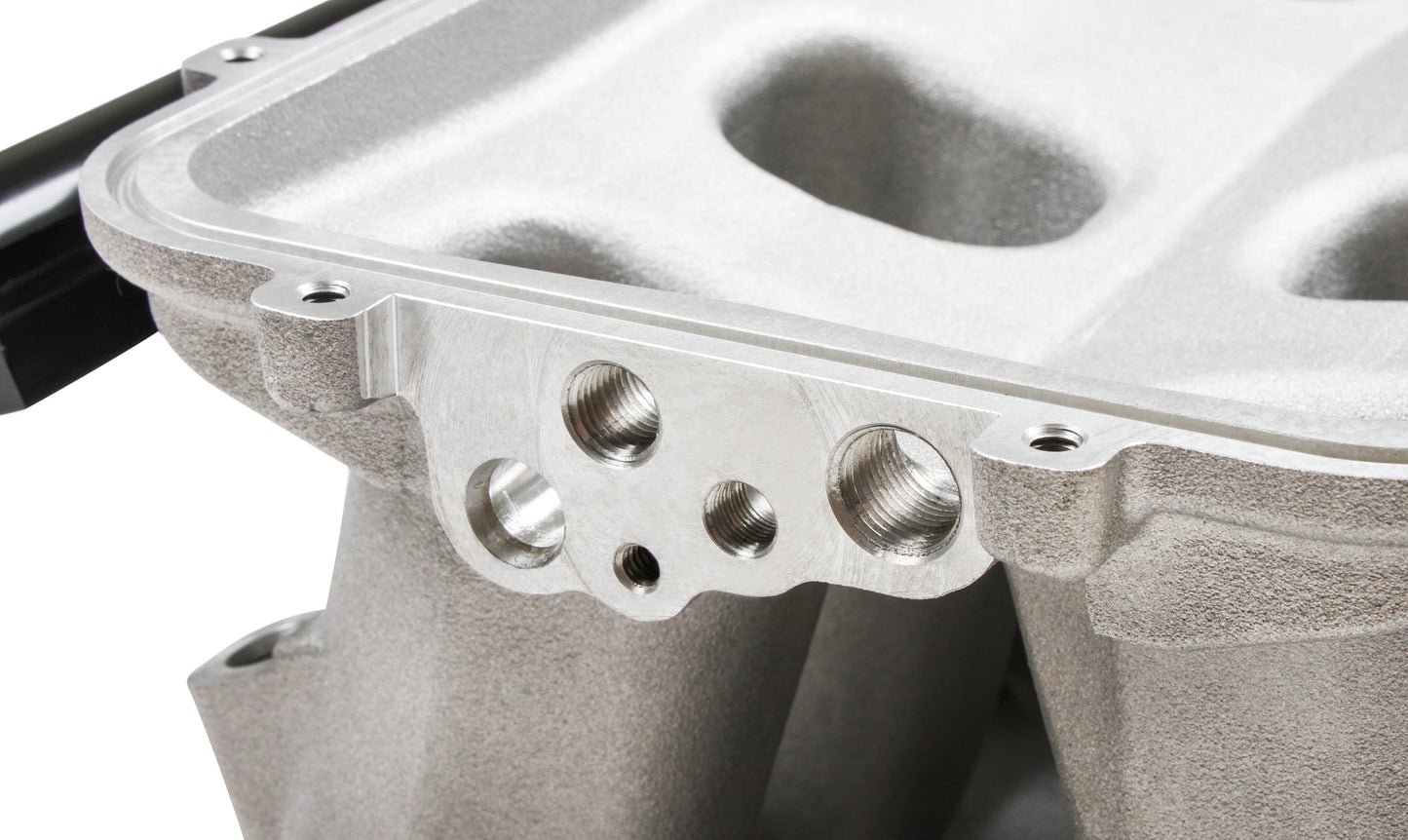

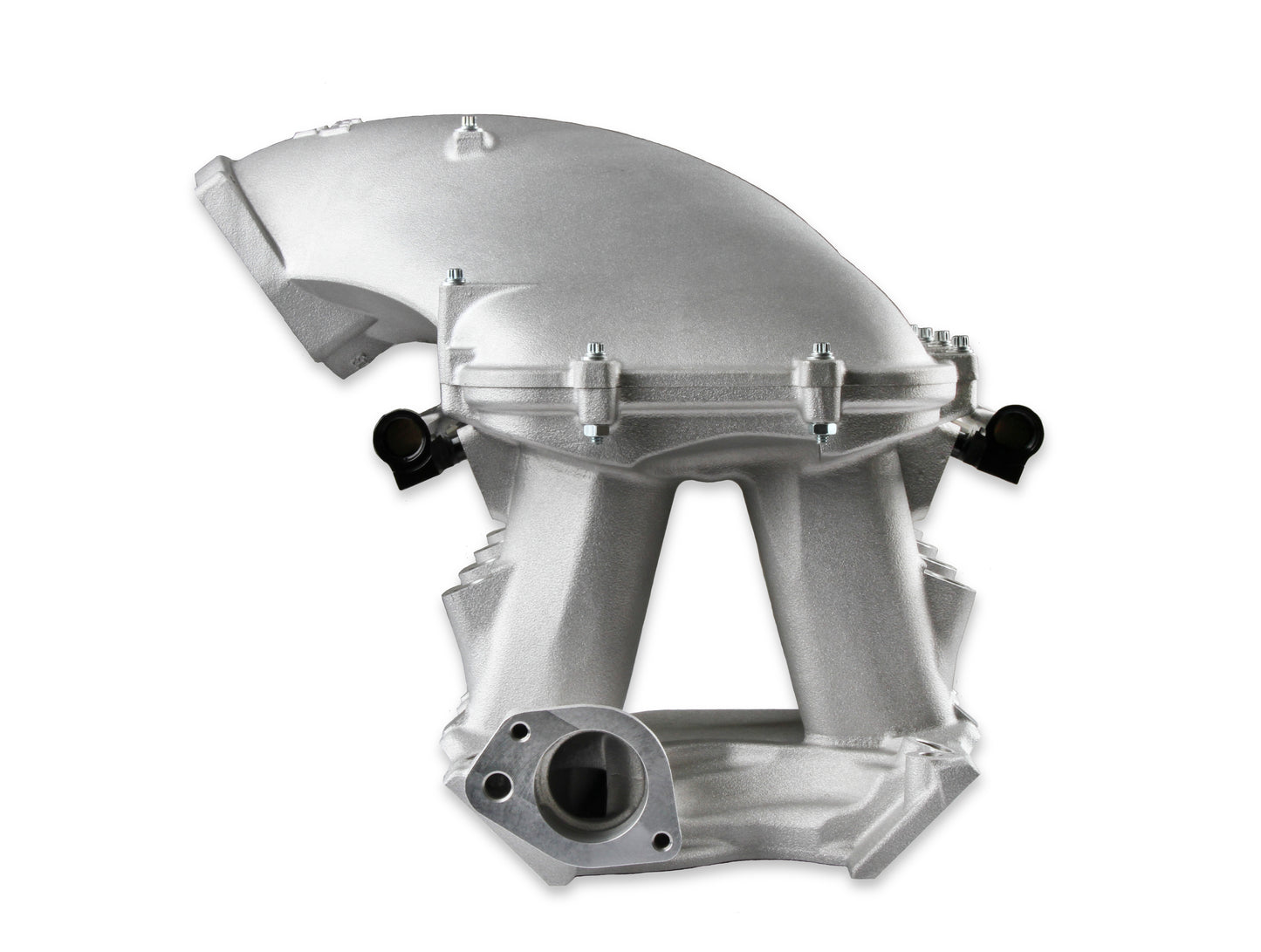

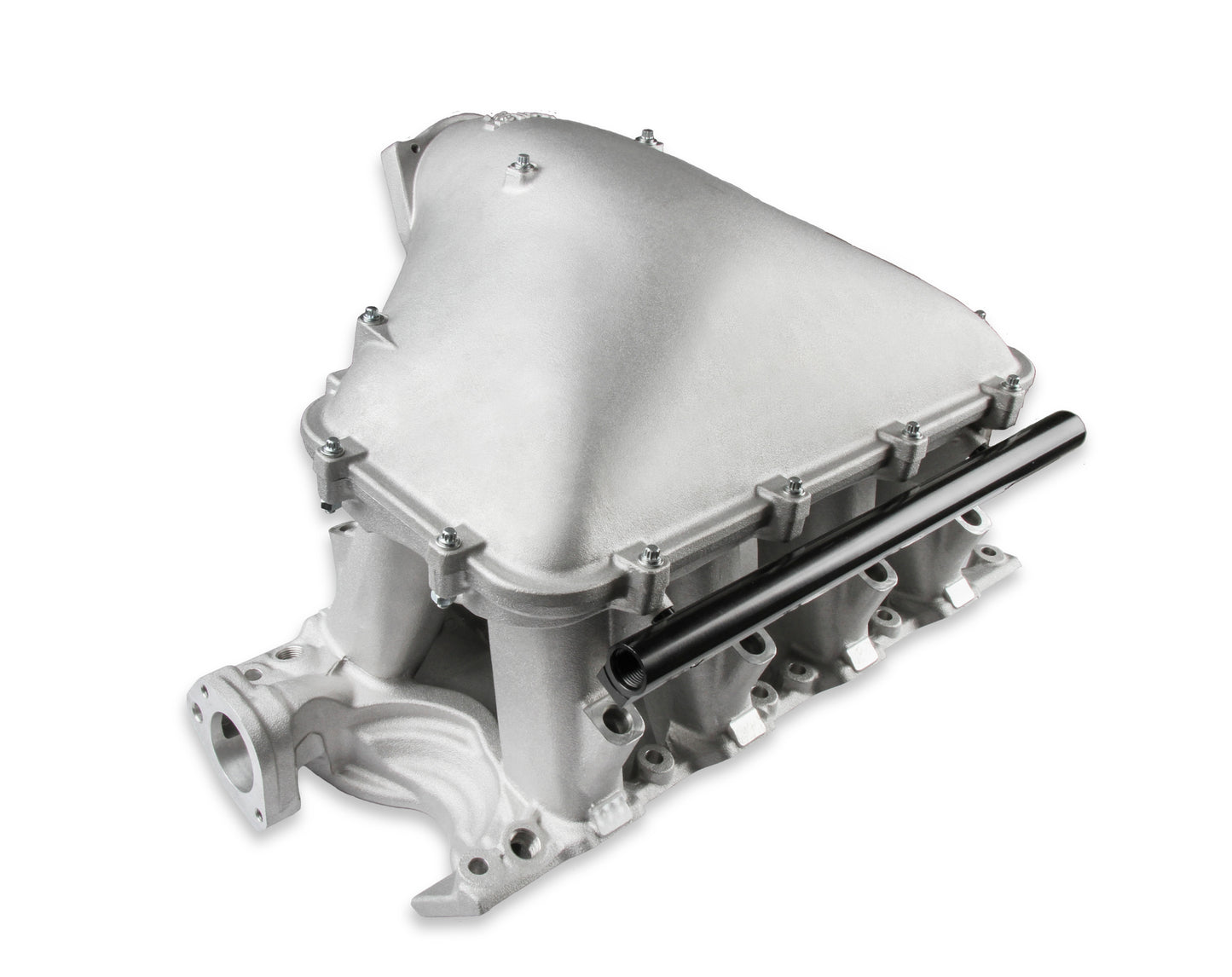

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 105MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Manifold is designed for a 8.2" deck height.
ā¢ Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

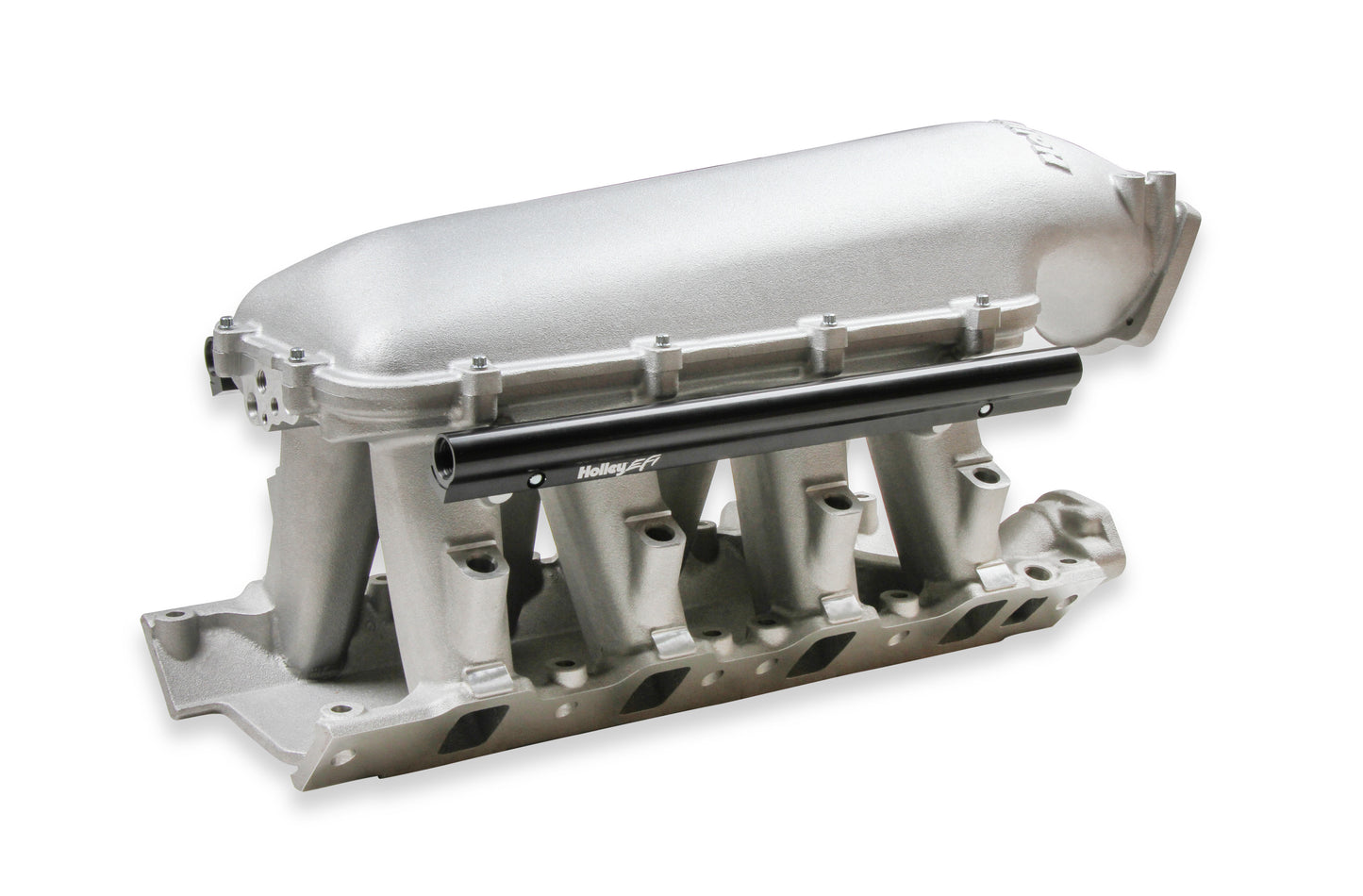

ā¢ EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
ā¢ Cast aluminum construction.
*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.
Features:
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type ā 3/32ā Round O-ring Cord
- Manifold is designed for a 8.2" SBF deck height.
- The 8.2 SBF manifold is available to work with 105MM throttle bodies

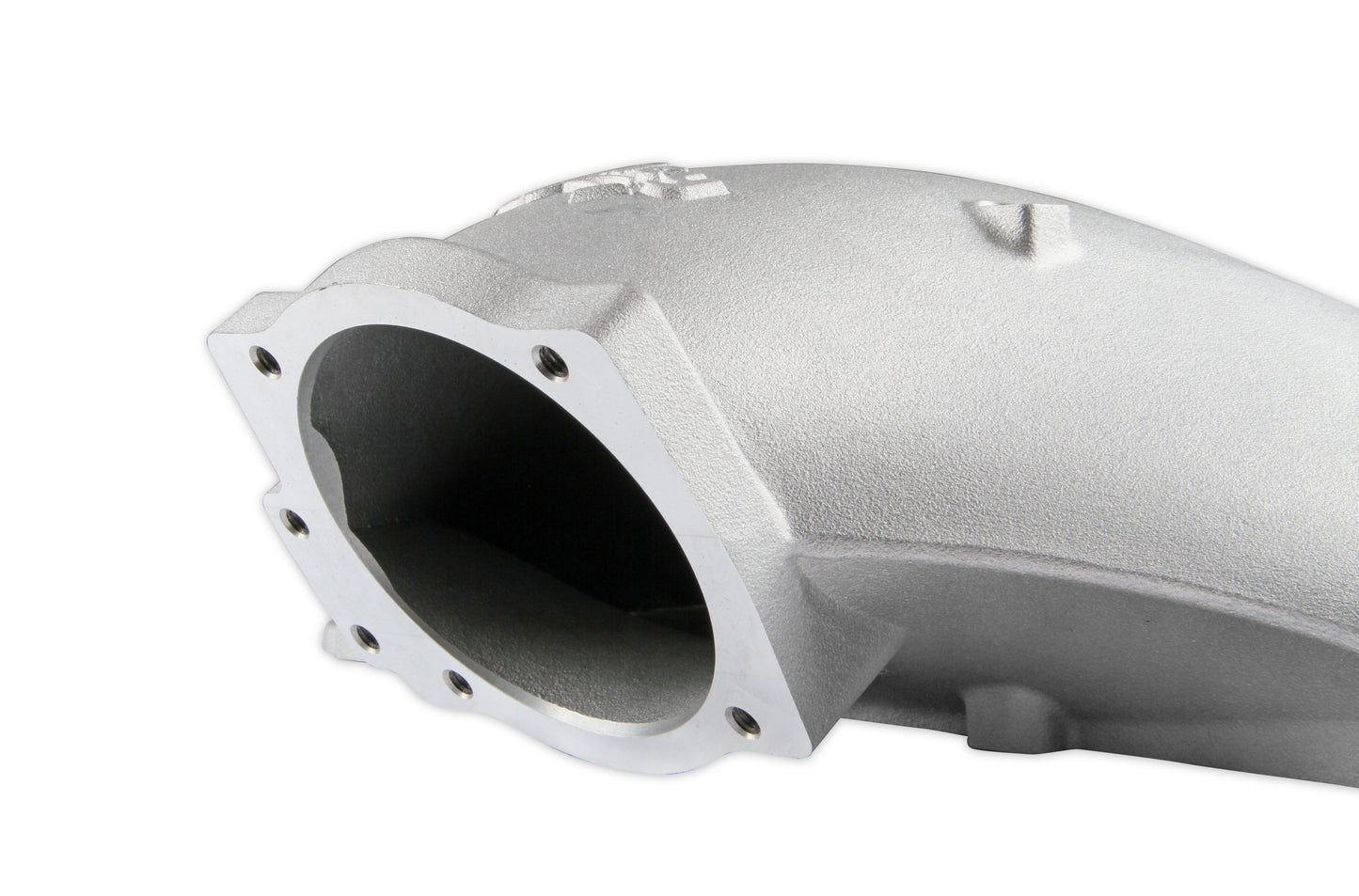

- Ford 5.0 throttle body fitment
- Lid has been verified to fit under Cervinis 2.5ā cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.

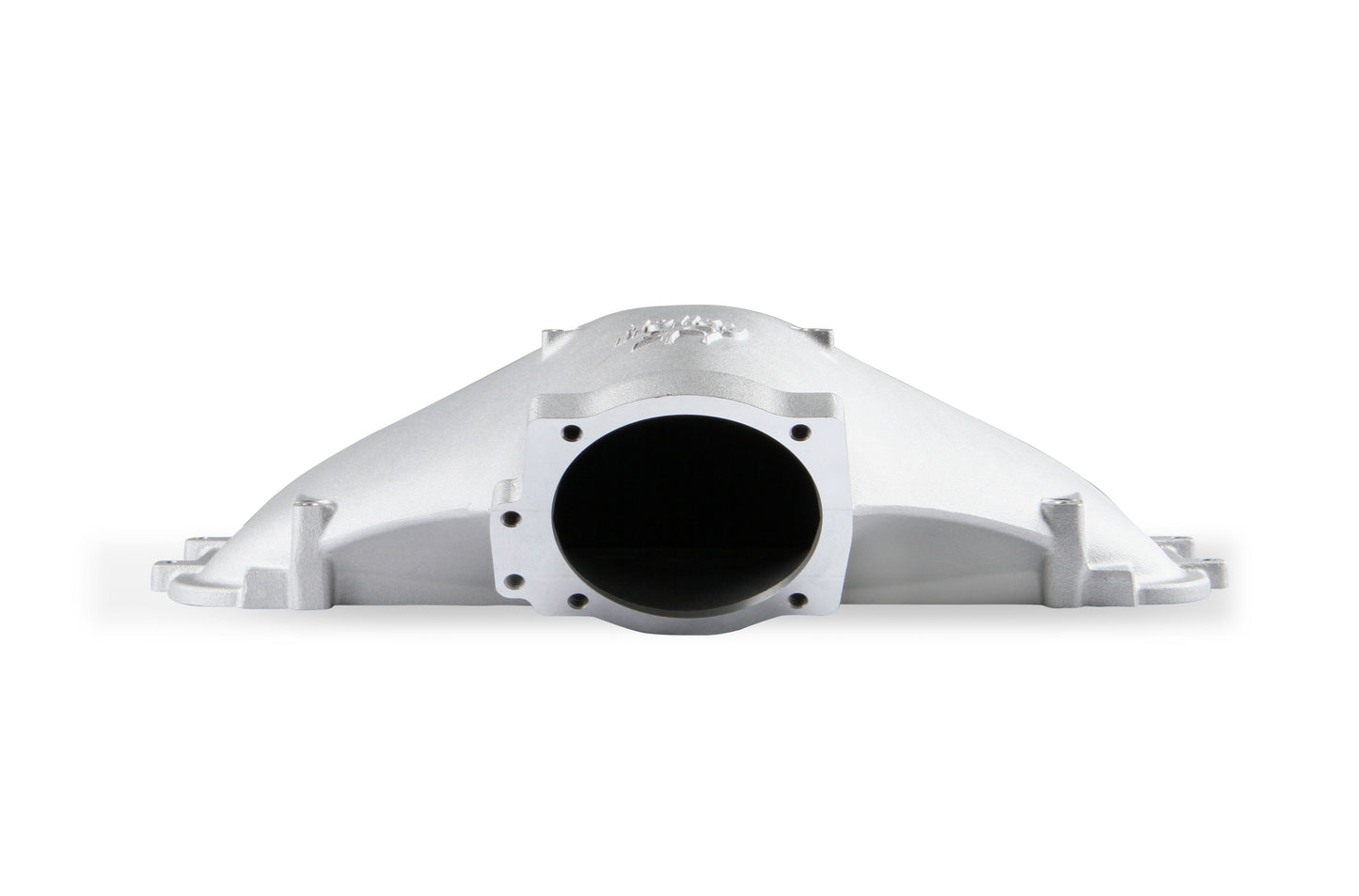

- Designed for side mounted throttle bodies
- Allows room for designing boosted applications
Specs:
- Basic Operating RPM Range: 1500-7000 RPM
- Brand: Holley EFI
- Category: Engine
- Color: Natural
- Construction: Cast
- EGR Port: No
- Emission Code: 3
- Engine: Ford Small Block
- Finish: Satin
- Flange Style: EFI
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: No
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Manifold Type: Hi-Ram
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Port Size: 2.00" x 1.190"
- Product Type: Intake Manifold
- Removable Runners: No
- RPM Power Band: 1500-7000
- Single Or Dual Plane Type: Single Plane
- Sub Category: Cylinder Block Components
- Throttle Body Bore Diameter: 105 MM
- Throttle Body Included: No
- Throttle Bore: 105mm
- Warranty: Limited 90 Day
Tech Resources:

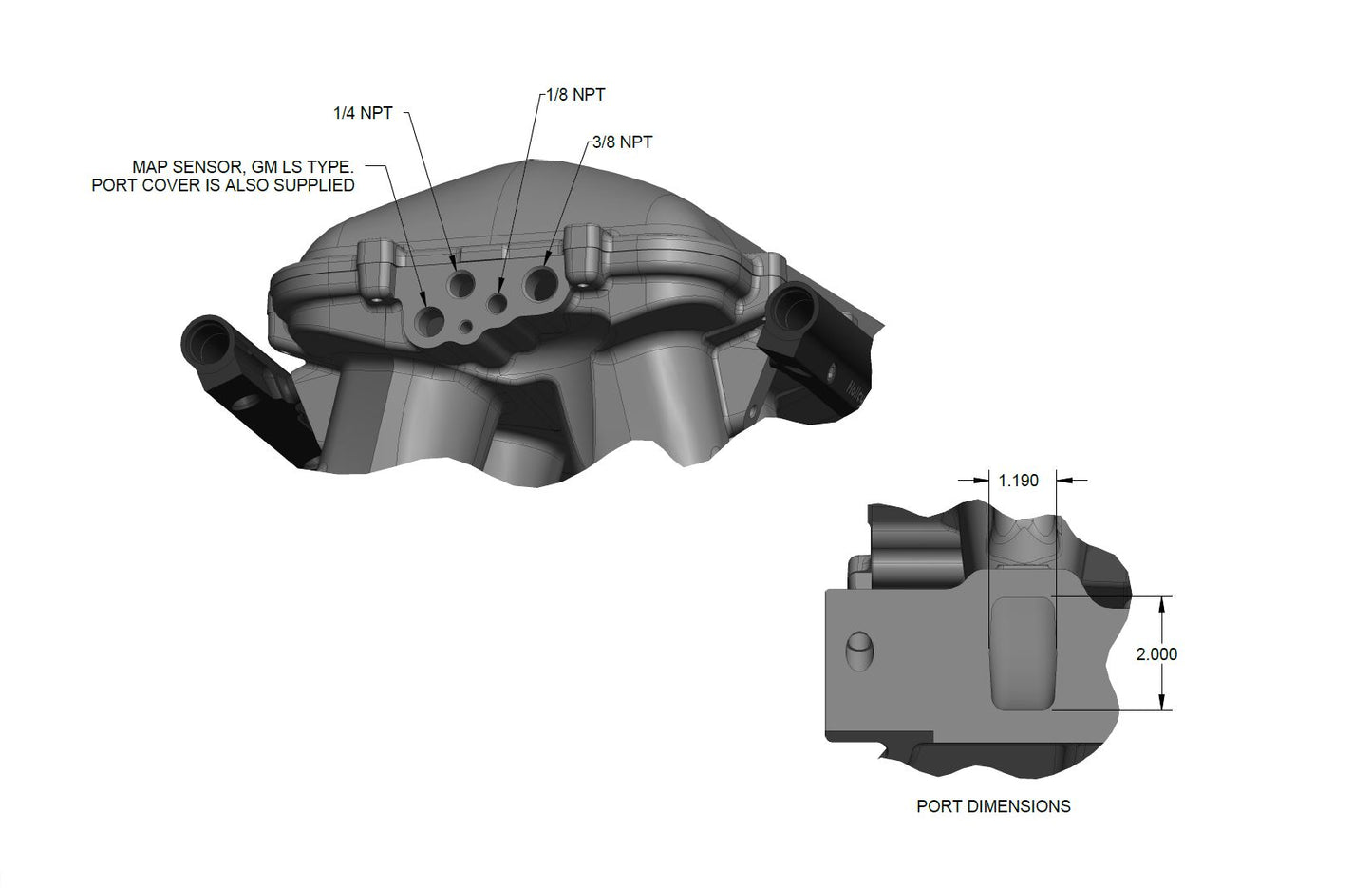

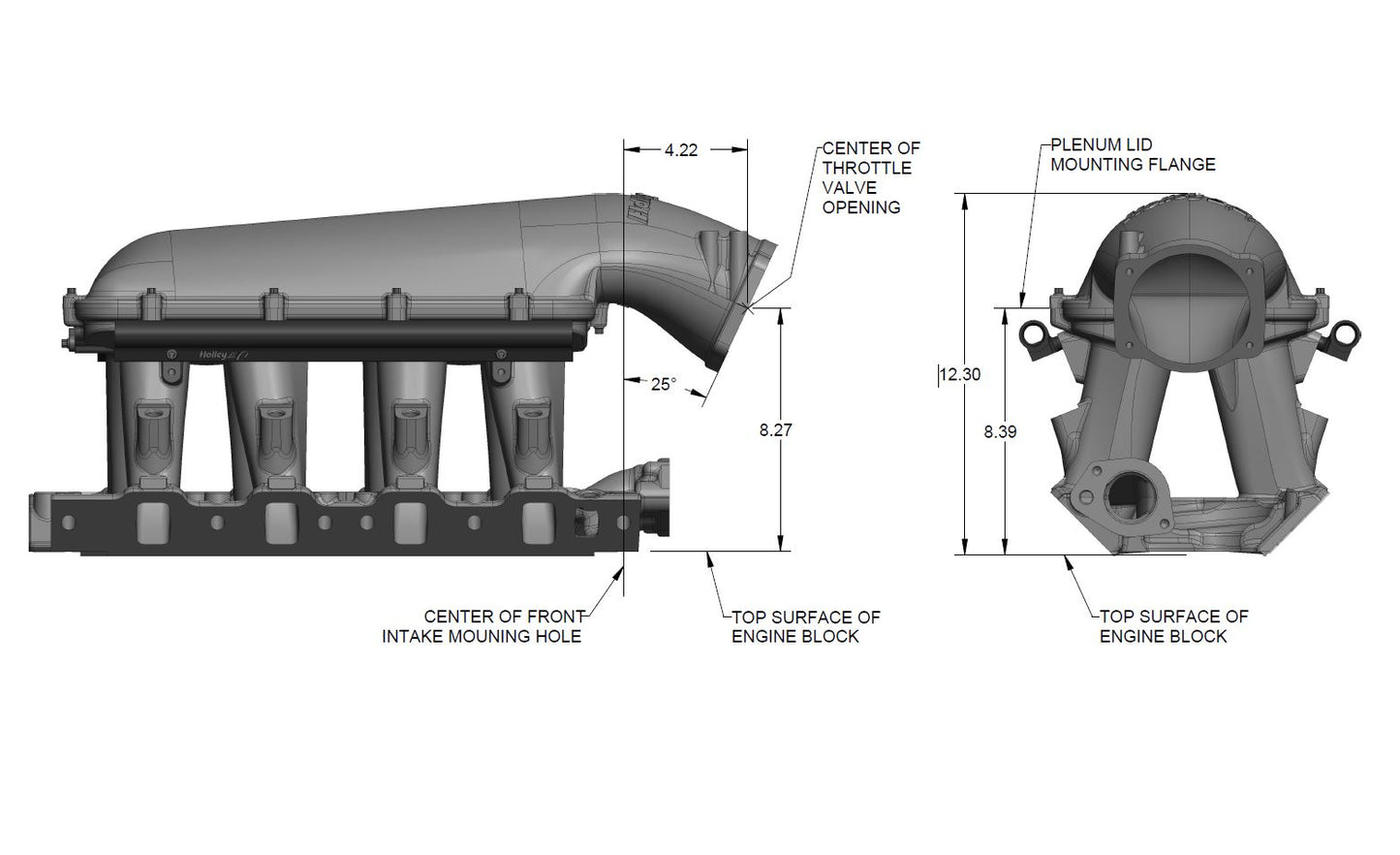

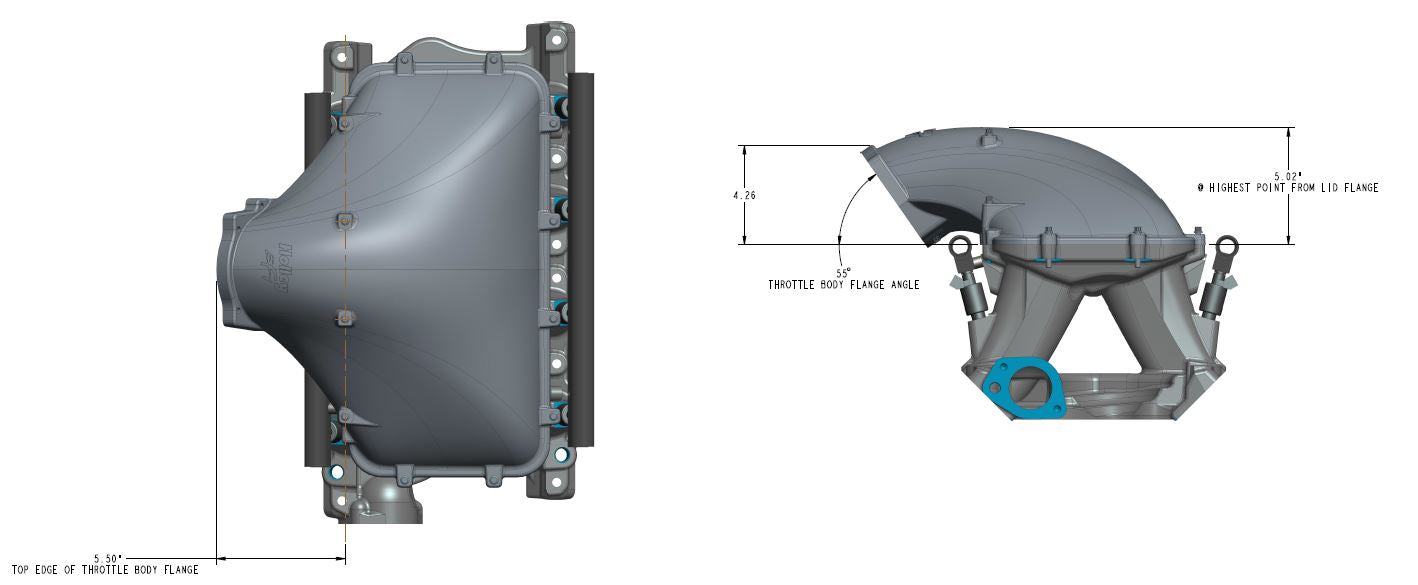

*** Please see the diagrams in the product images for other dimensions.
*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.
Warning:
Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
