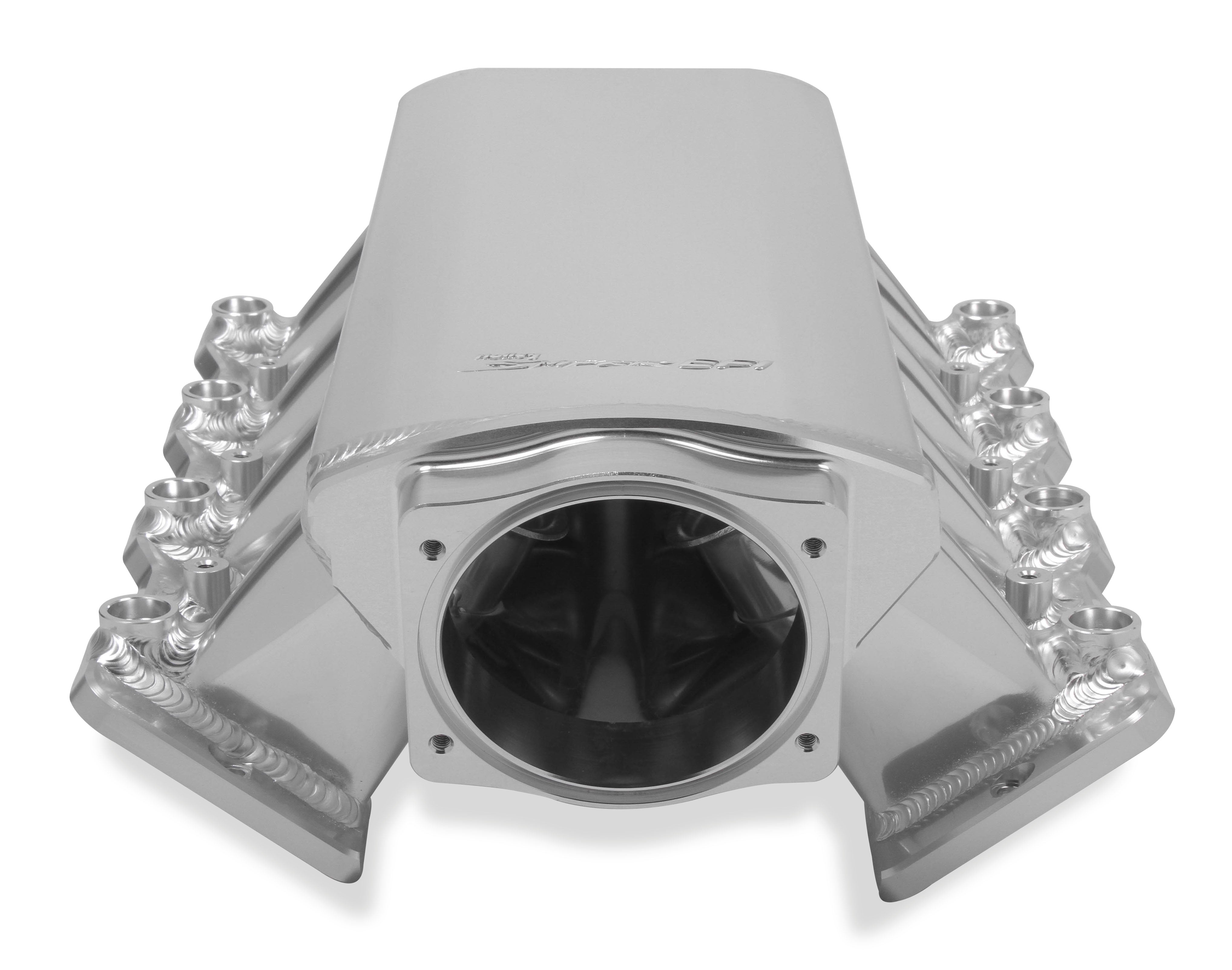

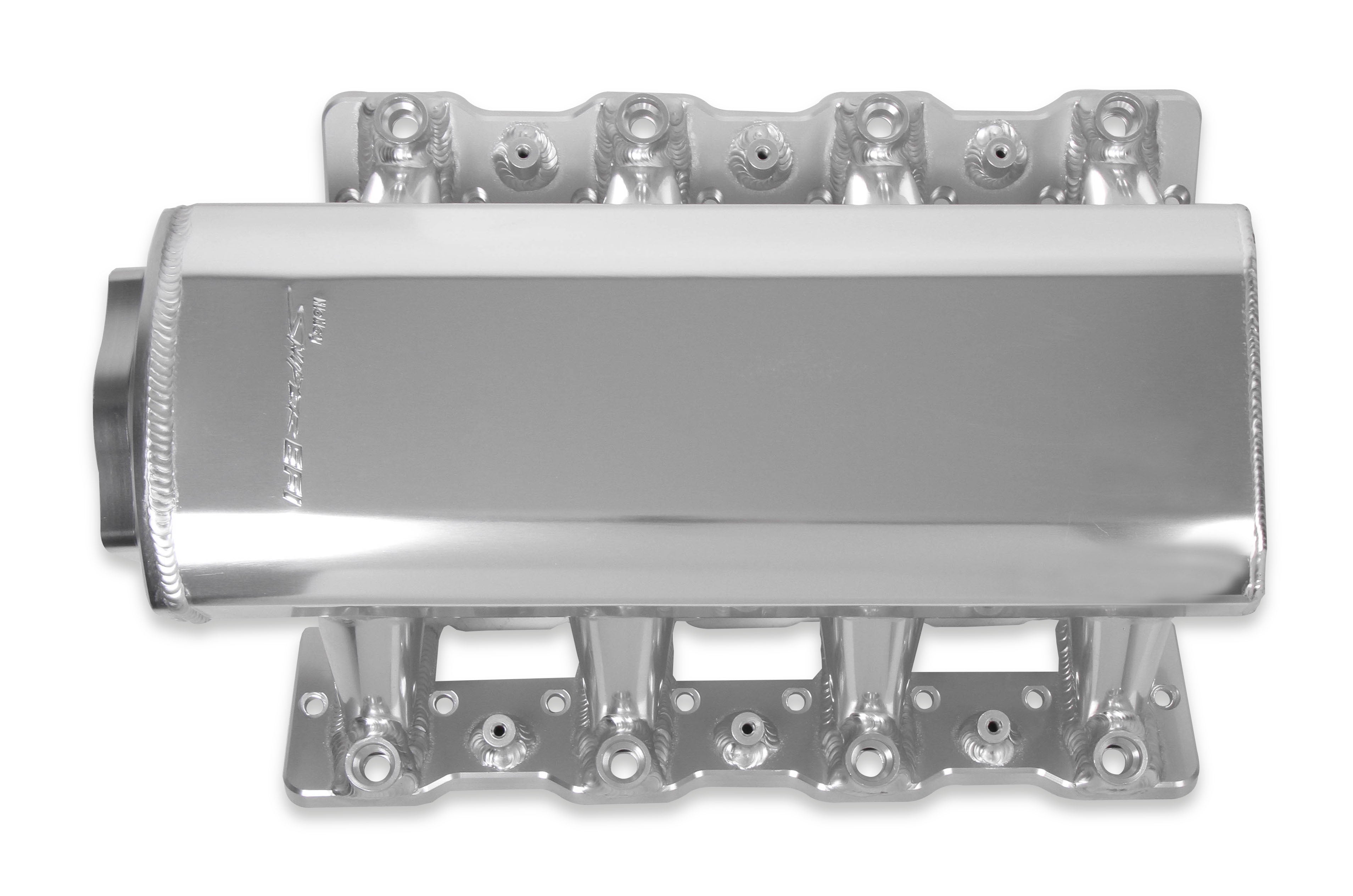

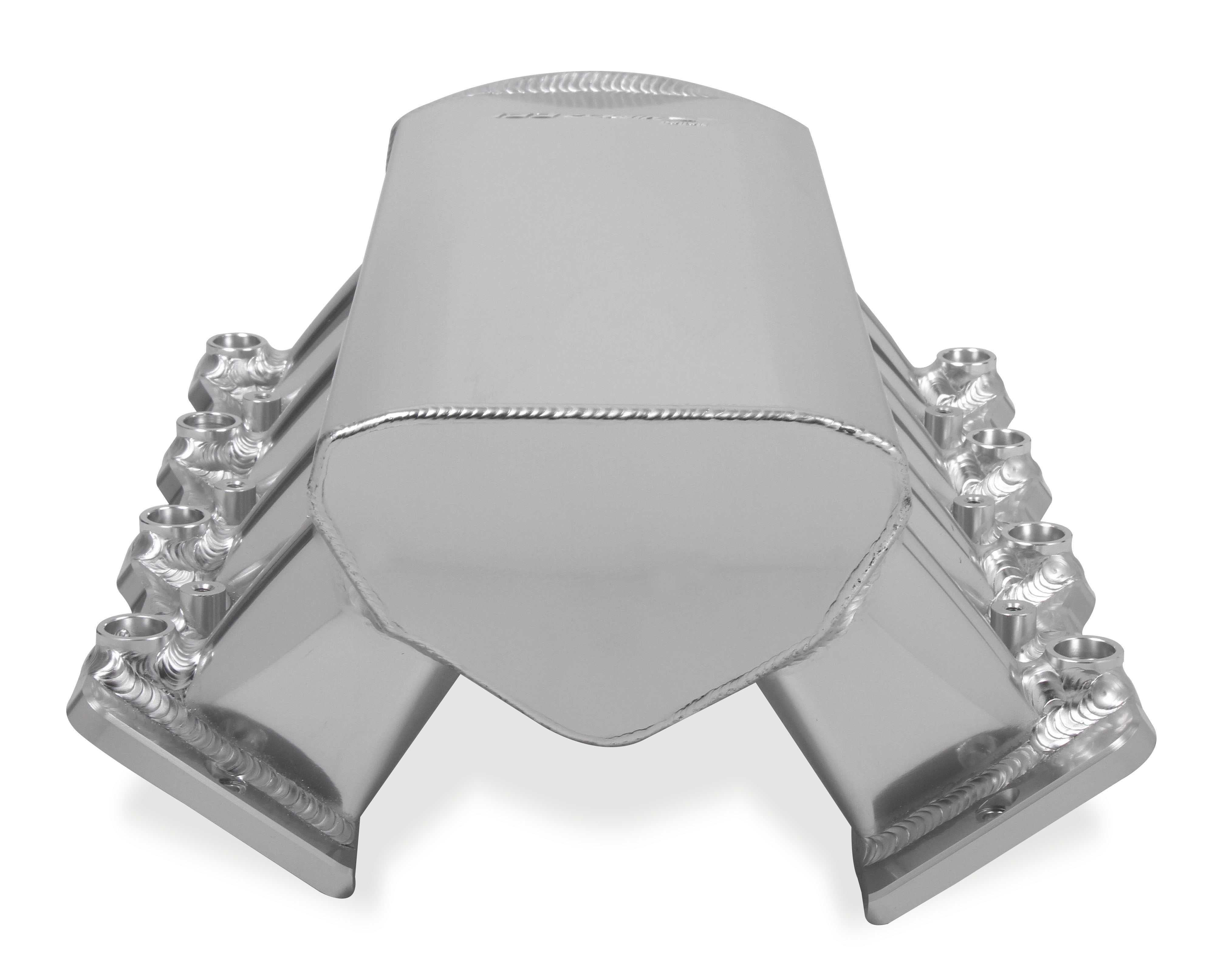

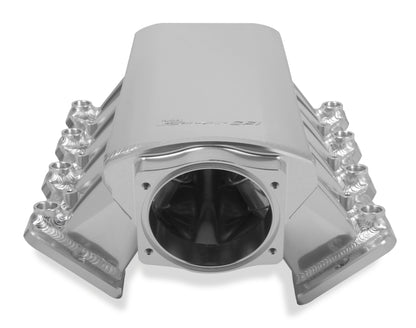

Sniper EFI Low-Profile Sheet Metal Fabricated Intake Manifold
Type: Intake Manifold
Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.
Each manifold is ready to bolt on out of the box and are designed to accept our Sniper high-flow throttle bodies and include high flow fuel rail kit. This updated design was developed to allow the end user to fit under a stock hood.
Each manifold is precision fixtured and welded for a perfect fit and maximum structural integrity. Choice of Throttle Body opening sizes of 92mm & 102mm are available
Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent
Features:
- Silver finish creates high impact under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

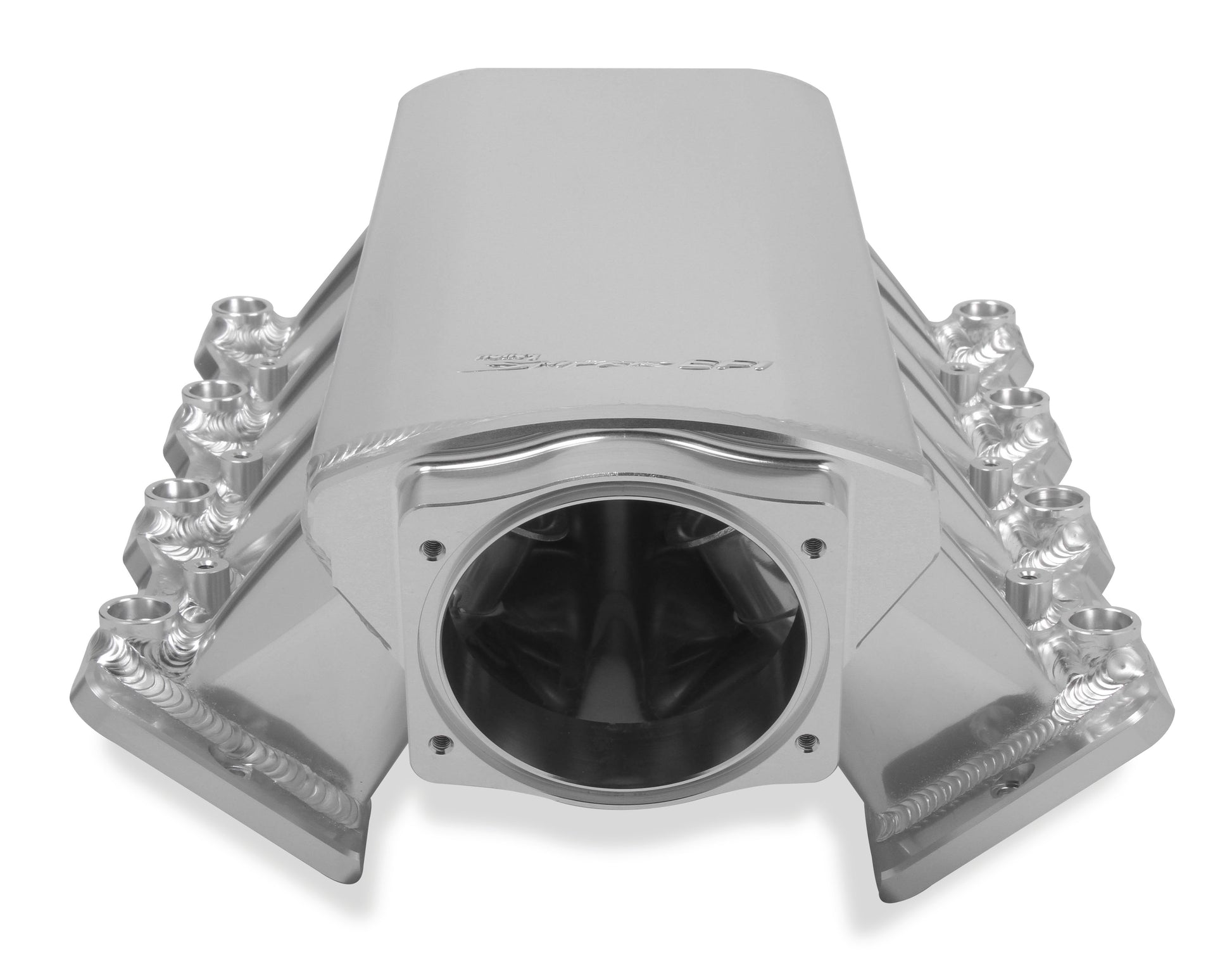

- 102mm throttle bore opening for increased air flow

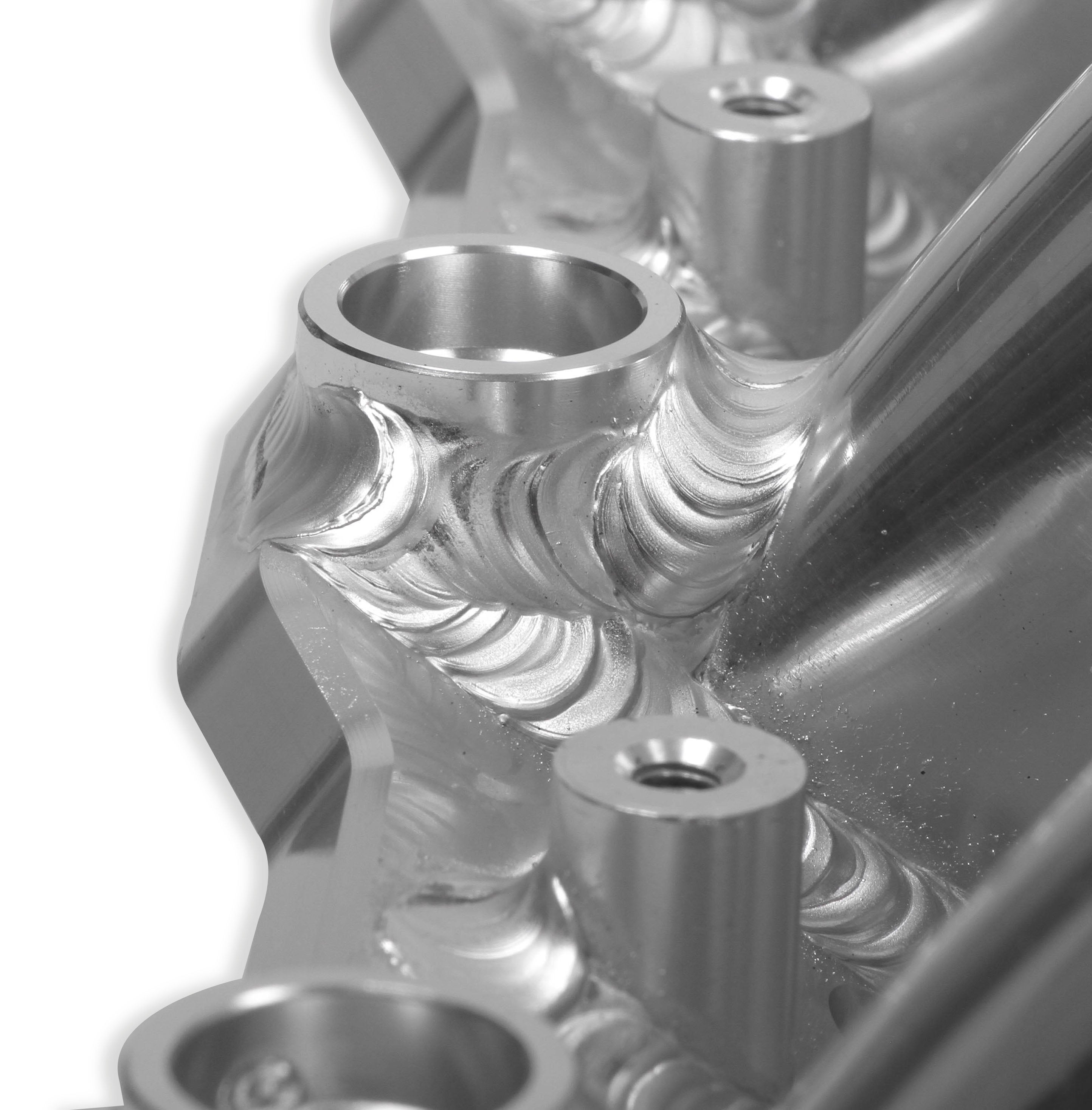

- 100% TIG welded for strength and durability
- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

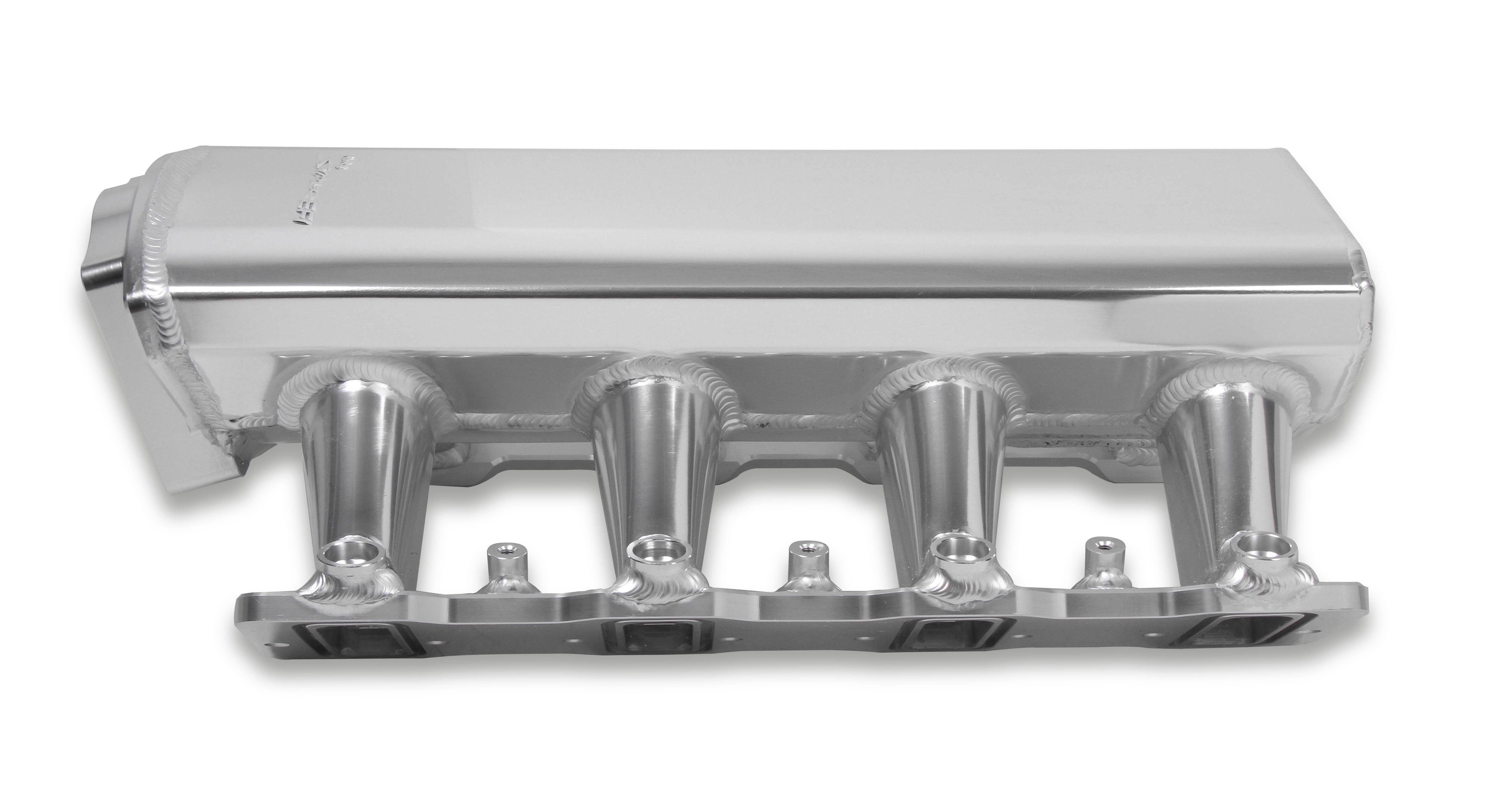

- Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum

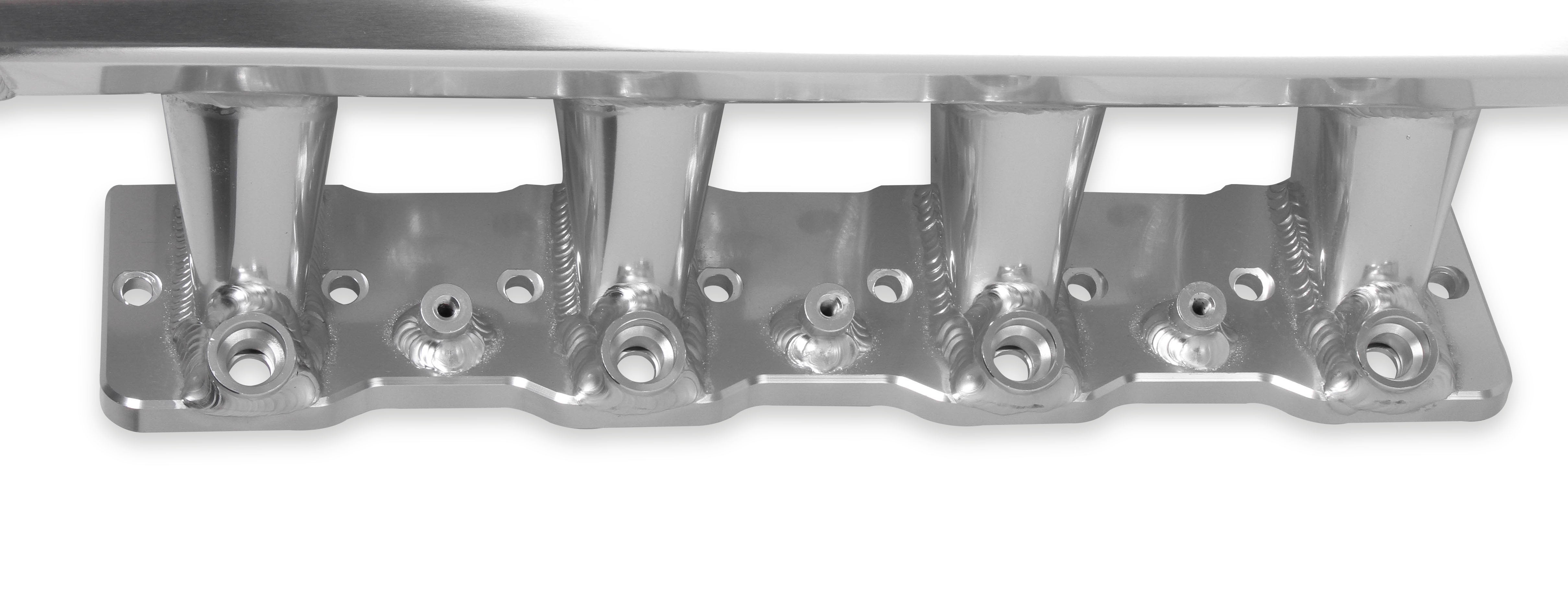

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response

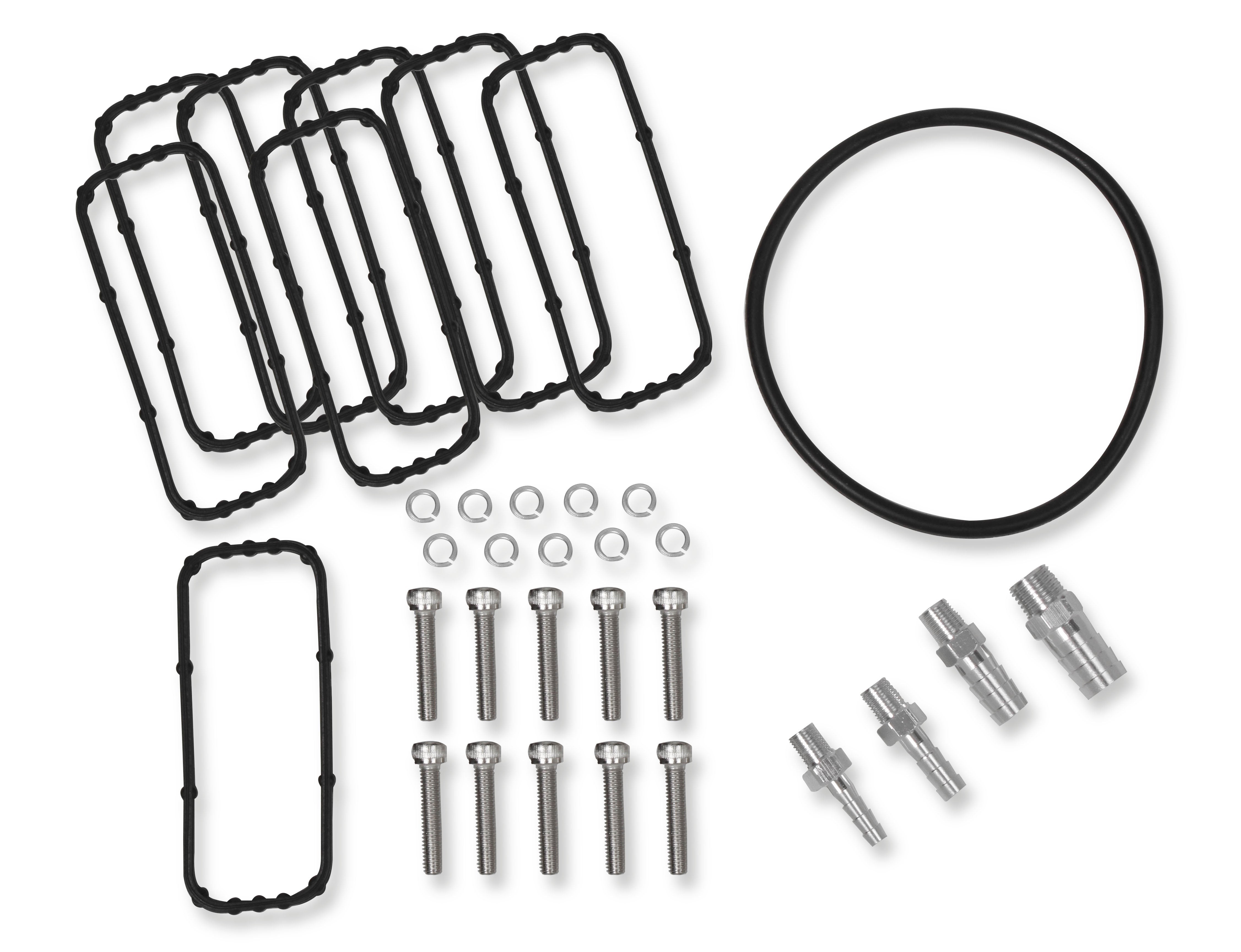

- Product includes all gaskets and hardware for a hassle-free installation
- The Sniper intake will only accept EV1 style injectors.
Specs:
- Brand: Holley Sniper EFI
- Category: Engine
- Color: Silver
- Construction: Fabricated
- Emission Code: 4
- Engine: GM LS3/L92
- Finish: Silver
- Front Height: 6.077 inch
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Gasket Or Seal Included: Yes
- Injector Style Provision: EV1
- Intake Port Gasket(s) Included: Yes
- Part Type: Engine Intake Manifold
- Product Type: Intake Manifold
- Rear Height: 5.290 inch
- RPM Power Band: 1800-6400
- Runner Length: 4.252" (108mm)
- Style: EFI
- Sub Category: Cylinder Block Components
- Throttle Body Included: No
- Throttle Bore: 102mm

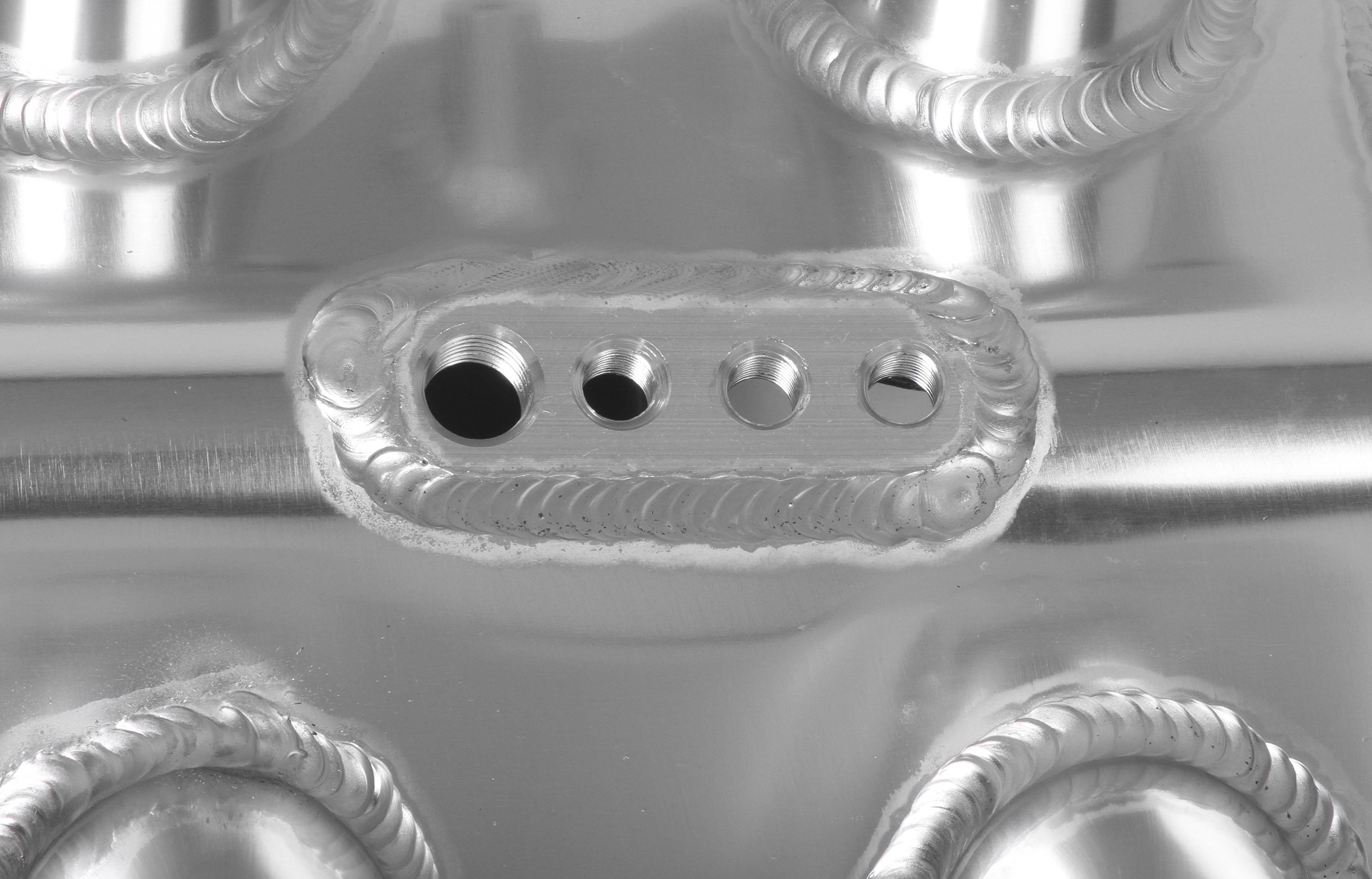

- Vacuum Ports: (3) 1/8"-28BSPT & (1) 1/4"-19BSPT
- Warranty: Limited 90 Day
Tech Resources:
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
