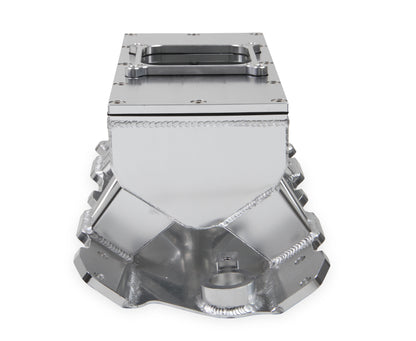

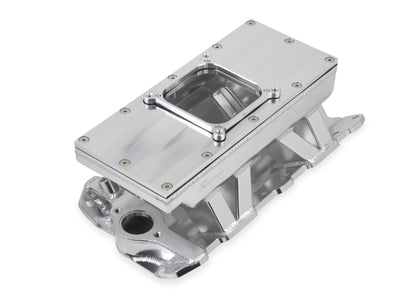

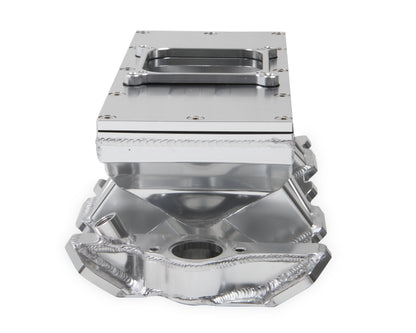

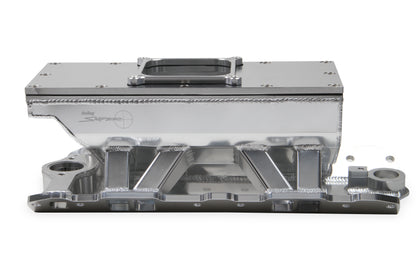

Holley Sniper EFI - Sniper Sheet Metal Fabricated Intake Manifold Small Block Chevy 825131
Type: Intake Manifold | Fits: Chevy
Holley Sniper continues to push the aftermarket by introducing fabricated carbureted and EFI intake manifolds for GM Small Block and LS along with Ford 4.6 Modular 3-valve and 5.0L Coyote engines. These performance sheet metal intakes are great looking and an excellent value compared to other fabricated intake manifolds.
Each manifold is ready to bolt-on out of the box (including a high-flow fuel rail kit for EFI versions). These manifolds are precision fixtured and welded for a perfect fit and maximum structural integrity.
Features:
- Expanded Designs to accommodate (1 x 4150) & (2 x 4150) carbureted applications for GM LS7, Ford 4.6L 3-valve Mod-Motor, and Ford 5.0L Coyote platforms
- NEW βModularβ Removable Top Plates options for Small Block Chevy now available (1 x 4150, 2 x 4150, and 1 x 4500 flange options)
- 3mm (1/8") thick T6061 Sheet Aluminum construction, strong and durable even under high horsepower and boosted conditions
- 100% TIG welded
- EFI Intakes include 3/8" Fuel rail kits with -8A fittings and crossover braided line capable of supporting 750+ horsepower (w/ laser engraved Sniper EFI logo)
- Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders
- Available in Silver and Black Finishes
Specs:
- Basic Operating RPM Range: 1800-7000 RPM
- Brand: Holley Sniper EFI
- Carburetor Flange: Dominator/4500
- Category: Sniper Intake Manifolds SP
- Color: Polished
- Construction: Fabricated
- EGR Port: No
- Emission Code: 4
- Engine: Chevrolet Small Block Gen I
- Finish: Silver
- Flange Size: 4500
- Front Height: 8.503 inch IN
- Front Maximum Height: 8.503 IN
- Fuel Injectors Included: No
- Fuel Rail(s) Included: No
- Gasket Or Seal Included: No
- Intake Port Gasket(s) Included: No
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Plenum Finish: Polished

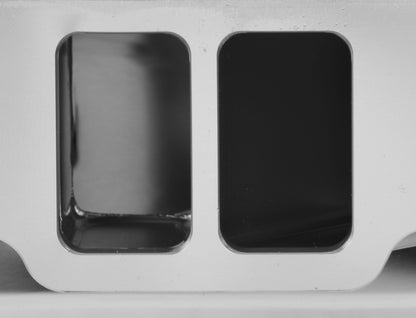

- Port Size: 1.90" x 1.15"
- Product Type: Intake Manifold
- Rear Height: 8.503 inch IN
- Rear Maximum Height: 8.503 IN
- Removable Runners: No
- Removable Top/Lid: Yes
- RPM Power Band: 1800-7000 RPM RPM
- Single Or Dual Plane Type: Single Plane
- Style: Carbureted
- Throttle Body Included: No
- Vacuum Ports: None
- Warranty: Limited 90 Day
Tech Resources:
Not Compatible with Large Cap HEI Distributors
