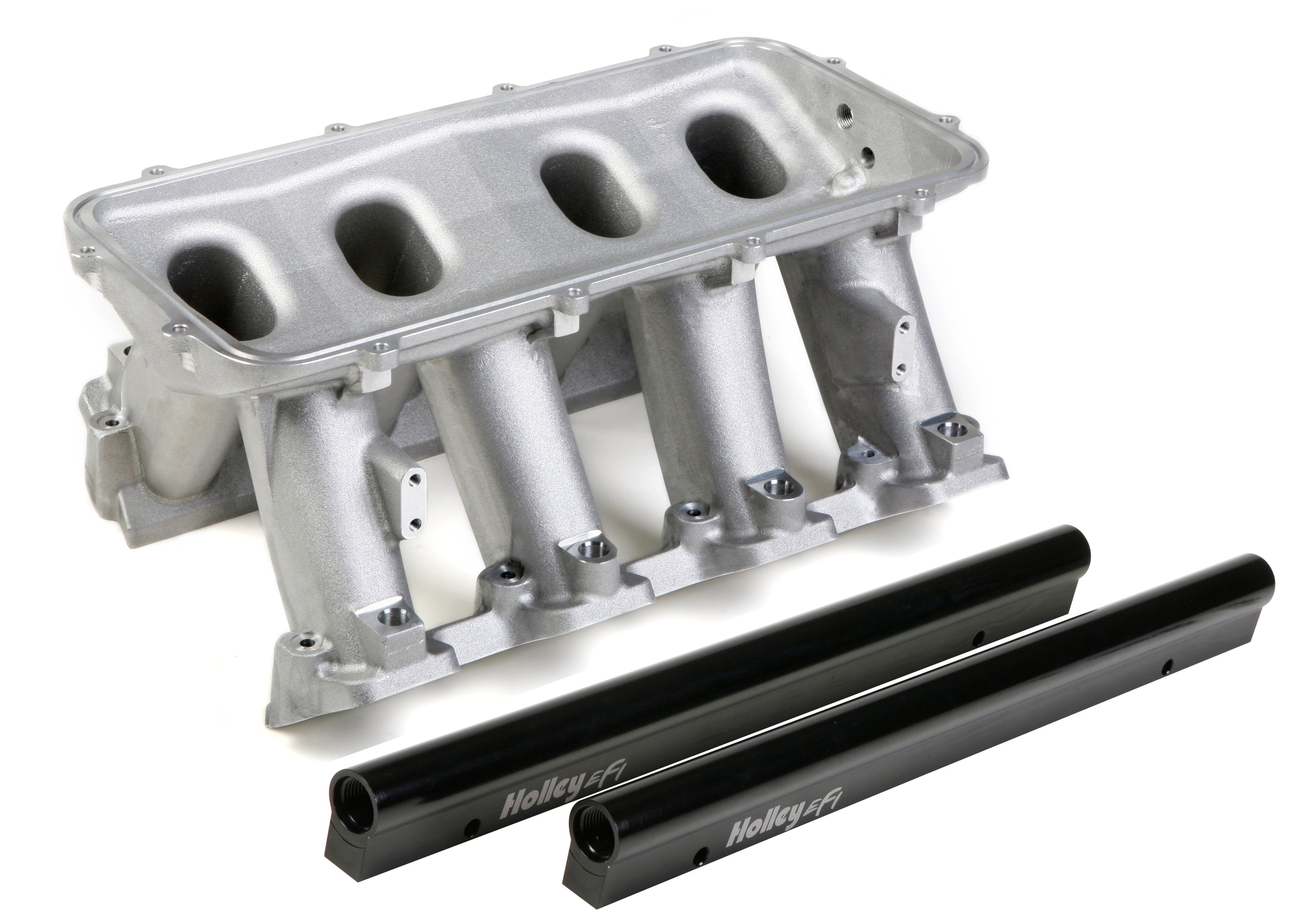

Holley EFI - Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6 300-227
Type: Intake Manifold Base | Fits: GM
The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as an alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more.
• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and for builders and fabricators as the foundation for custom induction systems.
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
• EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits
• Cast aluminum construction
• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range with max power at 7000-8000+RPM
Features:
- Port Size - 2.49” H x 1.21” W
- Mounting Flange Gasket Type - Standard LS3 Molded O-ring
- Plenum Top Gasket Type - 3/32” Round O-ring Cord
- Runner Length - 6.58” As-Cast Runner Cross-Sectional Area - Tapered 4.25 in² to 2.53 in²
- Silver color
Specs:
- Basic Operating RPM Range: 3500-8000 RPM
- Brand: Holley EFI
- Category: Engine
- Color: Natural
- Construction: Cast
- EGR Port: No
- Emission Code: 4
- Engine: GM LS1/LS2/LS6
- Finish: Silver
- Fuel Injectors Included: No
- Fuel Rail(s) Included: Yes
- Fuel System Type: EFI
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Intake Port Gasket(s) Included: No
- Material: Aluminum
- Nitrous Bung(s) Included: No
- Part Type: Engine Intake Manifold
- Plenum Finish: Natural
- Product Type: Intake Manifold Base
- Removable Runners: No
- RPM Power Band: 3500-8000 RPM
- Single Or Dual Plane Type: Single Plane
- Sub Category: Cylinder Block Components
- Throttle Body Included: No
- Type of Component: Lower Manifold
- Warranty: Limited 90 Day
Tech Resources:
These parts should be used for the following applications: Performance, Racing, and Street Rodder where hood restrictions are not a consideration.
