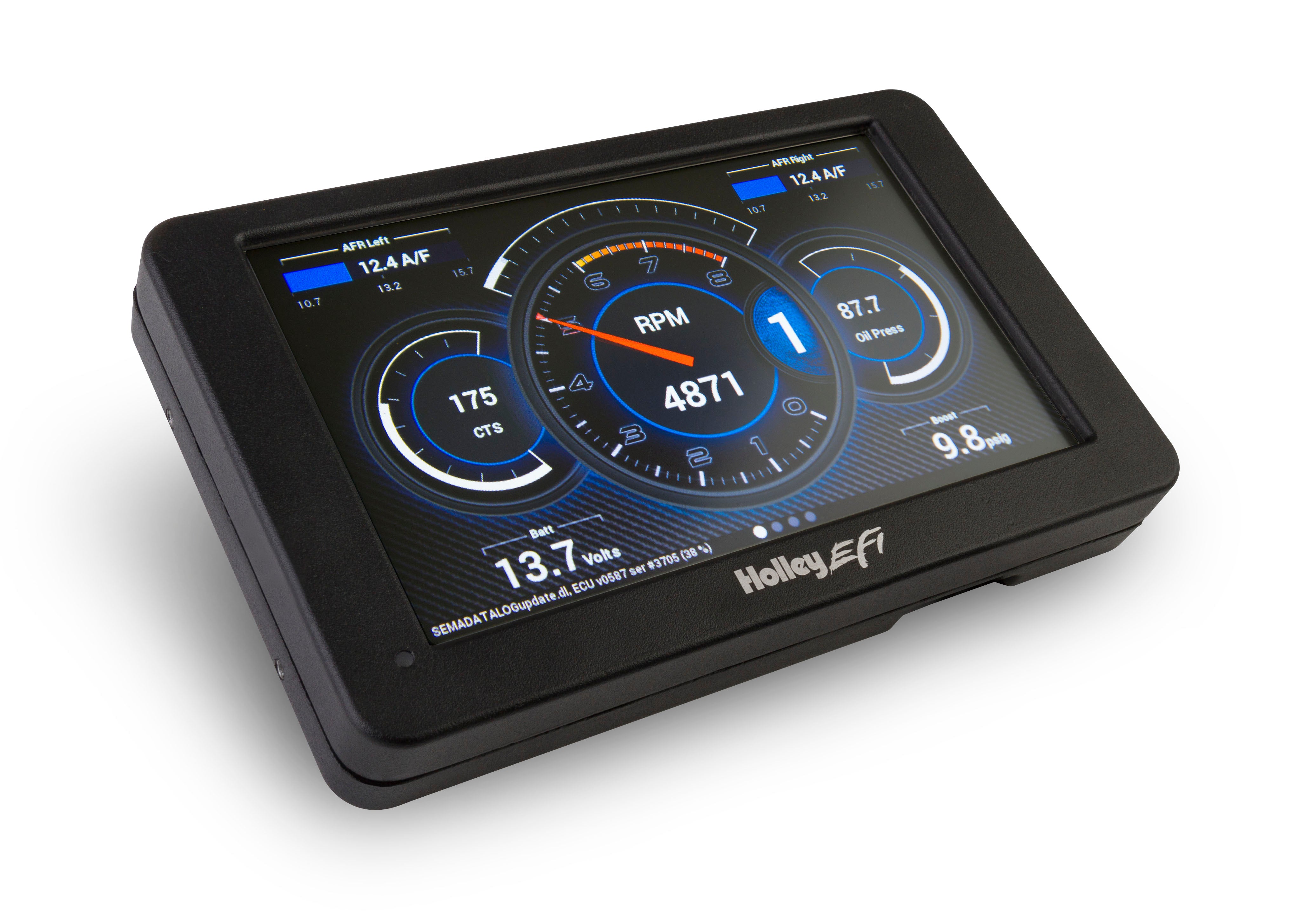

Holley EFI 7" Digital Dash

Our digital dash comes with an expansive list of features for the street driver, strip driver, and everything in between. With multiple gauges and indicator screens, you have many values and inputs to continuously monitor. For our touchscreen, we added virtual switch panels, eliminating and cleaning up your physical dash mounted switches. The dash also boasts powerful data logging software, capable of 10 samples per second with built in data playback capabilities. As the driver, you can have direct playback on the dash or connect a laptop for more in-depth review. For data storage, you can connect a cable and download data logs via USB drive or expand internal memory storage with a Micro SD card. With the dash being housed in an aluminum waterproof housing, you have multiple options on where you can mount the unit. For maximum results, pair with one of our ECU’s.

Features:

• Plug and play to Holley EFI systems via CAN bus (not compatible with Sniper 2)
• Weatherproof aluminum housing allowing flexible mounting options (template included)
• 7” screen with 800 x 480 resolution measuring at 4.625" H x 7.5” W x 1" Depth
• Auto brightness and dimming with low glare to the touchscreen to view from any driving angle
• 10 preconfigured screens you can customize to personal preferences displaying any measurements
• Complete customizable display of all EFI parameters including every user configurable input and output available
• Numerous gauge and indicator types with limitless customization options
• Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual switch panel replacing the need for physical switches in vehicles
• Built in warning lights and alarms to keep you alert for any set parameters
• Progressive shift light and multiconfiguration light bar
• Control and on-screen playback of data logs
• Integrated 3 Axis Accelerometer
• Ability to connect to Holley and non-Holley ECU’s
• Download and save data logs to external USB memory stick or expand internal storage on onboard microSD card

Specs:

• Brand: Holley EFI
• Bulbs Included: No
• Category: Gauges and Gauge Accessories
• Connector Gender: Male Female
• Depth: 1"
• Emission Code: 5
• Grade Type: Performance
• Height: 4.625"
• Illuminated: Yes
• Maximum Gauge Diameter: Programmable
• Minimum Gauge Diameter: Programmable
• Mounting Hardware Included: No
• Product Type: 7" Digital Dash
• Screen Size: 7" Diagonal
• Screen Type: Resistive touch screen
• Universal Or Specific Fit: Universal
• Width: 7.5"

Tech Resources:

Tuning is not supported with Terminator X ECU's. Not compatible with Sniper 2.

Instructions - 199r10843rev1.pdf

Instructions - 199r10746rev1.pdf

Instructions - 199r10746t__mounting_template_actual_size.pdf
