Fuel Pump Assembly - 400 LPH
Type: Fuel Pump

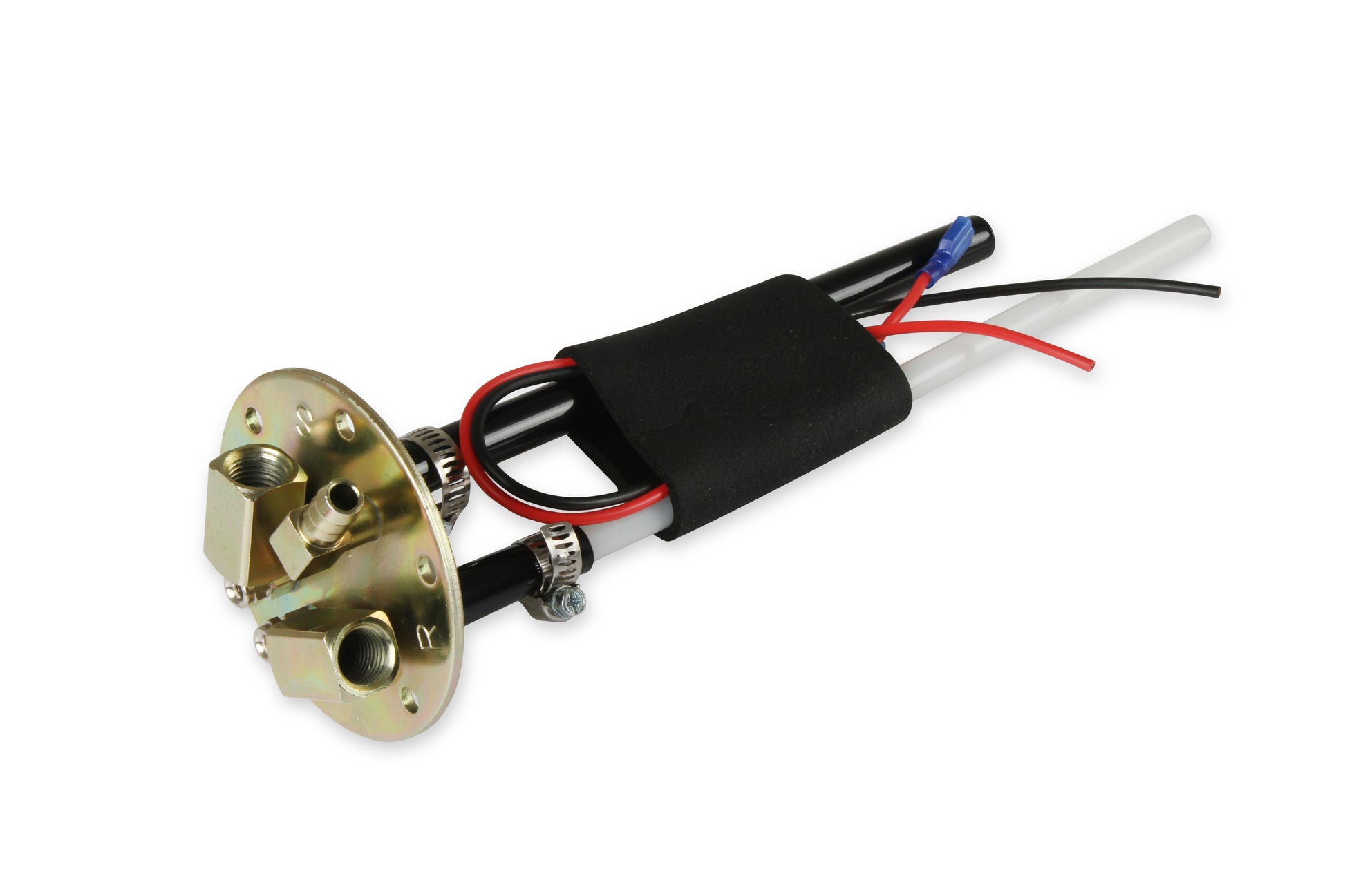

400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line. For a better seal, use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.
Features:

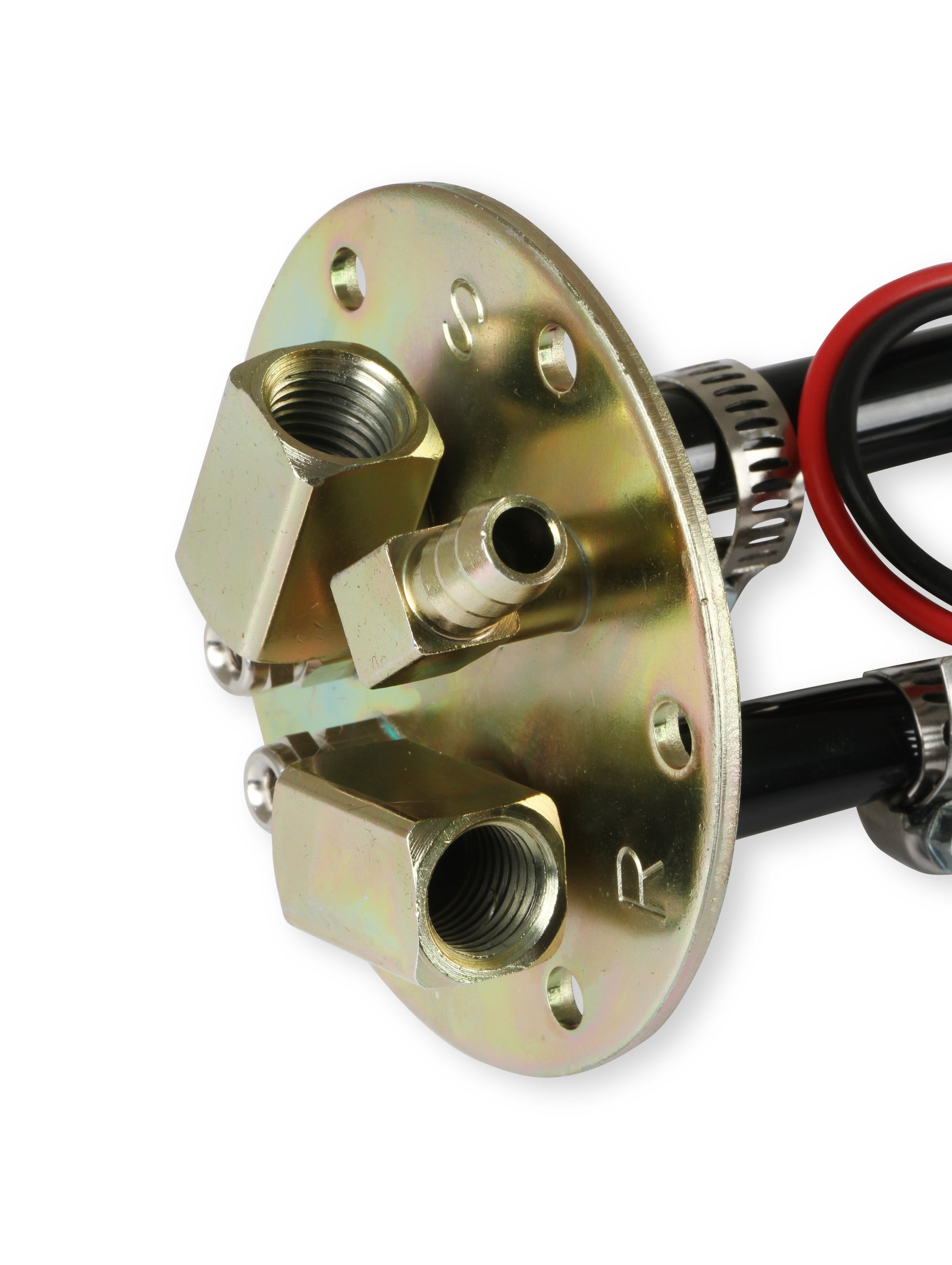

- 1/4" NPT Supply and Return Line
- In-Tank Wire Harness
- Made in USA
- Heavy 10 gauge no-warp mounting plate
- Barbed Vent Fittings
- Up to 100 PSI
- New Mounting Screws and gasket available separately
Specs:
- Brand: Holley Sniper EFI
- Category: Air and Fuel Delivery
- Color: Gold
- Connector Quantity: N/A
- Emission Code: 5
- Finish: Gold Iridited
- Fuel Sending Unit Included: No
- Fuel Tank Pressure Sensor Included: No
- Fuel Type: Gasoline
- Gasket Or Seal Included: No
- Material: Steel
- Part Type: Fuel Pump Module Assembly
- Product Type: Fuel Pump
- Regulator Included: No

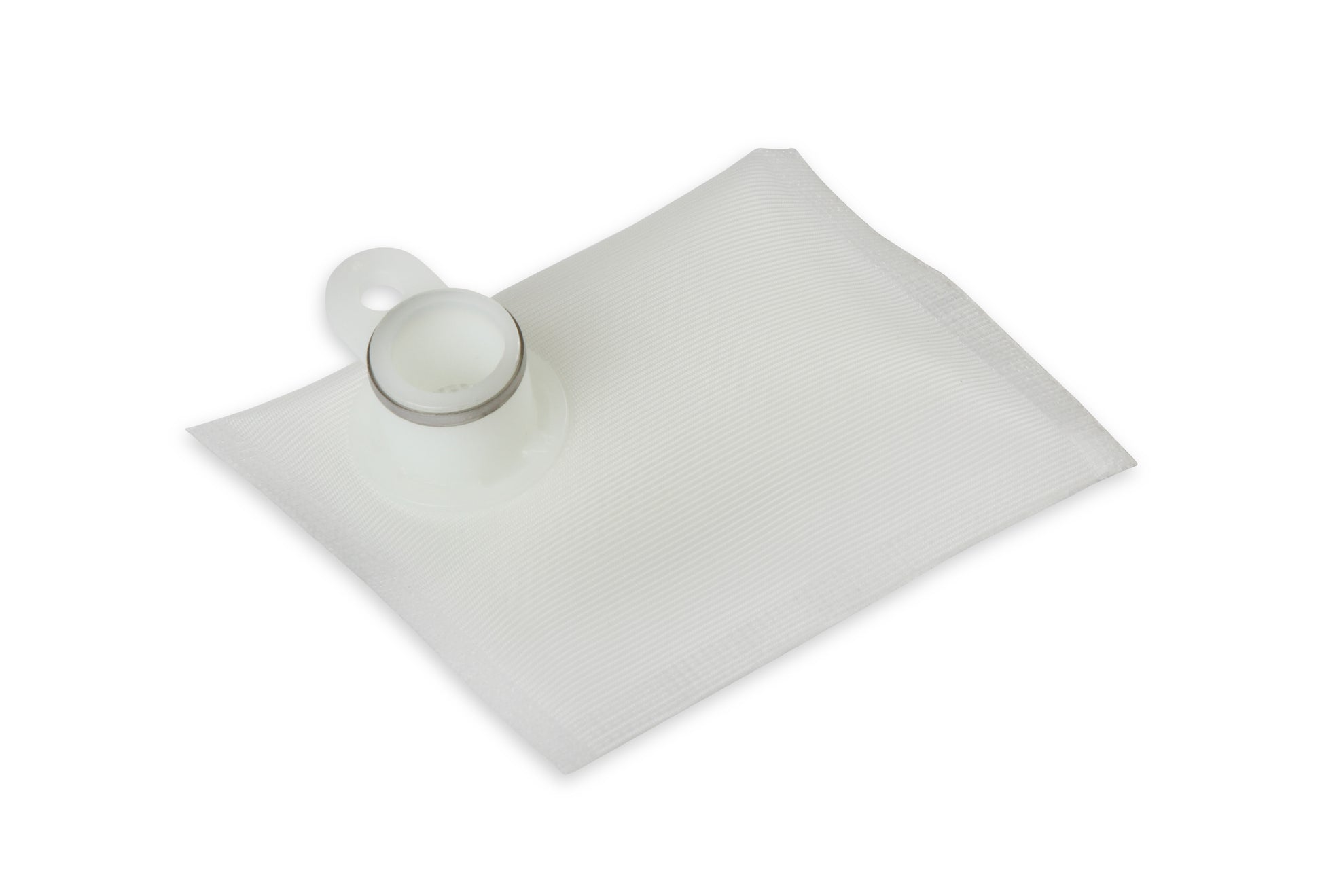

- Strainer Included: Yes
- Sub Category: Fuel Pumps and Related Components
- Terminal Quantity: N/A
- Universal Or Specific Fit: Universal
- Warranty: Limited 90 Day
Tech Resources:
New Mounting Screws and gasket available separately.
*19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc....) fuel tanks since they are shallower at the point where the fuel pump is mounted.
*19-169 kit for all other EFI fuel tanks
Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.
