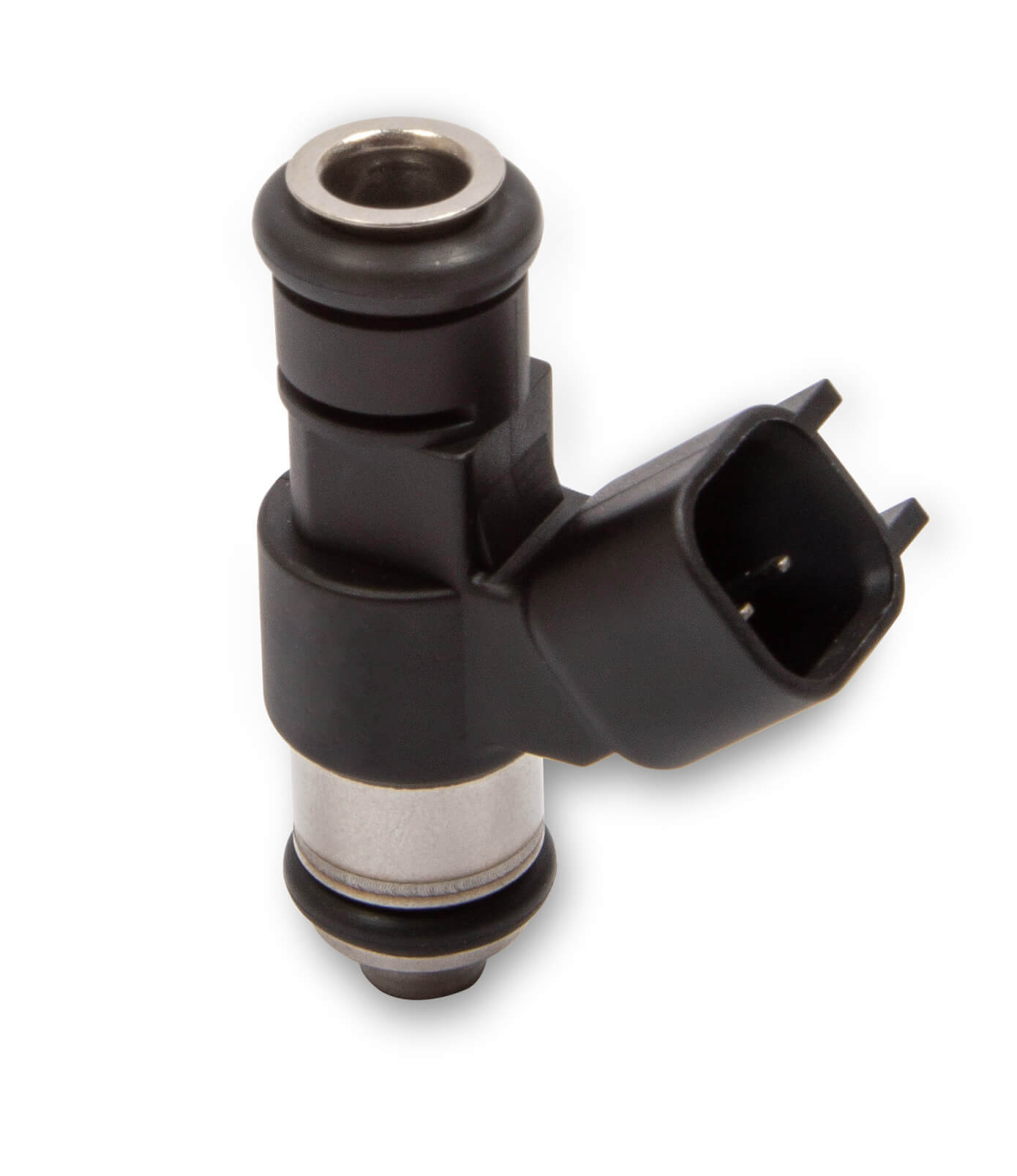

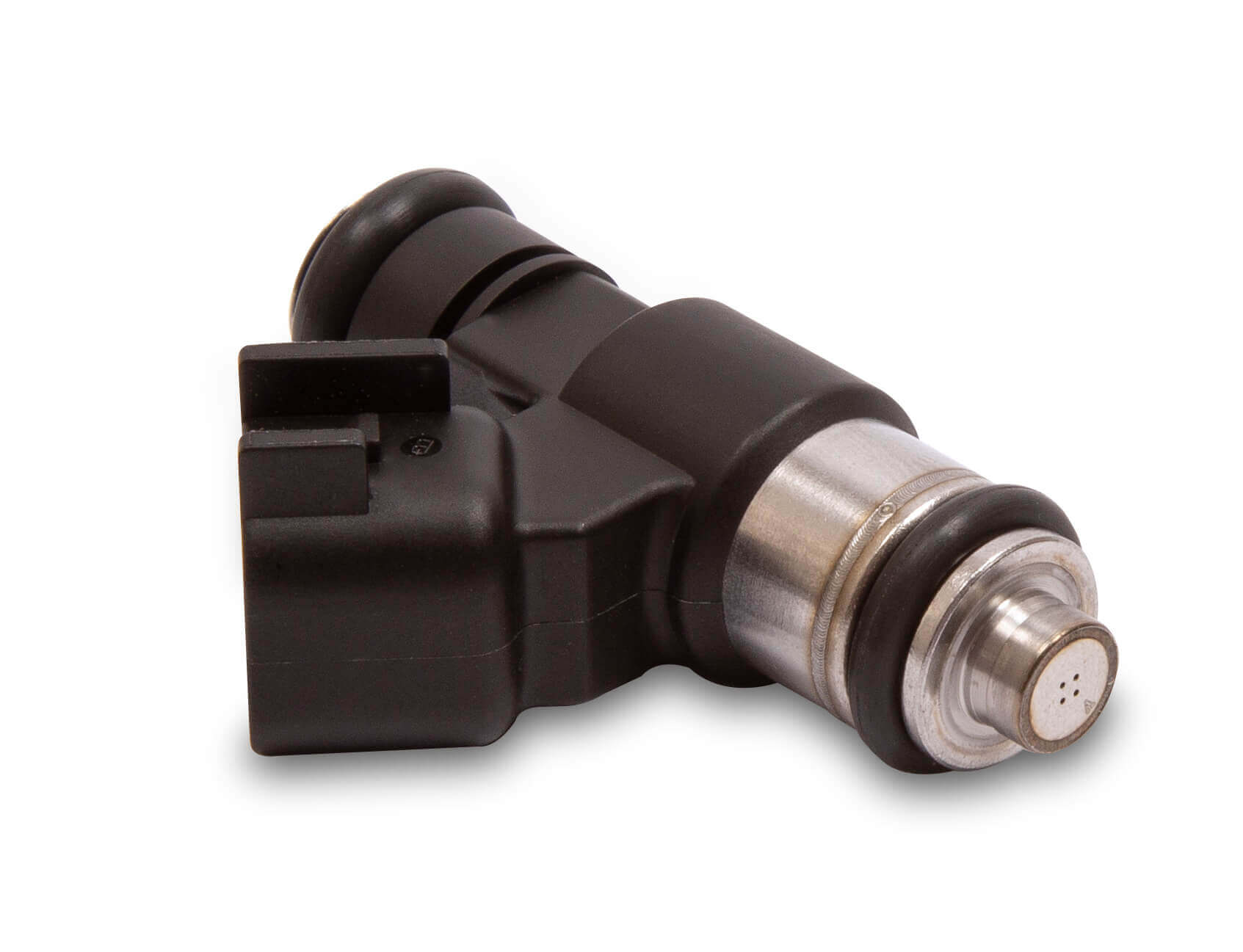

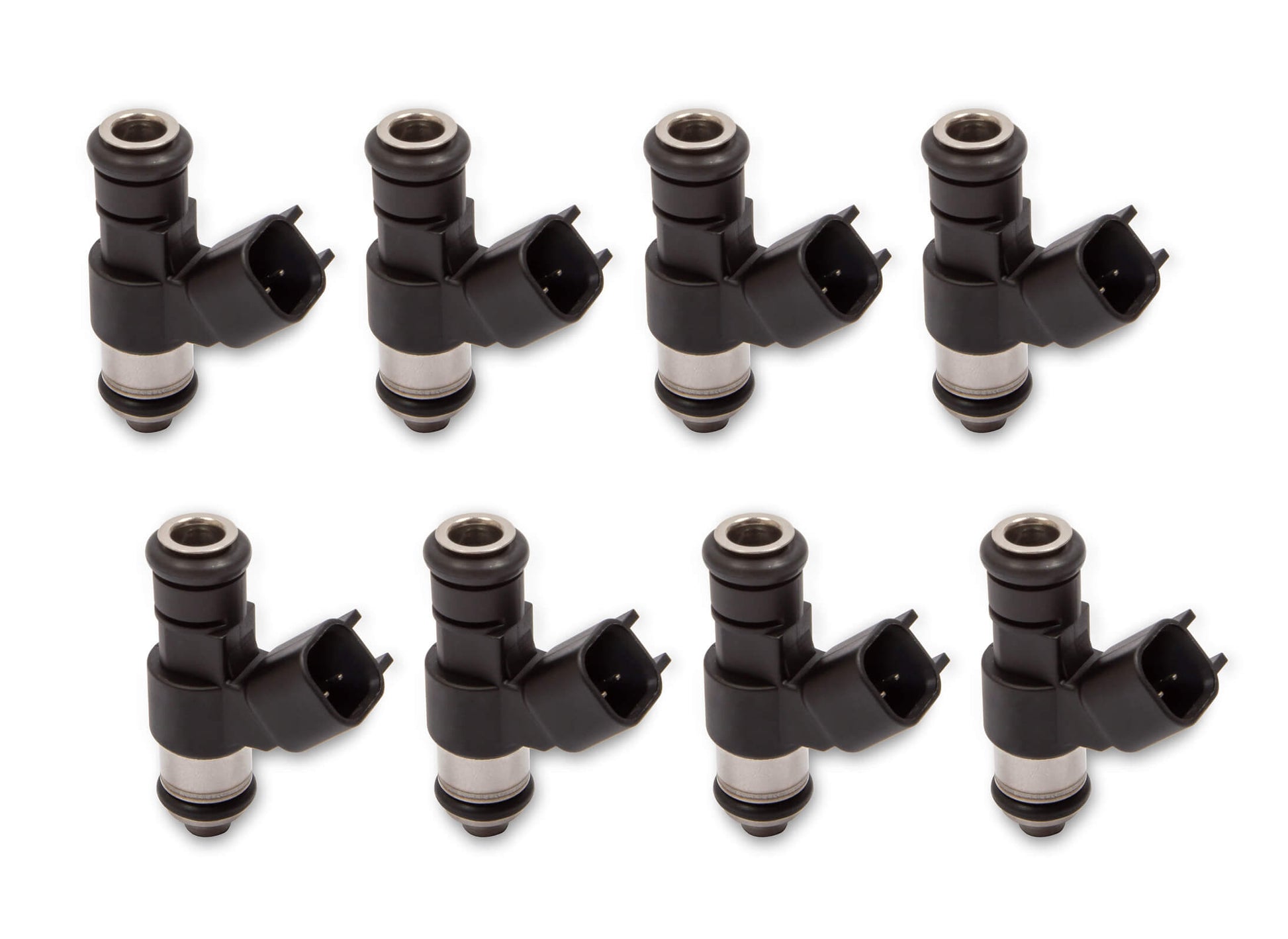

Holley Terminator X Fuel Injectors - Set of Eight
Type: Fuel Injector
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow 220 lb./hr. at 43 PSI of base fuel pressure.
- USCAR injector connector
- 40mm o-ring to o-ring length
- Methanol compatible – for use in extreme horsepower applications
Specs:
- Body Diameter: 0.65
- Body Length: 1.85"
- Body Style: EV6
- Brand: Holley EFI
- Category: Air and Fuel Delivery
- Color: Black
- Connector Series: USCAR - EV6
- Connector Shape: USCAR - EV6
- Emission Code: 4
- Flow Rate: 220 4U
- Fuel Injection Type: Port
- Fuel Type: E-85, Gasoline, Methanol
- Gasket Or Seal Included: Yes
- Grade Type: Performance
- Impedance: High (12.2 Ohm)
- Mounting Hardware Included: No
- O-Ring Quantity: 2 per injector
- O-Ring to O-Ring: 1.421
- Part Type: Fuel Injector
- Product Type: Fuel Injector
- Rated Injector Flow: 220 lb/hr
- Retainer Clips Included: No
- Sub Category: Fuel Injection System and Related Components
- Terminal Gender: Female
Tech Resources:
These injectors are rated at 43psi base fuel pressure. High Base Fuel Pressure is not recommended.
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment.
